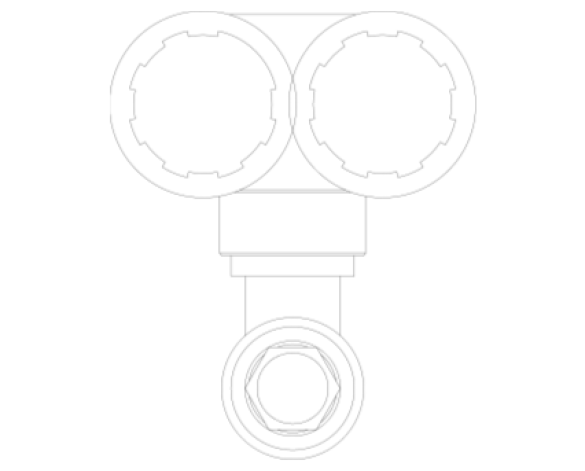

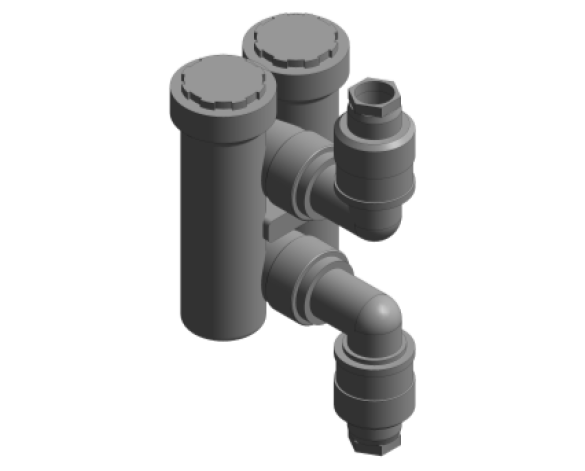

Magna Clean - Dual XP

Object metadata

• _Authorinfo@adey.com
• _Authorized ByIan Holmes
• _Bim Spec Guid0
• _BS Bible Version15
• _Created Byinfo@adey.com
• _Current Revision2
• _Distributed Bywww.bimstore.co.uk
• Accessibility Performancen/a
• Asset TypeFixed
• BIM Object NameAdey_PipeAccessories_MagnaClean_DualXP
• Classification NameUniclass2015
• Classification ValuePr_60_55_97
• Code Performancen/a
• ColorBlack
• Constituentsn/a
• Created Byinfo@adey.com
• Created On2018-02-01:T00:00:00
• DescriptionThe MagnaClean DualXP has two powerful magnetic capture zones to remove greater volumes of iron oxide sludge and is the ideal solution for light commercial systems
• Documentation Certificatesn/a

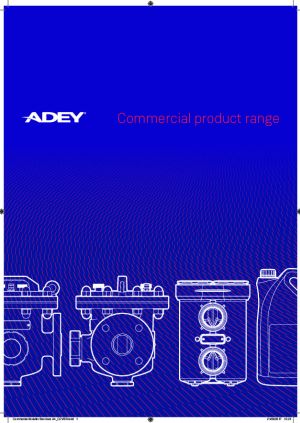

• Documentation Installation Guidespecifi.bimstore.co.uk/document/share/2414
• Documentation Literaturespecifi.bimstore.co.uk/document/share/2414
• Documentation Maintenancen/a
• Documentation Technicalspecifi.bimstore.co.uk/document/share/2414
• Drain Plug ClearanceYes
• Drain Plug Clearance Distance50 mm
• Duration UnitYears
• Expected Life0
• Featuresn/a
• Finishn/a
• Flow Rate For Optimum CaptureUP TO 100 LITRES PER MINUTE
• Graden/a
• Ifc Export AsIfcValve
• Ifc Export TypeIfcValveTypeEnum.MIXING
• Installation ClearanceYes
• Installation Clearance Distance250 mm
• KeynoteS12
• ManufacturerAdey
• Manufacturer NameAdey
• MaterialGlass Fibre Reinforced Nylon / Brass
• Max Operating Temperature95 °C
• Max Working Pressure6.0 bar
• ModelMagnaClean DualXP
• Model NumberMagnaClean DualXP
• Model ReferenceDualXP
• NBS DescriptionWater treatment products
• NBS Object NameAdey - Water treatment products
• NBS Office Master Tagn/a
• NBS Referencen/a
• Nominal Depth0 mm
• Nominal Height0 mm
• Nominal Length0 mm
• Overall Height400 mm
• Production Year2018
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Size1-1/2 or 1-1/4
• Spare Partsn/a
• Type CommentsDualXP
• Type NameDualXP
• URLwww.adey.com
• Volume2.43 LITRES (WHEN TELESCOPIC RODS ARE RETRACTED)
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts2
• Warranty Duration UnitYears
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partsinfo@adey.com
