A squared, textured kerb replicating the age-old silver granites. Meltone kerb can be combined with complementary block paving ranges such as Lugano and Invicta Block paving to create premium, contemporary spaces. Ideal for use in conservation areas, public realm, city centre improvements, and residential areas to provide a high-end, durable paving solution.

With a full range of fittings including radius, straights, angles, drop kerbs and quadrants, Meltone Kerb is a versatile solution for your landscaping project.

The range

125x150mm and 125x255mm standard kerbs
Angle, Radii and Quadrants Kerbs
Transition units

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/meltone-kerb/document/object-user-guide
Abrasion ResistanceClass 4 - ≤ 20mm - Determined by Wide Wheel Abrasion Test
Accessibility Performancen/a
ApplicationsUse to complement straight kerb and channel units for curved alignments. Applications from lightly loaded (pedestrian use, cycle ways, etc.) to heavy duty (adoptable highways, bus stations, industrial, etc.).
Assembly CodeG2010300
Asset TypeFixed
BIM Object NameBrettLandscaping_Kerbs_Meltone_RadiusKerb
Center Radius9938 mm
Classification NameUniclass2015
Classification ValuePr_25_93_60_20
Code Performancen/a
ColorBlack Fleck
Constituentsn/a
Created Byproject.designer@brett.co.uk
Created On2021-11-01T09:00:00
DescriptionA hardwearing granite-styled wet-pressed paving flag, Brett Meltone featured a finely textured surface and straight edges, making it the ideal choice for designers looking to create a contemporary aesthetic.
Documentation Certificateswww.bimstore.co/products/meltone-kerb/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/meltone-kerb/document/installation-guide
Documentation Literaturewww.bimstore.co/products/meltone-kerb/document/product-literature
Documentation Maintenancewww.bimstore.co/products/meltone-kerb/document/maintenance-information

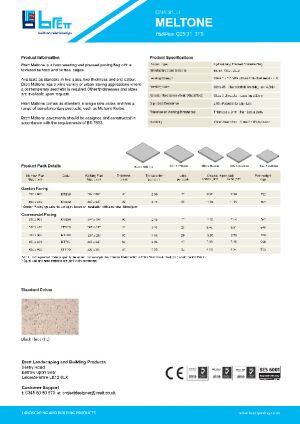

Documentation Technicalwww.bimstore.co/products/meltone-kerb/document/technical-data-sheet
DurabilityWater Absorption - Class 2 ≤ 6% by mass
Duration UnitYear
Emission Of AsbestosNo content
Expected Life0
External AngleYes
External Fire PerformanceDeemed to satisfy
External Radius10000 mm
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcCovering
Ifc Export TypeIfcCoveringTypeEnum.FLOORING
Internal AngleNo
Kerb Angle4.47 °
Kerb Depth125 mm
Kerb Height150 mm
Kerb Length780 mm
Kerb MaterialBrettLandscaping_Kerbs_Meltone_BlackFleck
KeynoteQ10
ManufacturerBrett Landscaping
Manufacturer NameBrett Landscaping
MaterialBlack Fleck
ModelMeltone
Model Number125mm(D) x 780mm(L) x 150mm(H) - 10m - External
Model ReferenceMeltone Radius Kerb
NBS DescriptionPrecast concrete quadrant and angle kerbs
NBS Object NameBrett Landscaping - Precast concrete quadrant and angle kerbs
NBS Office Master Tagn/a
NBS Reference45-20-64/375
Nominal Depth125 mm
Nominal Height150 mm
Nominal Length780 mm
Production Year2021
Product Weight56.00 kg
Radius10
Reaction To FireClass A1 when used for internal flooring
Referenced Standardn/a
Replacement Costn/a
ShapeRectangular
Size125mm(D) x 780mm(L) x 150mm(H) - 10m - External
Slip/Skid Resistance(USRV) Potential for Slip - extreamly low
Spare Partsn/a
StrengthClass 3 - Characteristic bending strength of 6.7 MPa with no individual results less than 4.0 MPa
Thermal Conductivity1.2 W/(mK)
Type CommentsMeltone Radius Kerb
Type Name125mm(D) x 780mm(L) x 150mm(H) - 10m - External
URLwww.brettlandscaping.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborproject.designer@brett.co.uk
Warranty Guarantor Partsproject.designer@brett.co.uk
