MERLYN - 8 Series Shower Wall

4.6k
0
5 / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

02/11/2021

Download BIM

Add to collection

Available for:

The 8 Series Showerwall is stylish yet functional by design - frameless 8mm toughened safety glass, this panel stands at an impressive 2015mm high including rail and is suitable for either a recess with a corner situation - it is guaranteed to make a statement in any bathroom.

This download contans the 8 Series Shower Wall Range created by bimstore.co.uk for Merlyn.

This component is created in Revit 2014 and is in line with 2015 industry standards.

Object metadata

_AuthorRyan Lashley
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co.uk
_Current Revision2
_Distributed Bywww.bimstore.co.uk
_Object User Guidewww.bimstore.co/products/merlyn-8-series-shower-wall/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010100
Asset TypeFixed
BIM Object NameMerlyn_Casework_Series8_Showerwall
Classification NameUniclass2015
Classification ValuePr_40_20_06_79
Code Performancen/a
ColorChrome
Constituentsn/a
Created Bybarratt@merlyn.ie
Created On2016-09-01-T00:00:00
Depth44 mm
DescriptionThe 8 Series Showerwall is stylish yet functional by design - frameless 8mm toughened safety glass, this panel stands at an impressive 2015mm high including rail and is suitable for either a recess with a corner situation - it is guaranteed to make a statement in any bathroom.
Documentation Certificateswww.bimstore.co/products/merlyn-8-series-shower-wall/document/product-certificates

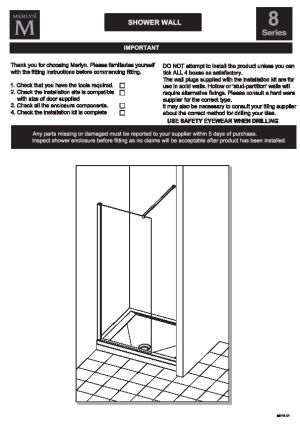

Documentation Installation Guidewww.bimstore.co/products/merlyn-8-series-shower-wall/document/installation-guide
Documentation Literaturewww.bimstore.co/products/merlyn-8-series-shower-wall/document/product-literature
Documentation Maintenancewww.bimstore.co/products/merlyn-8-series-shower-wall/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/merlyn-8-series-shower-wall/document/technical-data-sheet
Duration UnitYears
Expected Life30
FeaturesHeight: 2015mm (including rail). 8mm toughened glass. Easy clean Mershield Stayclear protected glass. Lifetime Guarantee. Suitable for wetroom and shower tray application. Suitable for recess or corner situation. Reversible.
Glass Offset14 mm
Glass Thickness8 mm
Graden/a
Height2015 mm
Ifc Export AsIfcBuildingElementProxy
Ifc Export TypeSurface
KeynoteN13/375
ManufacturerMerlyn
Manufacturer NameMerlyn
MaterialGlass & Chrome
Material Merlyn ChromeMerlyn - Chrome
Material Merlyn GlassMerlyn - Glass
Material Merlyn RubberMerlyn - Rubber
ModelSeries 8 Showerwall
Model ReferenceSeries 8 Showerwall
NBS DescriptionShower enclosures
NBS Object NameMerlyn - Shower enclosures
NBS Office Master Tagn/a
NBS Reference45-35-70/332
Nominal Depth44 mm
Nominal Height2015 mm
Production Year2016
Referenced StandardCE Standards
Replacement Costn/a
ShapeRectangular
Size1000mm
Spare Partsn/a
Type CommentsSeries 8 - 1000mm
Type NameSeries 8 - 1000mm
URLmerlynshowering.com/
Warranty DescriptionLifetime
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborbarratt@merlyn.ie
Warranty Guarantor Partsbarratt@merlyn.ie
Width1000 mm
