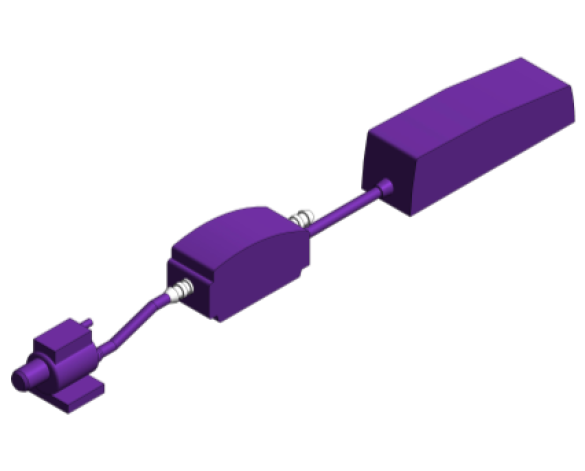

Micro V i4

by Aspen Pumps

Download Add to collection

Description

The logical step in pump evolution – the new Micro-v i4 is what you have always wanted from a mini pump.

This download is for the Micro V i4 Range of condensate removal pump components and includes the following types;

FP1200

Object Data

1 Revision

Last Updated

25/05/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

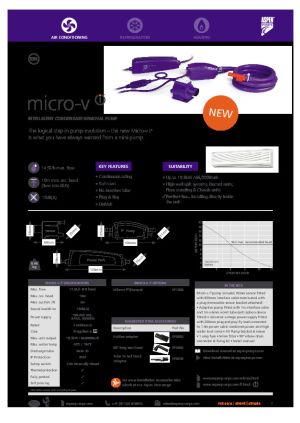

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Wigham
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD2090
Asset TypeFixed
BIM Object NameMechanicalEquipment_CondensatePump_AspenPumps_MicroV
Classification NameUniclass2015
Classification ValuePr_65_53_86_05
Code Performancen/a
ColorPurple
Constituentsn/a
Created Bysales@aspenpumps.com
Created On2017-05-16T00:00:00
Default Elevation1219 mm
DescriptionThe logical step in pump evolution – the new Micro-v i4 is what you have always wanted from a mini pump.
Documentation Certificatesn/a
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/2189
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2175
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcPump
Ifc Export TypeIfcPumpType
KeynoteR
ManufacturerAspen Pumps
Manufacturer NameAspen Pumps
ModelMicro-V i4
Model NumberFP1200
Model ReferenceMicro-V i4
NBS DescriptionAutomatic condensate pumps
NBS Object NameAspen Pumps - Micro-V i4 - Condensate Removal Pump
NBS Office Master Tagn/a
NBS Reference90-20-75/400
Nominal Depth36 mm
Nominal Height34 mm
Nominal Length133 mm
Production Year2017
ShapeRectangle
Size133x36x34mm / 106x31x337mm / 60x35x35mm
Type CommentsFP1200
Type NameMIcro-V i4 - FP1200 - Condensate Removal Pump
URLwww.aspenpumps.com/
Warranty Duration Laborsales@aspenpumps.com
Warranty Duration Partssales@aspenpumps.com
Warranty Duration UnitYear
