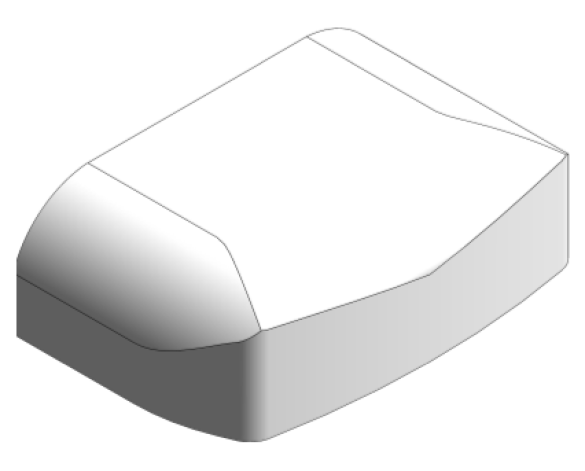

Mini Blanc

by Aspen Pumps

Download Add to collection

Description

The ‘ultra quick fit’ Mini Blanc is designed to be fitted beneath high wall indoor units and offers easy access for future maintenance.

This download is for the Mini Blanc Range of condensate removal pump components and includes the following types;

FP1080/2

Object Data

1 Revision

Last Updated

25/05/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

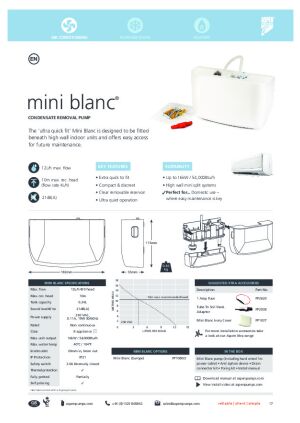

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Wigham
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD2090
Asset TypeFixed
BIM Object NameMechanicalEquipment_CondensatePump_AspenPumps_MiniBlanc
Classification NameUniclass2015
Classification ValuePr_65_53_86_05
Code Performancen/a
ColorWhite
Constituentsn/a
Created Bysales@aspenpumps.com
Created On2017-05-16T00:00:00
Default Elevation1219 mm
DescriptionThe ‘ultra quick fit’ Mini Blanc is designed to be fitted beneath high wall indoor units and offers easy access for future maintenance.
Documentation Certificatesn/a
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/2185
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2171
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcPump
Ifc Export TypeIfcPumpType
KeynoteR
ManufacturerAspen Pumps
Manufacturer NameAspen Pumps
ModelMini Blanc
Model NumberFP1080/2
Model ReferenceMini Blanc
NBS DescriptionAutomatic condensate pumps
NBS Object NameAspen Pumps - Mini Blanc - Condensate Removal Pump
NBS Office Master Tagn/a
NBS Reference90-20-75/400
Nominal Depth115 mm
Nominal Height55 mm
Nominal Length182 mm
Production Year2017
ShapeRectangle
Size182x115x55mm
Type CommentsFP1080/2
Type NameMini Blanc - FP1080/2 - Condensate Removal Pump
URLwww.aspenpumps.com/
Warranty Duration Laborsales@aspenpumps.com
Warranty Duration Partssales@aspenpumps.com
Warranty Duration UnitYear
