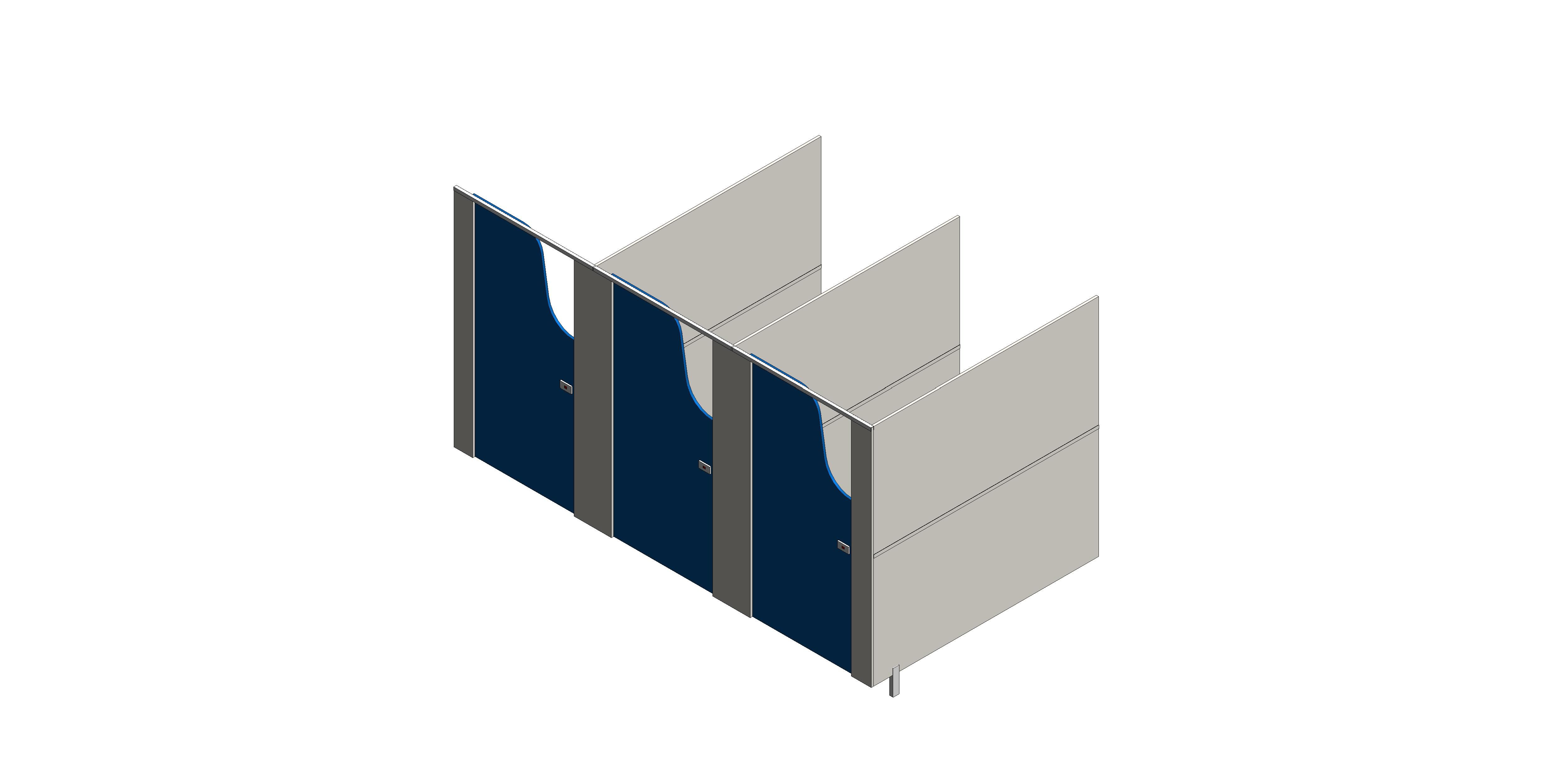

Modular Children's Toilet Cubicle Pack - Cubicle Store

by Trade Washrooms

Download Add to collection

Description

Part of our flat pack cubicle range, this Children’s Toilet Cubicle Door Pack contains all necessary fittings and panels to install a junior school toilet cubicle door with an opening up to 900mm.

Modular toilet cubicle packs
Strong bolt-through fittings
Install either inward or outward opening

Object Data

1 Revision

Last Updated

31/01/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

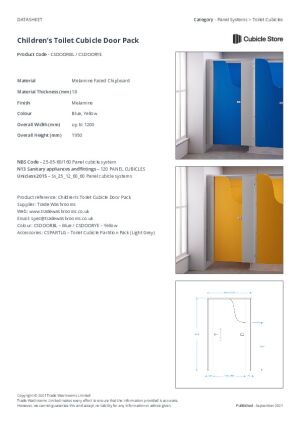

Product Literature

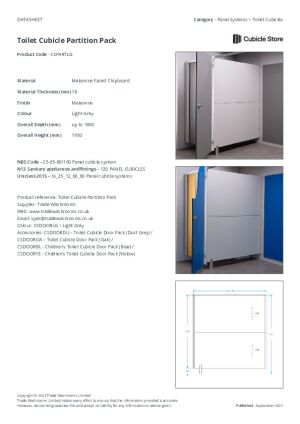

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRW
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
AbutmentYes
Accessibility Performancen/a
Assembly CodeD2010900
Asset TypeFixed
Base Clearance150 mm
BIM Object NameTradeWashrooms_ModularToiletCubicle
CategorySs_25_12_60_60 Panel cubicle systems
Classification NameUniclass2015
Classification ValueSs_25_12_60_60
Code Performancen/a
ColorBlue, Yellow
ConstituentsDoor Pack and Partition Pack
Created Byspec@tradewashrooms.co.uk
Created On2023-01-11T09:00:00
Cubicle Depth1800 mm
Cubicle Height1950 mm
CW ConnectionYes
CWFU0
Default Elevation0 mm
DescriptionModular Children’s Toilet Cubicle Pack - Cubicle Store
Documentation Certificateswww.bimstore.co/products/toilet-cubicle-partition-pack/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/toilet-cubicle-partition-pack/document/installation-guide
Documentation Literaturewww.bimstore.co/products/toilet-cubicle-partition-pack/document/product-literature
Documentation Maintenancewww.bimstore.co/products/toilet-cubicle-partition-pack/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/toilet-cubicle-partition-pack/document/technical-data-sheet
DPH1800 mm
Duration UnitYears
Expected Life10
FeaturesFor every cubicle opening you need a Children’s Toilet Cubicle Door Pack, and for every dividing partition you need a Toilet Cubicle Partition Pack.
FinishMelamine
Graden/a
HW ConnectionYes
HWFU0
Ifc Export AsIfcWall
Ifc Export TypeIfcWallTypeEnum.PARTITIONING
KeynoteN
Manufacturerspec@tradewashrooms.co.uk
Manufacturer Nameorders@tradewashrooms.co.uk
MaterialMelamine
Material Thickness18 mm
ModelModular Children’s Toilet Cubicle Pack - Cubicle Store
Model NumberC-CSDOOR+CSPART
Model ReferenceModular Children’s Toilet Cubicle Pack - Cubicle Store
NameModular Children’s Toilet Cubicle Pack - Cubicle Store
NBS DescriptionPanel cubicle systems
NBS Object NameTrade Washrooms - Panel cubicle systems
NBS Office Master Tagn/a
NBS Reference25-05-60/160
Nominal Depth900 mm
Nominal Height1950 mm
Nominal Length1800 mm
Pilaster LHNo
Pilaster MainYes
Pilaster Offset150 mm
Production Year2023
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1800 x 900 x 1950mm
Spare Partsn/a
Support Leg Offset170 mm
Sustainability Performancen/a
Type CommentsC-CSDOOR+CSPART
Type NameModular Children’s Toilet Cubicle Pack - Cubicle Store
URLwww.tradewashrooms.co.uk/
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsorders@tradewashrooms.co.uk
Waste ConnectionYes
WFU0
