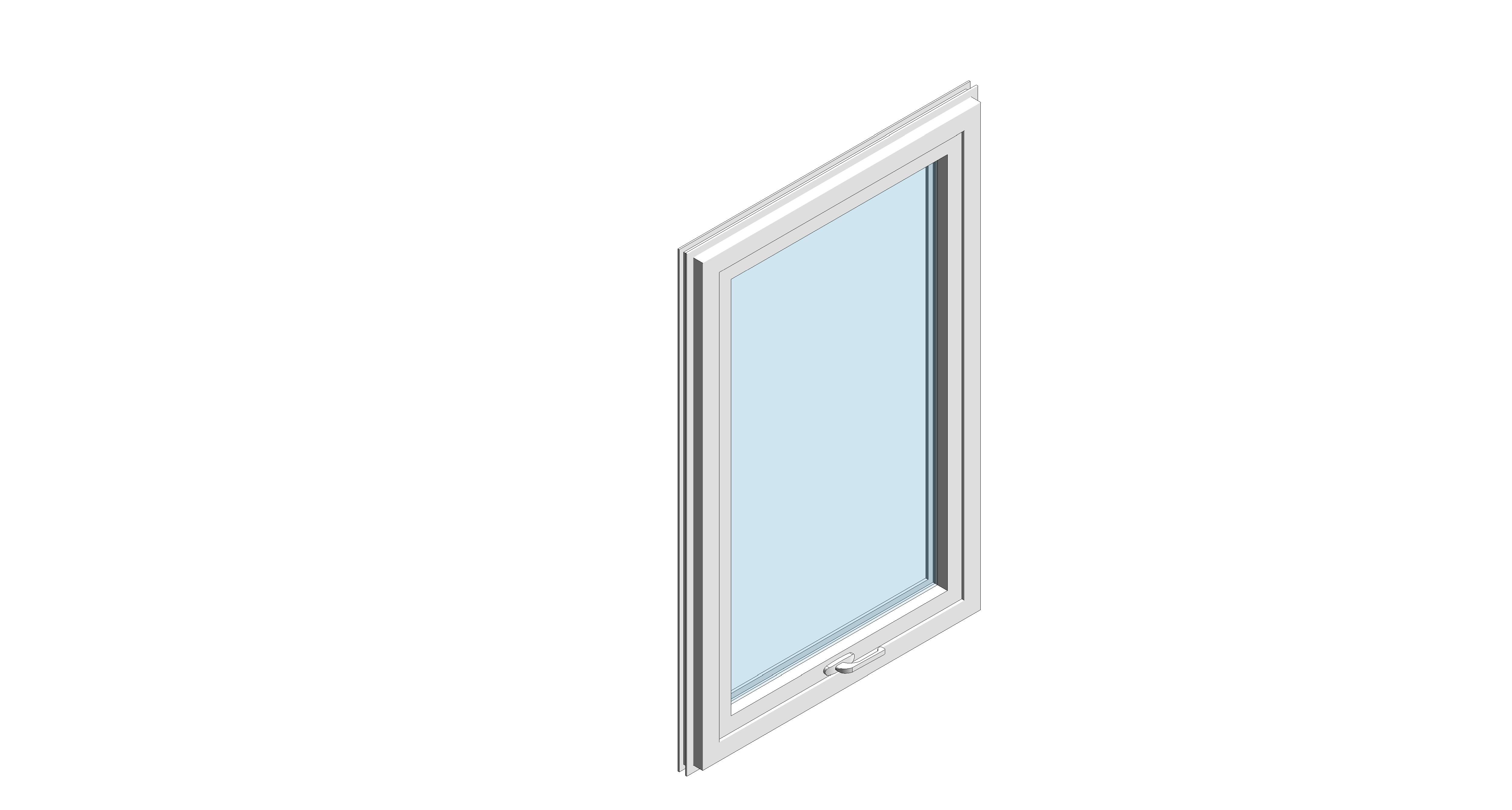

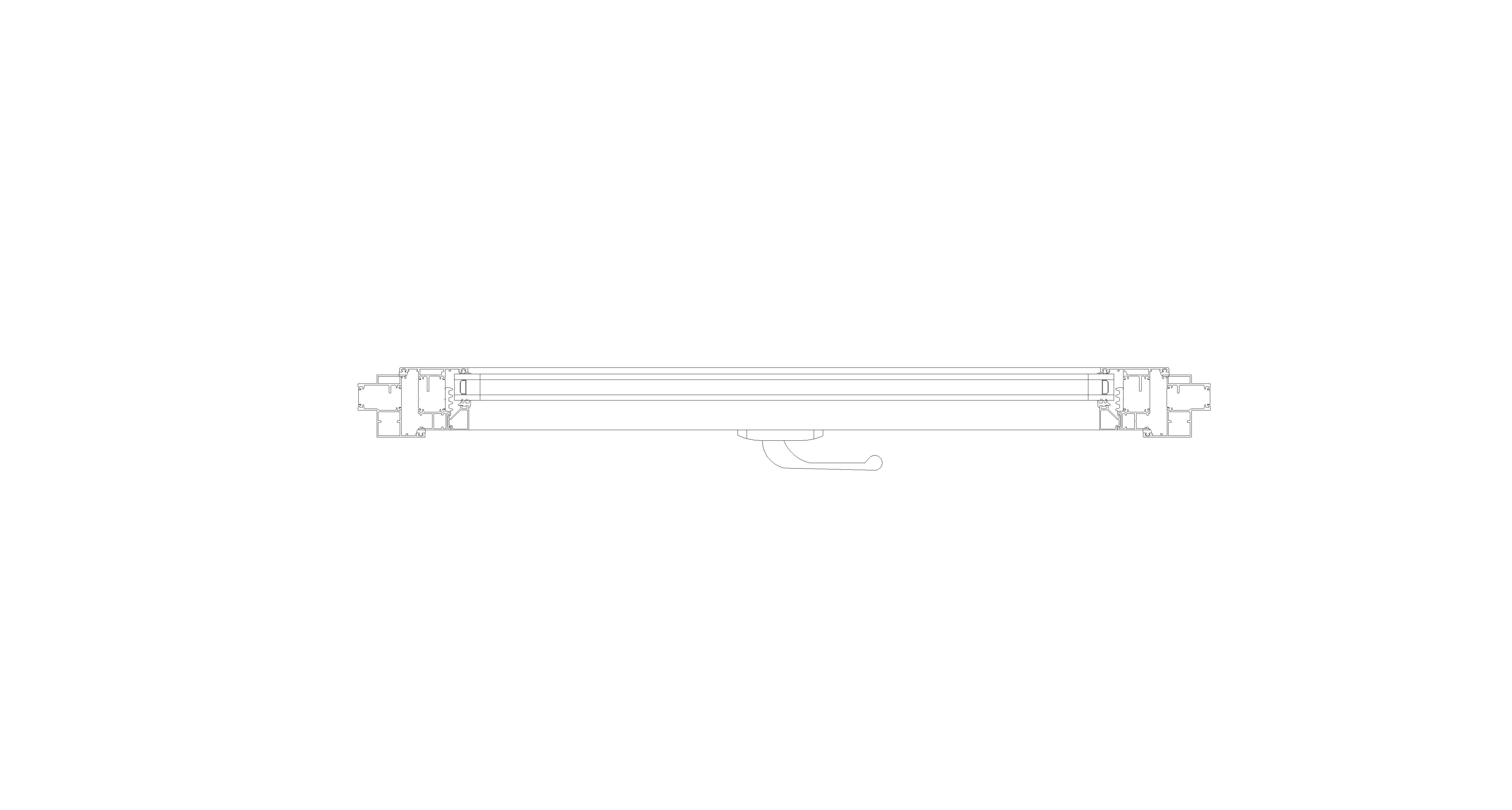

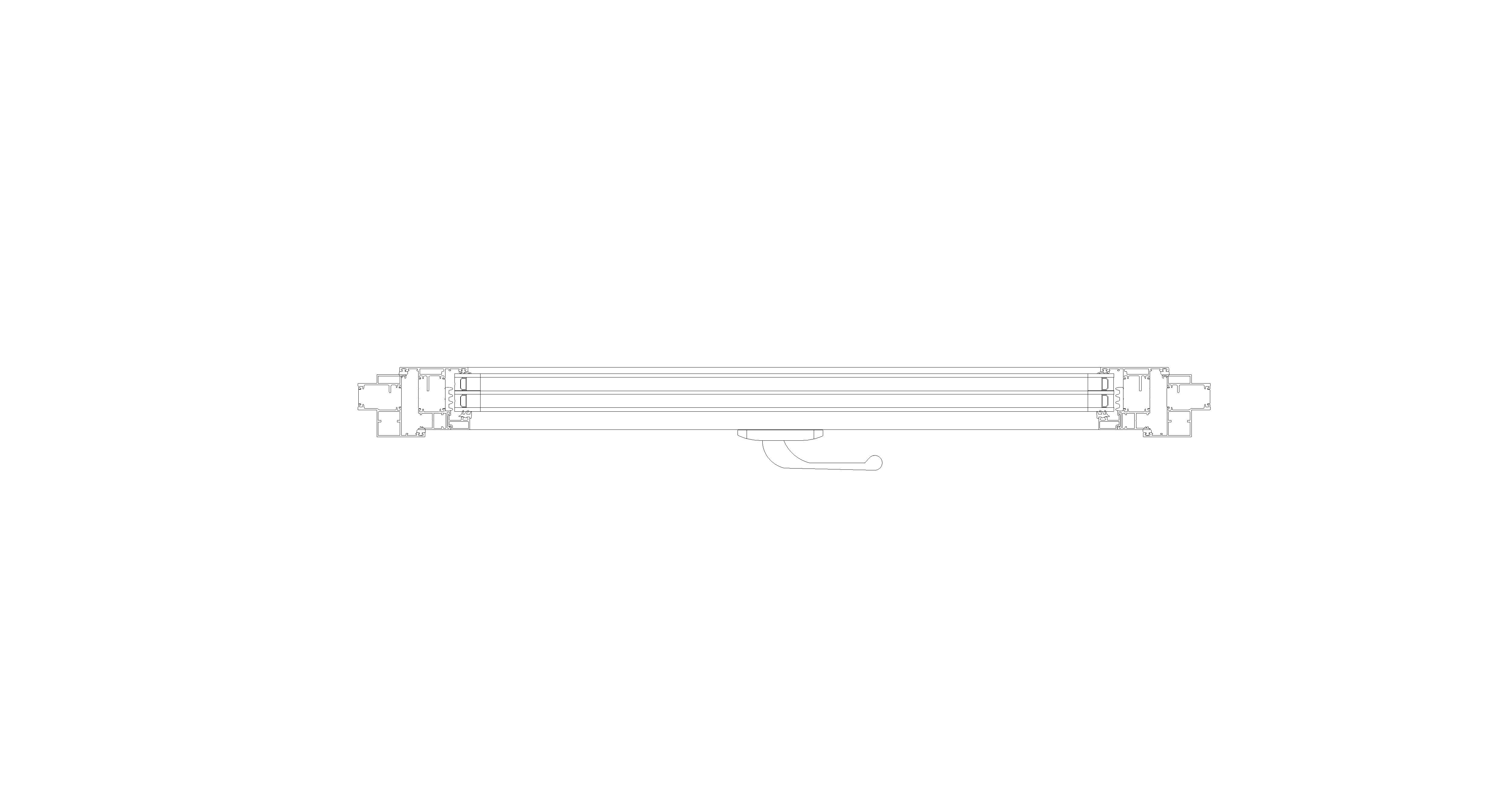

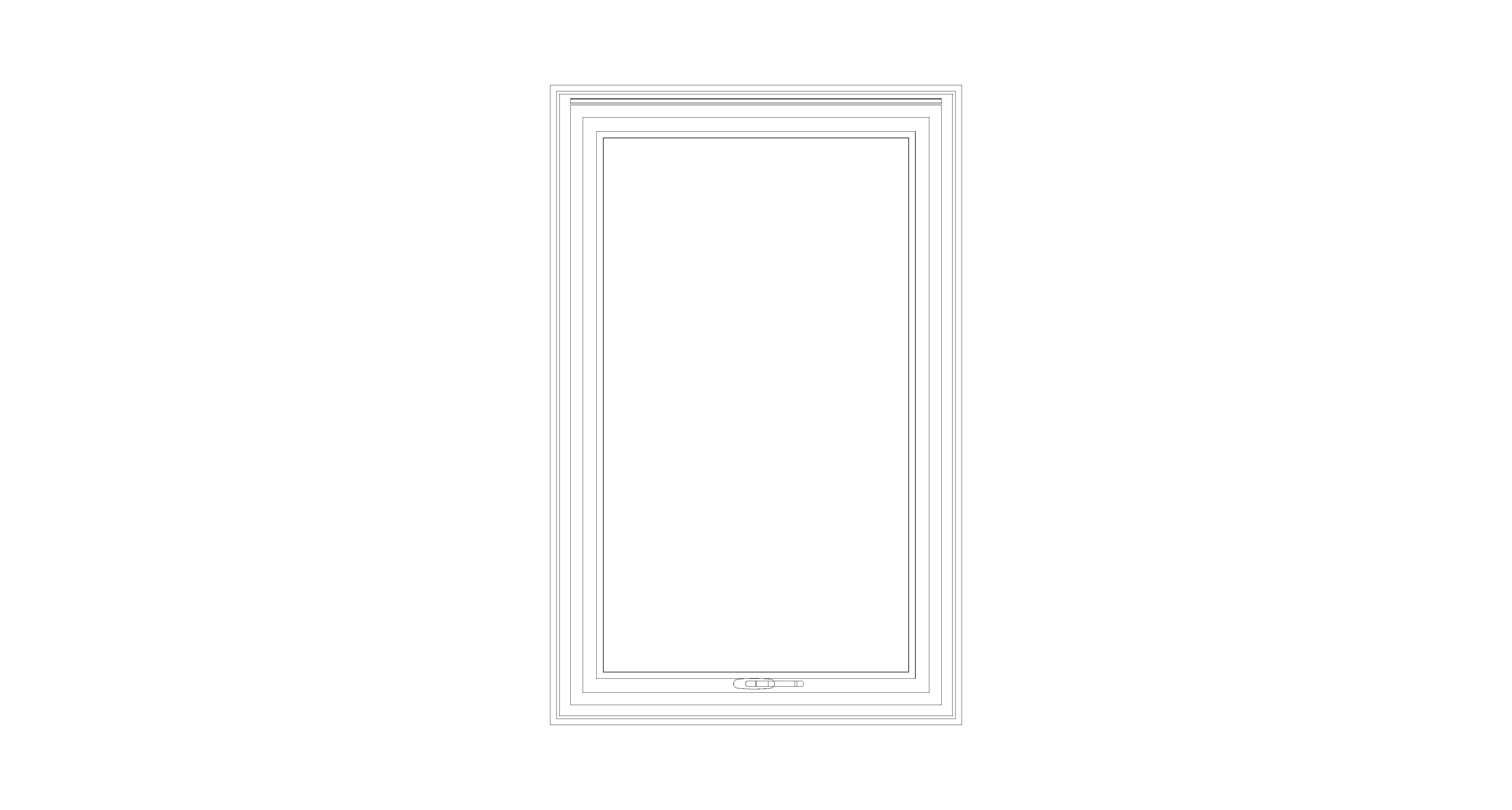

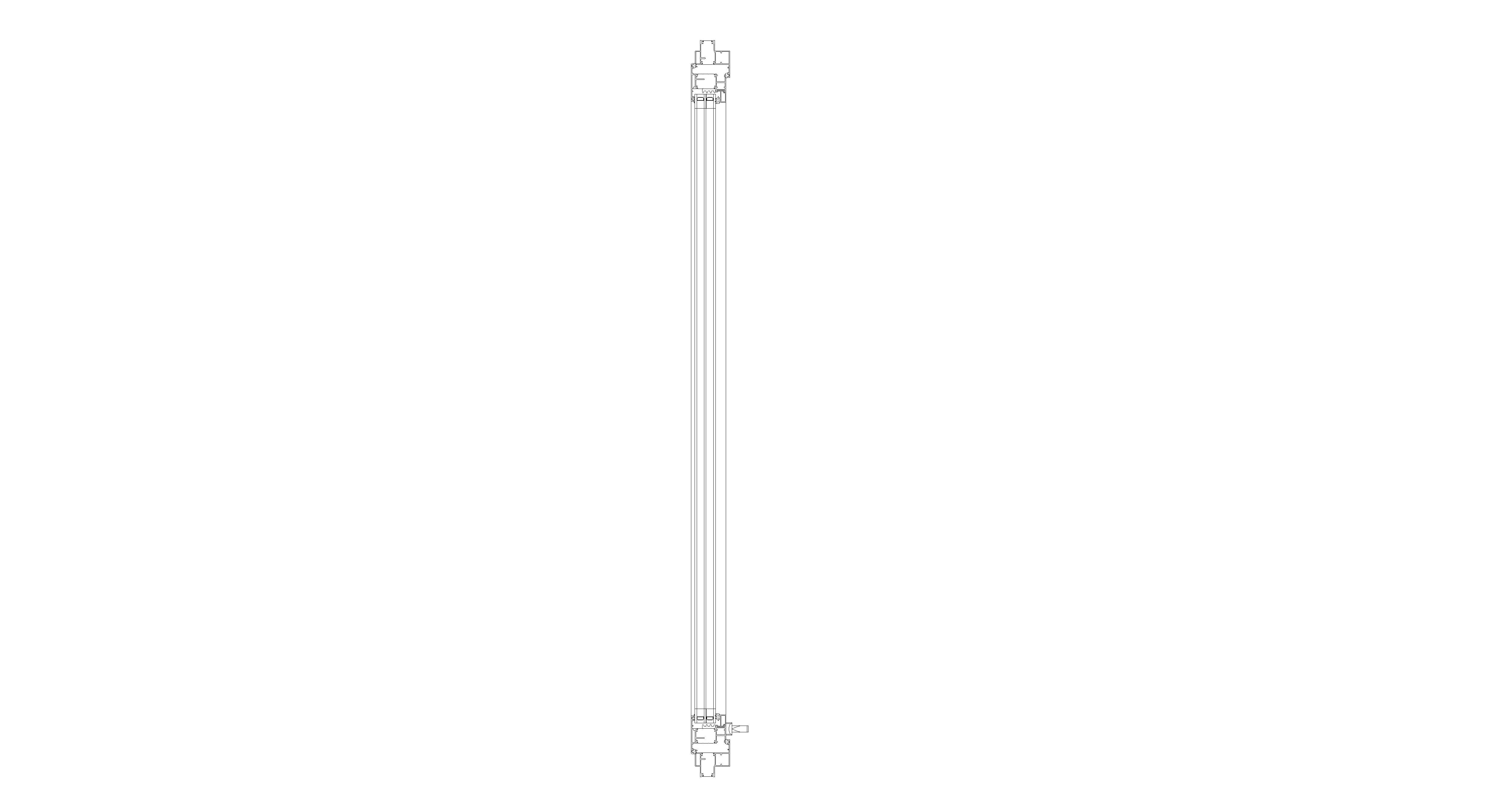

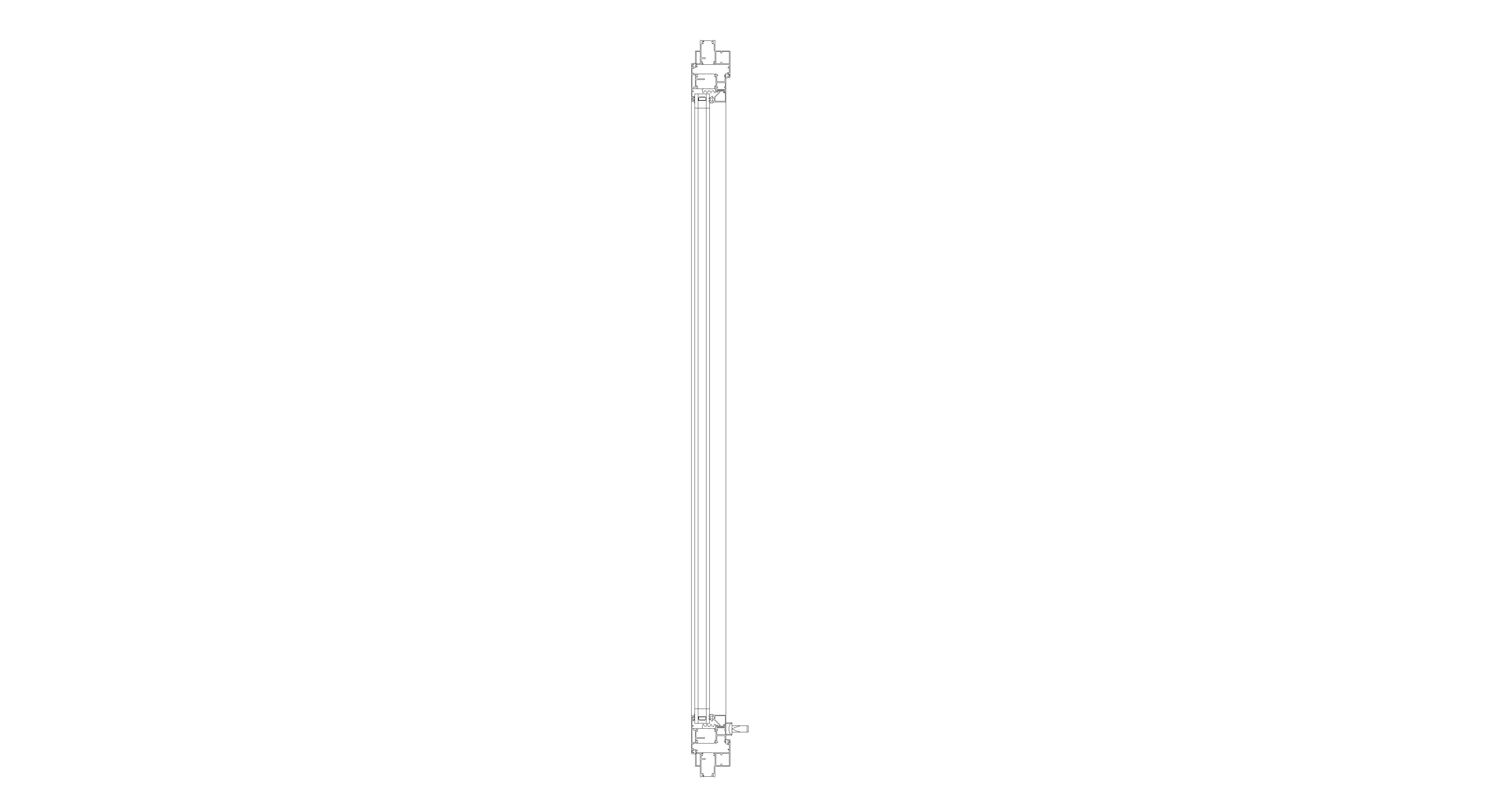

MU800 Hi – XT66 Performance Plus – Casement Window (Curtain Wall Insert)

by Architectural & Metal Systems

Download Add to collection

Description

The following insert is integrated in to the MU800 Hi curtain wall system with a dedicated curtain wall frame option for ease of installation and weathering. It has been developed by AMS to satisfy the highest of thermal requirements that the modern building industry demands, exceeding all building regulations with its superior performance and energy efficiency characteristics.

Object Data

1 Revision

Last Updated

09/11/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorJY
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Accessoriesn/a
Additional Features Architraves Externaln/a
Additional Features Architraves Internaln/a
Additional Features HardwareCotswold heavy duty friction stays, prolinea lockable espag handle, Nico Espagolette, AMS run-up blocks, AMS espag keeps
Additional Features Head Detail28mm,40mm,50mm & 80mm extender profile
Additional Features Security FeaturesCotswold hinge protectors, SBD certified
Additional Features Sill Optionsn/a
Additional Features TrimAluminium
Additional Features WeatherstrippingEPDM weatherseal gaskets, continuous at corners
Air Classificationn/a
Analytic Construction<None>
Assembly CodeB2020110
Asset TypeFxied
BIM Object NameAMS_CurtainWallingWindow_MU800HiXT66PerformancePlus_Casement: Single
Classification NameUniclass2015
Classification ValuePr_30_59_98_02
Code Performancen/a
ColorStandard RAL range of colours, decoral wood finish and anodising
Configurationn/a
Constituentsn/a
Created Byjoconnell@ams.ie
Created On2022-10-24T09:00:00
DescriptionAMS - XT66 Casement window system
Documentation Certificateswww.ams.ie/members-area/downloads/
Documentation Installation Guidewww.ams.ie/members-area/downloads/
Documentation Literaturewww.ams.ie/members-area/downloads/
Documentation Maintenancewww.ams.ie/members-area/downloads/
Documentation Technicalwww.ams.ie/members-area/downloads/
Duration UnitYears
Expected Life40
FeaturesCan be glazed internally or externally , single or dual colours available
Fillern/a
FinishRAL colours and anodising
Frame Depth66 mm
Frame Finish Coating OptionsPolyester powder coated & Decoral wood finish to IS EN 12206-1:2004. Anodised to BS 3987:1991.
Frame Finish Colour OptionsAnodised: Many colours availablel; Decoral: Many wood grain effect available; Polyester powder coated: Many colours available
Frame Mullion MaterialAluminium
Frame Thickness66 mm
Glazing Bead Fixing0 mm
Glazing Bead LocationInternal
Glazing Bead OptionsHL 501 - 48 mm, HL 502 - 44 mm, HL 506 - 40 mm, HL 561 - 28 mm, HL 565 - 35 mm
Glazing GasketsEPDM
Glazing Panel MaterialGlass
Glazing Thickness28 mm
Glazing Unit Options28 mm double glazed unit, 30 mm double glazed unit, 32 mm double glazed unit, 35 mm double glazed unit, 38 mm triple glazed unit, 40 mm triple glazed unit, 44 mm triple glazed unit, 48 mm triple glazed unit
Graden/a
Handle Colour OptionsBlack, Chrome, Gold, Silver, White
Handle Handing OptionsLeft hand, Right hand
Handle Type OptionsPro-linea espagnolette handle, Titon cockspur handle
Ifc Export AsIfcWindow
Ifc Export TypeWINDOW
Ironmongery MaterialAluminium
KeynoteL10/330
Manufacturerpohara@ams.ie
Manufacturer NameArchitectural & Metal Systems
MaterialAluminium alloy 6063 T5 and T6
Maximum Vent Weight≤100 kg
ModelXT66 High Performance System
Model NumberAMS - XT66 Performance Plus Casement Window - Curtain Wall Insert
Model ReferenceXT66 Performance Plus
NBS DescriptionExternal window system
NBS Object NameArchitectural & Metal Systems - External window system
NBS Office Master Tagn/a
NBS Reference30-59-98/02
Nominal Depth74 mm
Nominal Height1500 mm
Nominal Length1000 mm
O121 mm
O245 mm
Opening OptionsOpen out
Operating Forcesn/a
Over Frame Ventilatorn/a
Production Year2021
Referenced StandardIS EN 14351-1:2006+A2:2016
Replacement Costn/a
Resistance To RackingClass 3
Resistance To Repeated Opening And ClosingClass 3 (20000 cycles)
Resistance To Static Torsionn/a
SealantLow modulus silicone sealant
ShapeRectangular
Single Glass Thickness6 mm
Size1000x1500mm
Spare Partsn/a
Sub Frame FixingsGrade A2 stainless steel screws
Sub Frame MaterialAluminium alloy 6063 T5 and T6
Thermal Barrier44 mm PU foam
Third Party Accreditationn/a
Transom OptionsXTP6302, XTP6311, XTP6315, XTP6316, XTP6310, XTP6321, XTP6319, XTP6375, XTP6340
Type CommentsXT66 PP Casement
Type NameXT66 Performance Plus System
URLwww.ams.ie/
Vent Size Options1180 x 2360 mm (maximum)
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration PartsHardware 10 years, refer to suppliers for paint finish and anodising 25 years.
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partspohara@ams.ie
Water TightnessA9 : 600 Pa
Window Unit FixingsExtruded aluminium crimping cleats and corner braces with two part epoxy adhesive
Window Unit MaterialAluminium alloy 6063 T5 and T6
Wind ResistanceE2400 (2400 Pa)
