MultiLight

by Assan Panel Sanayi ve Ticaret A.Ş.

Download Add to collection

Description

40 mm Thickness
1000 mm Useful Width
Natural Lighting
Optimum Daylight (Comfort Condition)
High Energy Saving
High UV Resistance
Easy and Fast Installation
Lightweight and economical compared to glass-joinery systems

Object Data

1 Revision

Last Updated

24/10/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

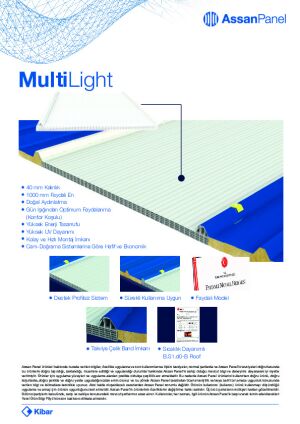

Product Literature

Product Data Sheet

Object metadata

Accessibility Performancen/a
Asset TypeFixed
BIMobject categoryInsulated panel
Classification NameUniclass2015
Classification ValuePr_20_93_85_84
Code Performancen/a
Coefficient of Thermal Expansion (mm/m°c)0,065
Colorn/a
Constituentsn/a
Construction TypeMultilight Polycarbonate
Created Bybimsupport@assanpanel.com.tr
Created On2019-10-23T09:00:00
Date of publishing001
Design countryISTANBUL
Documentation Certificateswww.assanpanel.com.tr/
Documentation Installation Guidewww.assanpanel.com.tr/
Documentation Literaturewww.assanpanel.com.tr/
Documentation Maintenancewww.assanpanel.com.tr/
Documentation Technicalwww.assanpanel.com.tr/
Duration UnitYears
Expected Life0
External ColourDefault
Featuresn/a
FinishASSAN IPN
Fire Performance(- 40 °C) / (+ 120 °C )
Graden/a
Heat Transmission Coefficient λ (EN 13165) (W/Mk)1,15
IFC ClassificationBuilding Element
Installation instructionswww.assanpanel.com.tr/en/urunler/polikarbonat-levha/multilight
ManufacturerAssan Panel San. ve Tic. A.Ş.
Manufacturer countryTURKEY
Manufacturer nameAssan Panel San. ve Tic. A.Ş.
Manufacturer NameAssan Panel San. ve Tic. A.Ş.
MaterialPolycarbonate
maximum size (m)11,9
minimum size (m)1
Model nameASSAN_MultilightPolycarbonate Panel
Model NumberRoof and Wall Corrugadet
Model ReferenceMultilight Polycarbonate Panel
NBS Reference Code60-88-84
NBS Reference DescriptionInsulated Wall
Panel orientationRoof and Wall Corrugadet
Product certificationwww.assanpanel.com.tr/en/kutuphane/sertifikalarimiz
Product data urlwww.assanpanel.com.tr/-/media/files/pdf/urunler/polikarbonat-levha/multilight-en.ashx
Product familyRoof and Wall Corrugadet
Product groupMultilight Polycarbonate Panel
Production Siteİstanbul
Production Year2019
QR codewww.assanpanel.com.tr/en/urunler/polikarbonat-levha/multilight
Ral CodeAll colors available.Please enter the desired color code @ : 7032
Referenced Standardn/a
RegionALL
Replacement Costn/a
ShapeRectangular
Sizen/a
Spare Partsn/a
Technical descriptionwww.assanpanel.com.tr/en/urunler/polikarbonat-levha/multilight
Thermal Permeabilitytransparent %59, Opal %30
Thicknes40 mm
Type CommentsMultilight Polycarbonate Panel
Type NameRoof and Wall Corrugadet
Uniclass 2.0 CodePr_20_93_85_84
Uniclass 2.0 DescriptionStructural insulated wall panels
Uniclass 2015 CodePr_20_93_85_84
Uniclass 2015 NameStructural insulated wall panels
URLwww.assanpanel.com.tr/en/
Version numberAssan_Multilight Polycarbonate Panel_001
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
width (mm)1000

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
