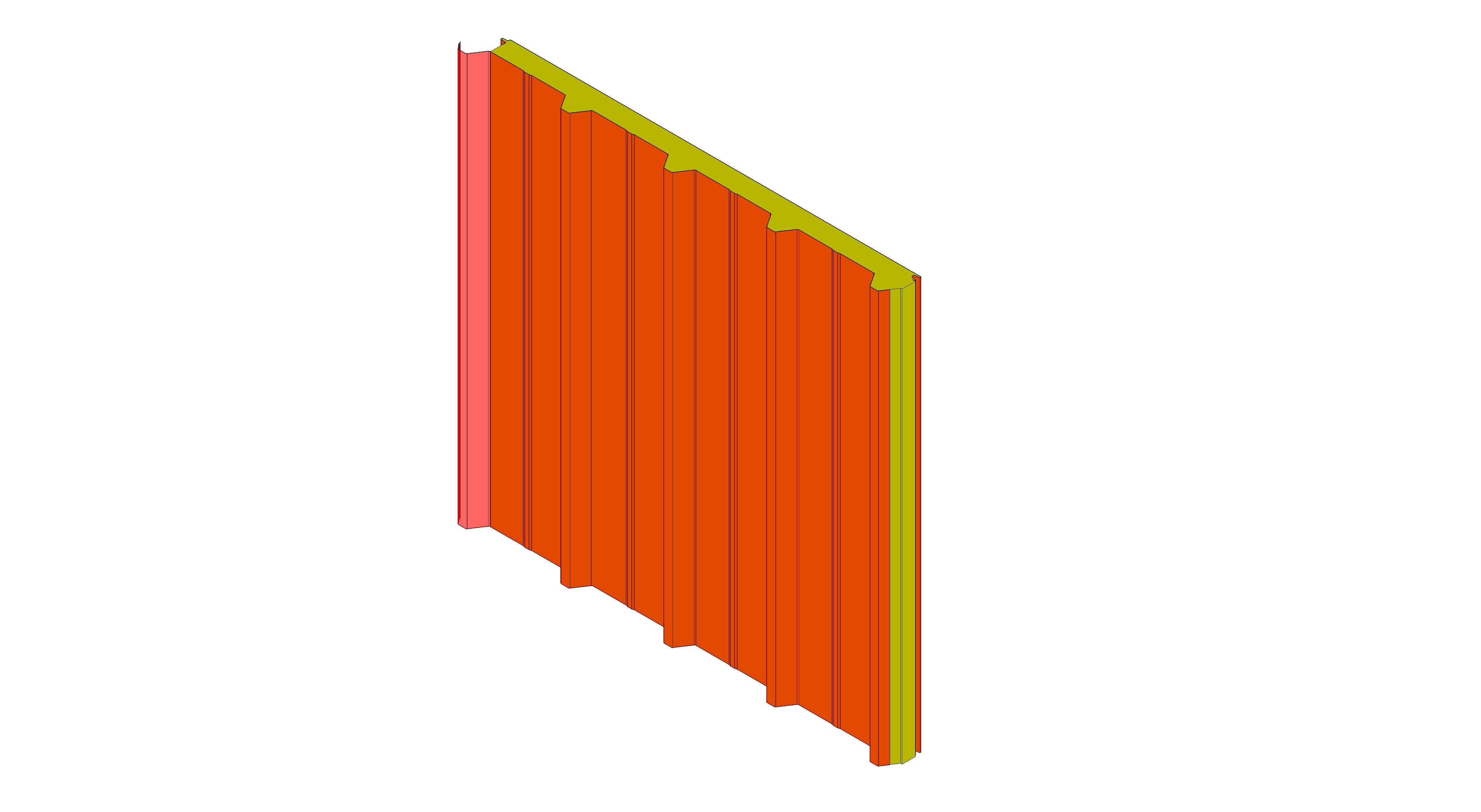

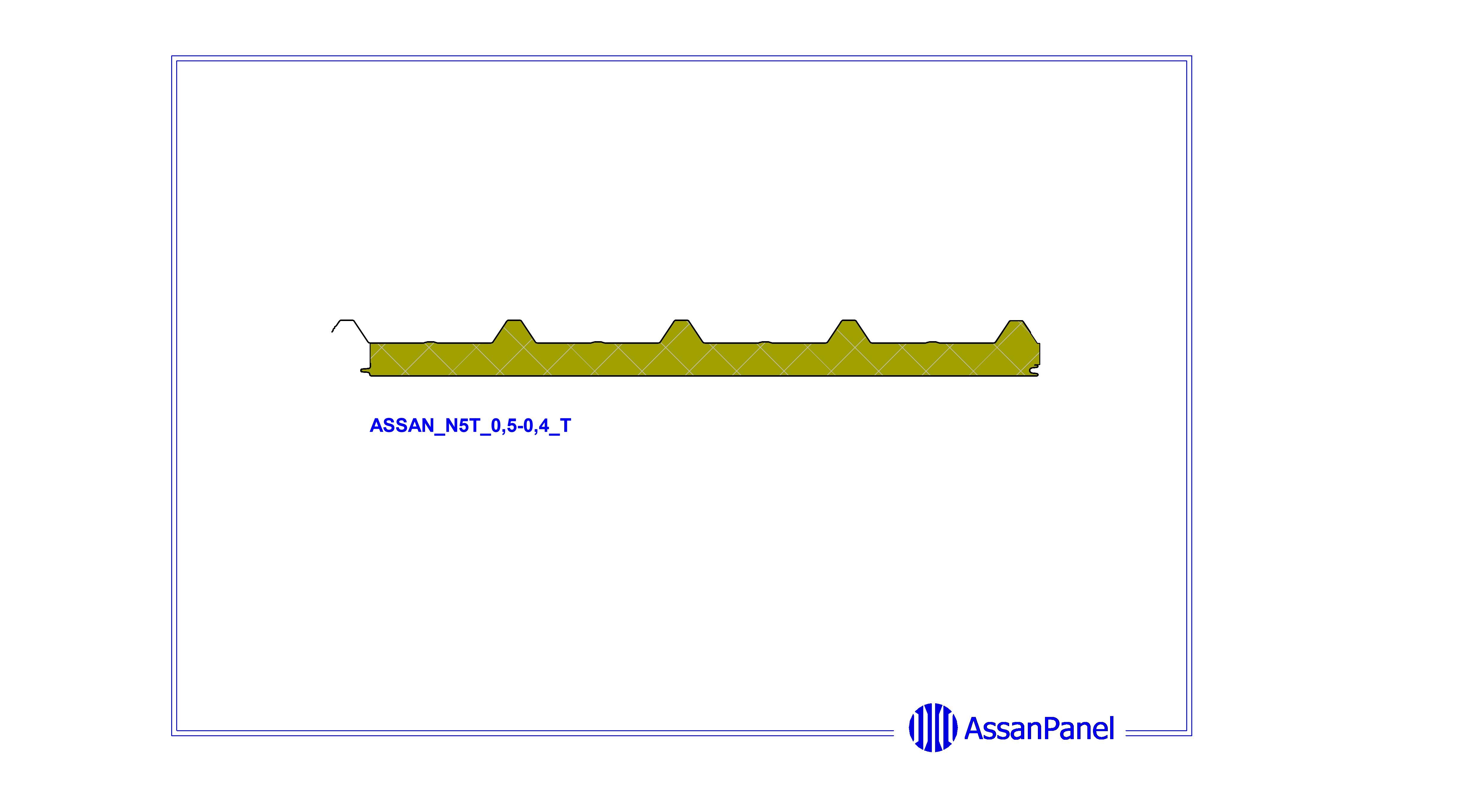

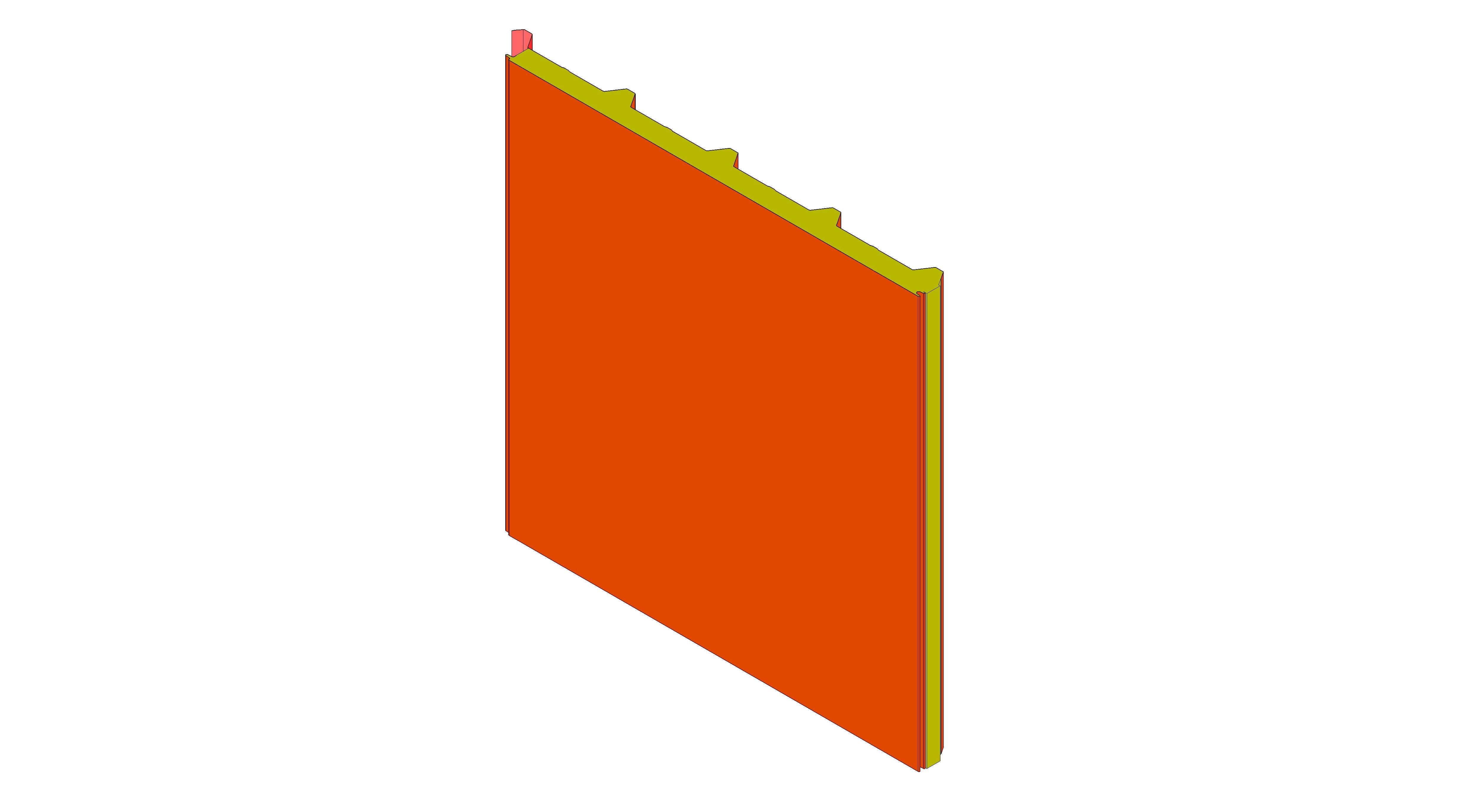

N5T Roof Panel

by Assan Panel Sanayi ve Ticaret A.Ş.

Download Add to collection

Description

While it is used safely in the buildings where there is high risk of fire and which requires maximum fire endurance, it also enables wide gaps to be passed safely with its five indented form. Roofs with a 10% gradient can be covered. Thanks to its lateral connected panel connection, it enables fast assembly. With its stone wool material, it provides high acoustic performance.

Object Data

1 Revision

Last Updated

24/10/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

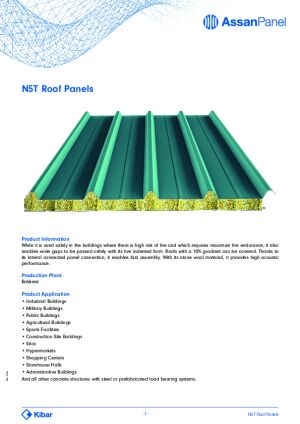

Object User Guide

Object metadata

Accessibility Performancen/a
Asset TypeFixed
BIMobject categoryRoof
Classification NameUniclass2015
Classification ValueSs_30_40_55
Code Performancen/a
Colorn/a
Constituentsn/a
Construction TypeN5T
Core Insulation MaterialAssan Stonewool
Created Bybimsupport@assanpanel.com.tr
Created On2019-10-23T09:00:00
Date of publishing001
Design countryISTANBUL
Documentation Certificateswww.assanpanel.com.tr/
Documentation Installation Guidewww.assanpanel.com.tr/
Documentation Literaturewww.assanpanel.com.tr/
Documentation Maintenancewww.assanpanel.com.tr/
Documentation Technicalwww.assanpanel.com.tr/
Duration UnitYears
Expected Life0
External ColourRAL 6050
External Metal Thickness0,4
Featuresn/a
FinishAssan IPN
Flammability Class (EN 13501)A1
Graden/a
Heat Transmission Coefficient λ (EN 13165) (W/Mk)0,033
Hot Dip Coating Quantity(EN 10327) (gr/m2)Z70
IFC ClassificationRoof
Installation instructionswww.assanpanel.com.tr/en/urunler/sandvic-paneller
Internal Metal Thickness0,4
Internal ColourRAL 6050
ManufacturerAssan Panel San. ve Tic. A.Ş.
Manufacturer countryTURKEY
Manufacturer nameAssan Panel San. ve Tic. A.Ş.
Manufacturer NameAssan Panel San. ve Tic. A.Ş.
Materialn/a
maximum size (m)Depends on shipping conditions
Metal Sheet TypeGalvanized
minimum size (m)3
Model nameASSAN_N5T_ROOF
Model NumberRoof Panels
Model Referenceinsulated roof panels
NBS Reference Code20-10
NBS Reference DescriptionRoofs
Painted TypePolyester
Panel orientationRoof panel vertical
Product certificationwww.assanpanel.com.tr/en/kutuphane/sertifikalarimiz
Product data urlwww.assanpanel.com.tr/-/media/files/pdf/urunler/2019/07/09/n5t-roof-panels.ashx
Product familyRoof Panels
Product groupinsulated roof panels
Production SiteBalıkesir
Production Year2019
QR codewww.assanpanel.com.tr/tr-tr/urunler/sandvic-paneller
Ral CodeAll colors available.Please enter the desired color code @ : 7032
Referenced Standardn/a
RegionALL
Replacement Costn/a
Rockwool Density (kg/m3)100 (±2)
ShapeRectangular
Sizen/a
Sound insulation Rw[Db]≥30
Spare Partsn/a
Technical descriptionwww.assanpanel.com.tr/en/urunler/sandvic-paneller/cati-panelleri/n5t
Temperature Resistance600 ºC
Thicknes100 mm
Type CommentsPrepainted Galvanized Steel Structure
Type NameRoof Panels
Uniclass 1.4 CodeL52
Uniclass 1.4 DescriptionRoof coverings, claddings, linings
Uniclass 2.0 CodeSS-20-10-60
Uniclass 2.0 DescriptionPanel Roof Structure Systems
Uniclass 2015 CodeSs_30_40_55
Uniclass 2015 NameMetal composite panel roof covering systems
URLwww.assanpanel.com.tr/en/
Version numberAssan_N5T_0100
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Water absorption (EN ISO 354)By Volume 2%
Water Vapor Diffusion (EN 12086)1
width (mm)1000
