Nifty 150T | 14.7m Trailer Mount

3.1k
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

27/10/2020

Download BIM

Add to collection

Available for:

Developed specifically to maximise outreach, the Nifty 150T trailer mount delivers an unrivalled working envelope, especially at low levels where outreach is needed most.

The Nifty 150T trailer mount offers an up-and-over clearance of more than 5.6m allowing it to reach easily over larger obstacles such as walls and buildings.

Compact dimensions coupled with hydraulically operated outriggers make manoeuvring and setting up the Nifty 150T trailer mount quick and simple, while its 1.4m wide platform provides the operator plenty of room in which to work.

Fully proportional hydraulic controls and a spacious platform make the Nifty 150T trailer mount simple to operate with both speed and accuracy.

The Nifty 150T trailer mount is also available with a traction drive option that offers a simple, cost effective and safe method for on-site positioning.

For more information regarding the Nifty 150T or any other trailer mount, including the Nifty 120T and Nifty 170, please contact us.

Nifty 150T Features

Telescopic Upper Boom

Greater accuracy when positioning platform

Fully Proportional Hydraulic Controls

Simple, reliable & easy to maintain

Bi-Energy Available

Optimising utilisation

Traction Drive Option

Improved manoeuvrability on site

Hydraulic Outriggers

For quick & easy setup

Nifty 150T Specifications

Working Height (A)

14.7m (48ft 6in)

Working Outreach (C)

7.55m (25ft)

Platform Height (B)

12.7m (42ft)

Machine Width (F)

1.6m (5ft 3in)

Machine Height (D)

2m (6ft 7in)

Machine Length (J)

5.55m (18ft 3in)

Working Width (G)

3.8m (12ft 6in)

Minimum Weight

1775kg (3915lbs)

Safe Working Load

225kg (500lbs)

Cage Width

1.4m (4ft 7in)

Cage Depth

0.65m (2ft 4in)

Outrigger Type

Hydraulic

Traction Drive

Available

Power Options

Mains only
Battery only
Petrol or Diesel Only
Bi-Energy (Engine & Battery)

Keywords: MEWP, Mobile Elevating Work Platform, Cherry Picker, Boom Lift, Work Platform, Aerial Work Platform

_Authormarketing@niftylift.com
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.niftylift.com/uk
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/nifty-150t-14-7m-trailer-mount/document/object-user-guide
Accessibility Performancen/a
Assembly CodeE1030100
Asset TypeMovable
BIM Object NameNiftylift_Site_TrailerMountedCherryPicker_150T
Cage Size1400 x 6500 mm
Classification NameUniclass2015
Classification ValueTE_30_30_60_80
Code Performancen/a
ColorGreen, Black & Grey
Constituentsn/a
Created Bymarketing@niftylift.com
Created On2020-10-26T09:00:00
DescriptionDeveloped specifically to maximise outreach, the Nifty 150T trailer mount delivers an unrivalled working envelope, especially at low levels where outreach is needed most. The Nifty 150T trailer mount offers an up-and-over clearance of more than 5.6m allowing it to reach easily over larger obstacles such as walls and buildings. Compact dimensions coupled with hydraulically operated outriggers make manoeuvring and setting up the Nifty 150T trailer mount quick and simple, while its 1.4m wide platform provides the operator plenty of room in which to work. Fully proportional hydraulic controls and a spacious platform make the Nifty 150T trailer mount simple to operate with both speed and accuracy. The Nifty 150T trailer mount is also available with a traction drive option that offers a simple, cost effective and safe method for on-site positioning.
Documentation Certificateswww.bimstore.co/products/nifty-150t-14-7m-trailer-mount/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/nifty-150t-14-7m-trailer-mount/document/installation-guide
Documentation Literaturewww.bimstore.co/products/nifty-150t-14-7m-trailer-mount/document/product-literature
Documentation Maintenancewww.bimstore.co/products/nifty-150t-14-7m-trailer-mount/document/maintenance-information

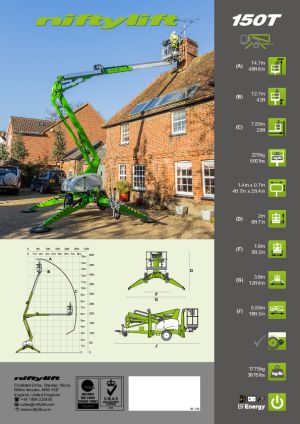

Documentation Technicalwww.bimstore.co/products/nifty-150t-14-7m-trailer-mount/document/technical-data-sheet
Duration UnitYears
Expected Life0
FeaturesTelescopic Upper Boom - Greater accuracy when positioning platform Bi-Energy Available - Optimising utilisation Hydraulic Outriggers - For quick & easy setup Fully Proportional Hydraulic Controls - Simple, reliable & easy to maintain Traction Drive Option - Improved manoeuvrability on site
FinishPainted Steel
Graden/a
Ifc Export AsIfcTransportElement
Ifc Export TypeIfcTransportElementType
KeynoteX
ManufacturerNiftylift
Manufacturer NameNiftylift
MaterialSteel
Minimum Weight1775 kg
ModelTrailer Mounted Cherry Picker
Model Number150T
Model ReferenceTrailer Mounted Cherry Picker
NBS DescriptionTrailer mounted platforms
NBS Object NameNiftylift - Trailer mounted platforms
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth1600.00 mm
Nominal Height2000.00 mm
Nominal Length5550.00 mm
Outrigger TypeHydraulic
Platform Height12700.00 mm
Power OptionsBi-energy, mains only, battery only, petrol or diesel only
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Safe Working Load225 kg
Shapen/a
Size1.6m (5ft 3in) [W] x 2m (6ft 7in) [H] x 5.55m (18ft 3in) [L]
Spare Partsn/a
Type Comments150T
Type NameTrailer Mounted Cherry Picker
URLwww.niftylift.com/uk
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Labormarketing@niftylift.com
Warranty Guarantor Partsmarketing@niftylift.com
Working Outreach7550.00 mm
Working Width3800.00 mm
