OFFICE PLUS LB LED 600X600 P/T

by LUG Light Factory

Download Add to collection

Description

Modern recessed luminaire for modular suspended ceilings for LED light sources.

High efficacy to 120 lm/W
Maintenance-free operation
Universal design
Glare minimizing optics

TECHNICAL DATA

Mounting
- directly in the ceiling construction
Body
- powder-painted steel sheet

ELECTRICAL DATA

Power supply efficiency
- >90%
Power
- 220-240V 50/60Hz
Includes light source
- yes

GENERAL DATA

Lifetime (L80B10)
- 50 000 h
Warranty
- 3 years
Application
- offices, hospitals, laboratories, supermarkets, classrooms, auditorium

PRODUCT	CODE
DALI 38W 4450LM 4000K WHITE ALUMINUM MAT	300061.00197
DALI 38W 4550LM 4000K WHITE MATT WHITE ALUMINUM	300061.00219
DALI 56W 6350LM 4000K WHITE ALUMINUM MAT	300061.00200
DALI 56W 6450LM 4000K WHITE MATT WHITE ALUMINUM	300061.00222
ED 38W 4350LM 3000K WHITE ALUMINUM MAT	300061.00202
ED 38W 4400LM 3000K WHITE MATT WHITE ALUMINUM	300061.00217
ED 38W 4450LM 4000K WHITE ALUMINUM MAT	300061.00203
ED 38W 4550LM 4000K WHITE MATT WHITE ALUMINUM	300061.00218
ED 56W 6200LM 3000K WHITE ALUMINUM MAT	300061.00204
ED 56W 6300LM 3000K WHITE MATT WHITE ALUMINUM	300061.00220
ED 56W 6350LM 4000K WHITE ALUMINUM MAT	300061.00205
ED 56W 6450LM 4000K WHITE MATT WHITE ALUMINUM	300061.00221
EM 3H 40W 4350LM 3000K WHITE ALUMINUM MAT	300061.00202B
EM 3H 40W 4400LM 3000K WHITE MATT WHITE ALUMINUM	300061.00217B
EM 3H 40W 4450LM 4000K WHITE ALUMINUM MAT	300061.00203B
EM 3H 40W 4550LM 4000K WHITE MATT WHITE ALUMINUM	300061.00218B
EM 3H 58W 6200LM 3000K WHITE ALUMINUM MAT	300061.00204B
EM 3H 58W 6300LM 3000K WHITE MATT WHITE ALUMINUM	300061.00220B
EM 3H 58W 6350LM 4000K WHITE ALUMINUM MAT	300061.00205B
EM 3H 58W 6450LM 4000K WHITE MATT WHITE ALUMINUM	300061.00221B

Object Data

1 Revision

Last Updated

02/04/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

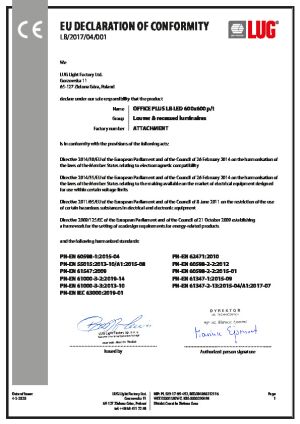

Product Certificates

Installation Guide

Technical Data Sheet

Product Data Sheet

Object metadata

Object

Parameter Type

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/office-plus-lb-led-600x600-p-t/document/object-user-guide
Accessibility Performancen/a
Apparent Load40 VA
Applicationoffices, hospitals, laboratories, supermarkets, classrooms, auditorium
Assembly CodeD5020200
Asset TypeFixed
Batteryn/a
BIM Object NameLUGLightFactory_LightingFixture_RecessedLuminaires_OfficePlus_LBLED600x600PT
Binding Power38 W
Classification NameUniclass 2015
Classification ValuePr_70_70_48_71
Code Performancen/a
ColorWhite
Color Filter16777215
Constituentsn/a
Created Bylug@lug.com.pl
Created On2020-04-01T09:00:00
Default Elevation0 mm
Degree Of Water And Dust ProtectionIP20
DescriptionModern recessed luminaire for modular suspended ceilings for LED light sources.
Dimming Lamp Color Temperature Shift<None>
Documentation Certificateswww.bimstore.co/products/office-plus-lb-led-600x600-p-t/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/office-plus-lb-led-600x600-p-t/document/installation-guide
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicalwww.bimstore.co/products/office-plus-lb-led-600x600-p-t/document/technical-data-sheet
Do Not Cover With Insulating MaterialYes
Duration UnitHours
Electrical Connectionmax 4x2,5 mm² wire
Emergency KitNo
Emergency Operating Timen/a
Emit from Rectangle Length595 mm
Emit from Rectangle Width595 mm
Emit Shape Visible in RenderingNo
Expected Life50000
FeaturesHigh efficacy to 120 lm/W. Maintenance-free operation. Universal design. Glare minimizing optics.
FinishPowder-painted
Graden/a
Housing MaterialAluminum
Ifc Export AsIfcLamp
Ifc Export TypeIfcLampTypeEnum.LED
Includes Light SourceYes
KeynoteV90/510
LampLED
Light Source Symbol Size595 mm
Light Output In Emergency Moden/a
ManufacturerLUG Light Factory
Manufacturer NameLUG Light Factory
MaterialSteel sheet
ModelOFFICE PLUS LB LED 600X600 P/T
Model Number300061.00197
Model ReferenceDALI 38W 4450LM 4000K WHITE ALUMINUM MAT
Mountingdirectly in the ceiling construction
NBS DescriptionRecessed luminaires
NBS Object NameLUG Light Factory - Recessed luminaires
NBS Office Master Tagn/a
NBS Reference90-60-50/386
Nominal Depth595 mm
Nominal Height65 mm
Nominal Length595 mm
Operating Temperature Range0 ... +35 °C
Output Current250 [mA]
Power220-240V 50/60Hz
Power Factor0.96
Power Supply Efficiency>90%
Production Year2020
Referenced StandardCE European Conformity
Reflector MaterialAluminum
Replacement Costn/a
ShapeCuboid
Size595mm x 595mm x 65mm
Spare Partsn/a
Type CommentsDALI 38W 4450LM 4000K WHITE ALUMINUM MAT
Type NameOFFICE PLUS LB LED 600X600 P/T
Type Of EquipmentDALI
UGR<17
URLwww.luglightfactory.com/
Warranty Description3 year warrenty
Warranty Duration Labor0
Warranty Duration Parts3
Warranty Duration UnitYears
Warranty Guarantor Laborlug@lug.com.pl
Warranty Guarantor Partslug@lug.com.pl
Wattage Comments38W
