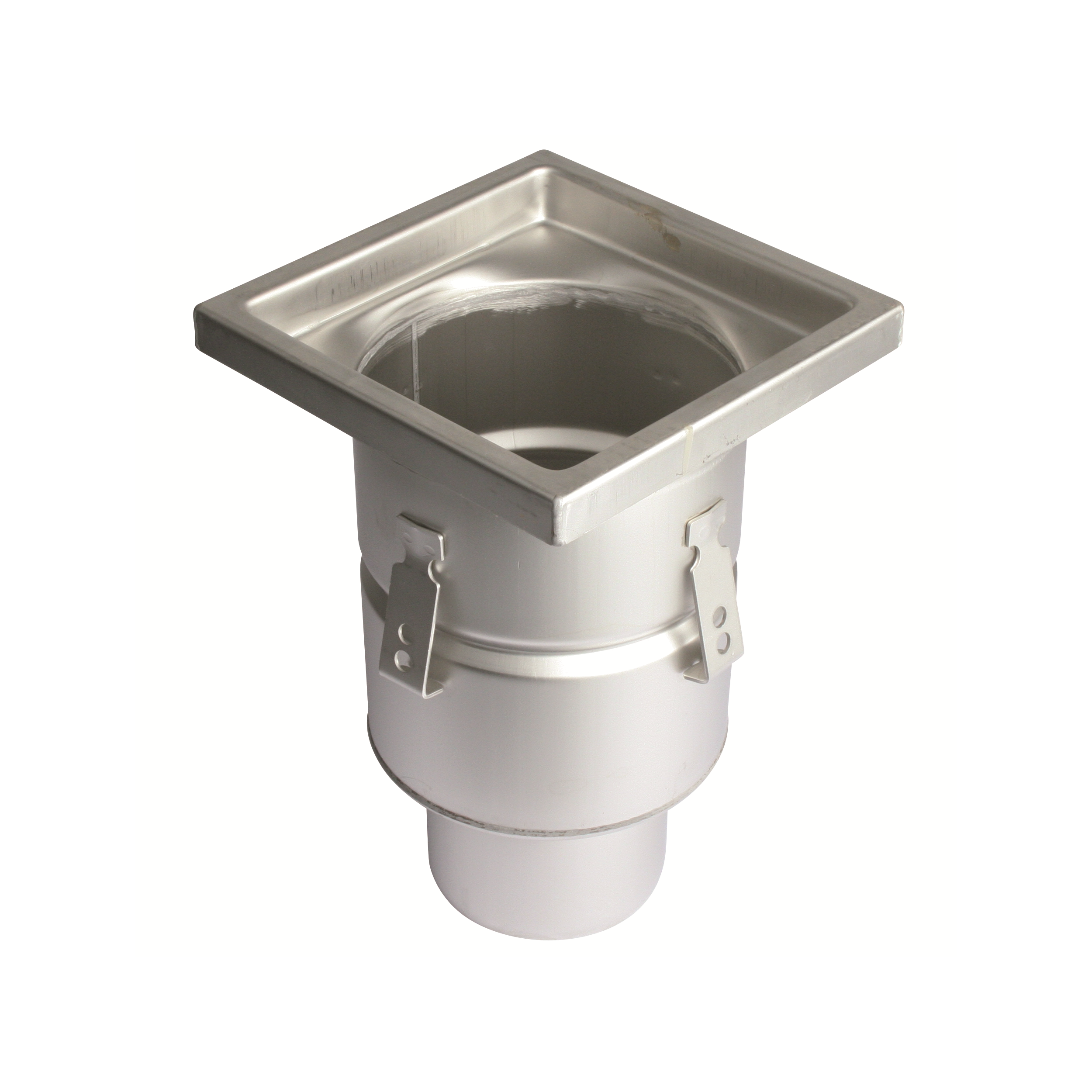

One Part Industrial Drain 200mm - Tile / Resin / Concrete
28.4k
0
- / 5Rate this product
Available for:
This Download Contains the BLÜCHER® Industrial One-part drains – size 200 mm. Flow rate up to 4.0 ltr/sec.
Select the product(s) based on outside (visible) dimension, flow rate, and / or item number, to upload in your project.
- Horizontal and Vertical outlet, 75 and 110 mm
- For concrete, tiled and resin floors
- Upper frames models Square 402 and Round 502
- Drains 726 / 760 / 763 / 766
- The product is made from 1.5 mm acid-pickled stainless steel.
- 4 Grating options load class up to 7.000 kg
- Designed in accordance with EN1253.
Key Component Features:
- User selectable Drain
- User selectable Gratings
- User selectable Watertrap
- User selectable Filter Basket
- Automated product codes
- Pre-selected concrete cut out / base concrete slab option for installation purpose
Products: 726.402.110, 763.402.110, 760.402.075, 760.402.110, 766.402.075, 766.402.110, 726.502.110, 763.502.110, 760.502.075, 760.502.110, 766.502.075, 766.502.110
Search Opt.: blucher
Read more
