Optima FC (Secret Fix Rainscreen)

36.6k
0
4 / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

17/09/2021

Download BIM

Add to collection

Available for:

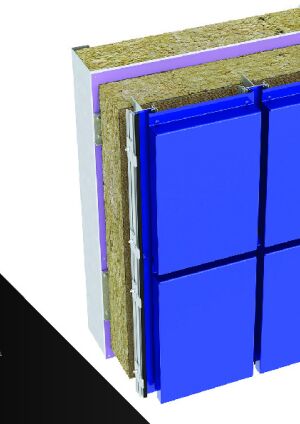

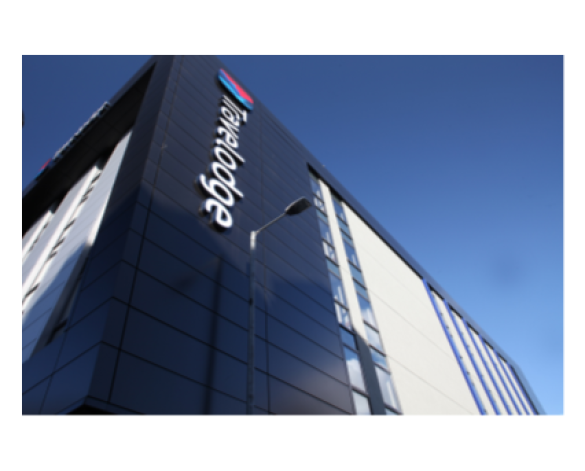

The Optima FC Rainscreen is a versatile carrier and panel secret fixed system suitable for exterior use as rainscreen cladding or interior use as a wall covering. Its versatility is such that a multitude of materials and thicknesses (from 1.5mm to 4mm) used on one universal carrier.

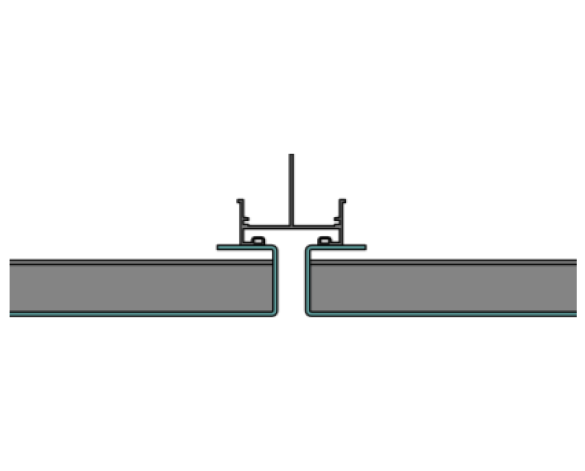

Superior manufacturing techniques ensure accuracy of panel sizes and form. Precise coordination between panel and substructure presents the system in pristine appearance without the use of visible fixings.

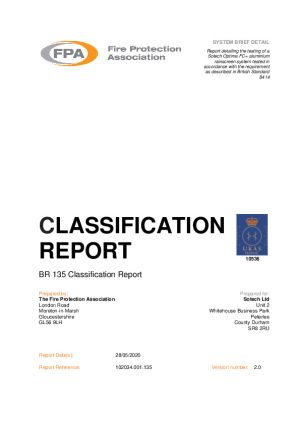

Tested and certified to CWCT

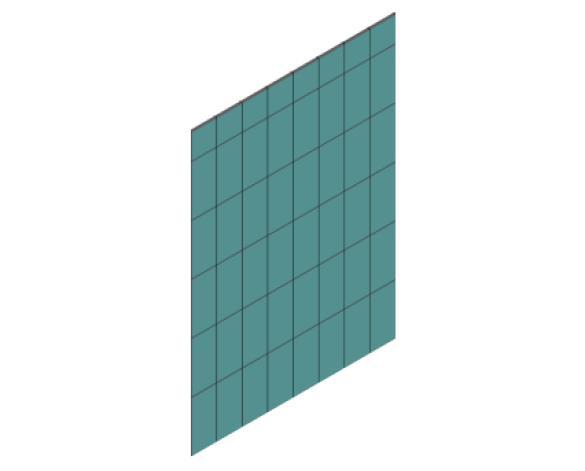

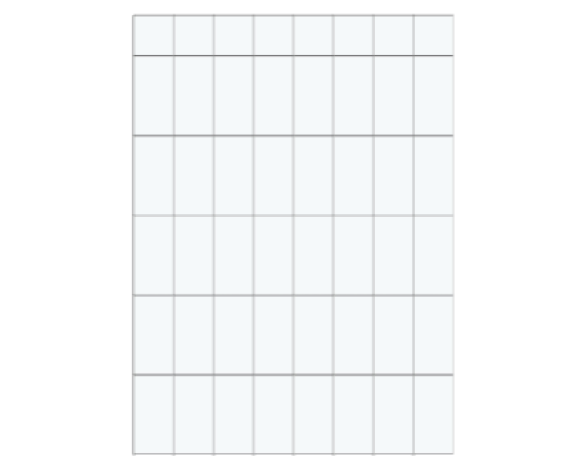

This download contains Revit components for the Sotech Optima FC, Sectret fix rainscreen system.

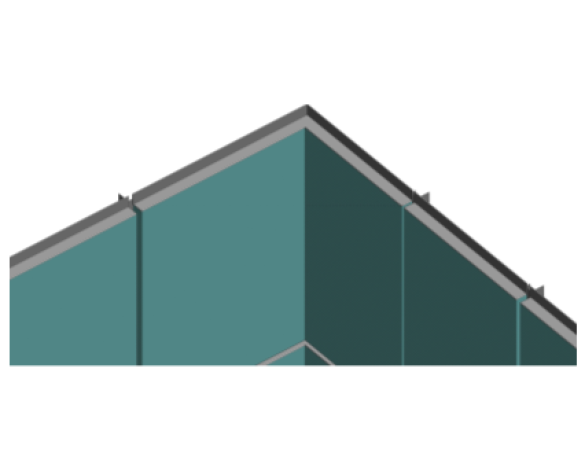

Components include user selectable features and guidance regarding coping and drip flashings, various panel thicknesses as well as internal / external corner panels and window openings.

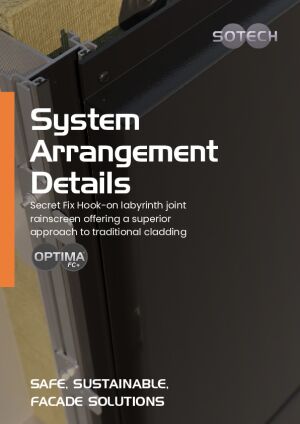

Please refer to the included user guide for guidance on using the Sotech Optima FC Rainscreen System.

_AuthorSotech Limited
_Bim Spec Guid0
_Bimstore Bible Version14
_Created Bysotech-optima.co.uk/
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Acoustic Ratingn/a
Analytic Construction<None>
Assembly CodeB2010100
Asset Typefixed
BIM Object NameCurtainPanel_RainscreenCladding_Sotech Ltd_OptimaFCPanel
Classification NameUniclass2015
Classification ValueSs_25_20_70
Code Performancen/a
CombustibleNo
Constituentsn/a
Construction Typen/a
DescriptionThe Optima FC Rainscreen is a versatile carrier and panel secret fixed system suitable for exterior use as rainscreen cladding or interior use as a wall covering.
Duration Unityears
Expected Lifen/a
Featuresn/a
Finishn/a
Fire Ratingn/a
Flammability Ratingn/a
Fragility Ratingn/a
Graden/a
Ifc Export AsIfcCoveringType
Ifc Export TypeCLADDING
KeynoteH11
ManufacturerSotech Limited
MaterialAvailable in a range of materials including - Aluminium, ACM, CCM, Copper, Stainless Steel, Zinc & ZCM
ModelSotech Optima FC Rainscreen (Secret Fix)
Model NumberStandard Panel
Model ReferenceOptima FC Rainscreen (Secret Fix)
NameSotech_RainscreenCladding_OptimaFCPanel
NBS DescriptionRainscreen Cladding System
NBS Noten/a
NBS Object NameSotech Limited Rainscreen Cladding System
NBS Office Master Tagn/a
NBS Reference25-80-70
Nominal Height0 mm
Nominal Length0 mm
Nominal Width0 mm
Offset10 mm
Product Informationsotech-optima.co.uk/sotech-optima-fc-secret-fix-rainscreen/
Referencen/a
Replacement Costn/a
Shapen/a
Sizen/a
Surface Spread Of Flamen/a
Sustainability Performancen/a
Total Thickness0 mm
Type CommentsSotech Optima FC Rainscreen (Secret Fix) Panel
URLsotech-optima.co.uk/
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration Unityear
Warranty Guarantor Laborn/a
Warranty Guarantor Partstechnical@sotech-optima.co.uk
