Optima TFC (Through Fix Cassette Rainscreen)

36k
0
5 / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

17/09/2021

Download BIM

Add to collection

Available for:

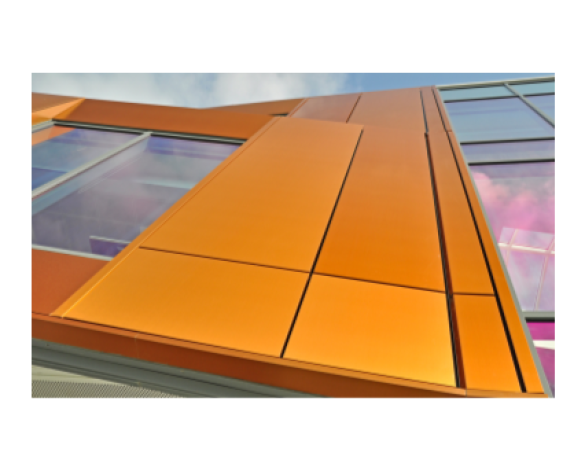

Optima TFC has been developed as an economical alternative to a complete secret fix rainscreen.

Whilst being the most economical rainscreen solution, requiring discreet fixings in the vertical panel recess, the engineering of the system retains the benefits of a drained and ventilated façade. Superior manufacturing techniques ensure there will be no build-up of metal thicknesses at the cruciform joint.

The system has been independently tested and certified to meet CWCT rigorous specification for rainscreen cladding.This drained and ventilated system consists of a baffle-jointed series of panels that creates a weather shield in front of a primary structure.

Optima TFC is engineered to seamlessly integrate with all other building façade elements such as windows, doors and louvres. All fixings used in the systems are stainless steel.

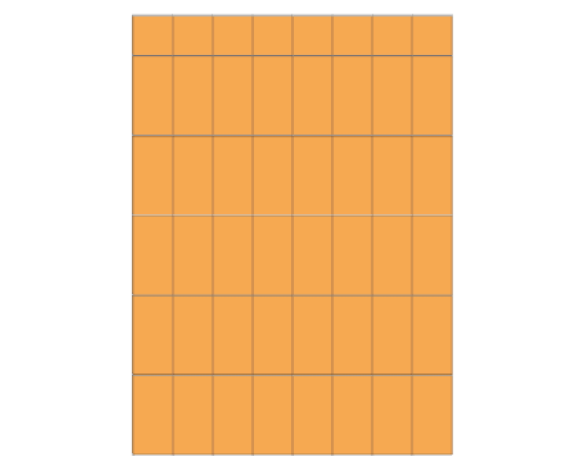

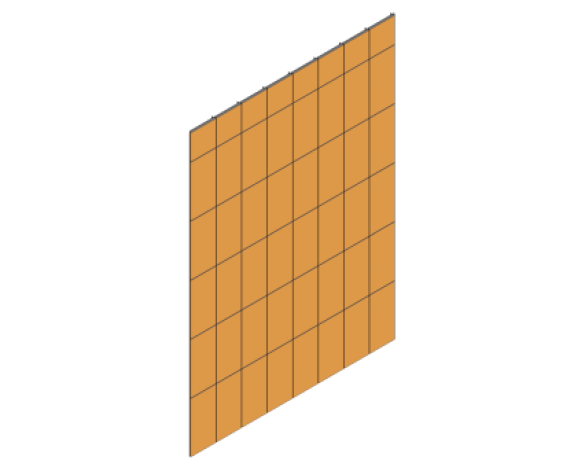

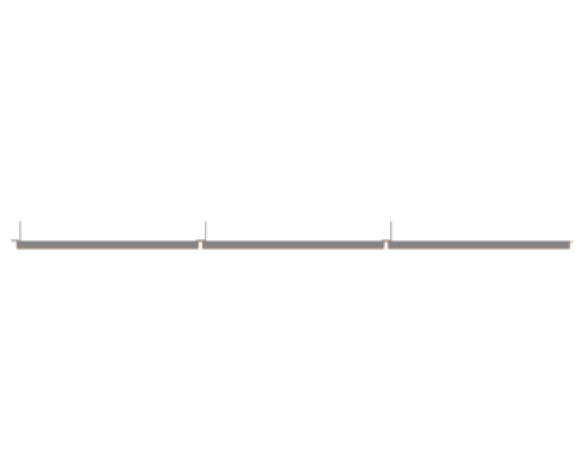

This download contains Revit components for the Sotech Optima TFC, Through fix cassette rainscreen system.

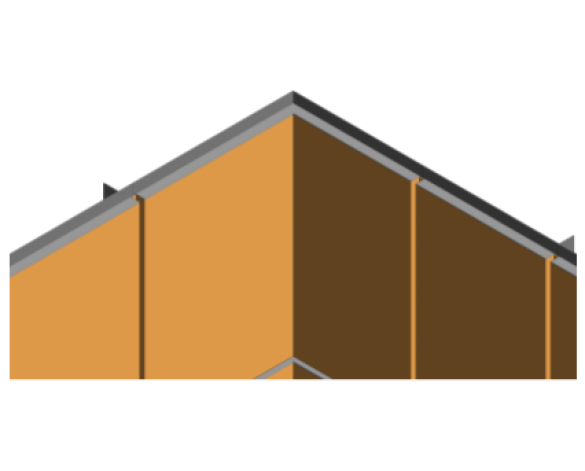

Components include user selectable features and guidance regarding coping and drip flashings, various panel thicknesses as well as internal / external corner panels and window openings.

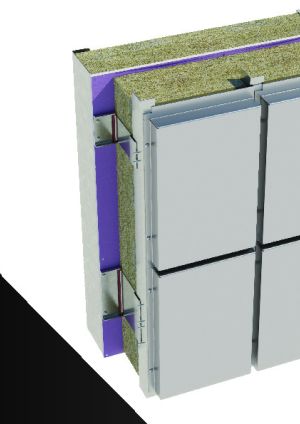

Please refer to the included user guide for guidance on using the Sotech Optima TFC Rainscreen System.

_AuthorSotech Limited
_Bim Spec Guid0
_Bimstore Bible Version14
_Created Bysotech-optima.co.uk/
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Acoustic Ratingn/a
Analytic Construction<None>
Assembly CodeB2010100
Asset Typefixed
BIM Object NameCurtainPanel_RainscreenCladding_Sotech Ltd_OptimaTFCPanel_ExternalCorner
CategorySs_25_20_70 : Rainscreen Cladding Systems
Classification NameUniclass2015
Classification ValueSs_25_20_70
Code Performancen/a
CombustibleNo
Constituentsn/a
Construction Typen/a
DescriptionOptima TFC Through Fix Cassette Rainscreen
Duration Unityear
Expected Lifen/a
Featuresn/a
Finishn/a
Fire Ratingn/a
Flammability Ratingn/a
Fragility Ratingn/a
Graden/a
Ifc Export AsIfcCoveringType
Ifc Export TypeCLADDING
KeynoteH11
ManufacturerSotech Limited
MaterialAvailable in a range of materials including - Aluminium, ACM, CCM, Copper, Stainless Steel, Zinc & ZCM
ModelSotech Optima TFC Panel_External Corner
Model NumberExternal Corner Panel
Model ReferenceOptima TFC Rainscreen_External Corner Panel
NameSotech_RainscreenCladding_OptimaTFCPanel_ExternalCorner
NBS DescriptionRainscreen Cladding System
NBS Noten/a
NBS Object NameSotech Limited Rainscreen Cladding System
NBS Office Master Tagn/a
NBS Reference25-80-70/120
Nominal Height0 mm
Nominal Length0 mm
Nominal Width0 mm
Panel Thickness=0.6mmYes
Panel Thickness=0.7mmNo
Panel Thickness=0.8mmNo
Panel Thickness=0.97mmNo
Panel Thickness=0.9mmNo
Panel Thickness=1.0mmNo
Panel Thickness=1.17mmNo
Panel Thickness=1.2mmNo
Panel Thickness=1.47mmNo
Panel Thickness=1.5mmNo
Panel Thickness=1.97mmNo
Panel Thickness=2.0mmNo
Panel Thickness=2.2mmNo
Panel Thickness=2.5mmNo
Panel Thickness=3.0mmNo
Panel Thickness=3.25mmNo
Panel Thickness=3.5mmNo
Panel Thickness=3.75mmNo
Panel Thickness=4.0mmNo
Product Informationsotech-optima.co.uk/sotech-optima-tfc-through-fix-cassette-rainscreen/
Referencen/a
Replacement Costn/a
Shapen/a
SizeVaries
Surface Spread Of Flamen/a
Sustainability Performancen/a
Total Thickness0 mm
Type CommentsSotech Optima TFC, Through Fix Cassette Rainscreen
Type ImageTFC ExCorner.PNG
URLsotech-optima.co.uk/
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration Unityear
Warranty Guarantor Laborn/a
