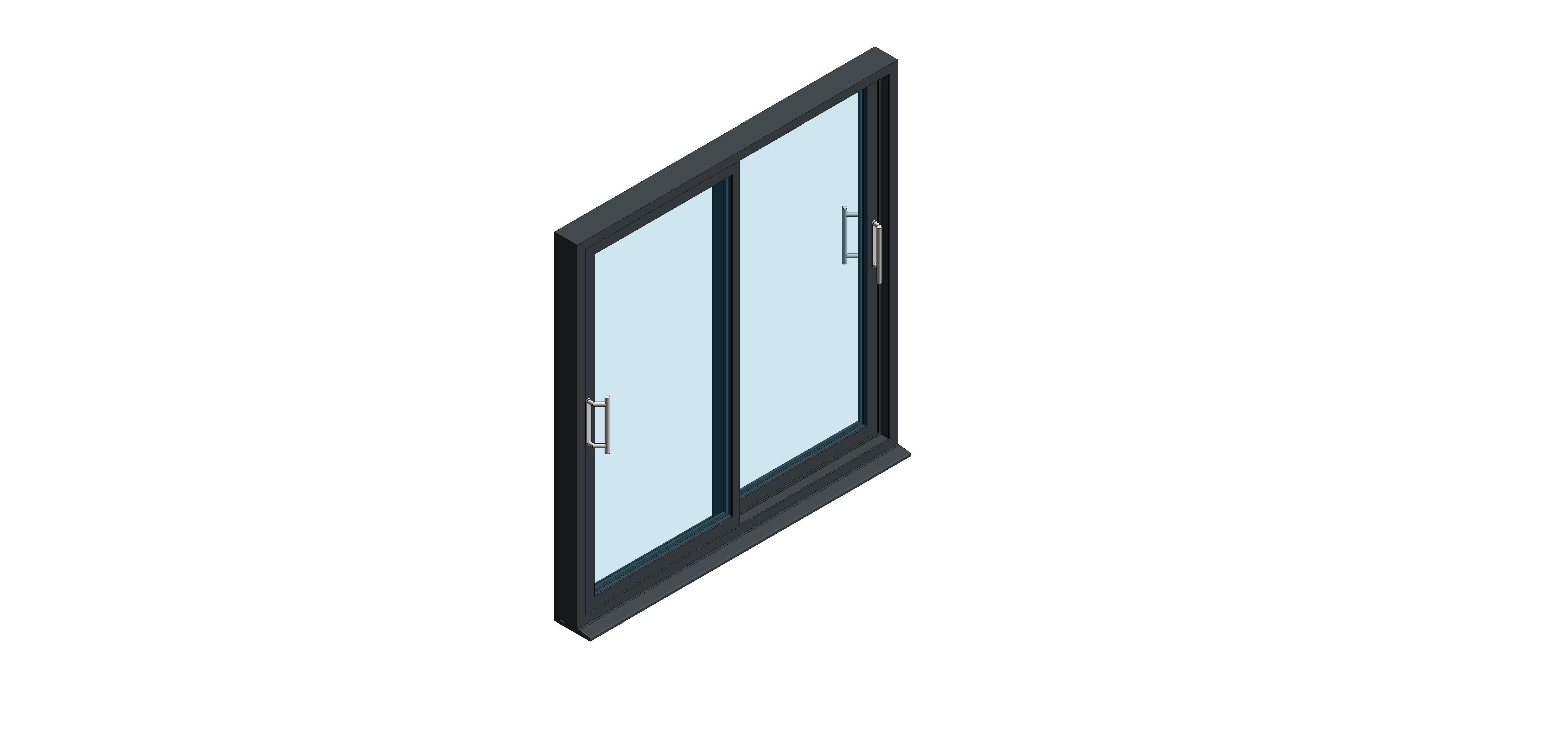

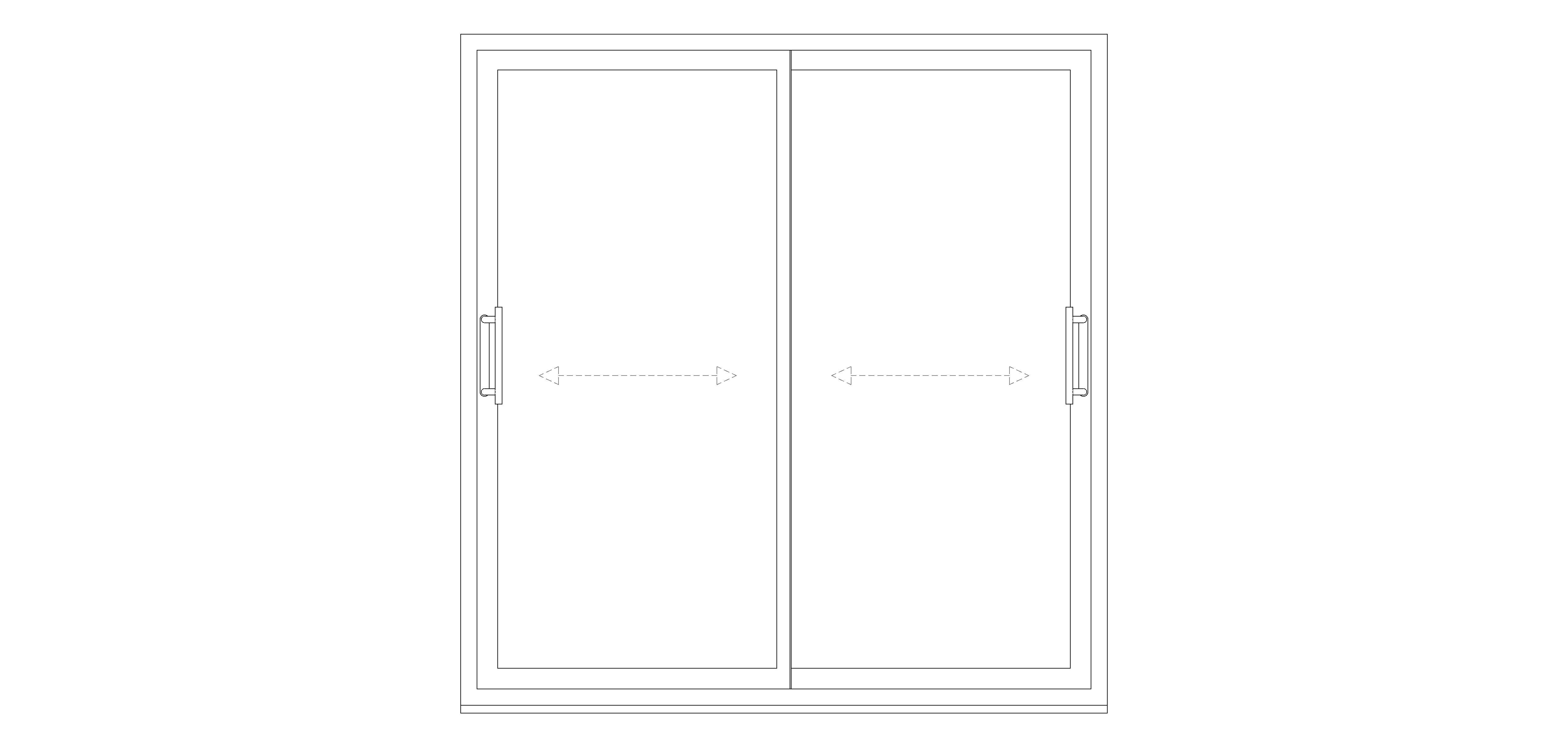

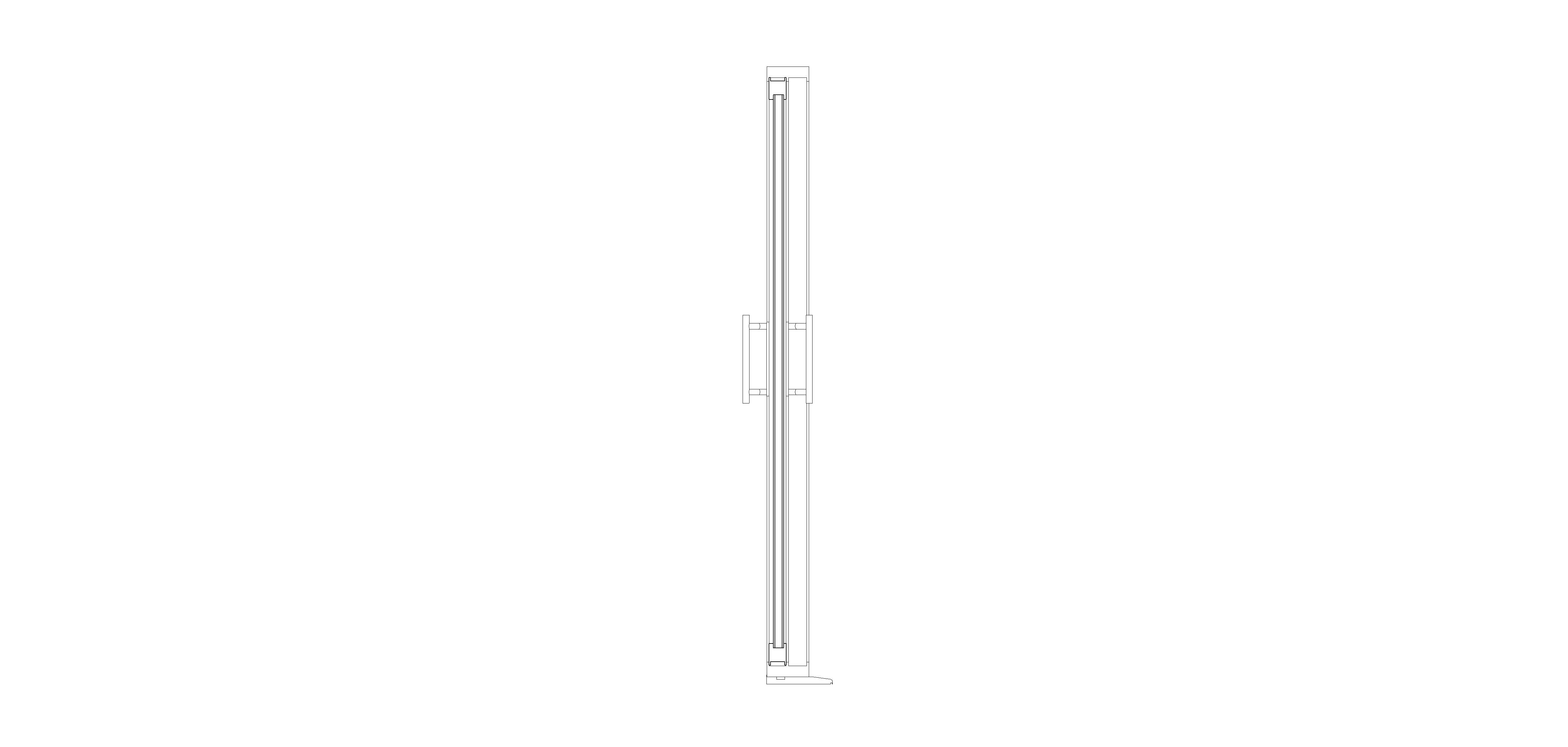

OS-44 Inline Slider Doors - 2 Panel - 1 Sliding / 1 Sliding

by Origin Doors & Windows

Download Add to collection

Description

A modern take on the traditional patio door, the Origin Patio Slider OS-44 is the perfect fit for any type of home. Made completely bespoke, there are two sightline options available. With sightlines of just 44mm, maximising glass and the level of natural light which can flood in.

Object Data

1 Revision

Last Updated

03/09/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

Product Literature

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Wigham
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/os-44-inline-slider-doors-2-panel-1-sliding-1-sliding/document/object-user-guide
Accessibility Performancen/a
Assembly CodeB2030110
Asset TypeFixed
BIM Object NameOriginGlobal_Doors_InlineSlider_OS44_2Panel_2Sliding
Classification NameUniclass2015
Classification ValuePr_30_59_24_81
Code PerformanceISO 14001 / PAS 24:2016 Certified (Document Q Compliant) / Weather testing BS 6375 part 1 certified
ColorAvailable in over 150 RAL colours
Constituentsn/a
Created Byenquiry@origin-global.com
Created On2020-03-16T09:00:00
Depth143 mm
DescriptionThermally Broken Aluminium Patio Slider
Documentation Certificatesorigin-global.com/
Documentation Installation Guidewww.bimstore.co/products/os-44-inline-slider-doors-2-panel-1-sliding-1-sliding/document/installation-guide
Documentation Literaturewww.bimstore.co/products/os-44-inline-slider-doors-2-panel-1-sliding-1-sliding/document/product-literature
Documentation Maintenanceorigin-global.com/
Documentation Technicalwww.bimstore.co/products/os-44-inline-slider-doors-2-panel-1-sliding-1-sliding/document/technical-data-sheet
Door Leaf Offset8 mm
Duration UnitYears
Expected Life0
FeaturesThermally broken
FinishHigh grade powder coating
FunctionExterior
GradeHigh grade Aluminium
Height2100 mm
Ifc Export AsIfcDoor
Ifc Export TypeIfcDoorTypeEnum.DOOR
Internal Reveal Thickness25 mm
KeynoteL20/530
ManufacturerOrigin Global
Manufacturer NameOrigin Global
MaterialAluminium
ModelOS-44
Model NumberOS-44
Model ReferenceInline Patio Sliding Doors - 2 Panel - 1 Sliding, 1 Sliding
NBS DescriptionSliding folding doorsets
NBS Noten/a
NBS Object NameOrigin Global - Sliding folding shutter doorsets
NBS Office Master Tagn/a
NBS Reference45-25-28/368
Nominal Depth143 mm
Nominal Height2100 mm
Nominal Length2000 mm
Production Year2020
Referenced StandardPAS 24:2016 (Document Q Compliant) and Secured by Design
Replacement Costn/a
Rough Height2100 mm
Rough Width2000 mm
ShapeRectangle
Show HandlesYes
Size2000mm (w) x 2100mm (h)
Spare Partsn/a
Thickness143 mm
Type CommentsInline Patio Sliding Doors - 2 Panel - 1 Sliding, 1 Sliding
Type NameInline Patio Sliding Doors - 2 Panel - 1 Sliding, 1 Sliding
URLorigin-global.com/
Wall ClosureBy host
Warranty DescriptionUp to a 20-year guarantee (Guarantee based on location of where the doors will be installed. Full terms and conditions can be found on the Origin website - origin-global.com/terms-and-conditions).
Warranty Duration Laborn/a
Warranty Duration Parts20
Warranty Duration UnitYears
Warranty Guarantor Laborenquiry@origin-global.com
Warranty Guarantor Partsenquiry@origin-global.com
Width2000 mm
