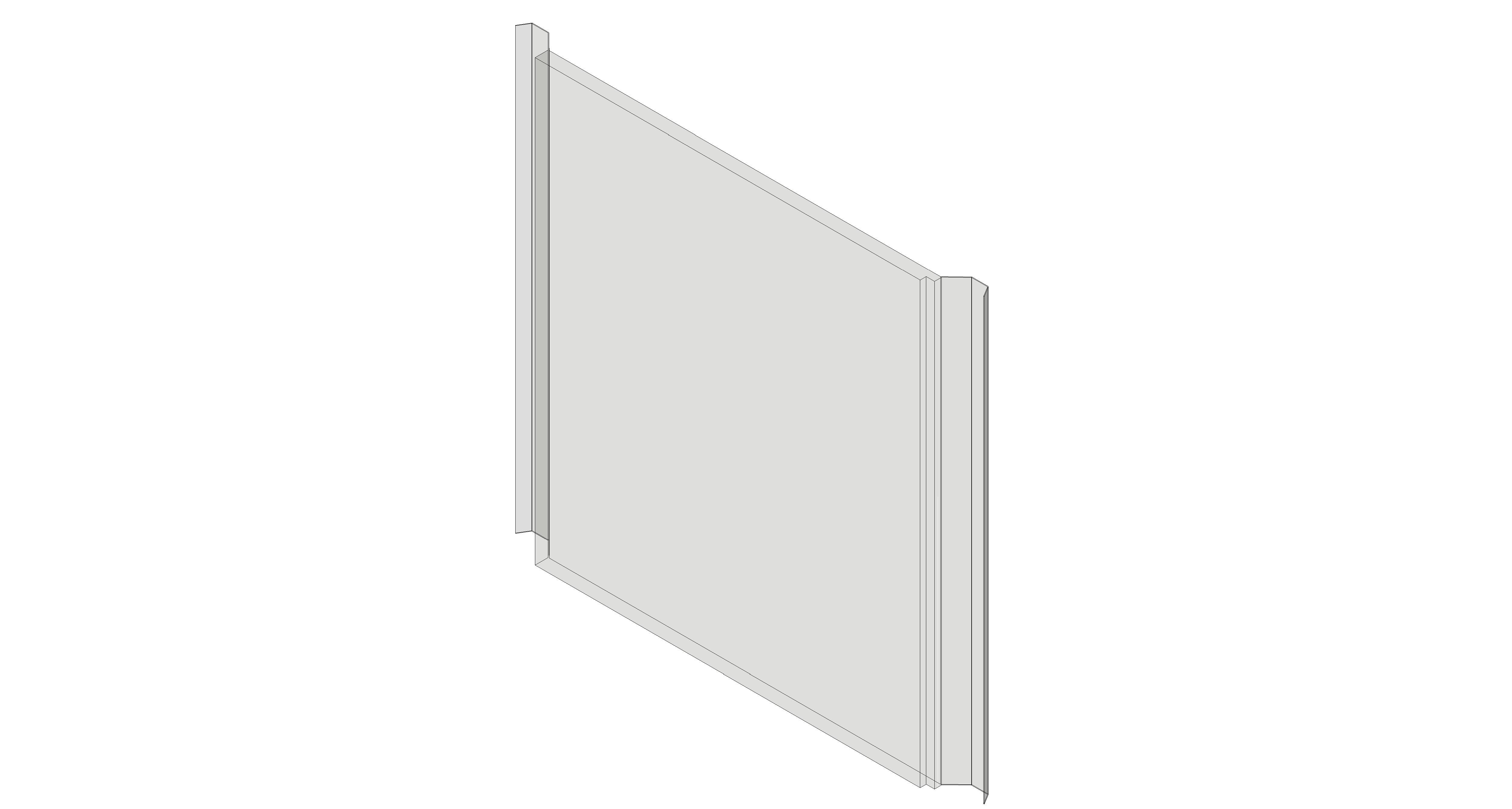

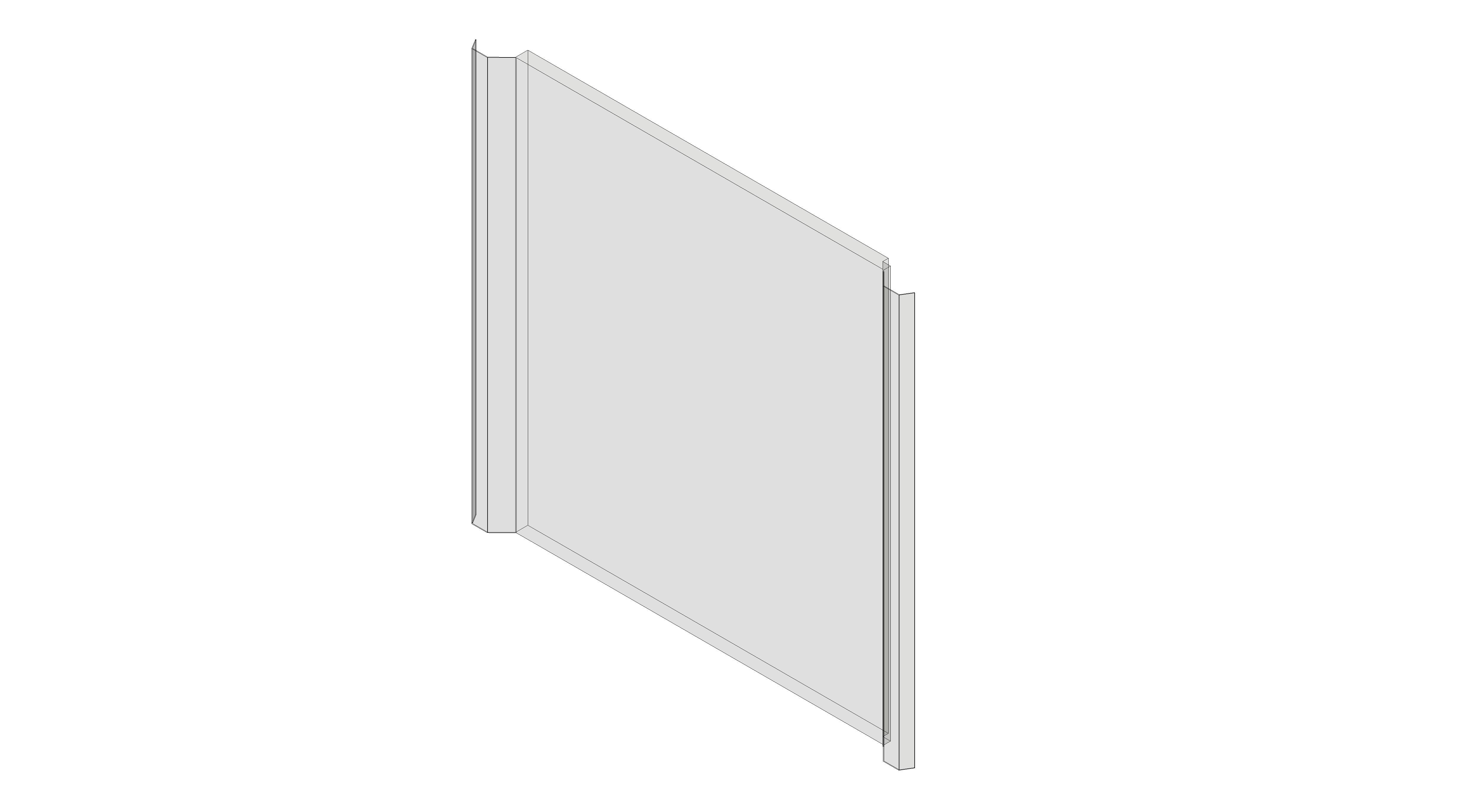

P1000 Plain Polycarbonate Panel

by Assan Panel Sanayi ve Ticaret A.Ş.

Download Add to collection

Description

Precisely compatible with any wide pitch roof sandwich panels. This compatibility provides fast and easy assembly.
Provides high waterproofing and thermal insulation when installed with sandwich panels.
Suitable for every roof slope where sandwich panels can be installed.
If roof sandwich panels are applied to the exterior they can be used on the exterior.
High heat resistance.
10 year warranty against yellowing due to UV protection.
High shock resistance.
Produced transparent or opaque for different light requirements
Can be produced in every length according to architectural requirements and transportation conditions.

Object Data

1 Revision

Last Updated

24/10/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

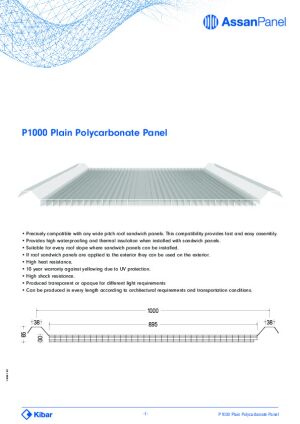

Object User Guide

Object metadata

Accessibility Performancen/a
Analytic Construction<None>
Asset TypeFixed
BIMobject categoryInsulated panel
Classification NameUniclass2015
Classification ValuePr_20_93_85_84
Code Performancen/a
Coefficient of Thermal Expansion (mm/m°c)0,065
Colorn/a
Constituentsn/a
Construction TypeP1000
Created Bybimsupport@assanpanel.com.tr
Created On2019-10-23T09:00:00
Date of publishing001
Design countryISTANBUL
Documentation Certificateswww.assanpanel.com.tr/
Documentation Installation Guidewww.assanpanel.com.tr/
Documentation Literaturewww.assanpanel.com.tr/
Documentation Maintenancewww.assanpanel.com.tr/
Documentation Technicalwww.assanpanel.com.tr/
Duration UnitYears
Expected Life0
External ColourPolycarbonate
Featuresn/a
FinishASSAN IPN
Fire Performance(- 40 °C) / (+ 120 °C )
Graden/a
Heat Transmission Coefficient λ (EN 13165) (W/Mk)1,35
IFC ClassificationBuilding Element
Installation instructionswww.assanpanel.com.tr/en/urunler/polikarbonat-levha/p1000-pc
ManufacturerAssan Panel San. ve Tic. A.Ş.
Manufacturer countryTURKEY
Manufacturer nameAssan Panel San. ve Tic. A.Ş.
Manufacturer NameAssan Panel San. ve Tic. A.Ş.
Materialn/a
maximum size (m)Depends on Shipping Terms
minimum size (m)1
Model nameASSAN_P1000
Model NumberRoof and Wall Corrugadet
Model ReferenceMultilight Polycarbonate Panel
NBS Reference Code60-88-84
NBS Reference DescriptionInsulated Wall
Panel orientationRoof and Wall Corrugadet
Product certificationwww.assanpanel.com.tr/en/kutuphane/sertifikalarimiz
Product data urlwww.assanpanel.com.tr/-/media/files/pdf/urunler/polikarbonat-levha/multilight-en.ashx
Product familyRoof and Wall Corrugadet
Product groupMultilight Polycarbonate Panel
Production Siteİstanbul
Production Year2019
QR codewww.assanpanel.com.tr/en/urunler/polikarbonat-levha/p1000-pc
Ral CodeAll colors available.Please enter the desired color code @ : 7032
Referenced Standardn/a
RegionALL
Replacement Costn/a
ShapeRectangular
Sizen/a
Spare Partsn/a
Technical descriptionwww.assanpanel.com.tr/en/urunler/polikarbonat-levha/p1000-pc
Thermal Permeabilitytransparent %59, Opal %30
Thicknes30 mm
Type CommentsP1000_Polycarbonate Panel
Type NameRoof and Wall Corrugadet
Uniclass 2.0 CodePr_20_93_85_84
Uniclass 2.0 DescriptionStructural insulated wall panels
Uniclass 2015 CodePr_20_93_85_84
Uniclass 2015 NameStructural insulated wall panels
URLwww.assanpanel.com.tr/en/
Version numberAssan_P1000_Polycarbonate Panel_001
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
width (mm)1000

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
