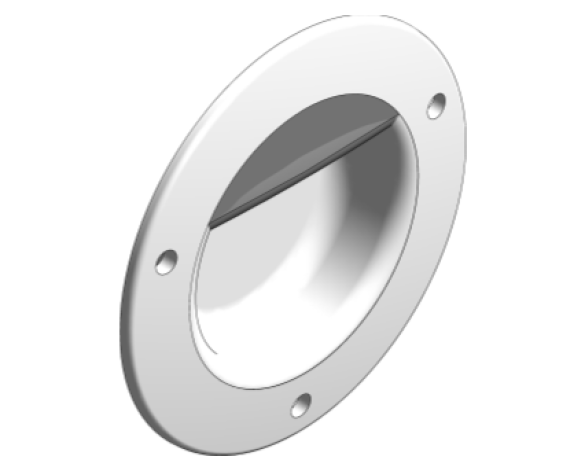

Rad-Seal Radiator Pipe Guide & Seal

10.7k
0
5 / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

12/08/2015

Download BIM

Add to collection

Available for:

The air barrier is an effective, easy and quick solution to help reduce air leakage. It aligns with the Building Regulation Part L, which states that a maximum leakage performance must be achieved in the design and build of all new homes. Timloc’s Radiator Pipework Air Barrier has an impressive air leakage performance rate at 2Pa (average standard static pressure) and Part L’s testing pressure of 50Pa – without the need for sealants.

This download includes Pipe Work Air Barrier BIM components from Timloc Building Products.

_authorized byConnor Laing
_BIMspec_GUID0
_created byConnor Laing
_current revision1
_distributed bywww.bimstore.co.uk
Assembly CodeC1030
Asset TypeFixed
Bar Code5036889009907
Classification NameUniclass 2015
Classification ValuePr_65_52_61
ColorWhite and Grey
Created Bytechnical@timloc.co.uk
Created On01/08/2015
Default Elevation1219 mm
DescriptionA radiator pipework installation aid that centrally and neatly holds through wall 10mm plastic radiator pipework in place during the plastering process, protects the pipework and plaster from chafing during radiator connection and positions the pipework
Diameter140 mm
Documentation Literaturewww.timloc.co.uk/uploads/files/Radiator_Pipework_Air_Barrier_Intro_Brochure_27.07.15..pdf
Documentation Maintenancewww.timloc.co.uk/uploads/files/1115_-_Timloc_Radiator_Pipework_Air_Barrier_EMAIL_format_10.07.15..pdf

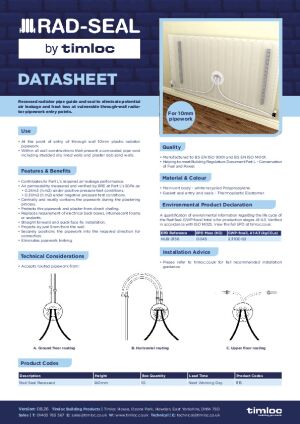

Documentation Technicalwww.timloc.co.uk/uploads/files/1115_Radiator_pipework_air_barrier.PDF
Duration UnitYears
Expected Life0
FeaturesAir leakage barrier at the point of entry for through wall 10mm plastic radiator pipework to help meet the mandatory new build home air leakage requirements of Building Regulation Part L. Centrally and neat
KeynoteP31
Main MaterialTimloc_Air_Barrier_Material
ManufacturerTimloc Building Products
MaterialMain body: Polypropylene Seals: Thermoplastic Elastomer
ModelRadiator Pipework Air Barrier - Code: 1115
Model Number1115
Production Year2015
Radius70 mm
ShapeRound
Size140mm Diameter
Type CommentsThrough wall radiator pipework installation aid and Building Regulation Part L air leakage barrier.
Type NameRadiator Pipework Air Barrier and Installation Aid
URLwww.timloc.co.uk/
Void Depth50 mm
Void Radius47 mm
Warranty Duration UnitYears
