PIR presence detector (EBMHS)

by CP Electronics

Download Add to collection

Description

Passive infrared (PIR) motion sensor and photocell – 7m range at 2.8m.

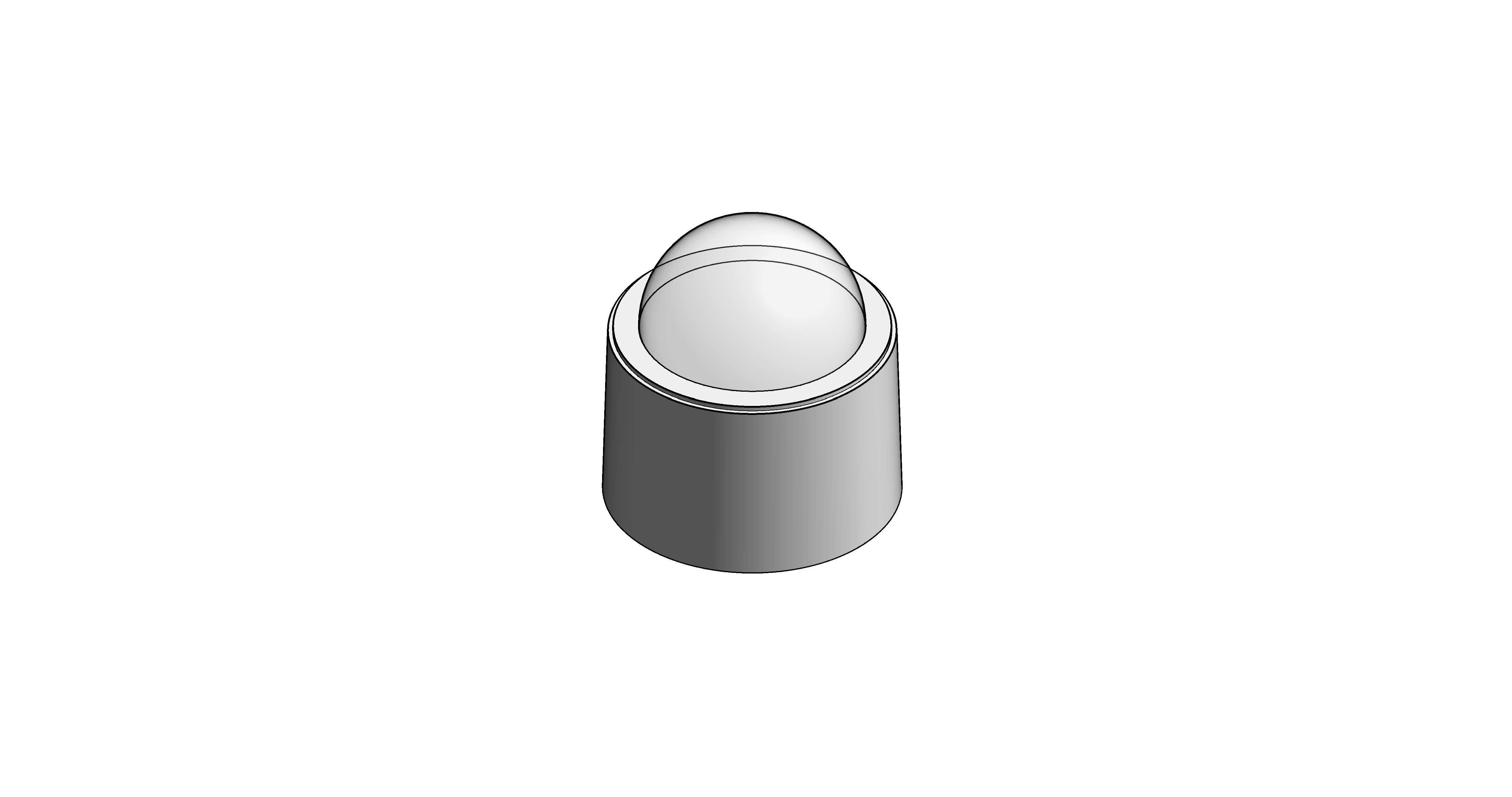

The EBMHS-DNET1 is a combined PIR motion sensor and photocell designed to be part of a DALI network.

Functioning as a presence detector, the unit returns occupancy data to the DALI network.

The photocell provides a lux level measurement value to the DALI network.

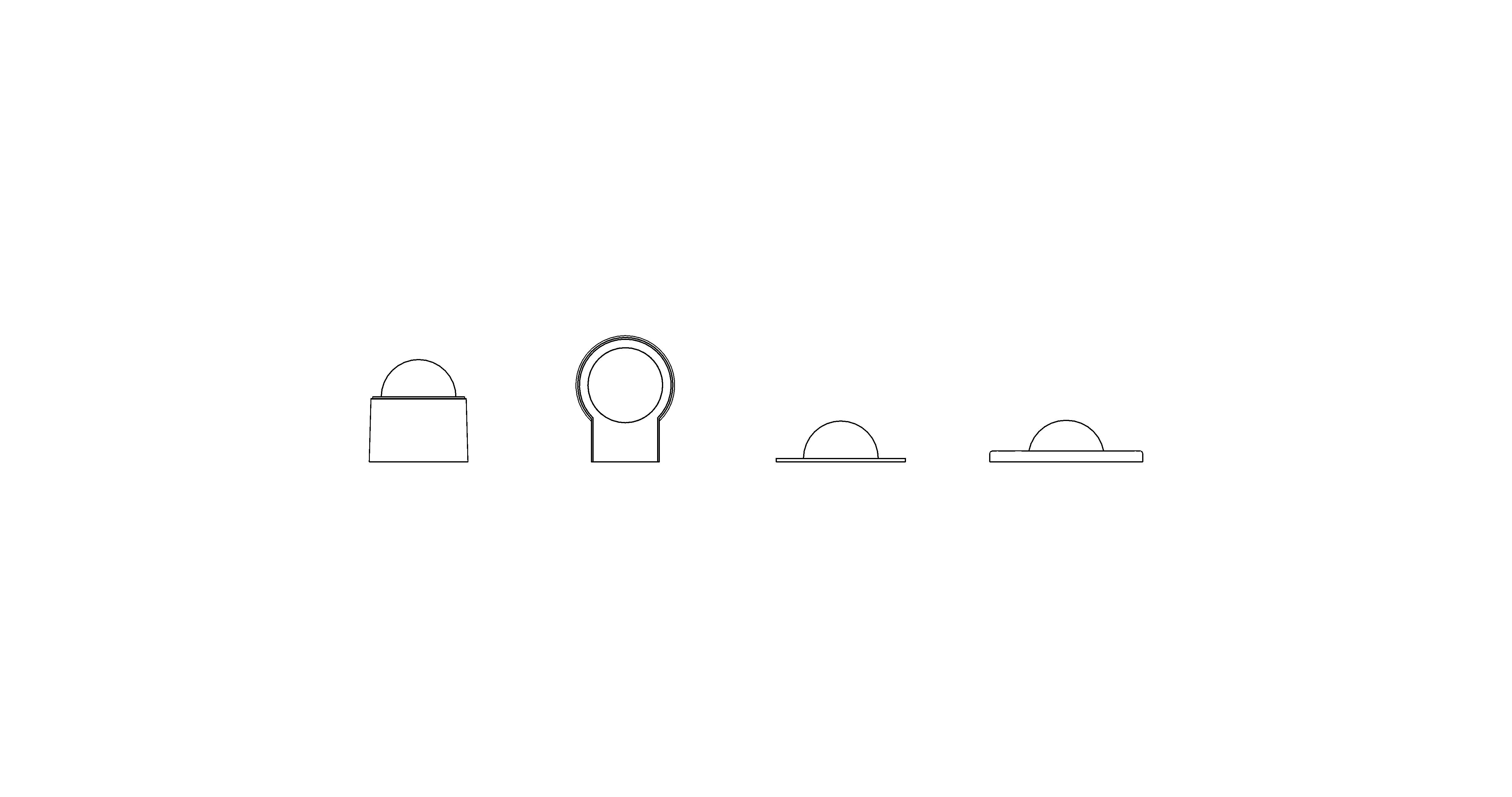

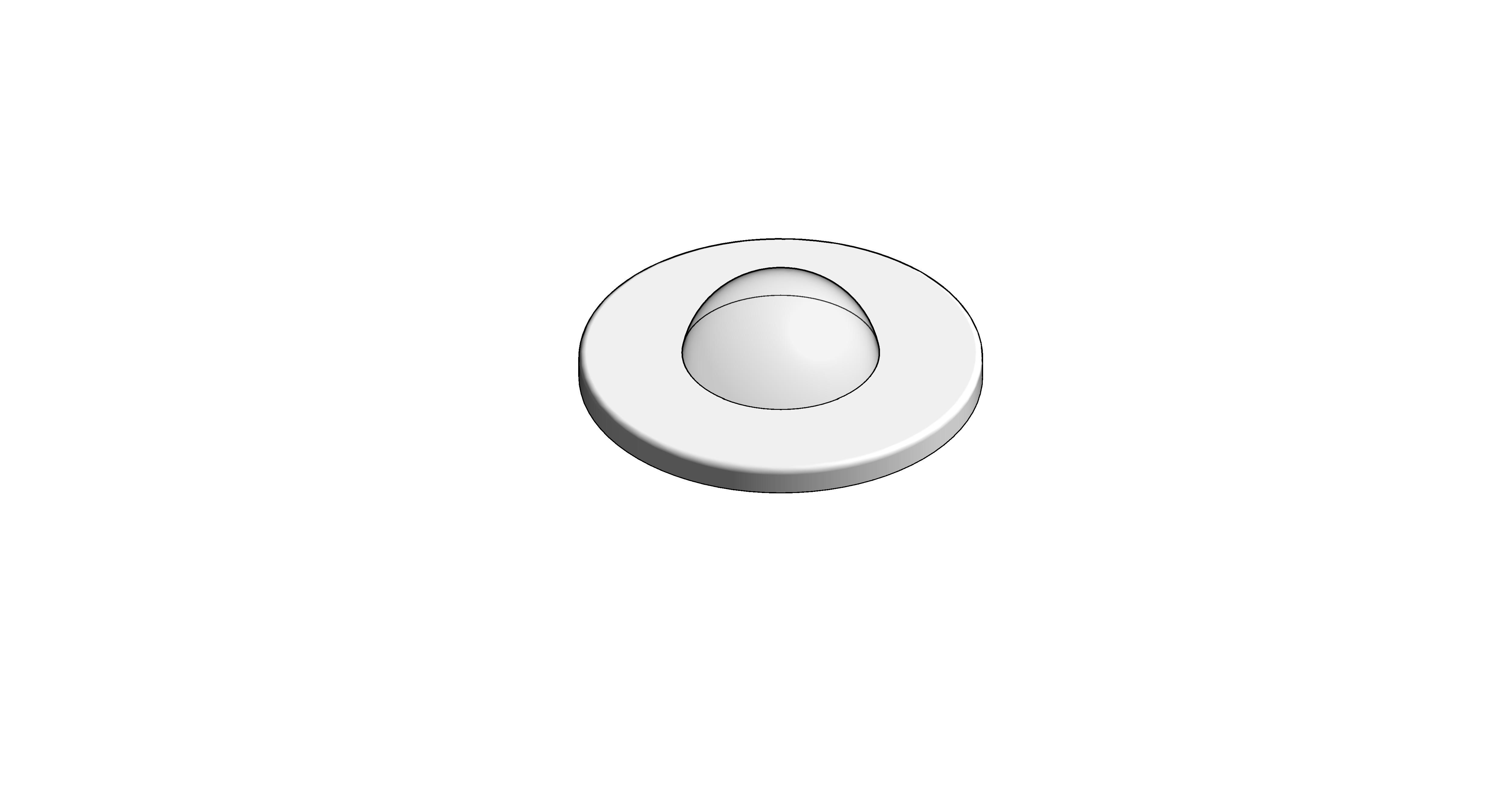

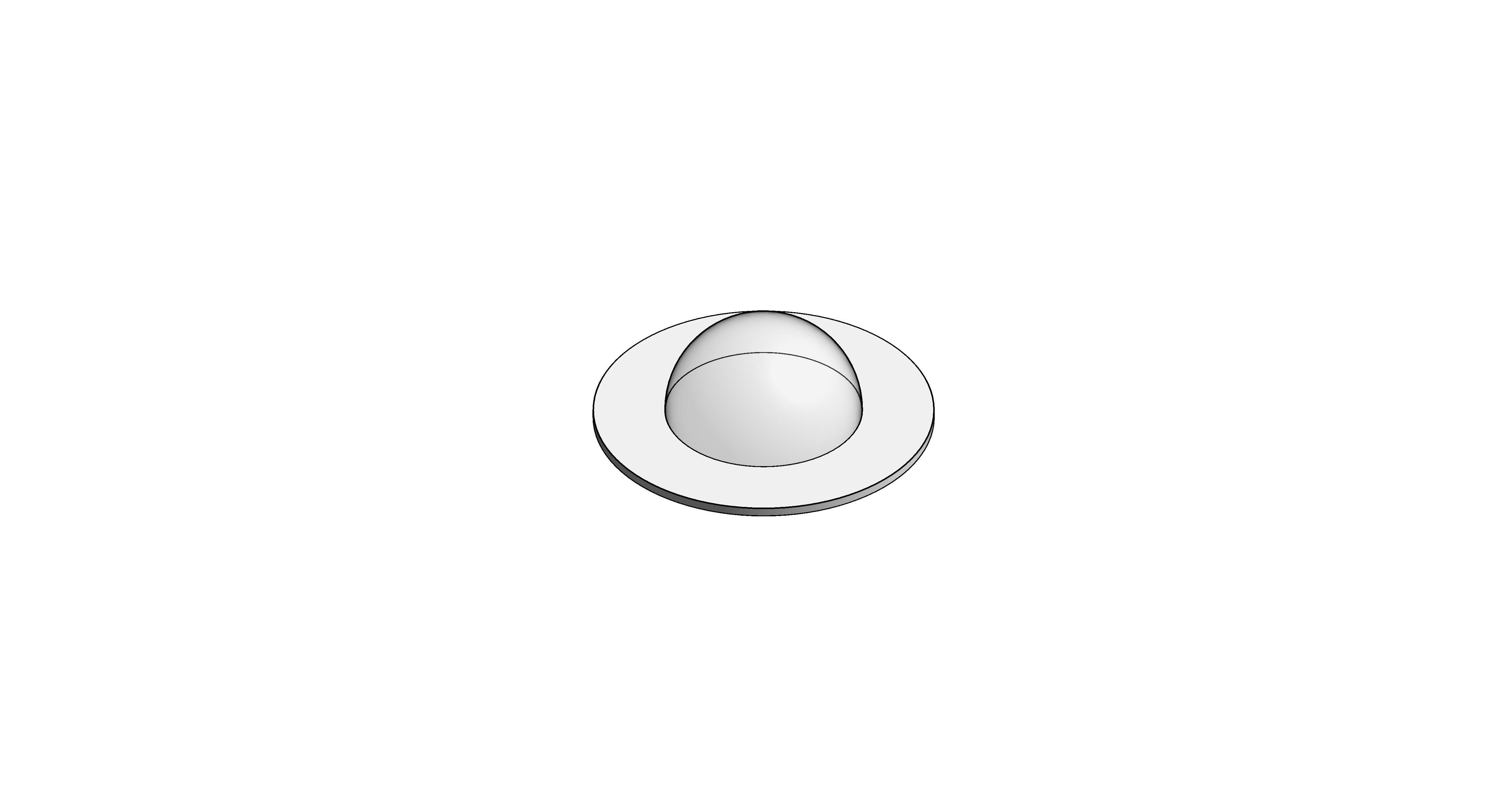

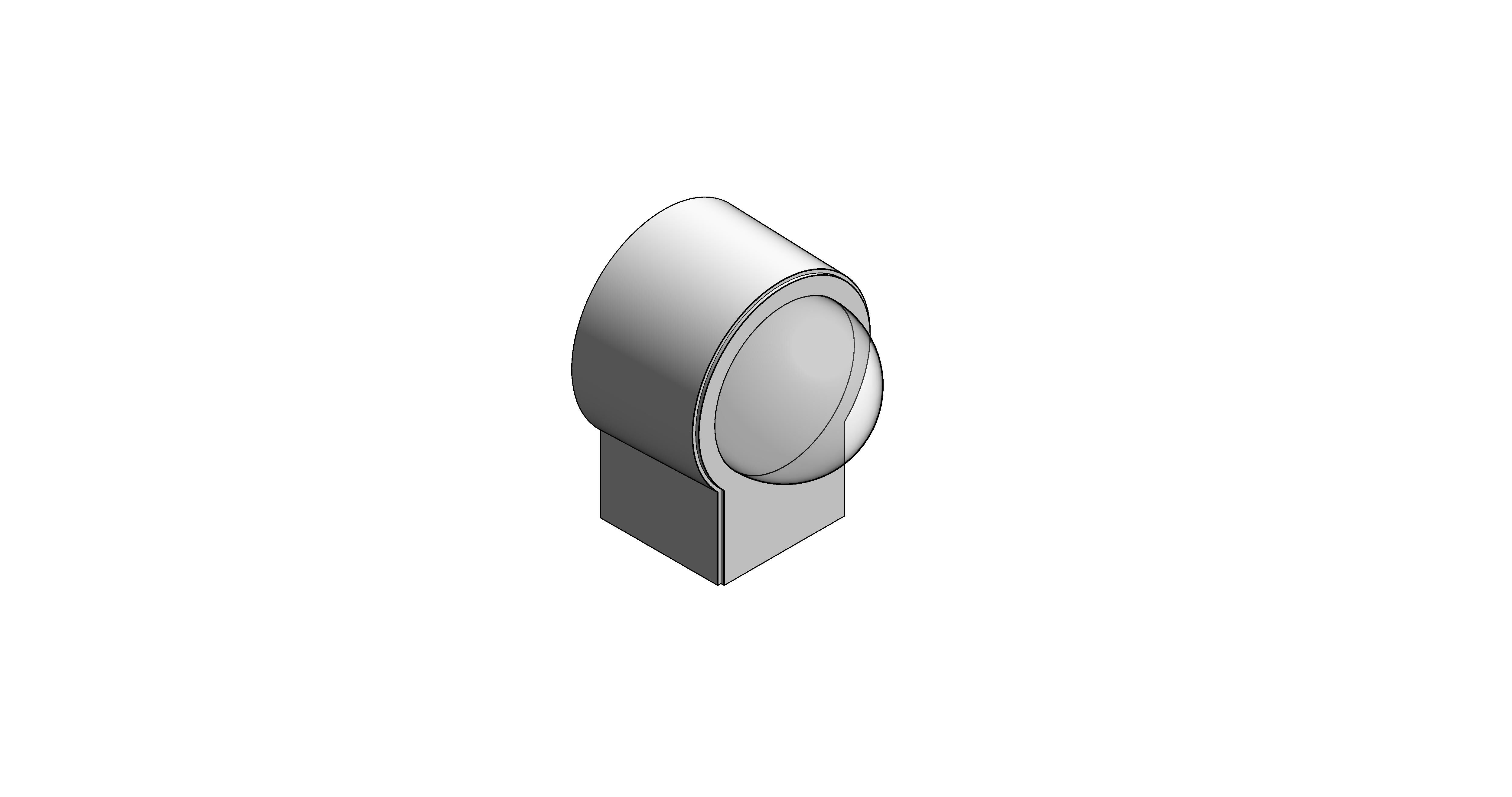

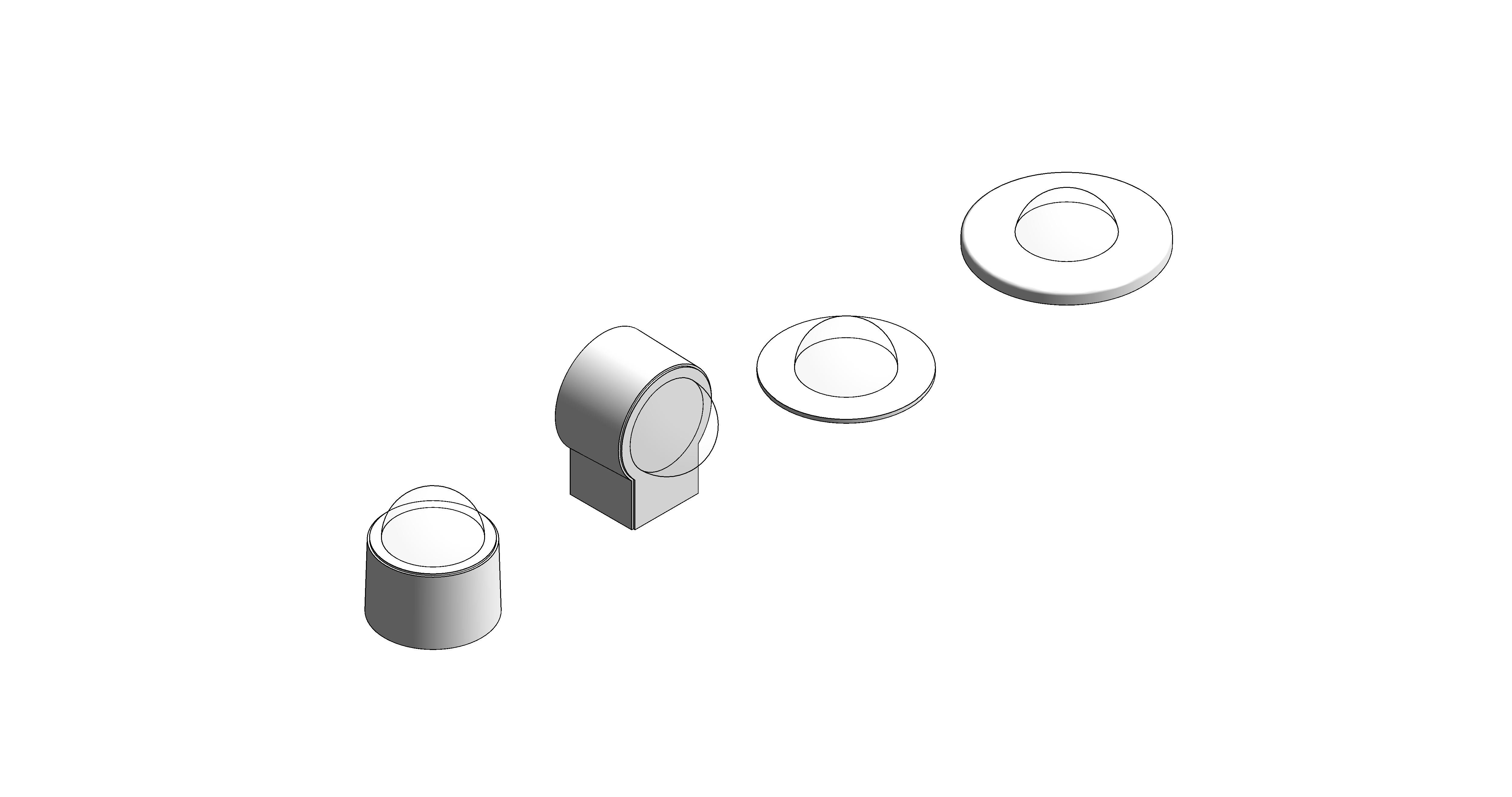

A selection of fixing clips to allow the unit to be mounted in or to the side of a luminaire are available.

Object Data

1 Revision

Last Updated

15/11/2019

Available Software

EPD

Not Available

Accompanying literature

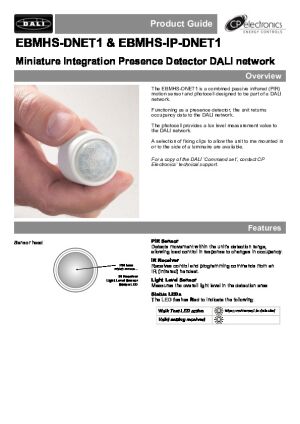

Installation Guide

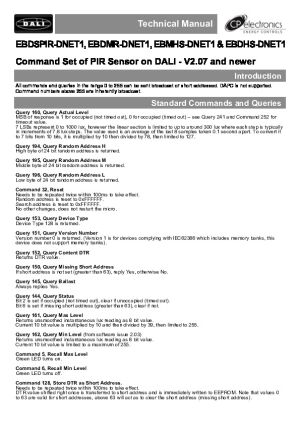

Technical Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeD50
Asset TypeFixed
BIM Object NameCPElectronics_ElectricalEquipment_PresenceDetector_EBMHS-DNET1
Casing MaterialCP Electronics - Plastic, Opaque White
Classification NameUniclass2015
Classification ValuePr_70_70_48_26
Code Performancen/a
ColorWhite RAL9003
Constituentsn/a
Created Byinfo@cpelectronics.co.uk
Created On2019-11-11 T09:00:00
DALI Voltage9.5VDC - 22.5VDC
Default Elevation0.00 mm
DescriptionMiniature integration presence detector
Documentation Certificateswww.cpelectronics.co.uk/product-guides
Documentation Installation Guidewww.bimstore.co/products/pir-presence-detector-ebmhs/document/installation-guide
Documentation Literaturewww.cpelectronics.co.uk/product-guides
Documentation Maintenancewww.cpelectronics.co.uk/product-guides
Documentation Technicalwww.bimstore.co/products/pir-presence-detector-ebmhs/document/technical-data-sheet
Duration UnitYear
EBMHS-DNET1Yes
EBMHS-IP-DNET1No
Expected Life0
FeaturesPIR Sensor: Detects movement within the unit’s detection range, allowing load control in response to changes in occupancy. IR Receiver: Receives control and programming commands from an IR (infrared) handset. Light Level Sensor: Measures the overall light level in the detection area. Optional EBMPIR-ECW Frame: Side mounted head end cap. Detector unit sits inside frame. Optional EBMPIR-FRW Frame: Side mounted head flush ring. Detector unit sits inside frame.
Field Of Vision2.8m x 7m
Finishn/a
GradeClass 2 appliance
Humidity Range5 to 95% non-condensing
Ifc Export AsIfcJunctionBox
Ifc Export TypeIfcJunctionBoxTypeEnum.POWER
IP RatingIP40
KeynoteW
Lens MaterialCP Electronics- Glass, Frosted
Load0 A
ManufacturerCP Electronics
Manufacturer NameCP Electronics
MaterialFlame retardant ABS and PC/ABS casing
ModelEBMHS-DNET1
Model NumberEBMHS-DNET1
Model ReferenceMiniature Integration Presence Detector DALI network
Mounting Height2800.00 mm
NBS DescriptionElectrical low mounted way-guidance lighting module housings
NBS Object NameCP Electronics; Electrical low mounted way-guidance lighting module housings
NBS Office Master Tagn/a
NBS Reference90-60-50/480
Nominal Height0.00 mm
Production Year2019
Referenced StandardEMC-2004/108/EC, LVD-2006/95/EC.
Replacement Costn/a
ShapeCylindrical
Sizen/a
Spare Partsn/a
Supply Current8mA
Temperature Range-10ºC to 35ºC
Type CommentsMiniature Integration Presence Detector DALI network
Type NameMiniature Integration Presence Detector DALI network
URLwww.cpelectronics.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborinfo@cpelectronics.co.uk
Warranty Guarantor Partsinfo@cpelectronics.co.uk
Weight0.10 kg
