Pressure Reducing Valve (D05FT)

by Resideo: Smart Home Products and Systems

Download Add to collection

Description

Resideo offers top-of-the-line home automation solutions to set up your best smart home system, including smart thermostats, security cameras and more.

Click here to visit Resideo for more info!

Object Data

1 Revision

Last Updated

07/01/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

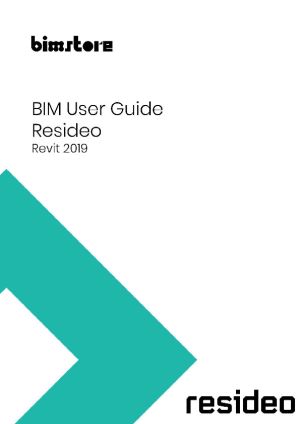

Object User Guide

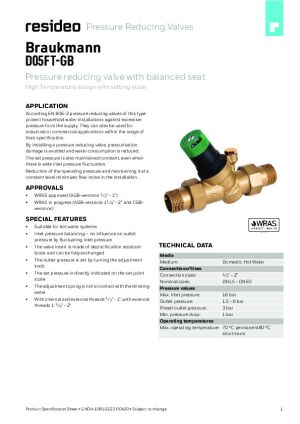

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/pressure-reducing-valve-d05ft/document/object-user-guide
a55.0 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b100.0 mm
Balanced Seat DesignYes

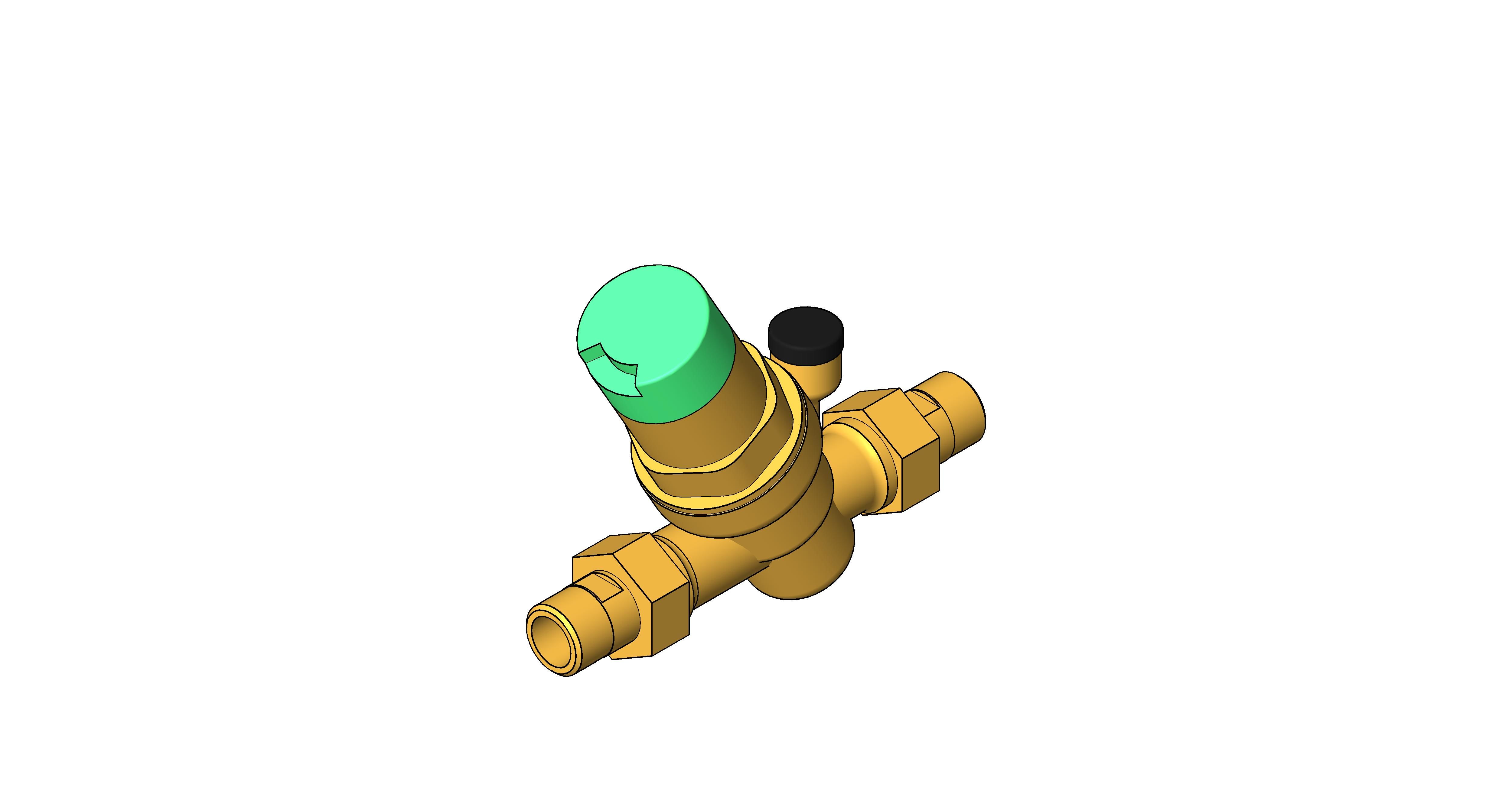

BIM Object NameResideo_PressureReducingValve_D05FT
Body Offset0.0 mm
Bonnet MaterialResideo - Brass
c30.0 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_66
Code Performancen/a
Colorn/a
Connection Dia15.0 mm
Connection OptionWithout connection set
Connection Radius7.5 mm
Connection Size1/2 inch
Constituentsn/a
Created Bywww.resideo.com/gb/en/contact-us/
Created On2022-04-05 T09:00:00
D05 FT-1/2 AYes
D05 FT-1/2 AGBNo
D05 FT-1/2 CGBNo
D05 FT-1/2 ENo
D05 FT-11/2 ANo
D05 FT-11/2 AGBNo
D05 FT-11/2 ENo
D05 FT-11/4 ANo
D05 FT-11/4 AGBNo
D05 FT-11/4 ENo
D05 FT-1 ANo
D05 FT-1 AGBNo
D05 FT-1 ENo
D05 FT-2 ANo
D05 FT-2 AGBNo
D05 FT-2 ENo
D05 FT-3/4 ANo
D05 FT-3/4 AGBNo
D05 FT-3/4 CGBNo
D05 FT-3/4 ENo
Default Elevation0.0 mm
DescriptionPRV HIGH TEMP, WITH CONN.
Documentation Certificateswww.bimstore.co/products/pressure-reducing-valve-d05ft/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/pressure-reducing-valve-d05ft/document/installation-guide
Documentation Literaturewww.bimstore.co/products/pressure-reducing-valve-d05ft/document/product-literature
Documentation Maintenancewww.bimstore.co/products/pressure-reducing-valve-d05ft/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/pressure-reducing-valve-d05ft/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Filter MeshReplacement filter insert for sizes 1/2"- 1" [ES05F-1/2A]
Finishn/a
Flow Capacity3.0 CMH
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.REGULATING
KeynoteS
LargeNo
Manometer PlugHexagon-plug with copper sealing-ring R 1/4" (5 pcs.) [S06M-1/4]
ManufacturerResideo
Manufacturer NameResideo
MaterialBrass, dezincification resistant
Maximum Inlet Pressure16.0 bar
Maximum Media Temperature80°C
Medium TypeDrinking water
Minimum Inlet Pressure1.5 bar
Minimum Pressure Drop1.0 bar
ModelD05FT-1/2A
Model NumberD05FT-1/2A
Model ReferencePRV HIGH TEMP, WITH CONN.
NBS DescriptionPressure-reducing valves
NBS Noten/a
NBS Object NameResideo - Pressure-reducing valves
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth50.0 mm
Nominal Height122.0 mm
Nominal Length155.0 mm
Nominal PressurePN16
Outlet Pressure Range1.5 ... 6 bar
Primary MaterialResideo - Brass
Production Year2022
Product OptionPressure reducing valves for high temperature water, with threaded connection sets
Referenced Standardn/a
Replacement Costn/a
Secondary MaterialResideo - Plastic - Black
Shapen/a
Size50mm (D) x 122mm (H) x 155mm (L)
SmallYes
Spare PartsValve insert complete (without filter) for sizes R 1/2" - R 1" [D05FA-1/2T]; Spring bonnet complete with settingscale for sizes R 1/2" - R 1" [0903919]; Hexagon-plug with copper sealing-ring R 1/4" (5 pcs.) [S06M-1/4]; Replacement filter insert for sizes 1/2"- 1" [ES05F-1/2A].
Spring BonnetSpring bonnet complete with settingscale for sizes R 1/2" - R 1" [0903919]
Tertiary MaterialResideo - Plastic - Green
Type CommentsPRV HIGH TEMP, WITH CONN.
Type NameD05FT-1/2A
URLwww.resideo.com/
Valve InsertValve insert complete (without filter) for sizes R 1/2" - R 1" [D05FA-1/2T]
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborwww.resideo.com/gb/en/contact-us/
Warranty Guarantor Partswww.resideo.com/gb/en/contact-us/
