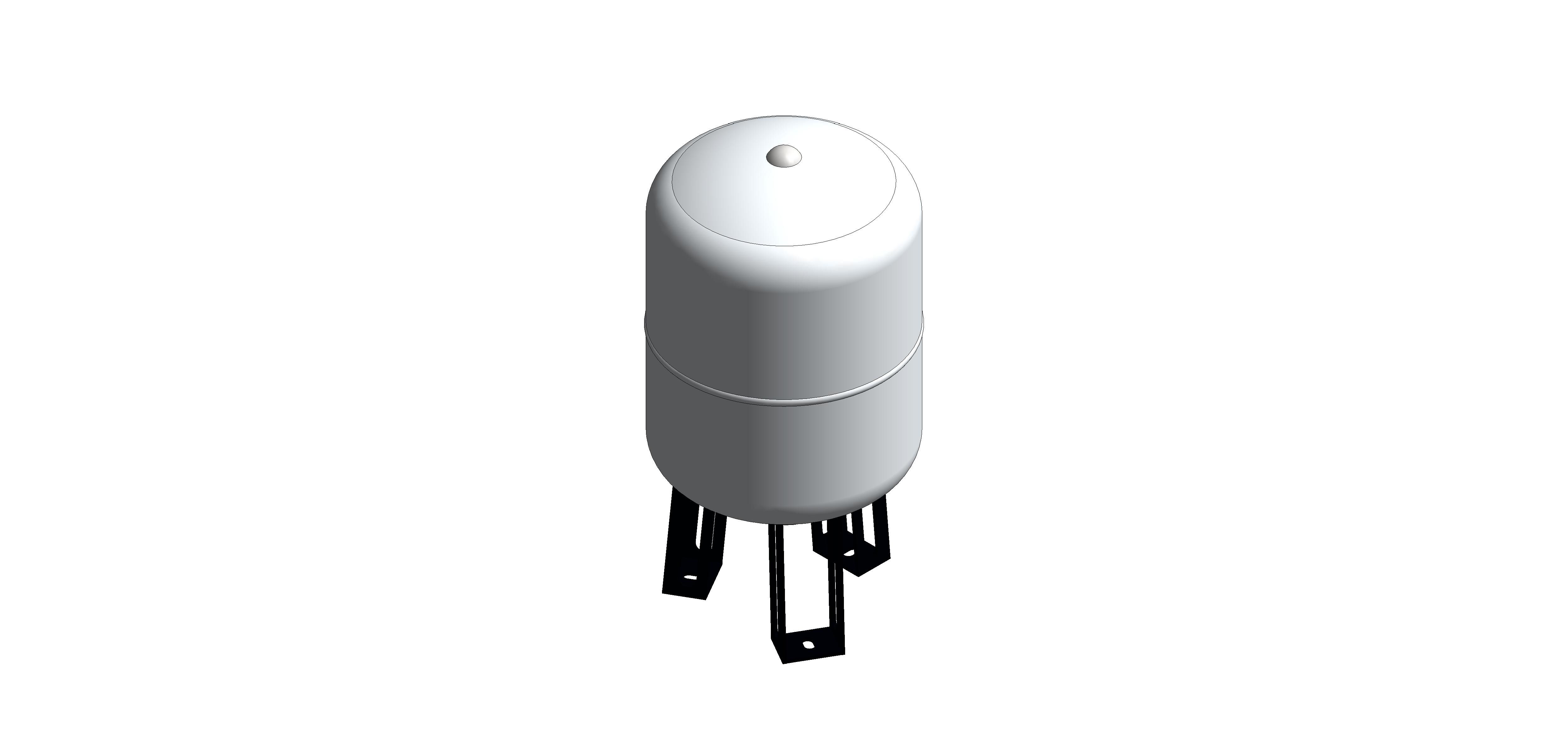

Imera 50 Litre Potable (10 Bar) Expansion Vessel For Hot Or Cold Water
171
0
- / 5Rate this product
Available for:
This Imera multifunctional tank is suitable for potable or non-potable applications. It is 10 bar rated and has a replaceable membrane with a strong AISI 304 stainless steel inox flange.
Imera vessels are manufactured, tested and checked according to current European regulations.
This vessel is rated to work with water that is between -10°C and +100°C and is finished in a tough white paint finish.
The pressure tank with replaceable membrane is an element used in hydraulic applications for sanitary water circuits, such as pressure groups in combination with pumps or devices such as anti-water hammer.
The main purpose of the pressure tank is to give water at a steady pressure, in order to limit the pump hourly starts, safeguarding its working and electricity consumption. This is possible thanks to precharged air pressure stored between the membrane and the internal metal surface of the tank. When the pressure increases, the air cushion compresses letting the water filling in the tank, and then keeping it under pressure to be reused when the user requests it.
- Manufacturer: Imera
- Product Line: M+
- Capacity: 50L
- Type: Multifunctional Vessel
- Height: 720mm
- Diameter: 365mm
- Max Pressure: 10 Bar
- Pre-Charge Pressure: 2.5 Bar
- Connection: 1 inch
- Flange Type: Stainless Steel
- Rubber Membrane: Butyl+
- Working Temperature: -10 deg C to +100 deg C
- Colour: White (RAL 9010), M50+
Find more information directly from Pumps UK Ltd - https://www.pumpsukltd.com/imera-m50plus.html
