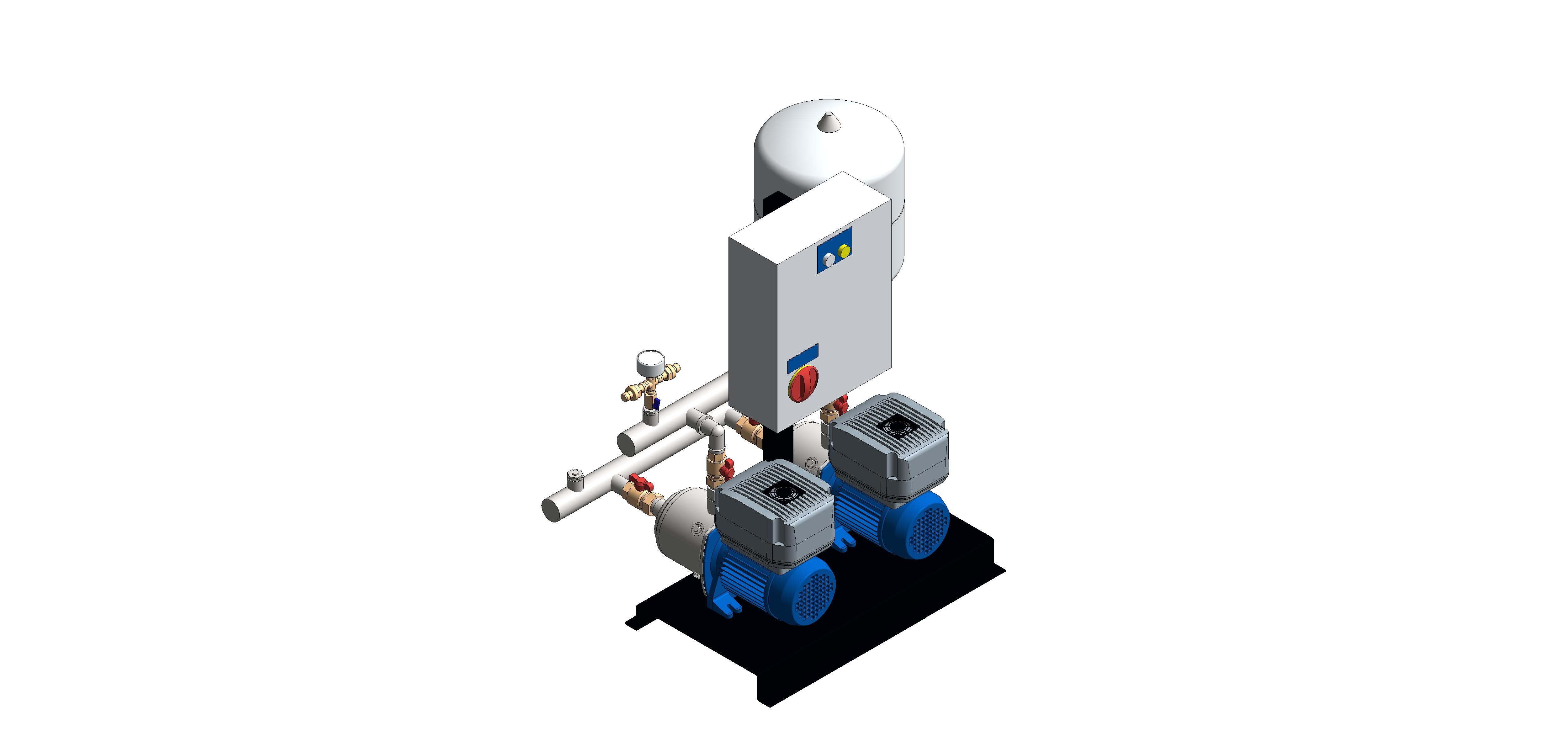

PUK VARI TWIN SM (2 L/S @ 3 Bar) Variable Speed Booster Pump
220
0
- / 5Rate this product
Available for:
The PUK VARI TWIN SM is a variable speed constant pressure booster pump sets that have been designed to suit domestic and commercial systems with hot and cold supply pipes. The unit is ideally suited for systems with un-vented cylinders and high resistance and flow bathroom fittings.
We have utilised Nasco Mida inverters to control the pumps automatically and have enabled dry running protection should you have a water feed issue. The pre-fitted pressure vessel ensures smooth running and reduces the run time of the pump for long life. We use a WRAS approved pump and high-quality fittings to ensure water quality in potable water applications.
The pumps are configured in both Duty/Assist and Duty/Standby so if you need more power than one pump for an un-usual draw it is there and should the worst happen and a pump fails then the other takes the load.
- Manufacturer: Pumps UK Ltd
- Model: PUK VARI TWIN LG
- Inlet Connection: 1 1/2 inch BSPM Suction
- Outlet Connection: 1 1/2 inch BSPM Discharge
- Power Supply: 230v 1~ Single Phase (50Hz)
- Rated Power: 1.5kW (5.8A)
- Recommended Supply Tank: 680 litres
Example Pressure/Flow Performance
- Duty/Standby = 3 Bar, 1.0 l/s | 60 l/m | 3.6 m3h
- Duty/Assist = 3 Bar, 2.0 l/s | 120 l/m | 7.2 m3h
Optional Accessory Kit
- 4 x Anti-Vibration Mounts
- 2 x Flexible Hoses with M/F BSP Connections
Find more information directly from Pumps UK Ltd - https://www.pumpsukltd.com/puk-vari-twin-sm-booster.html
