Purmo Compact Horizontal Panel Radiators

10.7k
0
5 / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

2 Revision

Last Updated

25/03/2024

Download BIM

Add to collection

Available for:

Compact is a traditional panel radiator for closed water-borne heating systems with a neutral design. It is a high-quality radiator with an excellent finish that offers the market's widest assortment. Compact is designed for optimal heat distribution and is delivered with mounted side panels and top grate with childproof fastening. Standard white RAL 9016 finish.

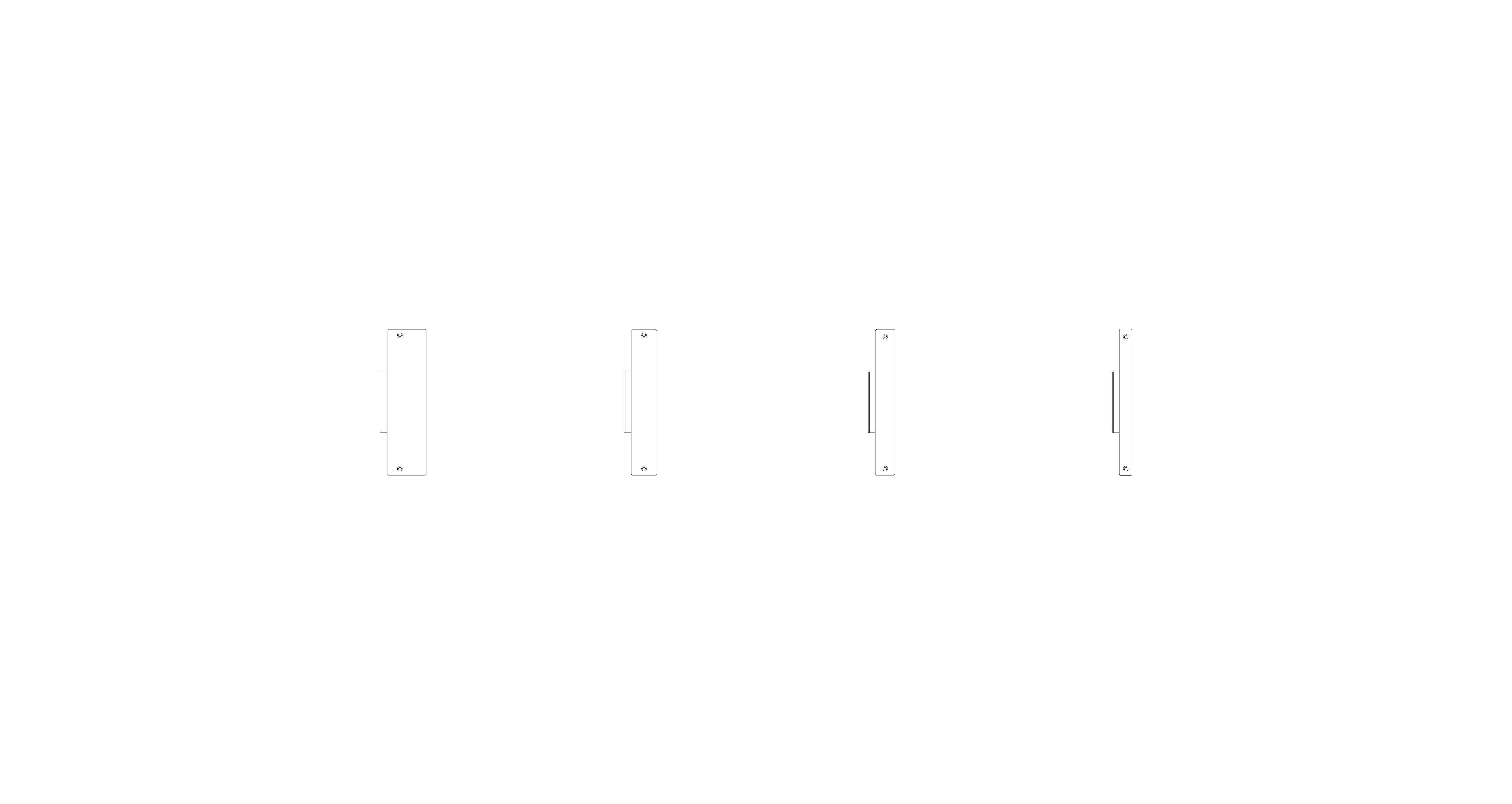

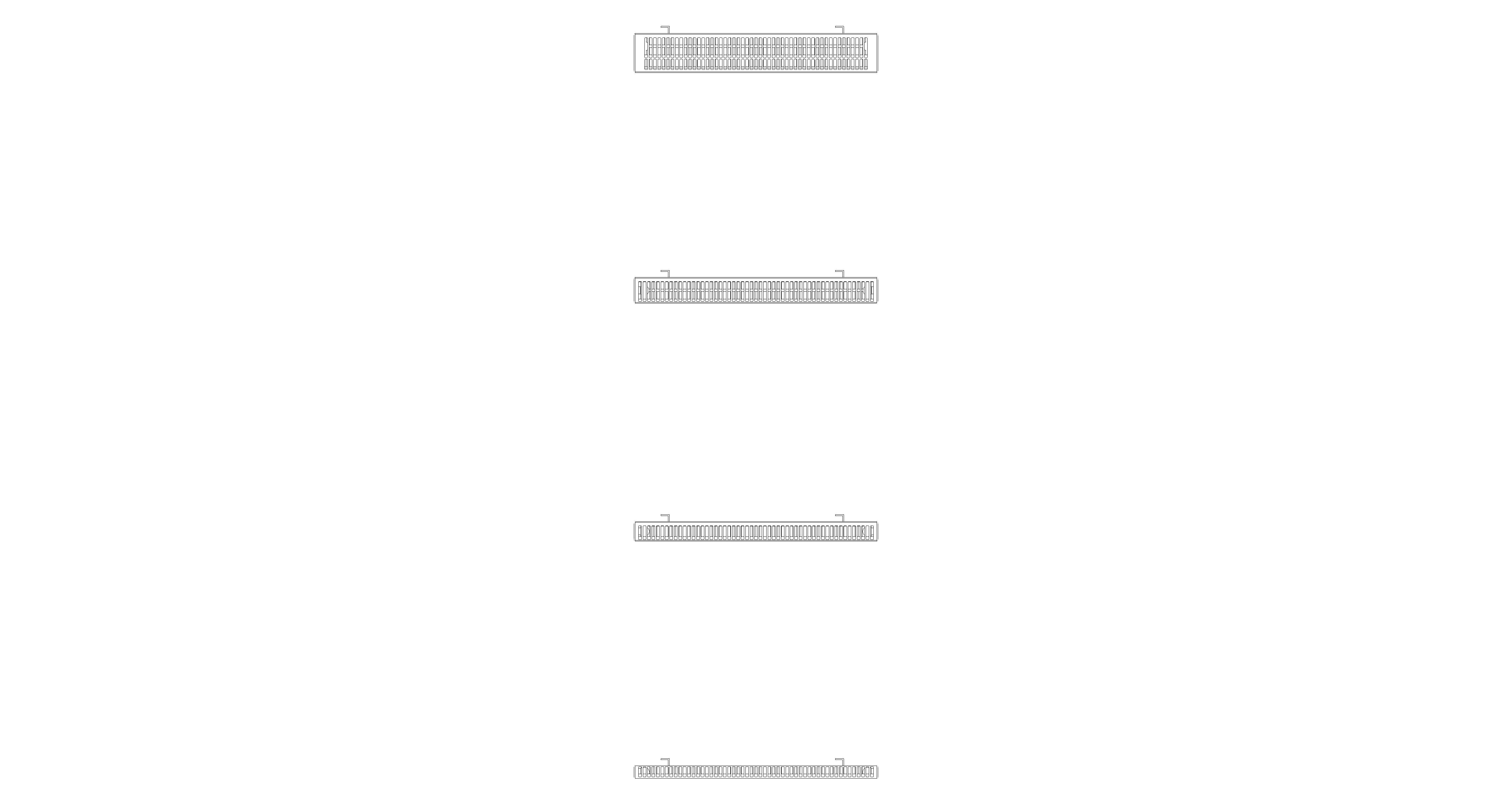

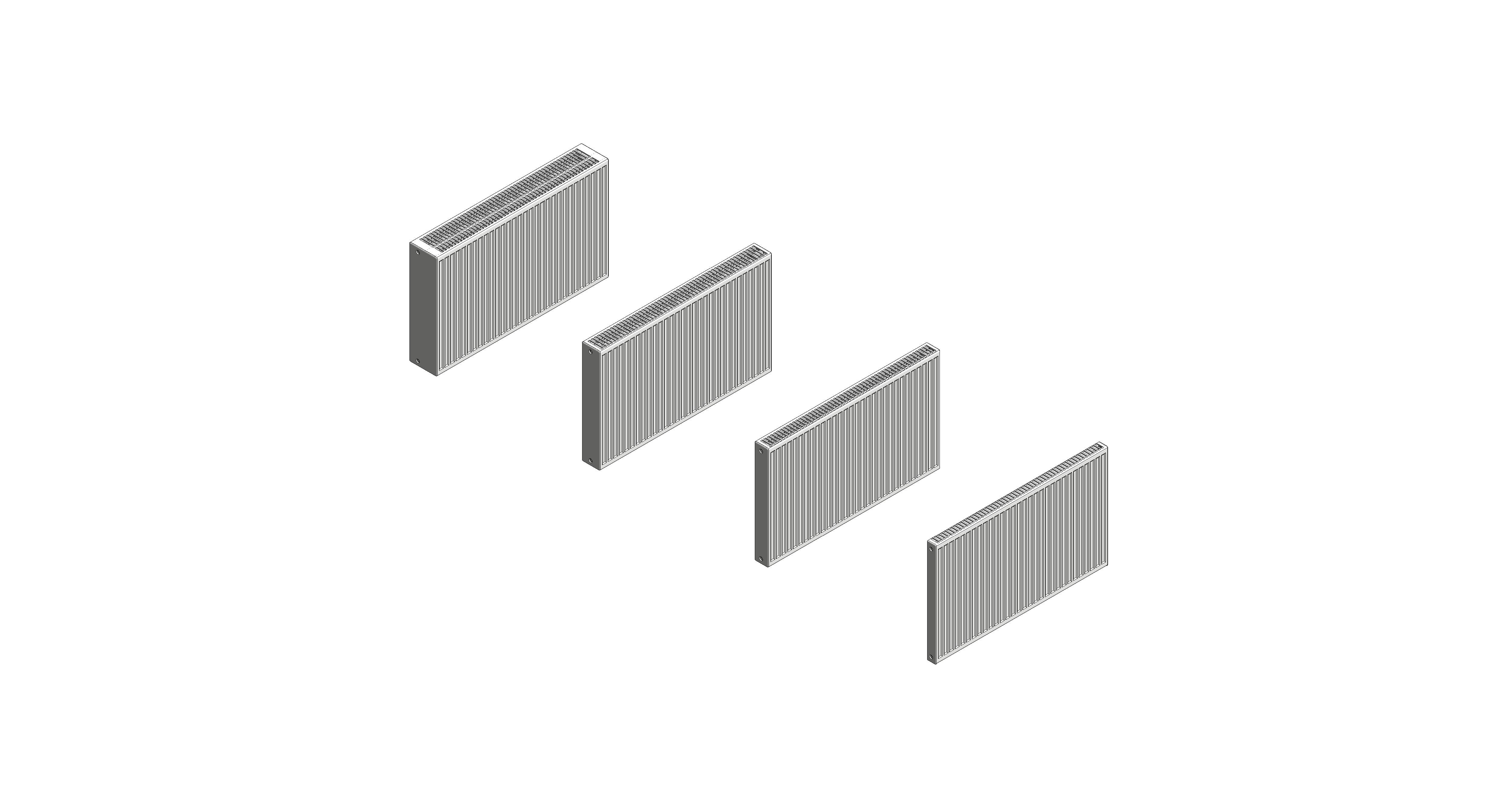

Types: 11 (Single Convector); 21 (Double Single Convector); 22 (Double Convector); 33 (Triple Convector)

Heights [mm]: 300; 400; 450; 500; 600; 900

Widths [mm]: 400; 500; 600; 700; 800; 900; 1000; 1100; 1200; 1400; 1600; 1800; 2000; 2300; 2600; 3000

_AuthorCL
_Authorized ByBS
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision2
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/purmo-compact/document/object-user-guide
3rd BracketNo
6 Monthlyn/a
Access Clearance Zone Back0 mm
Access Clearance Zone Bottom0 mm
Access Clearance Zone Front0 mm
Access Clearance Zone Left0 mm
Access Clearance Zone Right0 mm
Access Clearance Zone Top0 mm
Accessibility Performancen/a
Air VentYes
Annuallyn/a
Assembly CodeD3020
Asset TypeFixed
Bespoke Timeframen/a
BIM Object NamePurmo_Radiators_Compact_DoubleConvector
Bracket Length179 mm
Bracket Offset143 mm
Btu H_Delta T30 Celsius1679
Btu H_Delta T50 Celsius3279
Casing MaterialSteel
CE ApprovalYes
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
Code Performancen/a
ColorWhite (RAL 9016)
ColourWhite (RAL 9016)
Connector Diameter15 mm
Constituentsn/a
Convector Depth66 mm
Convector Thickness30 mm
Created Bygeneralenquiries.uk@purmogroup.com
Created On2024-02-19:T09:00:00
Dailyn/a
Depth102 mm
DescriptionThe Compact is one of the most energy efficient designs on the market. It only requires a small amount of water to function; it heats up very quickly and is easy to control. The large convector plate within the design means that heat is expelled across a greater surface area, distributing heat more effectively around the room.
Documentation Certificateswww.bimstore.co/products/purmo-compact/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/purmo-compact/document/installation-guide
Documentation Literaturewww.bimstore.co/products/purmo-compact/document/product-literature
Documentation Maintenancewww.bimstore.co/products/purmo-compact/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/purmo-compact/document/technical-data-sheet
Drain TapNo
Duration UnitYears
Embodied Carbonn/a
Energy Technology Listn/a
Environmental Product Declarationn/a
Expected Life50
Featuresn/a
FinishPaint
FinnedYes
Finn MaterialConvector Fins
Floor StandsNo
Gap Spacing5 mm
Graden/a
Green Guide For Specificationn/a
Grille Calc950 mm
Gross Weight0.00 kg
Heat Emitter MaterialSteel
Heat ReflectorNo
Heat Transfer Mediumn/a
Height300 mm
Height Calc250 mm
Height From Floor0 mm
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
Inlet GrilleNo
Integral Locksheild ValveNo
Integral Regulating ValveNo
Integral TRVNo
KeynoteT30/350
Length1000 mm
Life Cycle Analysisn/a
Location Of Manufacturern/a
Maintenance Required 0-300hrsn/a
Maintenance Required 1001-2000hrsn/a
Maintenance Required 2001-4000hrsn/a
Maintenance Required 301-600hrsn/a
Maintenance Required 4001-8000hrsn/a
Maintenance Required 601-1000hrsn/a
Maintenance Required 8001-12000hrsn/a
ManufacturerPurmo
Manufacturer NamePurmo
Manufacturer Websitewww.purmo.com/
MaterialSteel
Material Ingredient Reportingn/a
Maximum Operating Pressure800000.0 Pa
Maximum Operating Temperature100 °C
Maximum Test Pressure1050000.0 Pa
ModelPurmo Compact - Double Convector
Model NumberC22 300 1000
Model ReferencePurmo Compact - Double Convector
Monthlyn/a
Mounting TypeWall Brackets
NBS DescriptionRadiators
NBS Noten/a
NBS Object NamePurmo - Radiators
NBS Office Master Tagn/a
NBS Reference90-40-35/405
Nominal Depth102 mm
Nominal Height300 mm
Nominal Length1000 mm
No Of Sections30
Number Of Panels0
Number Of Sections0
O&M Manualn/a
Offset From Wall29 mm
Opening Calc66 mm
Order CodeC22 300 1000
Outlet GrilleNo
Overall Height300 mm
Overall Length1000 mm
Overall Width102 mm
Pipe Connection Size15 mm
Possible Connections Positionsn/a
Pressure Drop0.0 Pa
Production Year2024
Product Literaturewww.bimstore.co/products/purmo-compact/document/product-literature
Product Model NumberC22 300 1000
Product RangePanel Radiators
Quaterlyn/a
Rad MaterialRAL 9016
Referenced Standardn/a
Reference StandardBS EN 442
Replacement Costn/a
Responsible Extraction Of Materialsn/a
Responsible Sourcing Of Materialsn/a
Seam Typen/a
Section Width Calc27 mm
Shapen/a
Shipping Weight0.00 kg
Size300mm (h) x 1000mm (w) x 102mm (d)
Spare Partsgeneralenquiries.uk@purmogroup.com
Temperature Classificationn/a
Thermal Output0 W
TypePurmo Compact - Double Convector
Type Comments300mm (h) x 1000mm (w) x 102mm (d)
Type Name300mm (h) x 1000mm (w) x 102mm (d)
URLwww.purmo.com/
Wall BracketsYes
Warranty Description10 Years
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborgeneralenquiries.uk@purmogroup.com
Warranty Guarantor Partsgeneralenquiries.uk@purmogroup.com
Warranty IDn/a
Water Content3.4 L
Water Content Per Section0.0 L
Water Flow Raten/a
Watts_Delta T30 Celsius492
Watts_Delta T50 Celsius961
Weeklyn/a
Weight Per Meter Section17.2 kg
