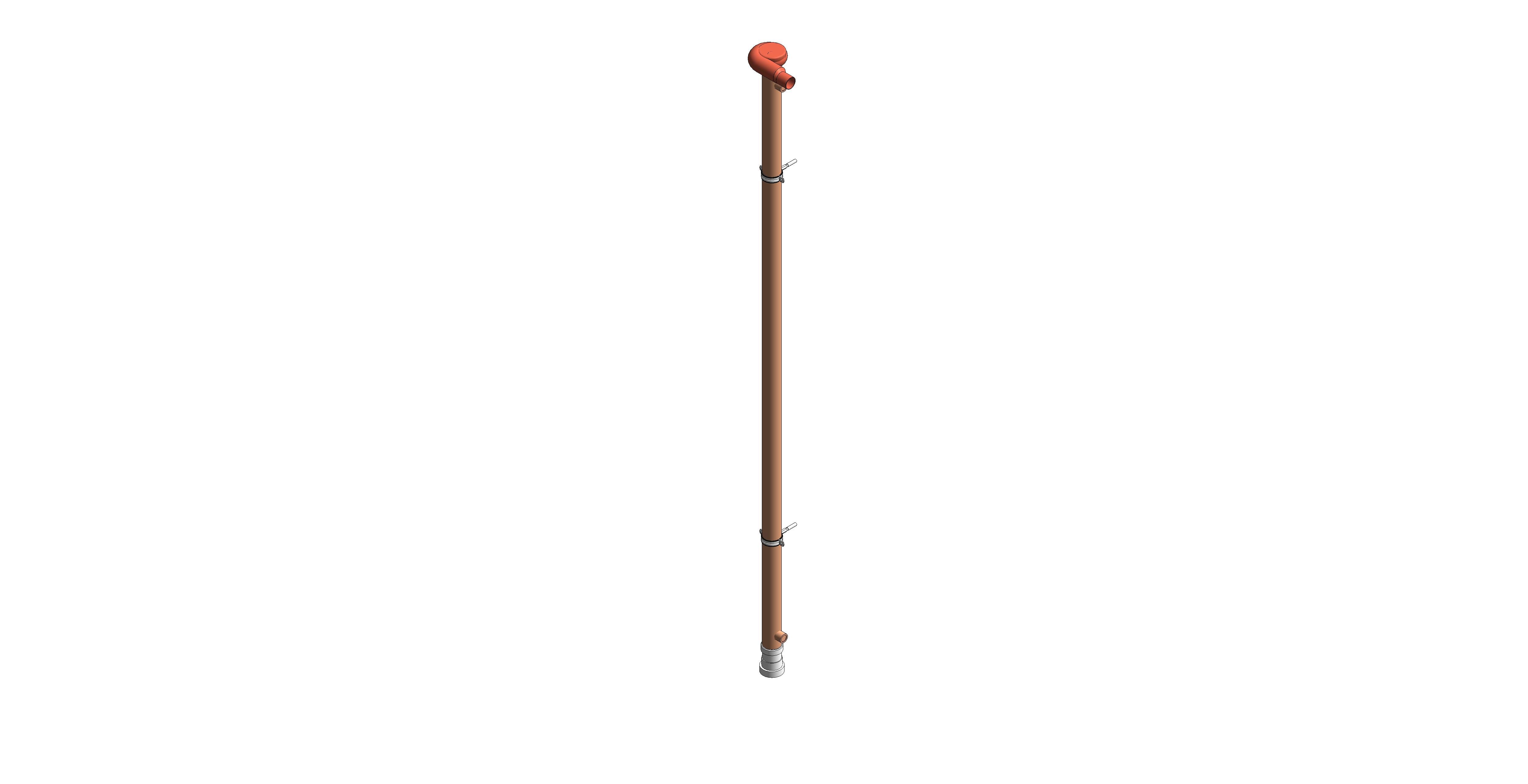

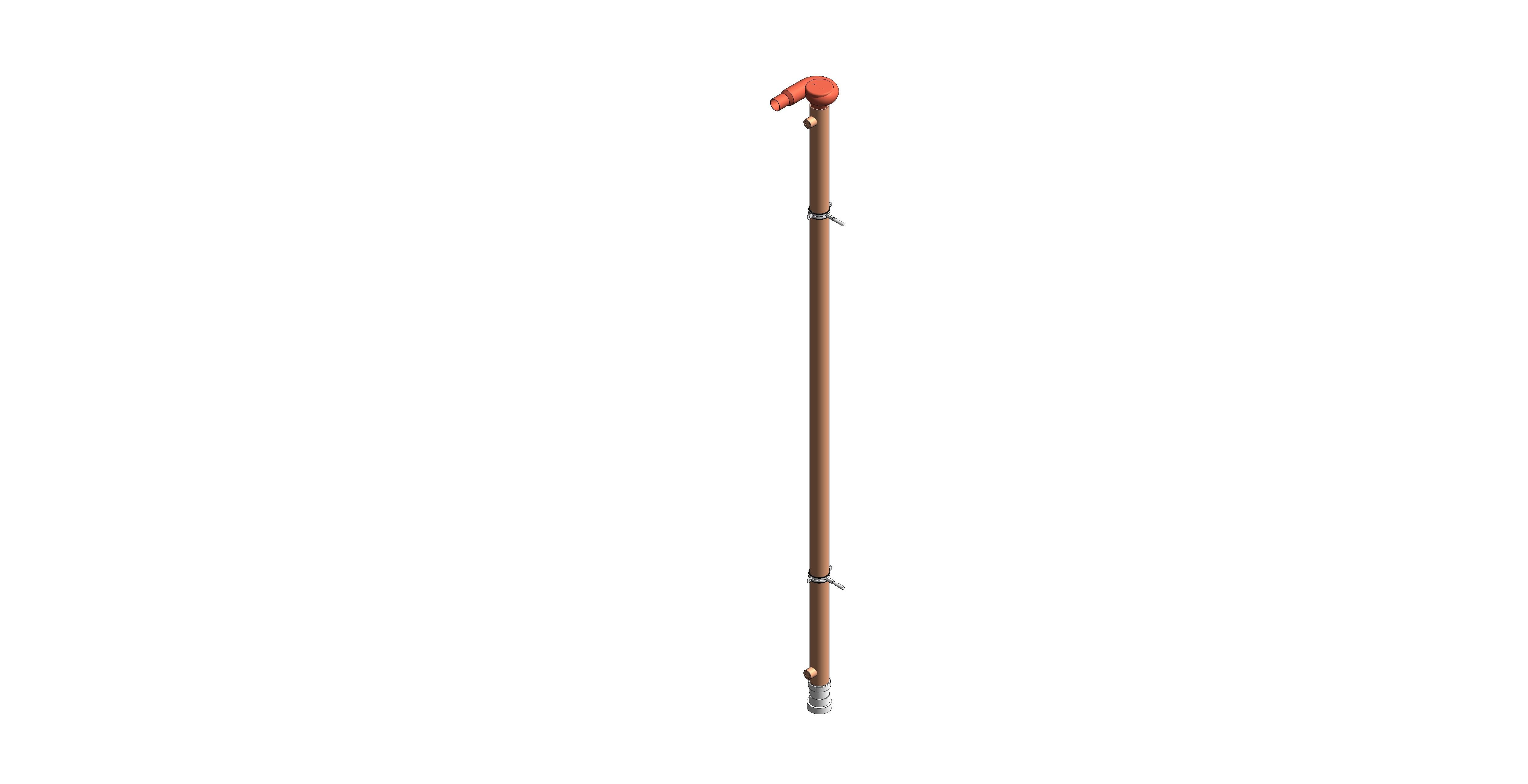

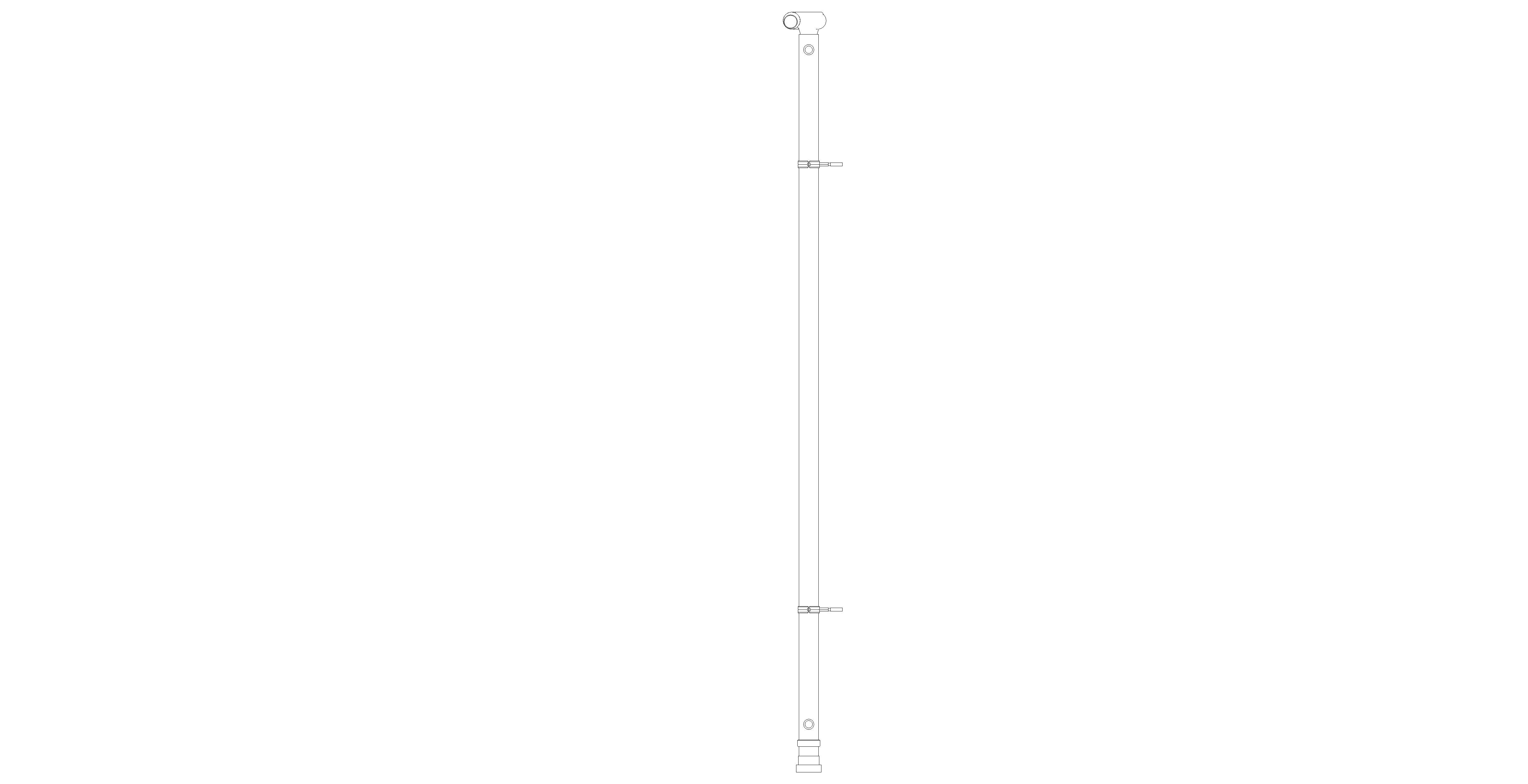

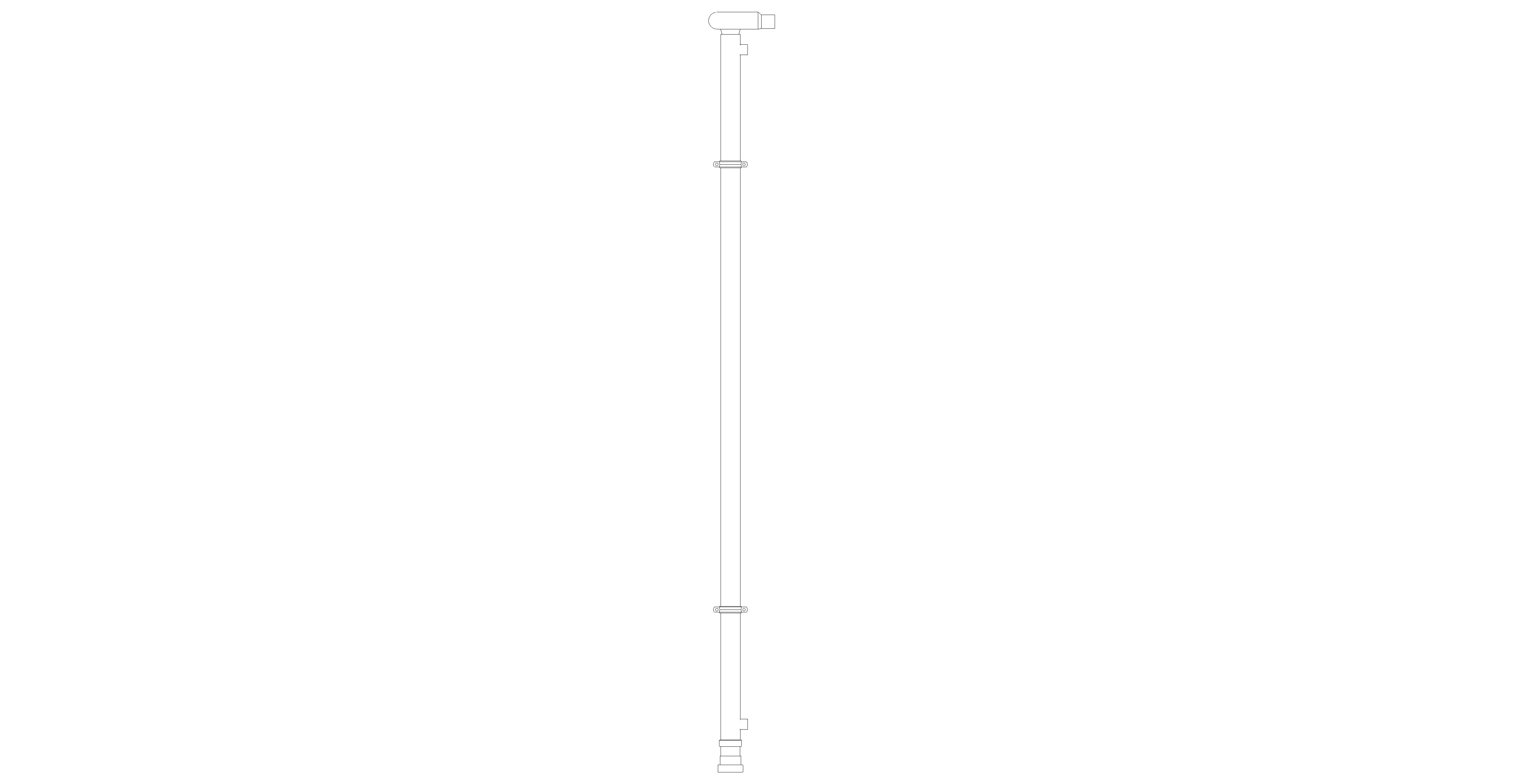

QB1-21XE Waste Water Heat Recovery (WWHR)


The Showersave QB1-21XE included in the design SAP calculation is the highest performing WWHR unit in its category. Substitution with a “generic” alternative from another manufacturer will impact on the Energy Performance Certificate at the end of construction.

Each Showersave QB1-21XE is labelled as follows:

Showersave QB1-21XE
Waste Water Heat Recovery System (WWHRS)
Instantaneous Shower Heat Recovery

Part NumberDescription

QB1-21XE

Showersave, 50mm Heat Exchanger, Copper

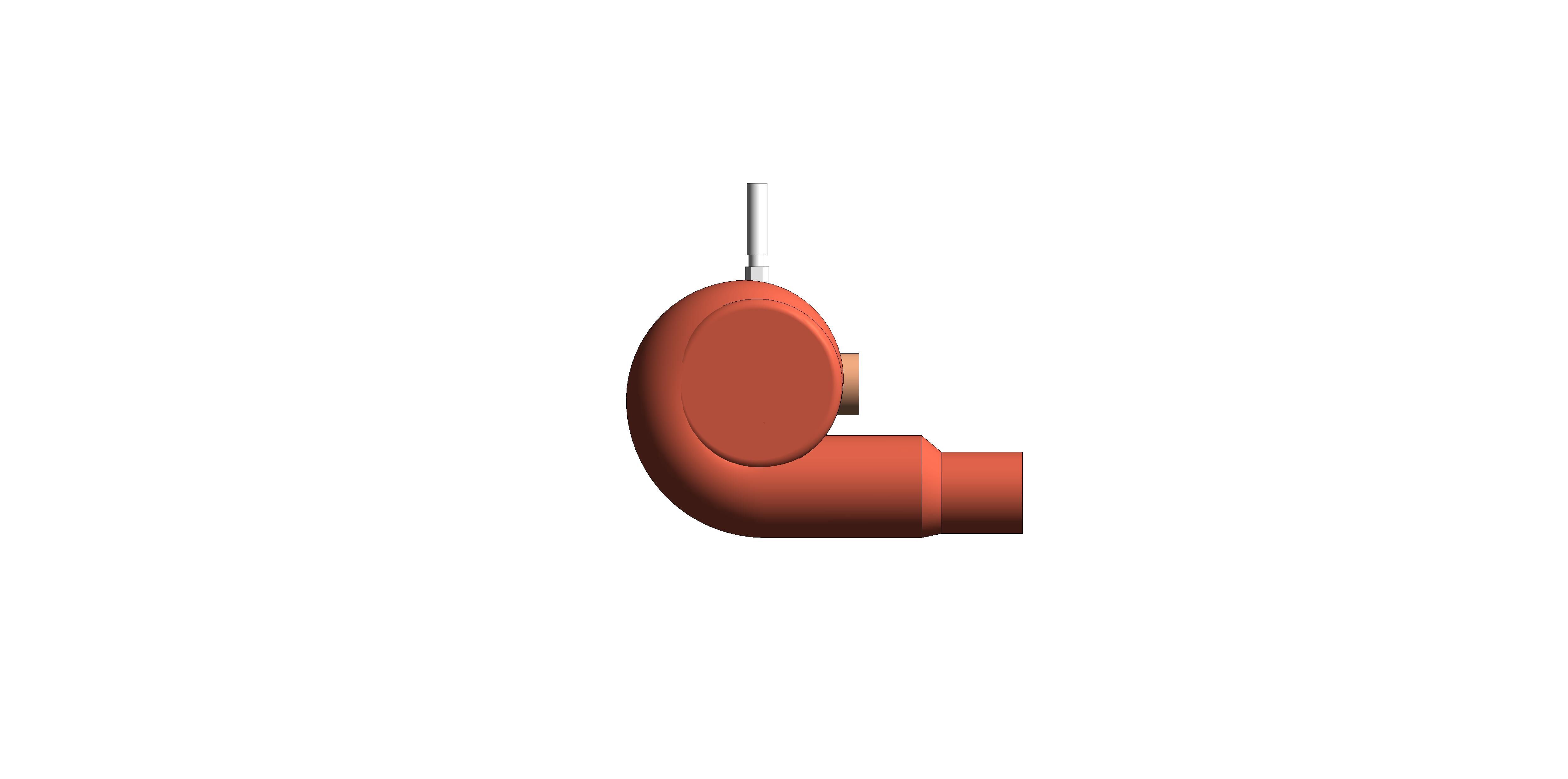

Cyclone

Showersave, 50mm Cyclone

Z28L-ISO

McAlpine, 2”/50mm Bottom Connector, PP/PVCU

33435061

Walraven, Pipe Clamps, 2S Clamp zinc plated EPDM M8/10 53-61mm

6263808

Walraven, Hanger Bolts, zinc plated TorxM8*80mm

There are three installation methods shown below, each having an effect on the WWHRS performance and efficiency. The Showersave should be installed by a suitably qualified plumber, and installed in the method as specified in SAP.

Click here to learn more at Showersave
