Quad Lite - CP

by Keylite Roof Windows

Download Add to collection

Description

Our most versatile window, suitable for single or multiple applications in any roof with a pitch of 15°-90°

The opening handle is conveniently placed at the top of the window and also controls ventilation, giving the option of fresh air flow even when the window is locked and secure.

Click here to visit Keylite Roof Windows for more information.

Object Data

2 Revision

Last Updated

18/03/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

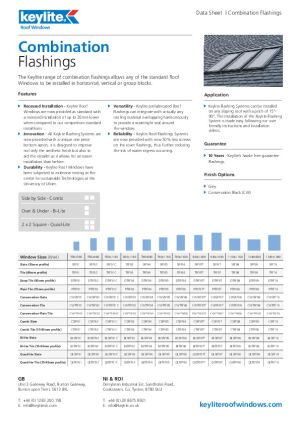

Technical Data Sheet

Product Data Sheet

Object metadata

_Authorinfo@keyliteuk.com
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Byinfo@keyliteuk.com
_Current Revision82
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/quad-lite-cp/document/object-user-guide
2D Detailwww.keyliteroofwindows.com/architects/cad-drawings/
Accessibility Performancen/a
Acoustic Performance32
Air PermeabilityClass 3
Analytic Construction<None>
Assembly CodeB3020100
Asset TypeFixed
BIM Object NameKeylite_Window_QuadLite_CP
Classification NameUniclass2015
Classification ValuePr_30_59_98_97
Code Performancen/a
ColorInterior: White (RAL 9016) Exterior: Grey (RAL 7016)
Constituentsn/a
Created Byinfo@keyliteuk.com
Created On03-01-2018T09:00:00
Define Thermal Properties bySchematic Type

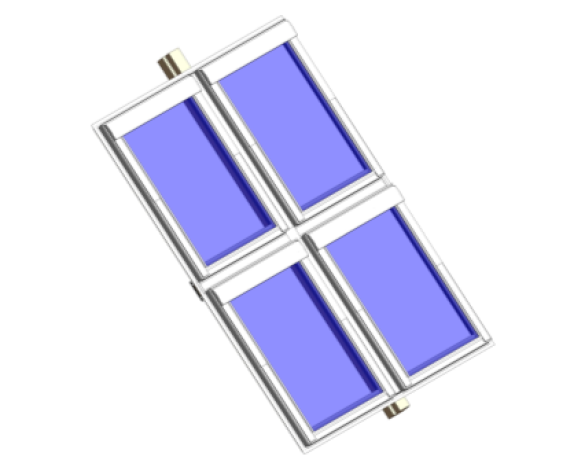

DescriptionMultiple windows in grid formation
Documentation Certificateswww.bimstore.co/products/quad-lite-cp/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/quad-lite-cp/document/installation-guide
Documentation Literaturewww.bimstore.co/products/quad-lite-cp/document/product-literature
Documentation Maintenancewww.bimstore.co/products/quad-lite-cp/document/product-maintenance
Documentation Technicalwww.bimstore.co/products/quad-lite-cp/document/technical-data-sheet
Duration UnitYears
Expected Life0
FeaturesMultiple windows in grid formation
FinishInterior: Laquered Pine Exterior: Powder Coated Aluminium
Graden/a
Height1660 mm
Ifc Export AsIfcWindow
Ifc Export TypeIfcWindowTypeEnum.WINDOW
Impact ResistanceClass 2
KeynoteL10
Light Transmittance0.85
ManufacturerKeylite
Manufacturer NameKeylite
MaterialLaminate, Pine, Aluminum
ModelCP Quad-Lite
Model NumberQL 01/100
Model ReferenceCP Quad-Lite
NBS DescriptionWood frame roof window units
NBS Object NameKeylite - Wood frame roof window units
NBS Office Master Tagn/a
NBS Reference45-25-99/390
Nominal Depth0 mm
Nominal Height1660 mm
Nominal Length1200 mm
Picture Typehhttps://www.keyliteroofwindows.com/products/roof-windows/combination-window-options/
Production Year2018
Referenced Standardn/a
Replacement Costn/a
Resistance To Snow Load4H-20, Ar-4TM
Resistance To Wind LoadClass C4
Rough Height1660 mm
Rough Width1200 mm
ShapeRectangle
Size1200mm (W) x 1660mm (H)
Solar Factor G0.65
Spare Partsn/a
Thermal Transmittance Of Glass1.1
Thermal Transmittance Of Window1.3
Type CommentsQL 01/100
Type NameQL 01/100
URLwww.keyliteroofwindows.com
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@keyliteuk.com
Warranty Guarantor Partsinfo@keyliteuk.com
Water TightnessE1050
Width1200 mm
Window TypeQL_CP : QL 01/100
