QuelCoil Intumescent Pipe Wrap

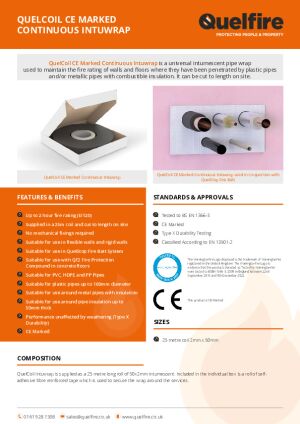

QuelCoil Continuous Intuwrap is a universal intumescent pipe wrap used to maintain the fire rating of walls and floors where they have been penetrated by plastic pipes and/or metallic pipes with combustible insulation. It can be cut to length on site.

QuelCoil Intuwrap is supplied as a 25 metre long roll of 50x2mm intumescent. Included in the individual box is a roll of self-adhesive fibre reinforced tape which is used to secure the wrap around the services.

Features and benefits:

• Supplied in a 25 m coil and cut to length on site
• No mechanical fixings required
• Suitable for use in flexible walls and rigid walls
• Suitable for polyvinyl chloride (PVC), high-density polyethylene (HDPE) and polypropylene (PP) pipes
• Suitable for plastic pipes up to 160 mm diameter
• Suitable for use around metal pipes with insulation
• Suitable for use around pipe insulation up to 50 mm thick
• Suitable for use in QuelStop Fire Batt (specified separately)
• Manufactured in the UK

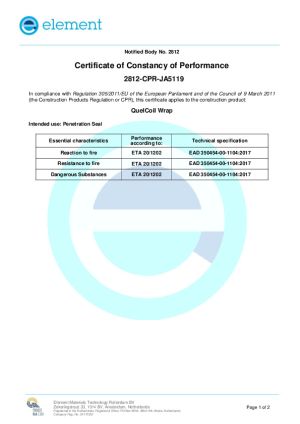

Standards and approvals:

• Up to two hour fire rating (EI 120)
• Tested to BS EN 1366-3
• Classified according to EN 13501-2
• CE Marked
• Performance unaffected by weathering (Type X Durability)

Installation:

The QuelCoil Intuwrap is a universal product that is cut to length on site to suit the specific pipe diameter and material.

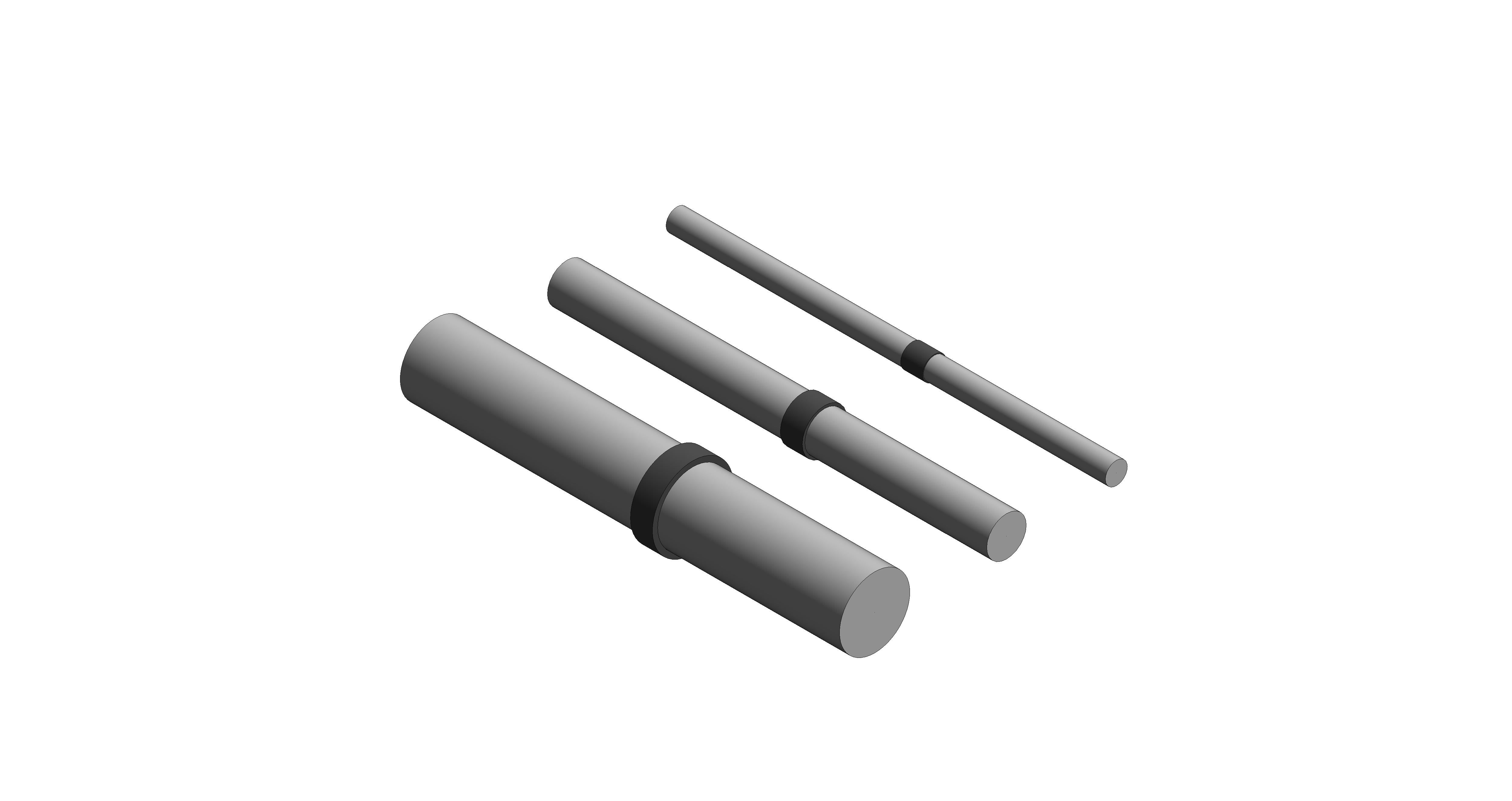

It can be used around insulated non-combustible pipes and can also be used directly around combustible plastic pipes.

The number of layers ranges between 1 and 6 layers and depends on the outside diameter of the plastic pipe / thickness of insulation.

QuelCoil Intuwrap can be installed directly into both solid masonry walls and fire rated plasterboard partition walls (where the specification of the wall and insulation is appropriate). The QuelCoil is simply wrapped around the services to achieve the correct number of layers, it can be cut to length with a sharp knife and then sealed with the supplied self-adhesive fibre reinforced tape.

There must be no gap around the outside of the QuelCoil Intuwrap once installed so it is important to drill holes for services accurately taking into consideration the number of layers of QuelCoil required. For oversized holes in walls it will be necessary to install the QuelCoil in conjunction with the QuelStop Fire Batt system.

Where holes in floors are incorrectly drilled oversize or larger square holes are left or formed then the hole will need shuttering and the whole penetration backfilling with QF2 Fire Protection Compound.

There must be no gap around the QuelCoil Intuwrap and the Intuwrap must be fitted flush with the underside of the concrete slab or fire seal and/or flush with the face of the wall or QuelStop Fire Batt.

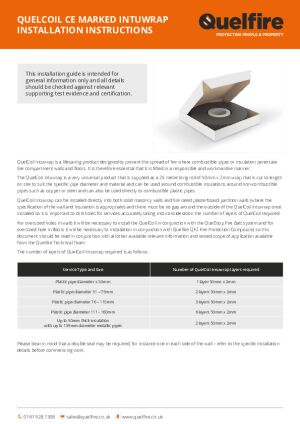

For full installation details and step by step instructions refer to the associated "Installation Instructions" document.
