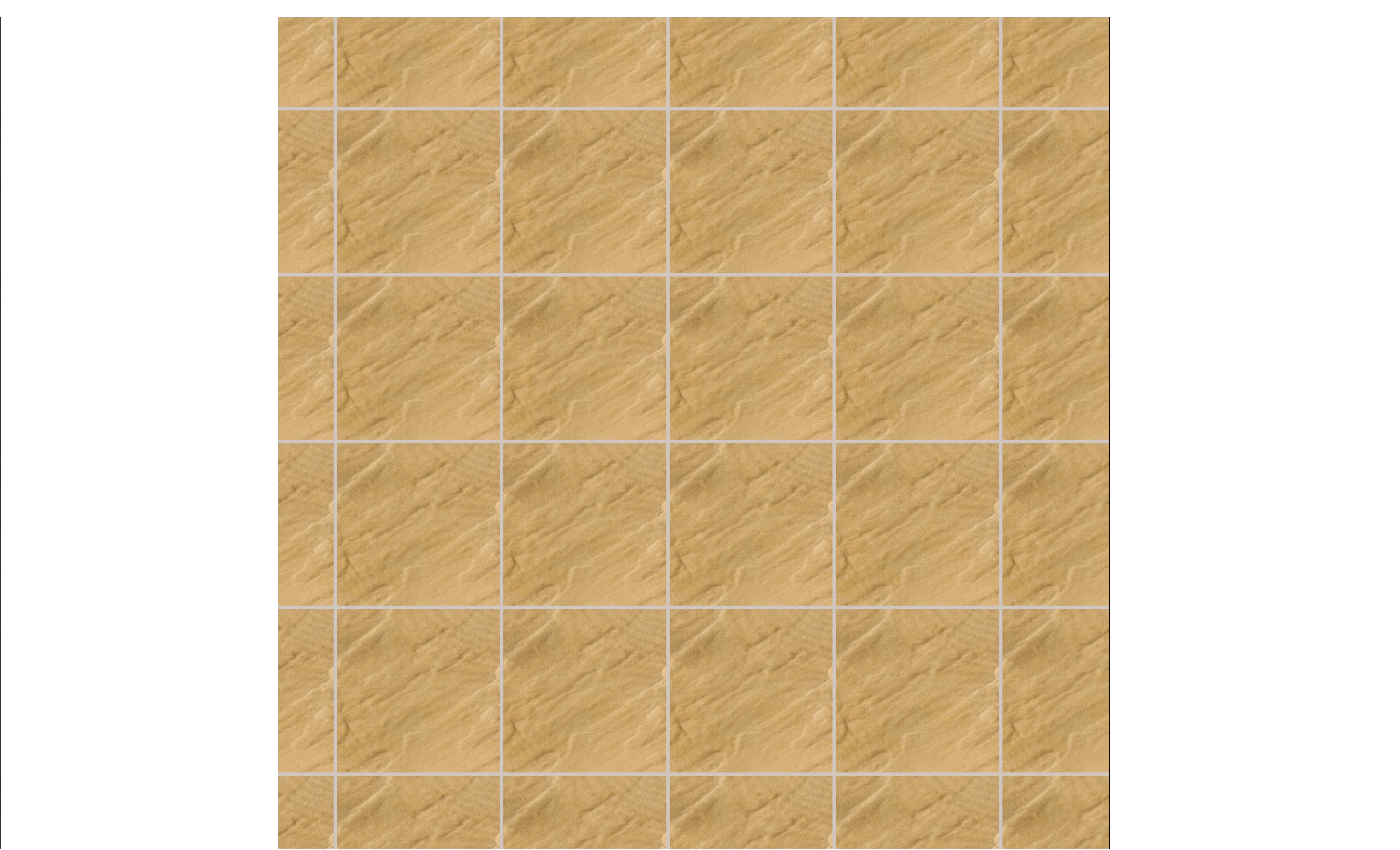

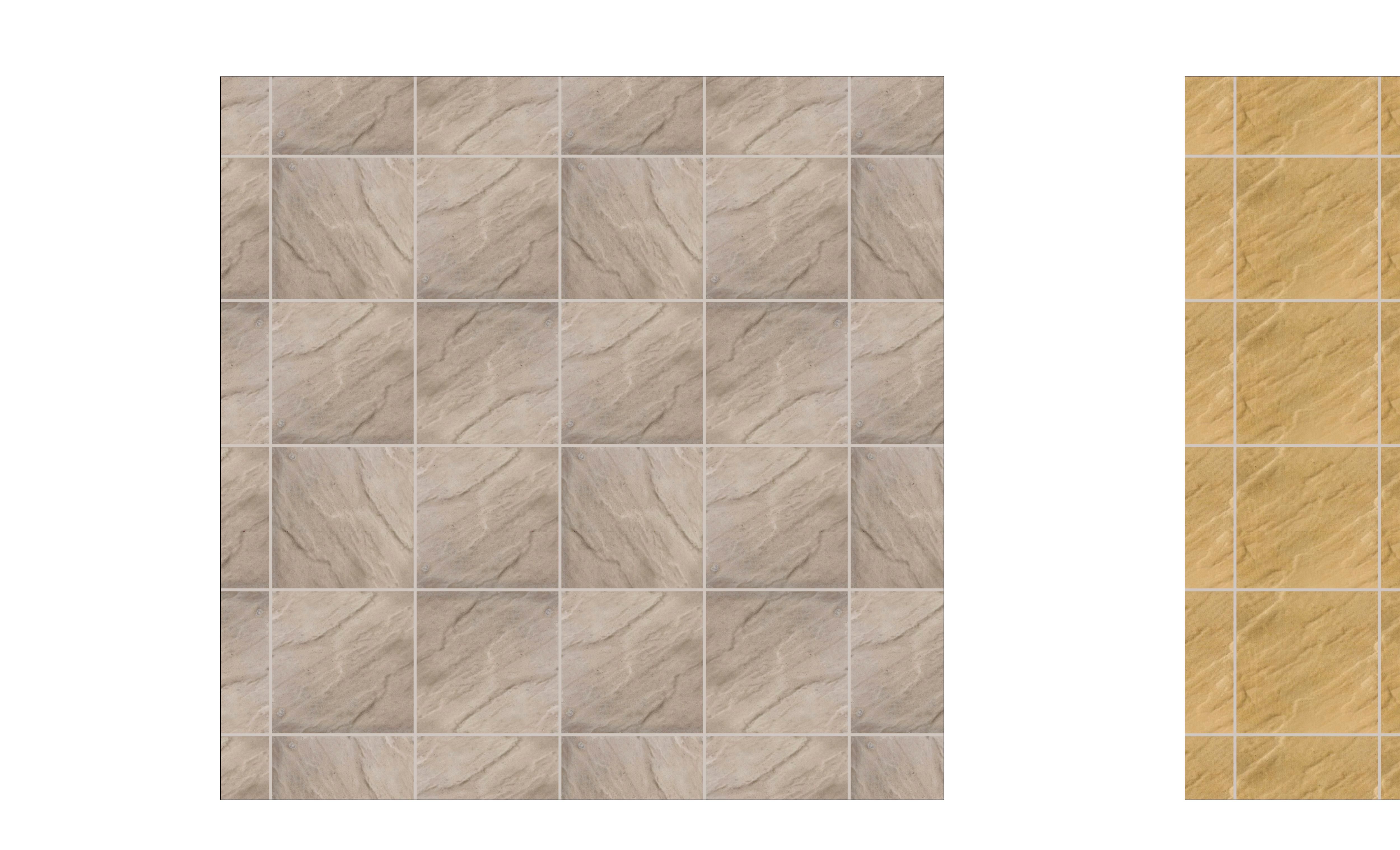

Quorndon Precast Concrete Paving Blocks

by Brett Landscaping

Download Add to collection

Description

Quorndon has a riven surface that features excellent durability characteristics, designed to add texture and increase non-slip properties it is ideal for residential utility areas with high foot traffic.

Designed with a slight edge chamfer, Quorndon paving comes in four sizes and a choice of two colours and is a popular option for use by housebuilders as a durable, cost-effective alternative to natural stone paving for patios and footpaths.

Object Data

1 Revision

Last Updated

18/05/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Literature

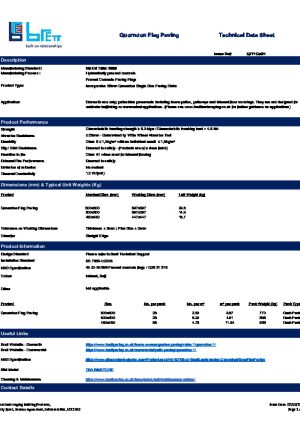

Technical Data Sheet

Object metadata

Manufacturing StandardBS EN 1339: 2003
Product TypePrecast Concrete Paving Flags Incorporates 35mm Quorndon Single Size Paving Slabs
ApplicationDomestic use only; pedestrian pavements including home patios, pathways and internal floor coverings. They are not designed for vehicular trafficking or commerical applications. (Please see www.brettlandscaping.co.uk for further guidance on applications)
StrengthCharacteristic bending strength ≥ 5.0 Mpa / Characteristic breaking load > 4.5 KN
Abrasion Resistance≤ 23mm - Determined by Wide Wheel Abrasion Test
DurabilityClass 3 ≤ 1,0kg/m² with no individual result ≤ 1,5kg/m²
Slip / Skid ResistanceDeemed to satisfy - (Products are of a riven finish)
Reaction to fireClass A1 when used for internal flooring
External Fire PerformanceDeemed to satisfy
Emission of asbestosNo content
Thermal Conductivity1.2 W/(mK)
