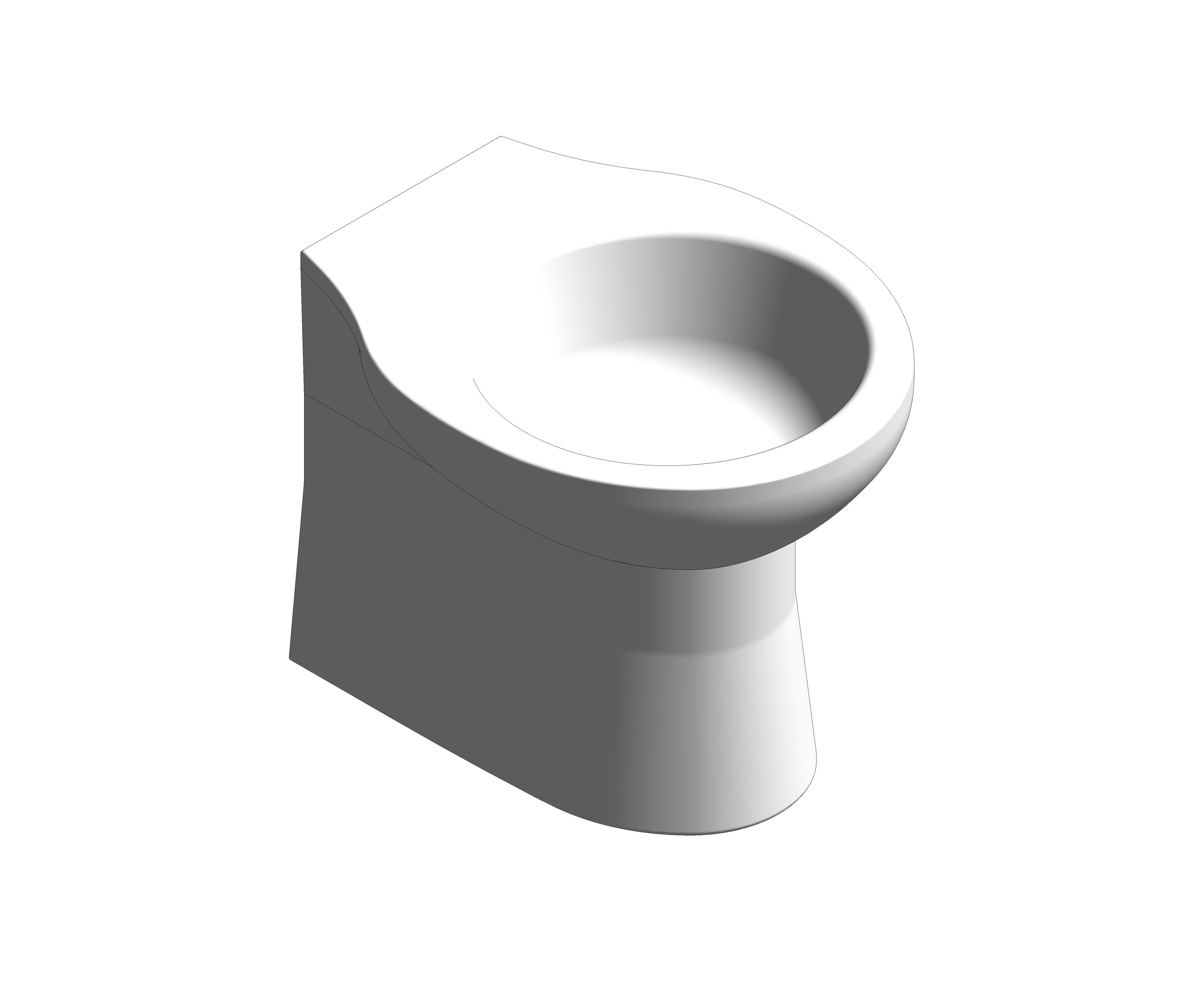

Rimless Back to Wall Pan

by Trade Washrooms

Download Add to collection

Description

This rimless back to wall pan has a reduced flushing volume of 4/2.6 litres and the rimless design helps to reduce the risks of bacteria forming. Part of our commercial sanitary ware range, this rimless WC pan is a great choice for high traffic areas such as motorway services, hotels and restaurants.

Object Data

1 Revision

Last Updated

02/01/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

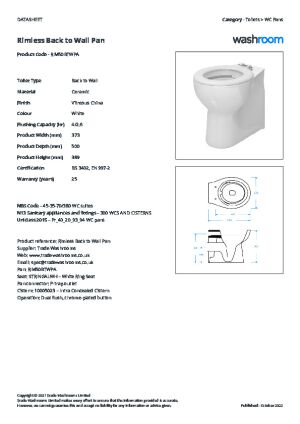

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorIan Holmes
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameTradeWashrooms_PlumbingFixture_Pan_RimlessBackToWall
CategoryPr_40_20_93_94:WC pans
Classification NameUniclass2015
Classification ValuePr_40_20_93_94
Code PerformanceBS 5503
ColorWhite
ConstituentsWC pan
Created Byspec@tradewashrooms.co.uk
Created On2019-06-14T09:00:00
CW ConnectionNo
CWFU0
DescriptionRimless back to wall toilet pan
Documentation Certificateswww.tradewashrooms.co.uk/toilets/wc-pans/rimless-back-to-wall-pan/
Documentation Installation Guidewww.tradewashrooms.co.uk/toilets/wc-pans/rimless-back-to-wall-pan/
Documentation Literaturewww.tradewashrooms.co.uk/toilets/wc-pans/rimless-back-to-wall-pan/
Documentation Maintenancewww.tradewashrooms.co.uk/toilets/wc-pans/rimless-back-to-wall-pan/
Documentation Technicalwww.tradewashrooms.co.uk/toilets/wc-pans/rimless-back-to-wall-pan/
Duration UnitYears
Expected Life25
FeaturesWater-saving 4/2.6 litre flushing volume
FinishVitreous China
GradeBS 3402
HW ConnectionNo
HWFU0
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcSanitaryTerminalTypeEnum.TOILETPAN
KeynoteN13
Manufacturerspec@tradewashrooms.co.uk
Manufacturer Namespec@tradewashrooms.co.uk
MaterialCeramic
ModelRimless Back to Wall Pan
Model NumberRIM50BTWPA
Model ReferenceRimless Back to Wall Pan
NameRimless Back to Wall Pan
NBS DescriptionWC pans
NBS Object NameTrade Washrooms - WC pans
NBS Office Master Tagn/a
NBS Reference45-35-70/384
Nominal Depth500 mm
Nominal Height389 mm
Nominal Length373 mm
Primary MaterialCeramic, White
Production Year2019
Referenced StandardBS 3402, EN 997-2
Replacement Costn/a
Shapen/a
Size500 x 373 x 389mm
Spare Partsn/a
Sustainability PerformanceEN 997-2
Type CommentsRIM50BTWPA
Type NameRimless Back to Wall Pan
URLwww.tradewashrooms.co.uk/
Vent ConnectionNo
Warranty Description25-year warranty on any manufacturing defect
Warranty Duration Labor0
Warranty Duration Parts25
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsorders@tradewashrooms.co.uk
Waste ConnectionYes
WFU0
