Roll Panel Vent

11.3k
0
5 / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

30/11/2015

Download BIM

Add to collection

Available for:

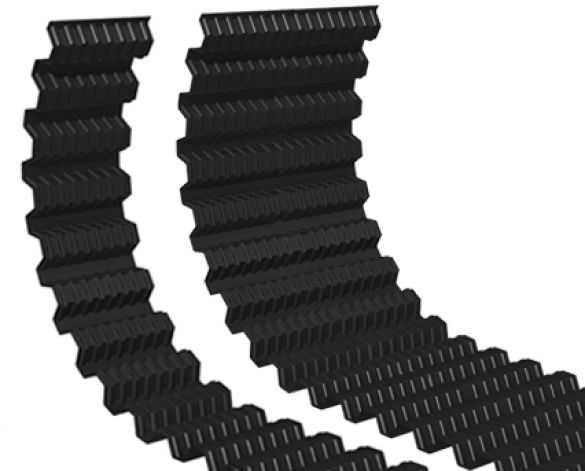

The Roll Panel Vents are designed to maintain a flow of air to the roof space from the eaves, thereby allowing the escape of built-up moisture.
Made from a continuous single profile, the panel can be rolled out over several rafters to create a ventilated gap beneath the felt running the span of the roof.

Suitable for 400mm, 450mm and 600mm raft centres, the panel has vertical strengthening ribs and is suitable for new build situations. Its flexibility makes it suitable for refurbishment where rafter centres are not consistent or unknown.

The wider G502 and G503 versions are ideal for details using an extra thick layer of insulation.

_BIMspec_GUID1
_created byJoe Shaw
_current revision1
_distributed bywww.bimstore.co.uk
Assembly CodeB30
Asset TypeFixed
Classification NameUniclass2015
Classification ValuePr_30_59_29_82
Created Bybpsales@manthorpe.co.uk
Created OnOctober 2015
Depth25 mm
DescriptionThe Manthorpe Eaves Panel Vents are designed to maintain a flow of air to the roof space from outside, thereby allowing the escape of built-up moisture.
Documentation Certificatesspecifi.bimstore.co.uk/document/share/1056
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/1056
Documentation Literaturespecifi.bimstore.co.uk/document/share/1056
Documentation Maintenancespecifi.bimstore.co.uk/document/share/1056
Documentation Technicalspecifi.bimstore.co.uk/document/share/1056
Duration UnitYears
Expected Life0
KeynoteU10
ManufacturerManthorpe Building Products
ModelG500
NBS Object NameRoll Panel Vent
NBS Reference45-25-99/450
Type CommentsG500
Type NameG500
URLwww.manthorpe.co.uk
Warranty Duration UnitYears
Width325 mm
