Single Ply Roof Drain - Siphonic - 402.20
19.5k
0
5 / 5Rate this product
Available for:
BLÜCHER® Drain Roof is a range of rainwater outlets and accessories. The roof drains which can be used for all types of flat roofs with bitumen or single ply roof membrane, are suitable for gravity and siphonic applications and when combined with BLÜCHER® EuroPipe stainless steel push-fit pipework system provide a complete stainless steel roof drainage system.

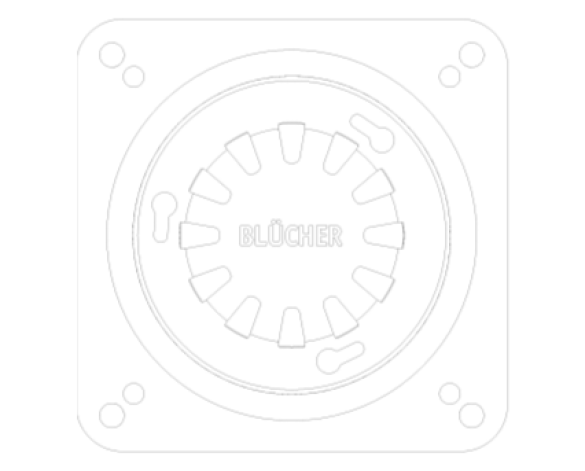

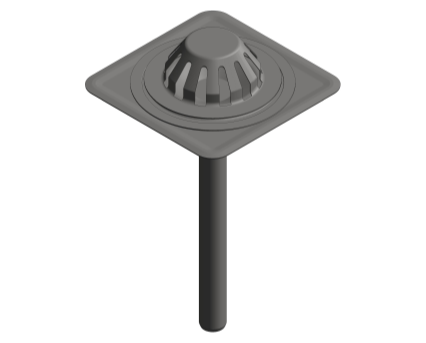

This Download Contains the BLÜCHER® Roof Drain - Siphonic - 402.20 System with all parts and size.
Select the product(s) based on outside (visible) dimension, flow rate, and / or item number, to upload in your project.
System : Siphonic
Connections : 40, 50, 75 mm
Length : Model 204 = 500 mm, model 206 = 700 mm
Membrane type : Single ply
Products : 402.204.040, 402.204.050, 402.204.075, 402.206.040, 402.206.050, 402.206.075
BLÜCHER offers to carry out flow calculations and suggest design of the roof drainage system for projects with BLÜCHER® Drain Roof and BLÜCHER® EuroPipe. Enquiries can be submitted through export@blucher.com, call BLÜCHER at tel. +45 99 92 08 00 or the contact person on the front page of this download.
