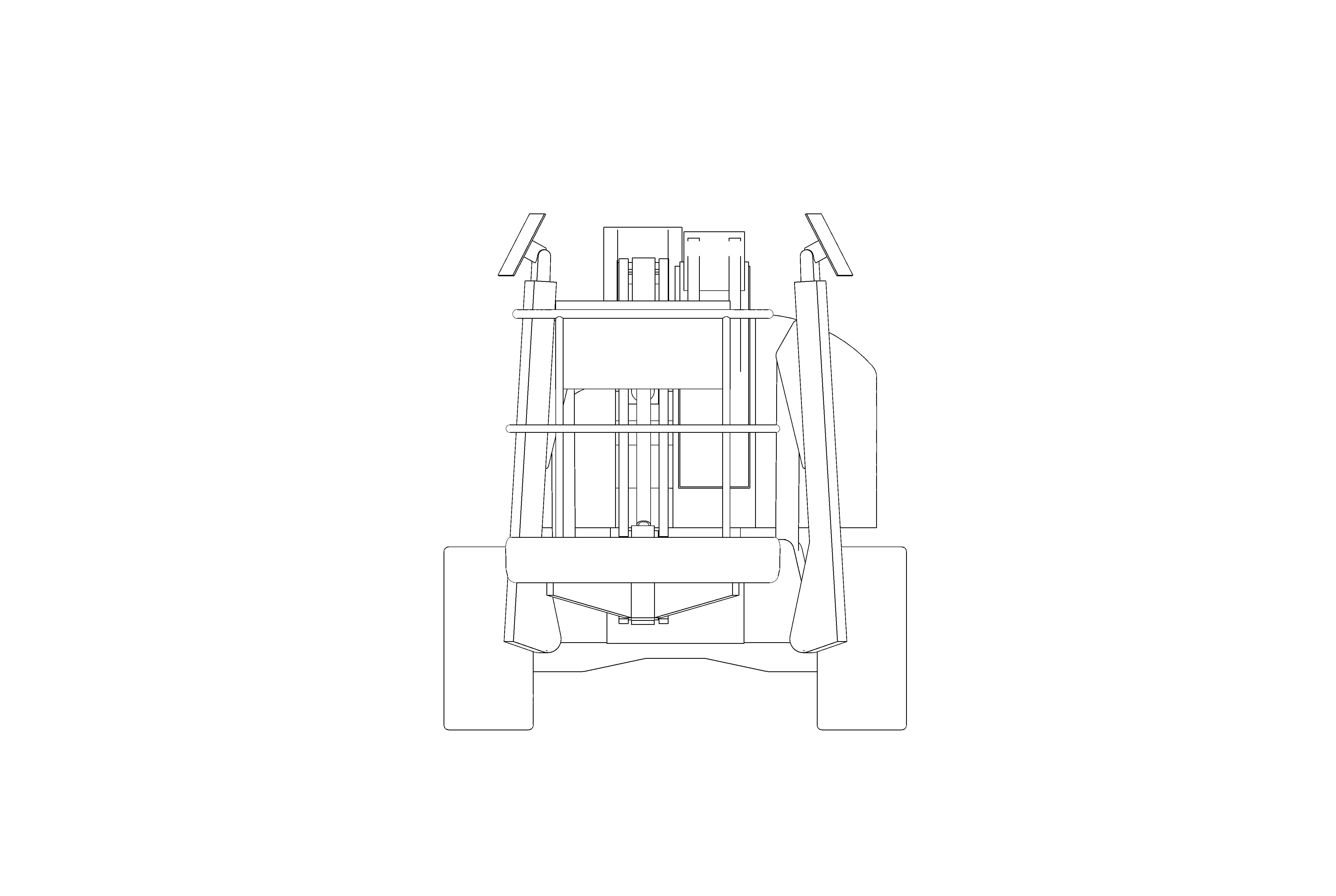

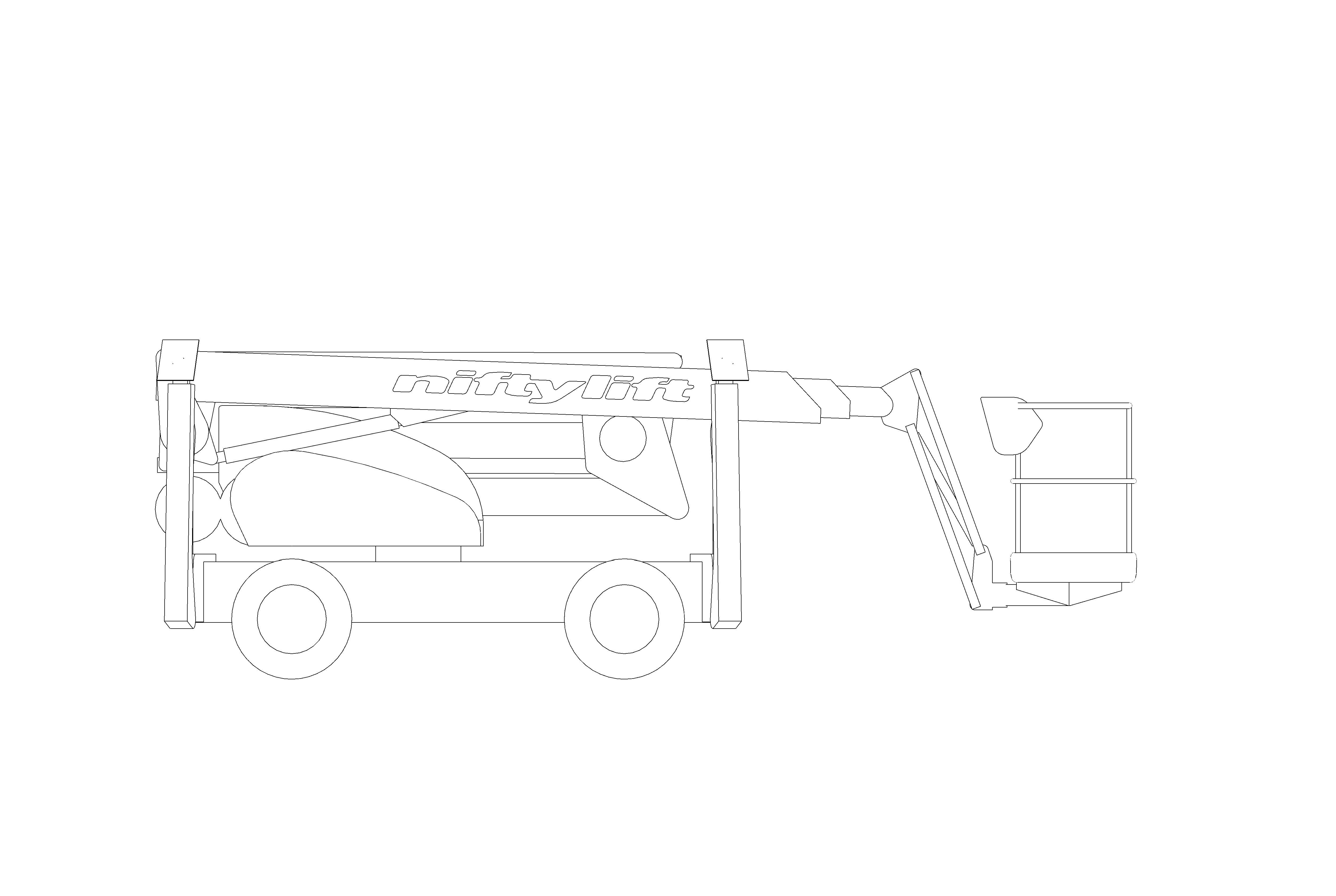

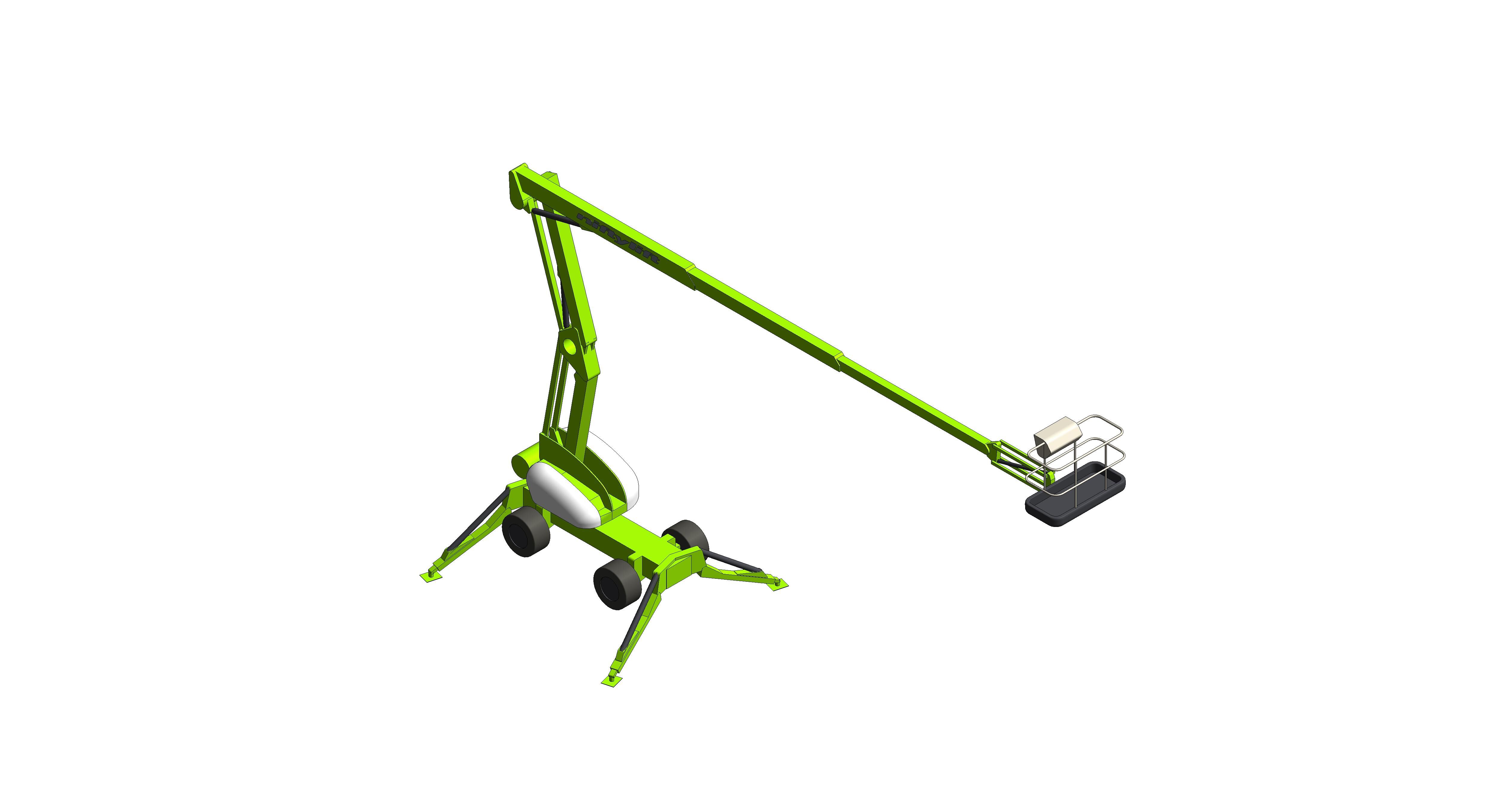

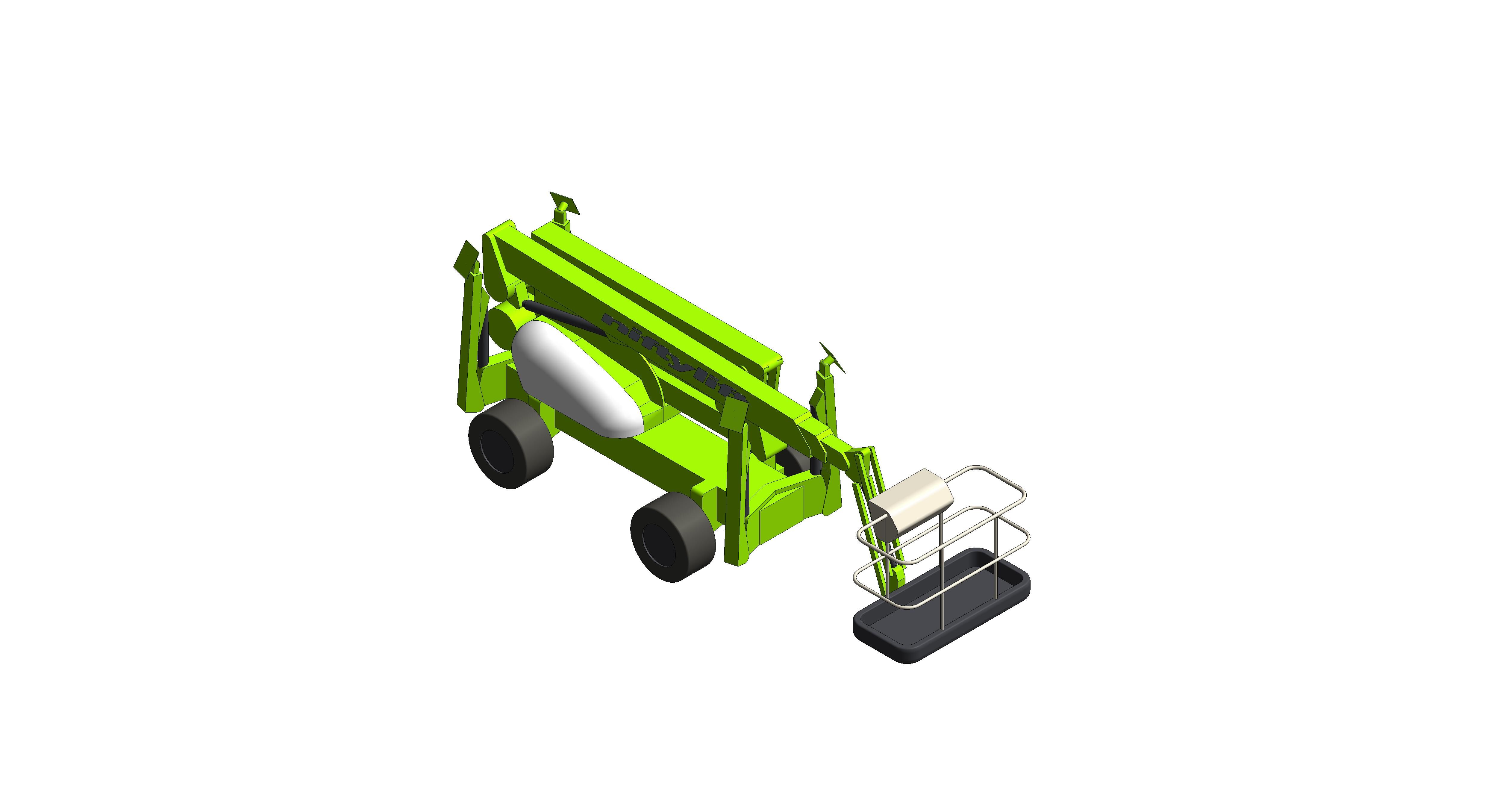

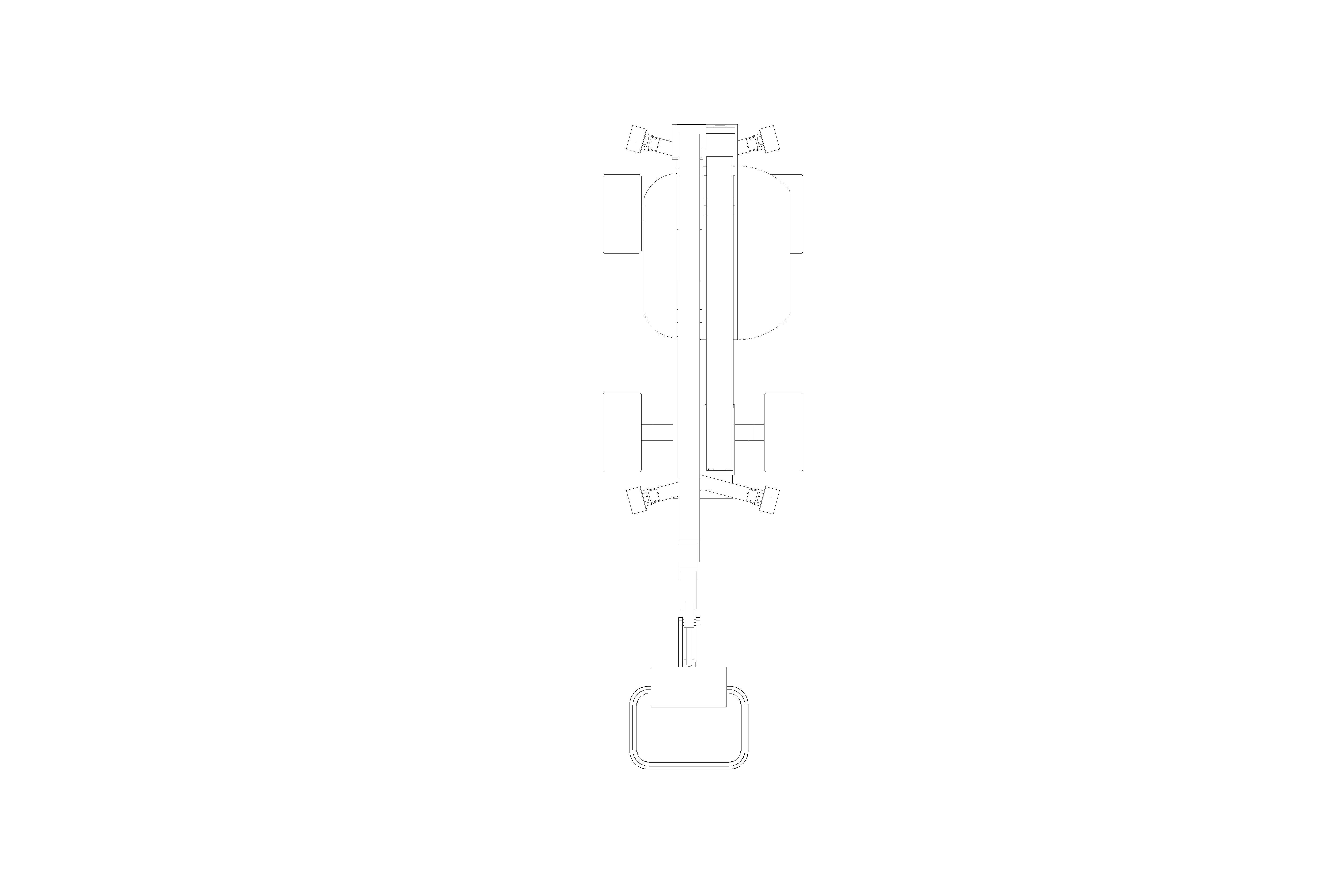

SD210 4x4x4 | 21.3m Self Drive

by Niftylift

Download Add to collection

Description

The SD210 4x4x4 self-drive work platform is the ultimate combination of our trailer mounted and self-propelled product ranges.

With full independent suspension and 4 wheel drive, the SD210 4x4x4 can cope with a wide range of working environments and still offers the same impressive reach as the HeightRider 21.

Low weight design makes the SD210 4x4x4 economical and quick to transport and 4 wheel steer gives the operator enormous flexibility to manoeuvre once on site.

Excellent gradeability coupled with a good travel speed allow the SD210 4x4x4 to be positioned and set up quickly, allowing the operator to spend more of their time working.

The extra manoeuvrability available from the 4 wheel steer option coupled with the special "Turf Tyres" make the SD210 4x4x4 ideal for working on sensitive surfaces such as grass.

For more information regarding the SD210 4x4x4 or any other self-drive work platform, including the SD120T and SD170, please contact us.

SD210 4x4x4 Features

4 Wheel Drive

Maximising traction over rough terrain

Platform Rotation & Fly-Boom

Improved access to applications

4 Wheel Steer

Superior manoeuvrability on site

Turf Tyres

Minimise disruption to sensitive grass surfaces

Independent Suspension

For fast comfortable positioning on site

SD210 4x4x4 Specifications

Working Height (A)

21.3m (70ft)

Working Outreach (C)

12.8m (42ft)

Platform Height (B)

19.3m (63ft 6in)

Machine Width (F)

2.05m (6ft 9in)

Machine Height (D)

2.25m (7ft 5in)

Machine Length (J)

6.15m (20ft 2in)

Working Width (G)

4.2m (13ft 9in)

Travel Speed

9km/h (5.6mph)

Gradeability

45%

Gradeability

24°

Turning Radius

3.5m (11ft 6in)

Minimum Weight

3950kg (8700lbs)

Safe Working Load

225kg (500lbs)

Fly Boom Arc

150°

Cage Rotation

100°

Cage Width

1.8m (4ft 11in)

Cage Depth

0.85m (2ft 9in)

Power Options

Diesel only (Kubota 1505 - 32Hp)

Keywords: MEWP, Mobile Elevating Work Platform, Cherry Picker, Boom Lift, Work Platform, Aerial Work Platform

Object Data

1 Revision

Last Updated

21/01/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_Authormarketing@niftylift.com
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.niftylift.com/uk
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/sd210-4x4x4-21-3m-self-drive/document/object-user-guide
Accessibility Performancen/a
Assembly CodeE1030100
Asset TypeMovable
BIM Object NameNiftylift_Site_SelfDriveWorkPlatform_SD210_4x4x4
Cage Rotation100°
Cage Size1800 x 850 mm
Classification NameUniclass2015
Classification ValueTE_30_30_10_60
Code Performancen/a
ColorGreen, Black & Grey
Constituentsn/a
Created Bymarketing@niftylift.com
Created On2020-10-26T09:00:00
DescriptionThe SD210 4x4x4 self-drive work platform is the ultimate combination of our trailer mounted and self-propelled product ranges. With full independent suspension and 4 wheel drive, the SD210 4x4x4 can cope with a wide range of working environments and still offers the same impressive reach as the HeightRider 21. Low weight design makes the SD210 4x4x4 economical and quick to transport and 4 wheel steer gives the operator enormous flexibility to manoeuvre once on site. Excellent gradeability coupled with a good travel speed allow the SD210 4x4x4 to be positioned and set up quickly, allowing the operator to spend more of their time working. The extra manoeuvrability available from the 4 wheel steer option coupled with the special "Turf Tyres" make the SD210 4x4x4 ideal for working on sensitive surfaces such as grass.
Documentation Certificateswww.bimstore.co/products/sd210-4x4x4-21-3m-self-drive/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/sd210-4x4x4-21-3m-self-drive/document/installation-guide

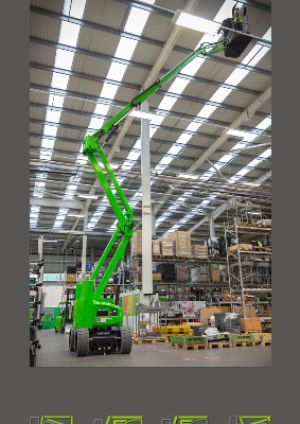

Documentation Literaturewww.bimstore.co/products/sd210-4x4x4-21-3m-self-drive/document/product-literature
Documentation Maintenancewww.bimstore.co/products/sd210-4x4x4-21-3m-self-drive/document/maintenance-information

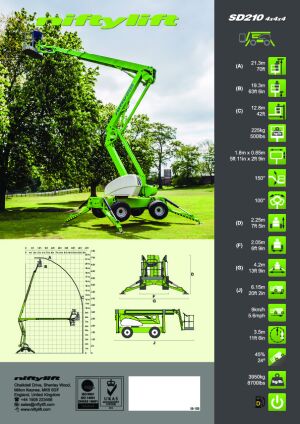

Documentation Technicalwww.bimstore.co/products/sd210-4x4x4-21-3m-self-drive/document/technical-data-sheet
Duration UnitYears
Expected Life0
Features4 Wheel Drive - Maximising traction over rough terrain 4 Wheel Steer - Superior manoeuvrability on site Independent Suspension - For fast comfortable positioning on site Platform Rotation & Fly-Boom - Improved access to applications Turf Tyres - Minimise disruption to sensitive grass surfaces
FinishPainted Steel
Fly Boom Arc150°
Graden/a
Gradeability45% (24°)
Ifc Export AsIfcTransportElement
Ifc Export TypeIfcTransportElementType
KeynoteX
ManufacturerNiftylift
Manufacturer NameNiftylift
MaterialSteel
Minimum Weight3950 kg
ModelSelf Drive Work Platform
Model NumberSD210 4x4x4
Model ReferenceSelf Drive Work Platform
NBS DescriptionLift platforms
NBS Object NameNiftylift - Lift platforms
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth2050.00 mm
Nominal Height2250.00 mm
Nominal Length6150.00 mm
Platform Height19300.00 mm
Power OptionsDiesel - kubota 1505 (32Hp)
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Safe Working Load225 kg
Shapen/a
Size2.05m (6ft 9in) [W] x 2.25m (7ft 5in) [H] x 6.15m (20ft 2in) [L]
Spare Partsn/a
Travel Speed7.5 km/h
Turning Radius3500.00 mm
Type CommentsSD210 4x4x4
Type NameSelf Drive Work Platform
URLwww.niftylift.com/uk
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Labormarketing@niftylift.com
Warranty Guarantor Partsmarketing@niftylift.com
Working Outreach12800.00 mm
Working Width4200.00 mm
