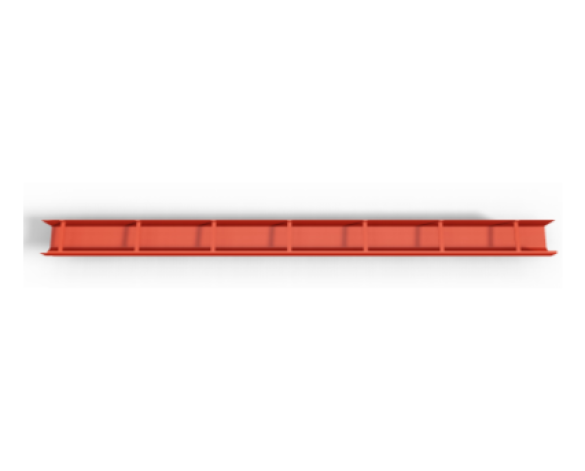

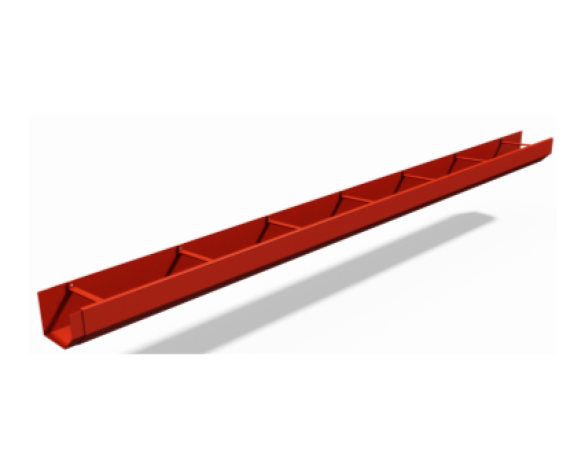

Shaped Box Gutter

Object metadata

• _AuthorTechnical Dept
• _Authorized ByIan Holmes
• _BIM Spec GUID0
• _BS Bible Version15
• _Created Bywww.Guttercrest.co.uk
• _Current Revision1
• _Distributed Bywww.Bimstore.co.uk
• Accessibility Performancen/a
• Assembly Coden/a
• Asset TypeFixed
• Available Colourswww.guttercrest.co.uk/images/lib/guttercrest-colour-chart.pdf
• Base Hole83 mm
• BIM Object NameGuttercrest_Gutter_RainWaterSystem_ShapedBoxGutter
• Classification NameUniclass2015
• Classification ValuePr-65-50-35-06
• Code Performancen/a
• ColorAny RAL, BS Colour or Heritage (Textured)
• Compatible Downpipeswww.guttercrest.co.uk/aluminium-downpipes-downpipe-rainwater-down-pipe-goods-downspouts-and-cast-rain-water-pipes-products-supplies.html
• ConstituentsIntegral jointing straps & Cross-braces
• Created Byinfo@Guttercrest.co.uk
• Created On2018-06-04T00:00:00
• Cross Brace Centre450 mm
• Cross Brace Height30 mm
• Cross Brace Offset17 mm
• Cross Brace Width35 mm
• Default Elevation1200 mm
• DescriptionOur Aluminium Shaped Box Gutters have a sloping front face to the gutter, providing an attractive alternative to a square or rectangular box gutter. We offer eight standard sizes of aluminium shaped box gutters and can manufacture an infinite amount of shaped box gutter sizes to suit your individual project requirements.
• Documentation Certificatesn/a
• Documentation Installation Guidewww.guttercrest.co.uk/images/lib/Fixing-Guidelines---Aluminium-Box-Gutter_3.pdf
• Documentation Literaturewww.guttercrest.co.uk/images/lib/guttercrest-aluminium-box-gutter-system.pdf
• Documentation Maintenancen/a
• Documentation Technicalwww.ribaproductselector.com/Product.aspx?ci=3544&pr=Guttercrest-Aluminium-guttersBox-gutters100x100mmboxgutter
• Duration UnitYear
• Expected Life7

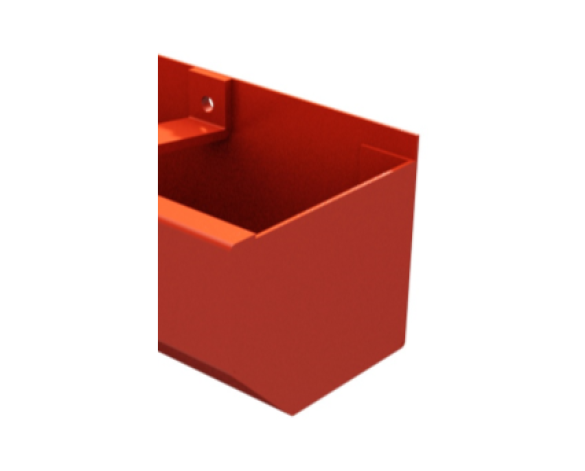

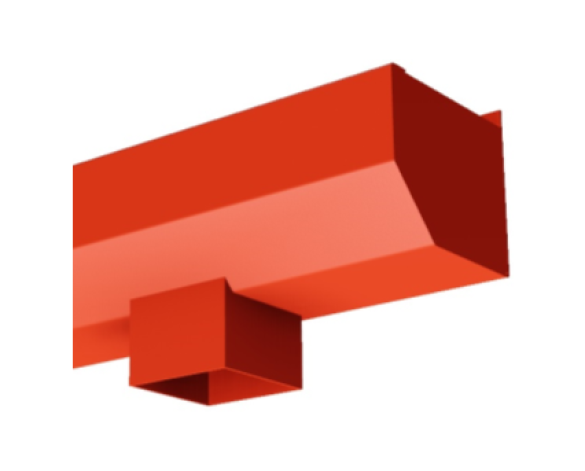

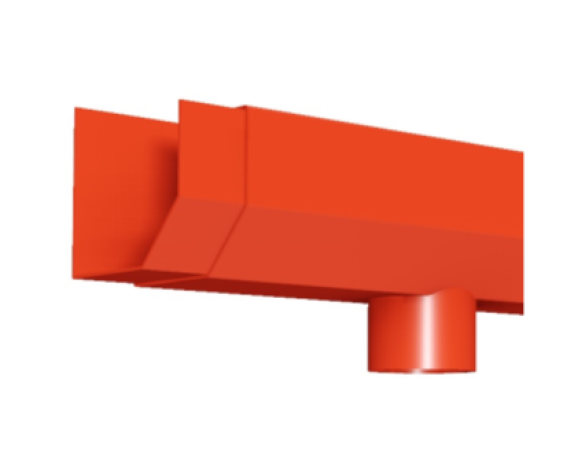

• FeaturesCorners, Stopends & Outlets
• FinishMill Finish or Polyester Powder Coated
• Grade1050
• Ifc Export AsAluminium Eaves Gutter
• Ifc Export TypeIfcBuildingElementProxyType
• Is ExternalYes
• KeynoteR10/350
• Length A100 mm
• Length B85 mm
• Length C75 mm
• Length D40 mm
• Length E40 mm
• ManufacturerGuttercrest Limited
• Manufacturer NameGuttercrest Limited
• MaterialAluminium
• Material GradeAluminum 1050
• Material Thickness2 mm
• ModelShaped Box Gutter
• Model NumberSBX1
• Model ReferenceShaped Box Gutter Range
• NBS DescriptionEaves Gutter
• NBS Object NameGuttercrest - Guttercrest Aluminium Box Gutter
• NBS Office Master Tagn/a
• NBS Reference90-05-35/320
• Nominal Depth100 mm
• Nominal Height100 mm
• Nominal Length3000 mm
• Offstand15 mm
• Production Year2018
• Product Page Linkwww.guttercrest.co.uk/aluminium-box-gutters-box-guttering-gutter-metal-square-rectangular-rainwater-goods.html
• Referenced StandardBS9101:2017
• Replacement Cost0
• Spare Partsn/a
• Type CommentsSBX1 100X75mm Gutter System
• Type NameAluminium Shaped Box Gutter
• URLwww.guttercrest.co.uk
• Warranty Descriptioninfo@Guttercrest.co.uk
• Warranty Duration Labor0
• Warranty Duration Partsinfo@Guttercrest.co.uk
• Warranty Duration UnitYear
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partsinfo@Guttercrest.co.uk
