Floor Drain Two Part, series 310/314/350 - Triangle

Floor Drain Two Part, series 310/314/350 - Triangle

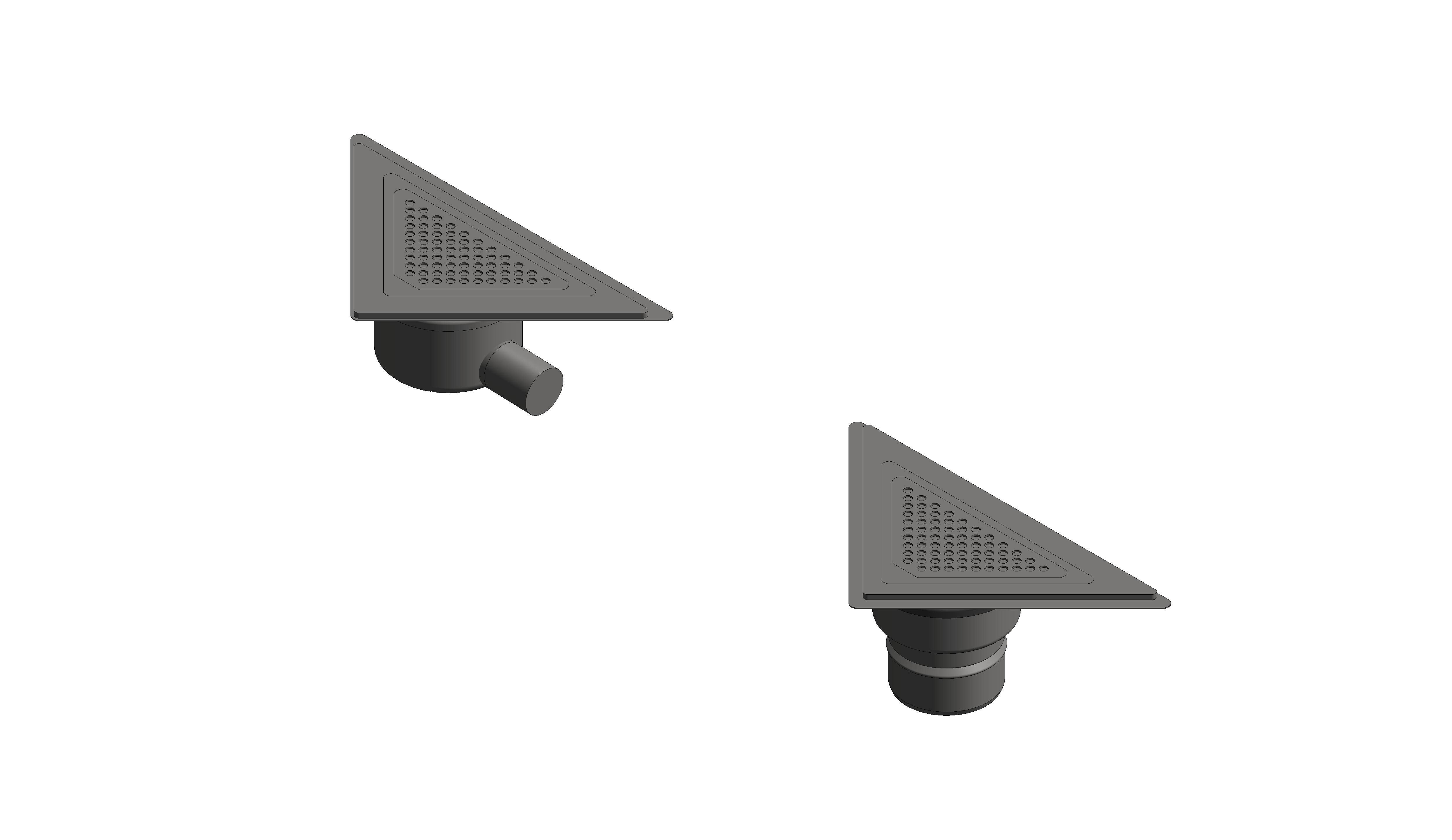

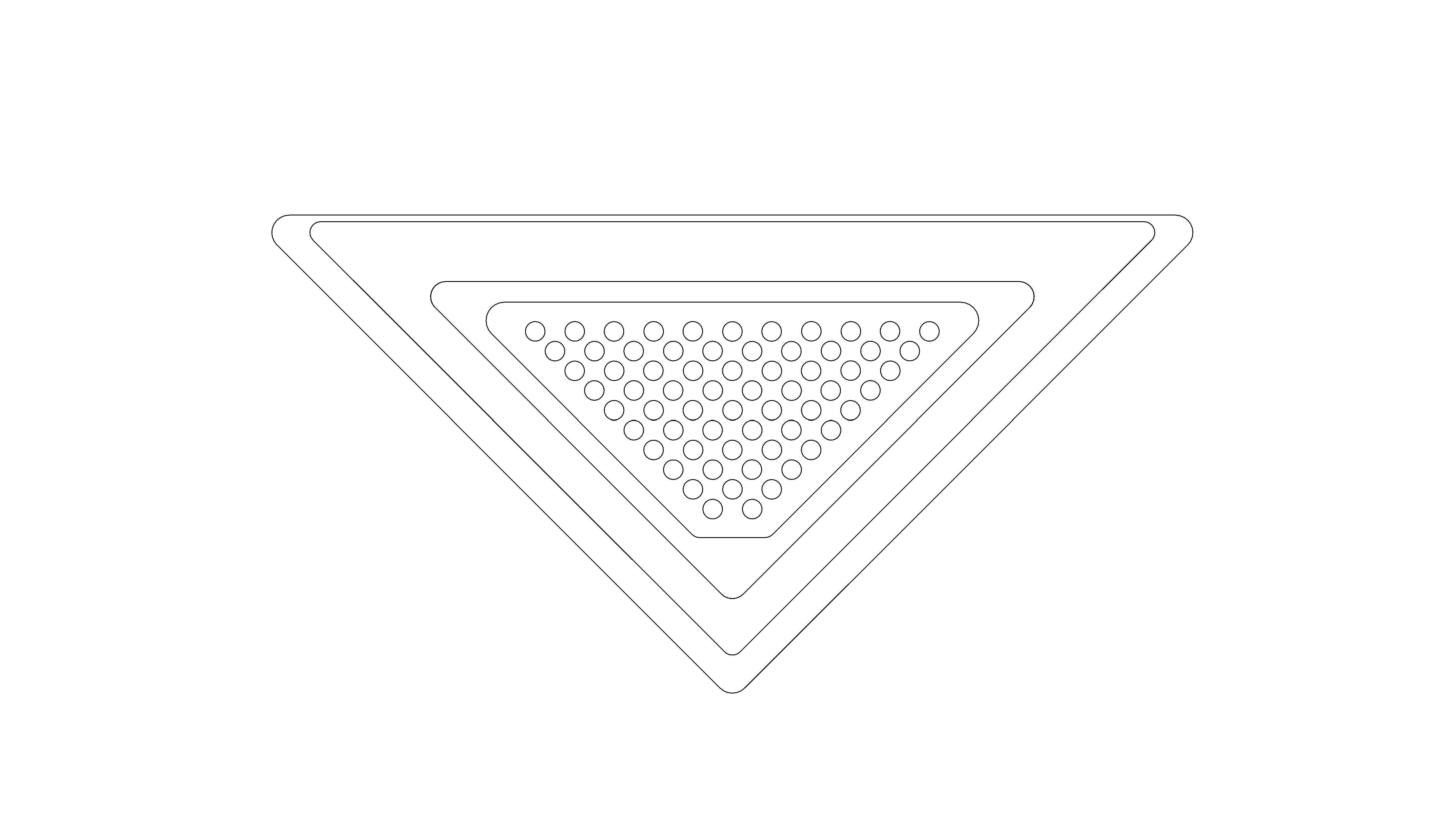

This Download Contains the BLÜCHER® drain for height adjustable concrete/tiled/resin floors with a stainless steel Triangle grating 141x272mm, brushed grating. Flow rate up to 1.7 ltr/sec.

Select the product(s) based on outside (visible) dimension, flow rate, and / or item number, to upload in your project.

• Horizontal and vertical outlet 50, 75 and 110 mm
• Wall and Corner mount
• Series 310 / 314 / 350
• Screw locking
• Upper part allows for 10° tilt.
• Made from acid-pickled stainless steel AISI 304 / EN 1.4301.
• Designed in accordance with EN1253.

Key Component Features:

• 360 degree Lower Part
• User adjustable visibilities
• Automated product codes
• Height adjustable
• User selectable Watertrap
• User selectable Filter Basket
• Pre-selected concrete cut out / base concrete slab option for installation purpose

Products :          350.370.050, 350.370.075, 350.370.110, 310.370.050, 310.370.075, 314.370.050, 350.360.050, 350.360.075, 350.360.110, 310.360.050, 310.360.075, 314.360.050
