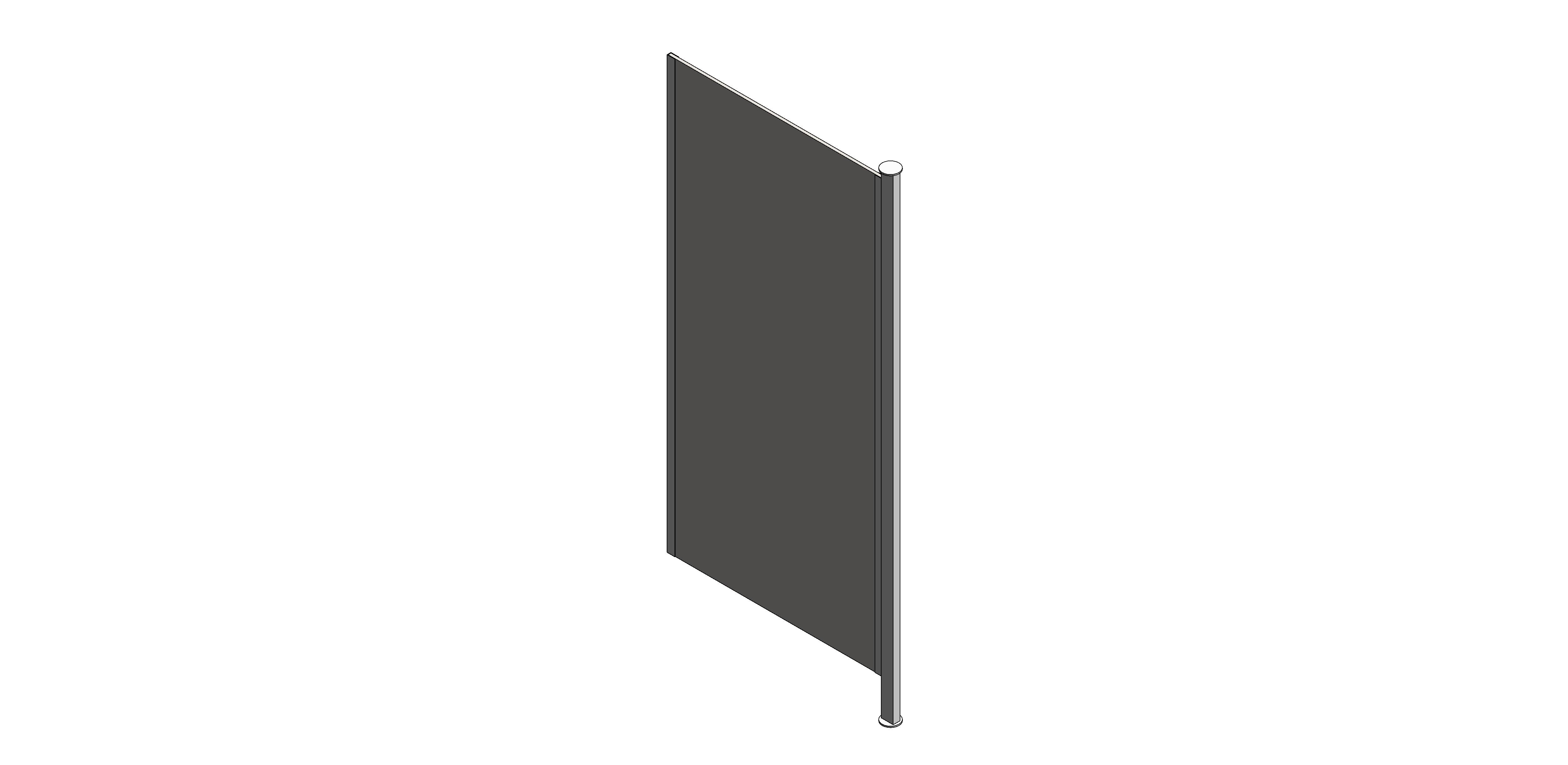

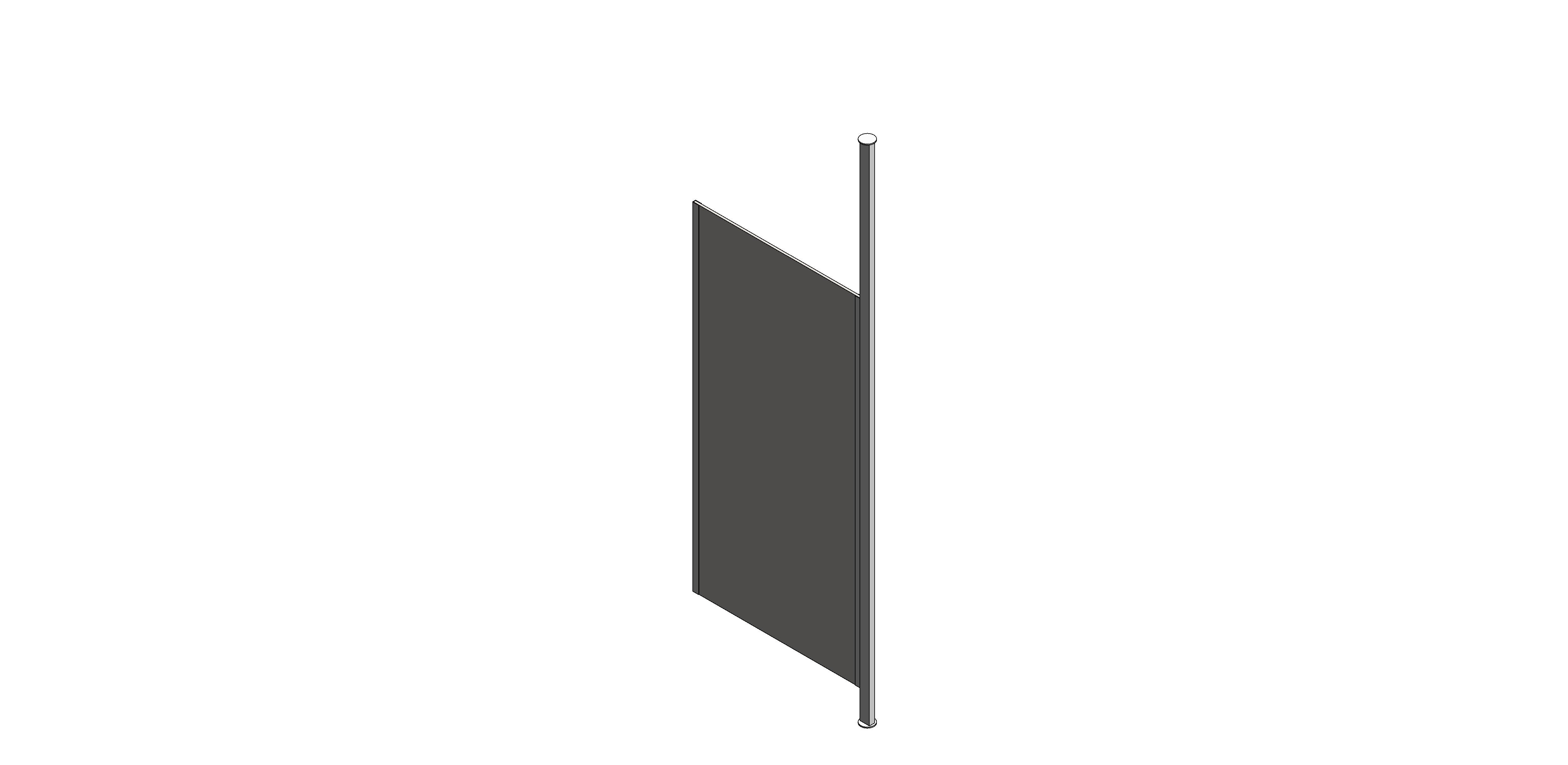

Commercial Shower Modesty Screen

by Trade Washrooms

Download Add to collection

Description

A commercial shower modesty screen complete with a floor-to-ceiling column kit. The modesty screen panel is 12mm thick Compact Grade Laminate (CGL) in Grey to match commercial shower cubicle packs by Cubicle Store.

Shower Modesty Screen Pack Contents

1x Modesty panel, 1800 x 900mm
2x Full-length wall channels
1x Floor-to-ceiling column kit (2m + 1m split)

Product Code: SGMODEST

Object Data

1 Revision

Last Updated

02/08/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

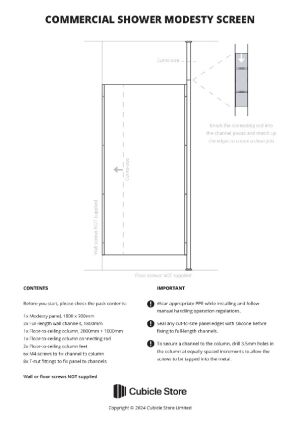

Installation Guide

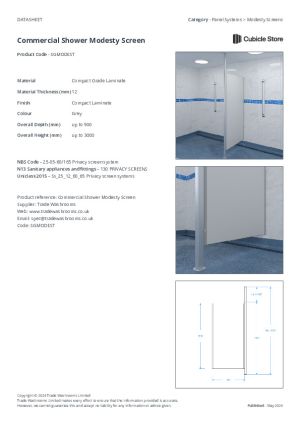

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Wigham
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeD2010900
Asset TypeFixed
BIM Object NameTradeWashrooms_ModularShowerCubiclePack
CategorySs_25_12_60_65 Privacy screen systems
Classification NameUniclass2015
Classification ValueSs_25_12_60_65
Code Performancen/a
ColorGrey
ConstituentsModesty Screen
Created Byspec@tradewashrooms.co.uk
Created On2024-07-22T09:00:00
CW ConnectionNo
CWFU0
Default Elevation0 mm
Depth900 mm
DescriptionCommercial Shower Modesty Screen
Duration UnitYears
Expected Life0
FinishCompact Laminate
Graden/a
HW ConnectionNo
HWFU0
Ifc Export AsIfcWall
Ifc Export TypeIfcWallTypeEnum.PARTITIONING
KeynoteN13
Manufacturerspec@tradewashrooms.co.uk
Manufacturer Nameorders@tradewashrooms.co.uk
MaterialCompact Grade Laminate
Material Thickness12 mm
ModelCommercial Shower Modesty Screen
Model NumberSGMODEST
Model ReferenceCommercial Shower Modesty Screen
NameCommercial Shower Modesty Screen
NBS DescriptionPrivacy screen systems
NBS Object NameTrade Washrooms - Privacy screen systems
NBS Office Master Tagn/a
NBS Reference25-05-60/165
Nominal Depth900 mm
Nominal Height3000 mm
Nominal Length12 mm
Post Depth50 mm
Post Width28 mm
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size3000mm (H) x 900mm (D) x 18mm (W)
Spare Partsn/a
Sustainability Performancen/a
Type CommentsSGMODEST
Type NameCommercial Shower Modesty Screen
URLwww.tradewashrooms.co.uk/panel-systems/ips-panels/hospital-disposal-unit-ips-panel-assembly-hbn-du/
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsorders@tradewashrooms.co.uk
Waste ConnectionNo
WFU0
