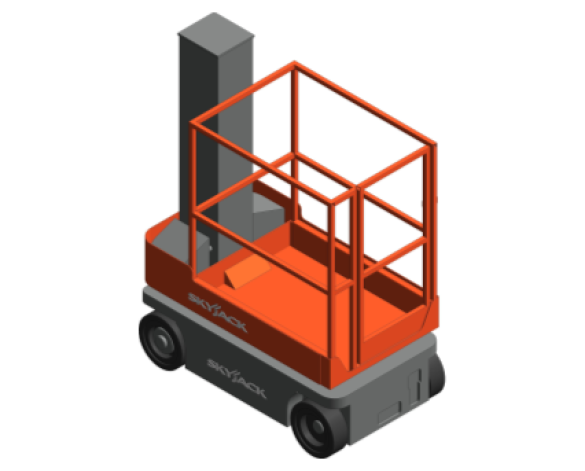

SKYJACK - Access Platform - SJ12

by Skyjack

Download Add to collection

Description

The SJ12 features durable steel swing-out component trays, providing unrestricted access for easy maintenance and service.

Features Include;

Drivable at full height, Variable speed, front two wheel hydraulic drive, Zero inside turning radius, Dual holding brakes, Proportional controls, 0.41m Traversing platform, 24v DC power source, Low voltage battery , protection, 30% gradeability, Solid rubber, non-marking tyres, Pothole protection system, Wiring for AC outlet at platform, 12.5m/s wind rating, Tilt alarm with drive & lift cut-out, All motion audible alarm, lanyard attachment points, Operator horn, Lift rings/tie downs, Full height spring hinged gate, Relay based control system, Colour coded and numbered wiring system

This download includes the SKYJACK Access Platform - SJ12 BIM components from SKYJACK.

Keywords: MEWP, Mobile Elevating Work Platform, Access Platform, Work Platform, Aerial Work Platform

Object Data

1 Revision

Last Updated

22/06/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorConnor Laing
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Accessories And OptionsAll motion audible alarm, Dual flashing lights, AGM batteries, Light duty pipe rack/steel stud rack, Shroud-style control box guard, Tool tray, Bio Oil, Outdoor wind rating (SJ16 up to 3.65 m).
Assembly CodeE1030900
Asset TypeFixed
BIM Object NameSKYJACK_Site_AccessPlatform_VerticalLiftingPlatform_SJ12
Capacity227 kg
Classification NameUniclass2015
Classification ValuePr_65_80_47_95
Code Performancen/a
ColorOrange and Grey
Column Height1600 mm
Constituentsn/a
Created Byinfo@skyjackeurope.co.uk
Created On2018-03-01T09:00:00
DescriptionSKYJACK’s Vertical Mast Lifts offer an easy to service, low maintenance design in a compact and versatile package. These are zero emission, compact machines with low floor loading which means they can be used in more applications, including on finished and ornamental floors increasing your customer base.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literatureskyjack.com/en-eu/product/sj1216
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2004
Duration UnitYears
Electrocution HazardThe aerial platform is not electrically insulated. Maintain a Minimum Safe Distance (MSAD) from energized power lines and parts. The operator must allow for the platform to sway, rock or sag. This aerial platform does not provide protection from contact with or proximity to an electrically charged conductor.
Expected Life0
FeaturesDrivable at full height with platform retracted, Variable speed, front two wheel hydraulic drive, 90° steering (zero inside turning radius), Dual holding brakes, Proportional controls for drive and lift functions, 0.41 m Traversing platform, 24V DC power source, Low voltage battery protection, 30% gradeability, Solid rubber, non-marking tyres, Pothole protection system, Wiring for AC outlet at platform,Tilt alarm with drive & lift cut-out, Lanyard attachment points, Operator horn, Lift rings/tie downs, Full height spring hinged gate, Relay based control system, Colour coded and numbered wiring system.
FinishOrange and Grey Paint
Graden/a
Gradeability30%
Ground Clearance16 mm
Ifc Export AsIfcTransportElementType
Ifc Export TypeIfcTransportElement
Inside Turning Radius0
KeynoteX
Lift Time With Rated Load16 sec
Local Floor Load With Rated Load745 kPa
Lowered Platform Height450 mm
Lower Time With Rated Load14 sec
ManufacturerSkyjack
Manufacturer NameSkyjack
MaterialMetal
Max Basket Height3650 mm
Maximum Number Of Persons2 indoor/ 1 outdoor
ModelSkyjack - Vertical Mast
Model NumberSJ12
Model ReferenceSKYJACK - Vertical Mast SJ12
NBS DescriptionVertical lifting platforms
NBS Object NameSkyjack - Vertical lifting platforms
NBS Office Master Tagn/a
NBS Reference90-80-65/350
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Outside Turning Radius1.40 m
Overall Floor Load With Rated Load10.2 kPa
Overall Height1790 mm
Overall Length1370 mm
Overall Width770 mm
Production Year2018
Product Page Linkskyjack.com/product/sj12-16
Raised Drive Speed0.80 km/h

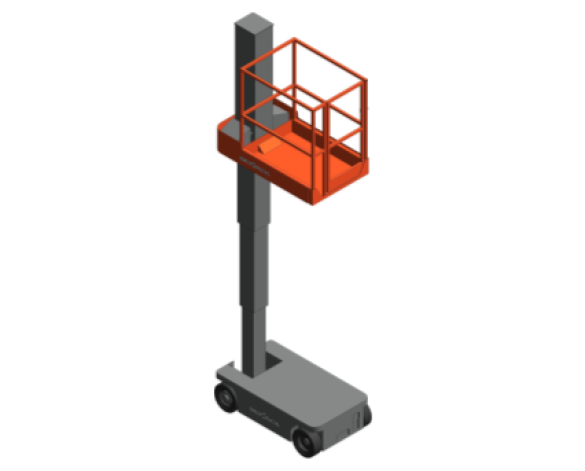

Raised Platform Height3650 mm
Referenced Standardn/a
Replacement Costn/a
Service Policy And WarrantySKYJACK warrenty each new Vertical Mast series aerial platform to be free of defective parts and workmanship for the first 24 months. Any defective part will be replaced or repaired by your local SKYJACK dealer at no charge for parts or labour. Contact the SKYJACK Service Department for warranty statement extensions or exclusions.
Shapen/a
Size1.37m Long x 0.7m Wide x Vairiable Height
Spare Partsn/a
Standard FeaturesDrivable at full height with platform retracted, Variable speed, front two wheel hydraulic drive, 90° steering (zero inside turning radius), Dual holding brakes, Proportional controls for drive and lift functions, 0.41 m Traversing platform, 24V DC power source, Low voltage battery protection, 30% gradeability, Solid rubber, non-marking tyres, Pothole protection system, Wiring for AC outlet at platform,Tilt alarm with drive & lift cut-out, Lanyard attachment points, Operator horn, Lift rings/tie downs, Full height spring hinged gate, Relay based control system, Colour coded and numbered wiring system.
Stowed Drive Speed4.0 km/h
Tire Size12 x 4 x 8
Tire TypeSolid, N/M
Type CommentsSJ12
Type NameSkyjack - Vertical Mast
URLskyjack.com/
Use Of EquipmentThe aerial platform is a highly maneuverable, mobile work station. Work platform elevation and elevated driving must only be done on a firm, level surface.
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@skyjackeurope.co.uk
Warranty Guarantor Partsinfo@skyjackeurope.co.uk
Weight864 kg
Wind Rating28 mph (12.5 m/s)
Working Height5650 mm
