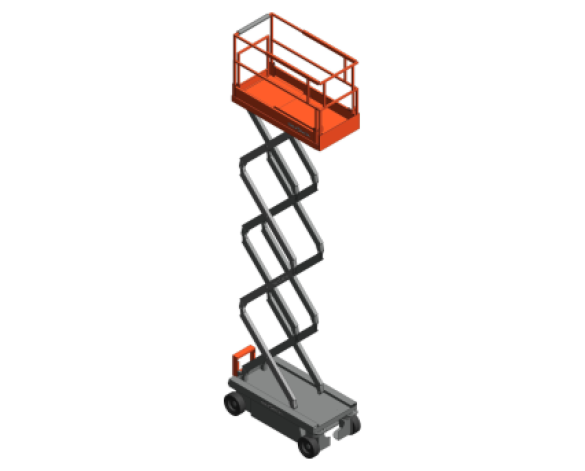

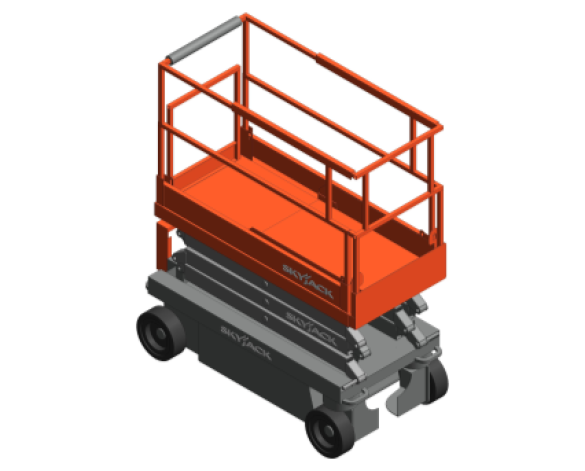

SKYJACK - Access Platform - SJ3219

by Skyjack

Download Add to collection

Description

The SJIII 3219 features durable steel swing-out component trays, providing unrestricted access for easy maintenance and service.

Features Include;

Drivable at full height. Variable speed, front two wheel hydraulic drive. 90‹ steering (zero inside turning radius). Dual holding brakes. Proportional controls for drive & lift functions. 3f (0.91 m) Roll out extension deck. 24V DC power source. Low voltage battery protection. 30% Gradeability. Solid rubber, non-marking tires. Pothole protection system. 110V AC outlet on platform with GFI. 28 mph wind rating (12.5 m/s). Tilt alarm with drive & lift cut-out. All motion audible alarm. Lanyard attachment points. Operator horn. Forklift pockets and tie down/lift lugs. Relay based control system. Color coded and numbered wiring system. Telematics ready.

This download includes the SKYJACK Access Platform - SJ3219 BIM components from SKYJACK.

Keywords: MEWP, Mobile Elevating Work Platform, Access Platform, Work Platform, Aerial Work Platform

Object Data

1 Revision

Last Updated

22/06/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorConnor Laing
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Accessories And OptionsFlashing light, All motion audible alarm, 250Ah batteries, Dual flashing lights, AGM batteries, Shroud-style control box guard, Pipe racks, Drywall/board carrier.
Assembly CodeE1030900
Asset TypeFixed
BIM Object NameSKYJACK_Site_AccessPlatform_VerticalLiftingPlatform_SJ3219
Capacity227 kg
Classification NameUniclass2015
Classification ValuePr_65_80_47_95
Code Performancen/a
ColorOrange and Grey
Constituentsn/a
Created Byinfo@skyjackeurope.co.uk
Created On2018-03-01T09:00:00
DescriptionThe SJIII 3219 features durable steel swing-out component trays, providing unrestricted access for easy maintenance and service.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literatureskyjack.com/product/sjiii-3219
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2023
Duration UnitYears
Electrocution HazardThe aerial platform is not electrically insulated. Maintain a Minimum Safe Distance (MSAD) from energized power lines and parts. The operator must allow for the platform to sway, rock or sag. This aerial platform does not provide protection from contact with or proximity to an electrically charged conductor.
Expected Life0
Extension Deck Roll Out3 ft (0.91 m)
FeaturesDrivable at full height. Variable speed, front two wheel hydraulic drive. 90‹ steering (zero inside turning radius). Dual holding brakes. Proportional controls for drive & lift functions. 3f (0.91 m) Roll out extension deck. 24V DC power source. Low voltage battery protection. 30% Gradeability. Solid rubber, non-marking tires. Pothole protection system. 110V AC outlet on platform with GFI. 28 mph wind rating (12.5 m/s). Tilt alarm with drive & lift cut-out. All motion audible alarm. Lanyard attachment points. Operator horn. Forklift pockets and tie down/lift lugs. Relay based control system. Color coded and numbered wiring system. Telematics ready.
FinishOrange and Grey Paint
Graden/a
Gradeability25%
Ifc Export AsIfcTransportElementType
Ifc Export TypeIfcTransportElement
Inside Turning Radius0
KeynoteX
Lift Time With Rated Load25 sec
Local Floor Load With Rated Load782 kPa
Lowered Platform Height990 mm
Lower Time With Rated Load29 sec
ManufacturerSkyjack
Manufacturer NameSkyjack
MaterialMetal
Maximum Number Of Persons2 indoor/ 1 outdoor
ModelSkyjack - DC Scissor
Model NumberSJ3219
Model ReferenceSKYJACK - Scissor Lift
NBS DescriptionVertical lifting platforms
NBS Object NameSkyjack - Vertical lifting platforms
NBS Office Master Tagn/a
NBS Reference90-80-65/350
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Outside Turning Radius66 Inch (1.68 m)
Overall Floor Load With Rated Load11.3 kPa
Overall Height2100 mm
Overall Length1780 mm
Overall Width810 mm
Product CodeSJIII 3219
Production Year2018
Product Page Linkskyjack.com/product/sjiii-3219
Raised Drive Speed1.1 km/h
Raised Platform Height5790 mm
Referenced Standardn/a
Replacement Costn/a
Service Policy And WarrantySKYJACK warrents each new SJIII Series work platform to be free of defective parts and workmanship for the first 24 months. Any defective part will be replaced or repaired by your local SKYJACK dealer at no charge for parts or labour. Contact the SKYJACK Service Department for warranty statement extensions or exclusions.
Shapen/a
Size1.78m Long x 0.81m Wide x Variable Height
Spare Partsn/a
Standard FeaturesDrivable at full height with roll out deck fully extended, Variable speed, front two wheel hydraulic drive, 90° steering (zero inside turning radius), Dual holding brakes, Proportional controls for drive & lift functions, 0.91 m roll out extension deck, 24V DC power source, Low voltage battery protection, Relay based control system, Colour coded and numbered wiring system, 30% gradeability, Solid rubber, non-marking tyres, Pothole protection system, Wiring for AC outlet on platform, Tilt alarm with drive & lift cut-out, Overload sensing system, Lowering warning system, Operator horn, Half height spring hinged gate, Hinged railing system, Lanyard attachment points, Forklift pockets and tie down/lift lugs.
Stowed Drive Speed3.1 km/h)
Tire Size12 x 4 x 8
Tire TypeSolid, N/M
Type CommentsSJ3219
Type NameSkyjack - DC Scissor
URLskyjack.com/
Use Of EquipmentThe aerial platform is a highly maneuverable, mobile work station. Lifting and driving must be on a flat, level, compacted surface.
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@skyjackeurope.co.uk
Warranty Guarantor Partsinfo@skyjackeurope.co.uk
Weight1,312 kg
Wheelbase1400 mm
Wind Rating28 mph (12.5 m/s)
Working Height7790 mm
