SKYJACK - Access Platform - SJ4740

by Skyjack

Download Add to collection

Description

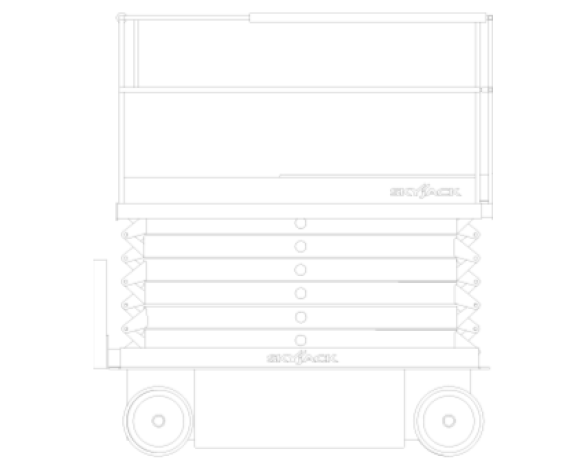

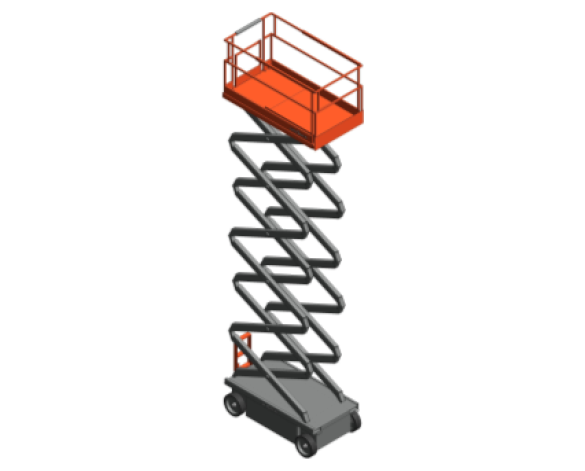

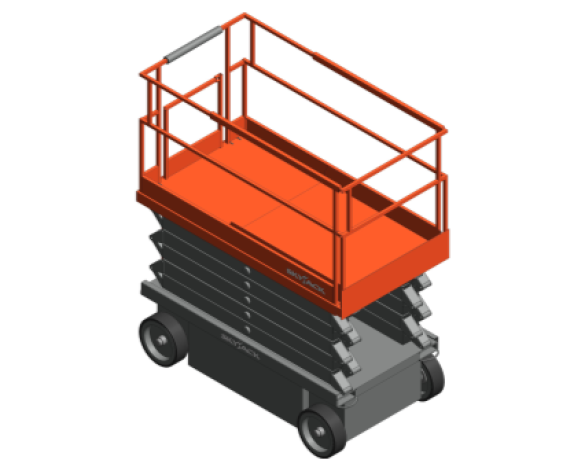

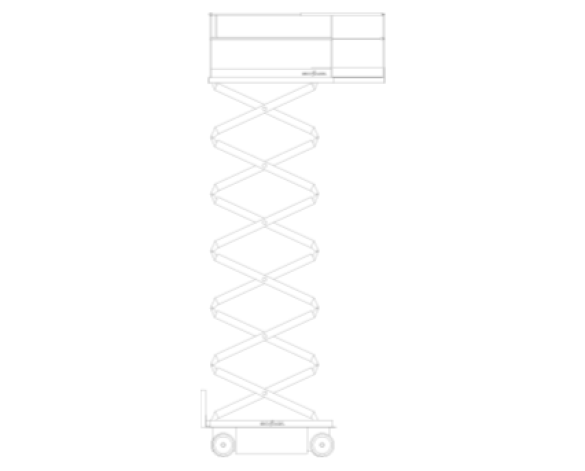

SKYJACK SJ4740 SCISSOR LIFT

Features Include;

Drivable at full height, Variable speed, front wheel hydraulic drive. DC Motor controller. Half height hinged gate. Dual holding brakes. Proportional controls for drive & lift functions. 3’ (0.9 m) Roll out extension deck. 24V DC power source. Low voltage battery protection. 25% Gradeability. Solid rubber, non-marking tires. Pothole protection system. 110V AC outlet on platform with GFI. 28 mph wind rating (12.5m/sec). Tilt alarm with drive & lift cut-out. All motion audible alarm. Lanyard attachment points. Operator horn. Hinged railing system. Forklift pockets and tie down/lift lugs. Relay based control system. Color coded and numbered wiring system. Telematics ready.

This download includes the SKYJACK Access Platform - SJ4740 BIM components from SKYJACK.

Keywords: MEWP, Mobile Elevating Work Platform, Access Platform, Work Platform, Aerial Work Platform

Object Data

1 Revision

Last Updated

22/06/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorConnor Laing
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Accessories And OptionsFlashing light. 250 Ah batteries. All motion audible alarm. Dual flashing lights. AGM batteries. Shroud-style control box guard. Pipe racks. Drywall/board carrier.
Assembly CodeE1030900
Asset TypeFixed
BIM Object NameSKYJACK_Site_AccessPlatform_VerticalLiftingPlatform_SJ4740
Capacity350 kg
Classification NameUniclass2015
Classification ValuePr_65_80_47_95
Code Performancen/a
ColorOrange and Grey
Constituentsn/a
Created Byinfo@skyjackeurope.co.uk
Created On2018-03-01T09:00:00
DescriptionSKYJACK SJ4740
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literatureskyjack.com/product/sjiii-4740
Documentation Maintenancen/a
Documentation Technicalskyjack.com/product/sjiii-4740
Duration UnitYears
Electrocution HazardThe aerial platform is not electrically insulated. Maintain a Minimum Safe Distance (MSAD) from energized power lines and parts. The operator must allow for the platform to sway, rock or sag. This aerial platform does not provide protection from contact with or proximity to an electrically charged conductor.
Expected Life0
Extension Deck Roll Out3 ft (0.91 m)
FeaturesDrivable at full height / Variable speed, front wheel hydraulic drive / DC Motor controller / Half height hinged gate / Dual holding brakes / Proportional controls for drive & lift functions / 3’ (0.9 m) Roll out extension deck / 24V DC power source / Low voltage battery protection / 25% Gradeability / Solid rubber, non-marking tires / Pothole protection system / 110V AC outlet on platform with GFI / 28 mph wind rating (12.5m/sec) / Tilt alarm with drive & lift cut-out / All motion audible alarm / Lanyard attachment points / Operator horn / Hinged railing system / Forklift pockets and tie down/lift lugs / Relay based control system / Color coded and numbered wiring system / Telematics ready
FinishOrange and Grey Paint
Graden/a
Gradeability25%
Ground Clearance81 mm
Ifc Export AsIfcTransportElementType
Ifc Export TypeIfcTransportElement
Inside Turning Radius0.54 m
KeynoteX
Lift Time With Rated Load71 sec
Local Floor Load With Rated Load1446 kPa
Lowered Platform Height1370 mm
Lower Time With Rated Load41 sec
ManufacturerSkyjack
Manufacturer NameSkyjack
MaterialMetal
Maximum Number Of Persons3 person indoor only
ModelSkyjack - DC Scissor
Model NumberSJ4740
Model ReferenceSKYJACK - Scissor Lift
NBS DescriptionVertical lifting platforms
NBS Object NameSkyjack - Vertical lifting platforms
NBS Office Master Tagn/a
NBS Reference90-80-65/350
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Outside Turning Radius2.58 m
Overall Floor Load With Rated Load11.3 kPa
Overall Height2490 mm
Overall Length2400 mm
Overall Width1190 mm
Product CodeSJIII 4740
Production Year2018
Product Page Linkskyjack.com/product/sjiii-4740
Raised Drive Speed1.0 km/h
Raised Platform Height11800 mm
Referenced Standardn/a
Replacement Costn/a
Service Policy And WarrantySKYJACK warrents each new SJIII Series work platform to be free of defective parts and workmanship for the first 24 months. Any defective part will be replaced or repaired by your local SKYJACK dealer at no charge for parts or labour. Contact the SKYJACK Service Department for warranty statement extensions or exclusions.
Shapen/a
Size2.4m Long x 1.19m Wide x Variable Height
Spare Partsn/a
Standard FeaturesDrivable at full height with roll out deck fully extended. Variable speed, rear two wheel hydraulic drive. Dual holding brakes. Proportional controls for drive & lift functions. 1.22 m roll out extension deck. 24V DC power source. Low voltage battery protection. Relay based control system. Colour coded and numbered wiring system. Up to 30% gradeability. Solid rubber, non-marking tyres. Pothole protection system. Wiring for AC outlet on platform. Tilt alarm with drive & lift cut-out. Overload sensing system. Lowering warning system. Operator horn. Half height spring hinged gate. Hinged railing system. Lanyard attachment points. Forklift pockets and tie down/lift lugs.
Stowed Drive Speed3.2 km/h
Tire Size16 x 5 x 12
Tire TypeSolid, N/M
Type CommentsSJ4740
Type NameSkyjack - DC Scissor
URLskyjack.com/
Use Of EquipmentThe aerial platform is a highly maneuverable, mobile work station. Lifting and driving must be on a flat, level, compacted surface.
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@skyjackeurope.co.uk
Warranty Guarantor Partsinfo@skyjackeurope.co.uk
Weight3,393 kg
Wheelbase1850 mm
Working Height13800 mm
