SKYJACK - Access Platform - SJ6832

by Skyjack

Download Add to collection

Description

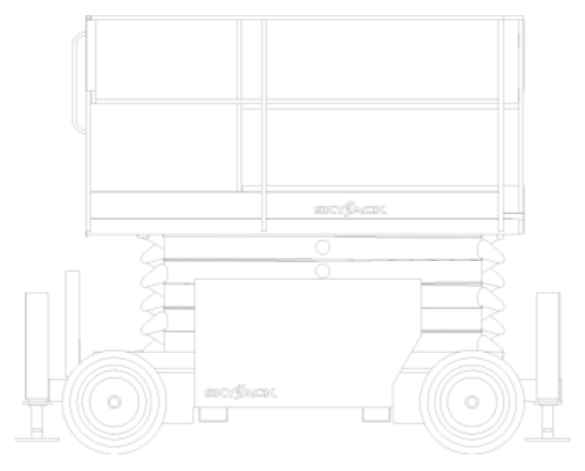

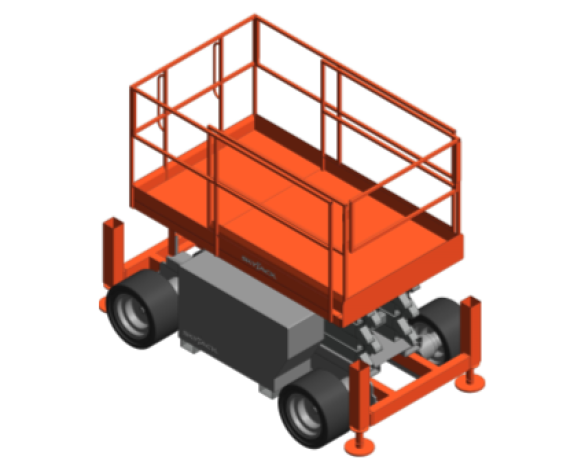

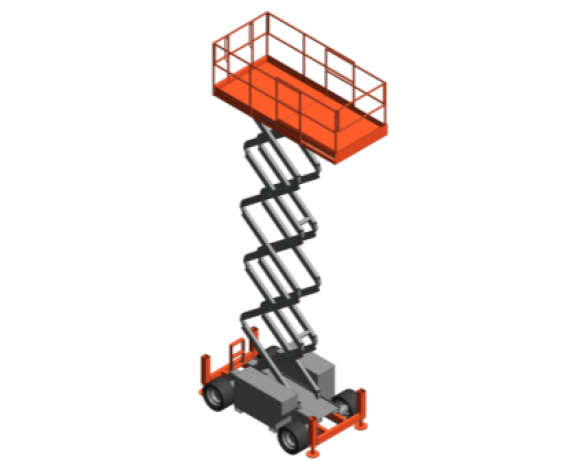

SKYJACK SJ6832RT 9.75M SCISSOR LIFT SWL 454KG CAPACITY

Features Include;

Drivable at full height with roll out deck fully extended. Crossover symmetrical 4WD. Multiple wet disc spring applied hydraulic release brakes. 1.52 m roll out extension deck. 24hp Kubota Diesel engine. 90° swing out engine tray. Relay based control system. Colour coded and numbered wiring system. Up to 50% Gradeability. Foam-filled grip lug tyres. Wiring for AC outlet on platform. Tilt alarm with drive & lift cut-out. Overload sensing system. Lowering warning system. Operator horn. Hinged railing system. Full height spring hinged gate at rear of unit. Lanyard attachment point. Scissor guards. Forklift pockets and tie down/lift lugs. Independent/auto leveling outriggers

This download includes the SKYJACK Access Platform - SJ6832 BIM components from SKYJACK.

Keywords: MEWP, Mobile Elevating Work Platform, Access Platform, Work Platform, Aerial Work Platform

Object Data

1 Revision

Last Updated

22/06/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorConnor Laing
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Accessories And OptionsDiesel engine with scrubber. Flashing light. Shroud-style control box guard. 2.0kW hydraulic generator. Foam-filled grip lug non-marking tyres. All motion audible alarm
Assembly CodeE1030900
Asset TypeFixed
BIM Object NameSKYJACK_Site_AccessPlatform_VerticalLiftingPlatform_SJ6832
Capacity454 kg
Classification NameUniclass2015
Classification ValuePr_65_80_47_95
Code Performancen/a
ColorOrange and Grey
Constituentsn/a
Created Byinfo@skyjackeurope.co.uk
Created On2018-03-01T09:00:00
DescriptionSKYJACK SJ6832RT 9.75M SCISSOR LIFT SWL 454KG CAPACITY
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literatureskyjack.com/product/sj6832-rte
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2007
Duration UnitYears
Electrocution HazardThe aerial platform is not electrically insulated. Maintain a Minimum Safe Distance (MSAD) from energized power lines and parts. The operator must allow for the platform to sway, rock or sag. This aerial platform does not provide protection from contact with or proximity to an electrically charged conductor.
Expected Life0
Extension Deck Roll Out1.52 m
FeaturesDrivable at full height with roll out deck fully extended. Crossover symmetrical 4WD. Multiple wet disc spring applied hydraulic release brakes. 1.52 m roll out extension deck. 24hp Kubota Diesel engine. 90° swing out engine tray. Relay based control system. Colour coded and numbered wiring system. Up to 50% Gradeability. Foam-filled grip lug tyres. Wiring for AC outlet on platform. Tilt alarm with drive & lift cut-out. Overload sensing system. Lowering warning system. Operator horn. Hinged railing system. Full height spring hinged gate at rear of unit. Lanyard attachment point. Scissor guards. Forklift pockets and tie down/lift lugs. Independent/auto leveling outriggers
FinishOrange and Grey Paint
Graden/a
Gradeability40%
Ground Clearance200 mm
Ifc Export AsIfcTransportElementType
Ifc Export TypeIfcTransportElement
Inside Turning Radius1.52 m
KeynoteX
Lift Time With Rated Load39 sec
Local Floor Load With Rated Load1248 kPa
Lowered Platform Height1370 mm
Lower Time With Rated Load36 sec
ManufacturerSkyjack
Manufacturer NameSkyjack
MaterialMetal
Maximum Number Of Persons4/4 (to 7.92m) 2 (to 9.75m)
ModelSkyjack - Compact Rough Terrain Scissor
Model NumberSJ6832
Model ReferenceSKYJACK - Scissor Lift
NBS DescriptionVertical lifting platforms
NBS Object NameSkyjack - Vertical lifting platforms
NBS Office Master Tagn/a
NBS Reference90-80-65/350
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Outside Turning Radius3.96 m
Overall Floor Load With Rated Load14 kPa
Overall Height2510 mm
Overall Length3350 mm
Overall Width1760 mm
Product CodeSJ6832
Production Year2018
Product Page Linkskyjack.com/product/sj6832-rte
Raised Drive Speed0.6 km/h
Raised Platform Height9750 mm
Referenced Standardn/a
Replacement Costn/a
Service Policy And WarrantySKYJACK warrents each new SJIII Series work platform to be free of defective parts and workmanship for the first 24 months. Any defective part will be replaced or repaired by your local SKYJACK dealer at no charge for parts or labour. Contact the SKYJACK Service Department for warranty statement extensions or exclusions.
Shapen/a
Size3.35m Long x 1.76m Wide x Variable Height
Spare Partsn/a
Standard FeaturesDrivable at full height with roll out deck fully extended. Crossover symmetrical 4WD. Multiple wet disc spring applied hydraulic release brakes. 1.52 m roll out extension deck. 24hp Kubota Diesel engine. 90° swing out engine tray. Relay based control system. Colour coded and numbered wiring system. Up to 50% Gradeability. Foam-filled grip lug tyres. Wiring for AC outlet on platform. Tilt alarm with drive & lift cut-out. Overload sensing system. Lowering warning system. Operator horn. Hinged railing system. Full height spring hinged gate at rear of unit. Lanyard attachment point. Scissor guards. Forklift pockets and tie down/lift lugs. Independent/auto leveling outriggers
Stowed Drive Speed6.1 km/h
Tire Size26 x 12
Tire TypeFoam Filled
Type CommentsSJ6832
Type NameSkyjack - Compact Rough Terrain Scissor
URLskyjack.com/
Use Of EquipmentThe aerial platform is a highly maneuverable, mobile work station. Lifting and driving must be on a flat, level, compacted surface.
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@skyjackeurope.co.uk
Warranty Guarantor Partsinfo@skyjackeurope.co.uk
Weight3,781 kg
Wheelbase2040 mm
Working Height11750 mm
