SKYJACK - Access Platform - SJ8831-SJ8841RT

25.1k
0
5 / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

22/06/2018

Download BIM

Add to collection

Available for:

SJ8831 - SJ8841 Rough Terrain Scissors up to 11.45m Working Height

Features Include;

Drivable at full height with roll out decks fully extended, Axle based 4WD, “No Spin” rear differential and limited slip front differential, Disc brake system on rear axle, 29hp Kubota Diesel engine on roll out tray, Independent/auto levelling outriggers, Self-centering scissor design, Dual 1.22 m roll out extension decks, Relay based control system, Colour coded and numbered wiring system, 30% Gradeability, Foam-filled grip lug tyres, Wiring for AC outlet on platform, Lowering warning system, Tilt alarm with drive & lift cut-out, Overload sensing system, Flashing light, Operator horn, Fold down hinged railing system, Half height spring hinged gates on sides, Lanyard attachment points, Scissor guards, Tie down/lift lugs

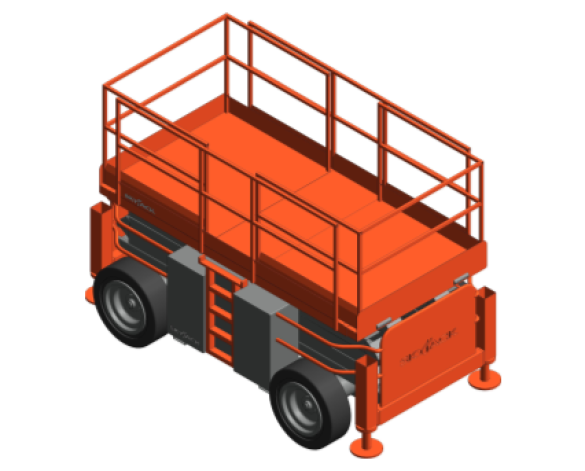

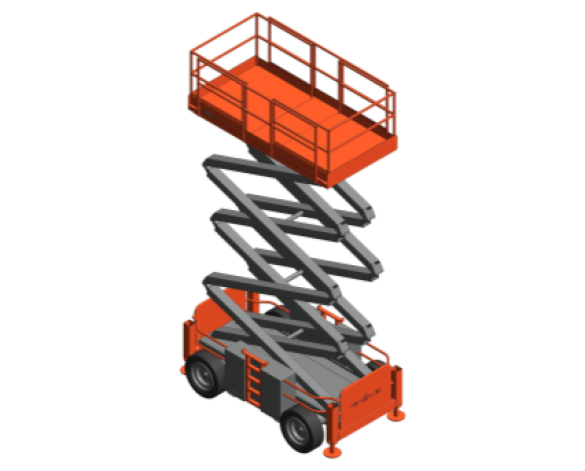

This download includes the SKYJACK Access Platform - SJ8831 - SJ8841 Rough Terrain Scissors BIM components from SKYJACK.

Keywords: MEWP, Mobile Elevating Work Platform, Access Platform, Work Platform, Aerial Work Platform

_AuthorConnor Laing
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Accessories And OptionsDual 1.22 m powered extension decks. Diesel engine with scrubber. Airline to platform. 3.5kW hydraulic generator. Full height spring hinged gates. Non-marking grip lug foam-filled tyres. All motion audible alarm. Shroud-style control box guard.
Assembly CodeE1030900
Asset TypeFixed
BIM Object NameSKYJACK_Site_AccessPlatform_VerticalLiftingPlatform_(SJ8831-SJ8841)
Capacity908 kg
Classification NameUniclass2015
Classification ValuePr_65_80_47_95
Code Performancen/a
ColorOrange and Grey
Constituentsn/a
Created Byinfo@skyjackeurope.co.uk
Created On2018-03-01T09:00:00
DescriptionSKYJACK SJ8831 9.45M SCISSOR LIFT 907KG CAPACITY
Documentation Certificatesn/a
Documentation Installation Guiden/a

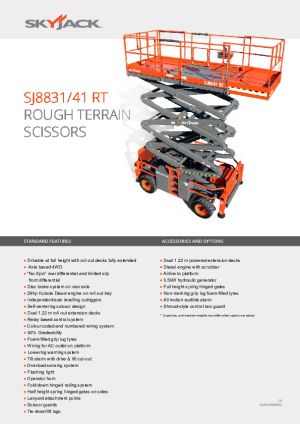

Documentation Literaturespecifi.bimstore.co.uk/document/share/2230
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2230
Duration UnitYears
Expected Life0
Extension Deck Roll Out1.22 m x 2
FeaturesAxle based 4WD system. “Detroit Locker” type rear differential and limited slip front differential. Drivable at full height. Dual fuel (gas/propane) or diesel engine. Self-centering scissor design allows extension decks to be added to both ends. 4’ (1.22 m) Roll out extension deck. Disc brake system on rear axle. 30% Gradeability. 110V AC outlet on platform with GFI. Tilt alarm with drive & lift cut-out. All motion audible alarm. Lanyard attachment points. Tie down/lift lugs. Operator horn. Flashing light. Fold down hinged railing system. Half height spring hinged gates on both sides. Grip Lug, air-filled tires. Relay based control system. Color coded and numbered wiring system. Telematics ready.
FinishOrange and Grey Paint
Graden/a
Gradeability30%
Ground Clearance200 mm
Ifc Export AsIfcTransportElementType
Ifc Export TypeIfcTransportElement
Inside Turning Radius4.01 m
KeynoteX
Lift Time With Rated Load58 sec
Local Floor Load With Rated Load931 kPa
Lowered Platform Height1500 mm
Lower Time With Rated Load44 sec
ManufacturerSkyjack
Manufacturer NameSkyjack
MaterialMetal
Maximum Number Of Persons6 indoor/ 6 outdoor
ModelSkyjack - Rough Terrain Scissor
Model NumberSJ8831
Model ReferenceSkyjack - Scissor Lift
NBS DescriptionVertical lifting platforms
NBS Object NameSkyjack - Vertical lifting platforms
NBS Office Master Tagn/a
NBS Reference90-80-65/350
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Outside Turning Radius6.30 m
Overall Floor Load With Rated Load8 kPa
Overall Height2670 mm
Overall Length3710 mm
Overall Width2210 mm
Product CodeSJ8831
Production Year2018
Product Page Linkskyjack.com/product/sj883141-rt
Raised Drive Speed0.4 km/h
Raised Platform Height9450 mm
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeW: 2.21m, L: 3.53m
Spare Partsn/a
Standard FeaturesAxle based 4WD system. “Detroit Locker” type rear differential and limited slip front differential. Drivable at full height. Dual fuel (gas/propane) or diesel engine. Self-centering scissor design allows extension decks to be added to both ends. 4’ (1.22 m) Roll out extension deck. Disc brake system on rear axle. 30% Gradeability. 110V AC outlet on platform with GFI. Tilt alarm with drive & lift cut-out. All motion audible alarm. Lanyard attachment points. Tie down/lift lugs. Operator horn. Flashing light. Fold down hinged railing system. Half height spring hinged gates on both sides. Grip Lug, air-filled tires. Relay based control system. Color coded and numbered wiring system. Telematics ready.
Stowed Drive Speed4.5 km/h
Tire Size10 x 16.5
Tire TypeFoam Filled
Type CommentsSJ8831
Type NameSkyjack - Rough Terrain Scissor
URLskyjack.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@skyjackeurope.co.uk
Warranty Guarantor Partsinfo@skyjackeurope.co.uk
Weight5,684 kg
Wheelbase2270 mm
Working Height11450 mm
