SKYJACK - Access Platform - SJ9241-SJ9250RT

Object metadata

• _AuthorConnor Laing
• _Authorized ByKris Atkinson
• _Bim Spec Guid0
• _BS Bible Version15
• _Created Bywww.bimstore.co.uk
• _Current Revision1
• _Distributed Bywww.bimstore.co.uk
• Accessibility Performancen/a
• Accessories And Options- Diesel engine with scrubber - All motion audible alarm - Airline to platform - 3.5kW hydraulic generator - Full height spring hinged gates - Non-marking grip lug foam-filled tyres - Shroud-style control box guard
• Assembly CodeE1030900
• Asset TypeFixed

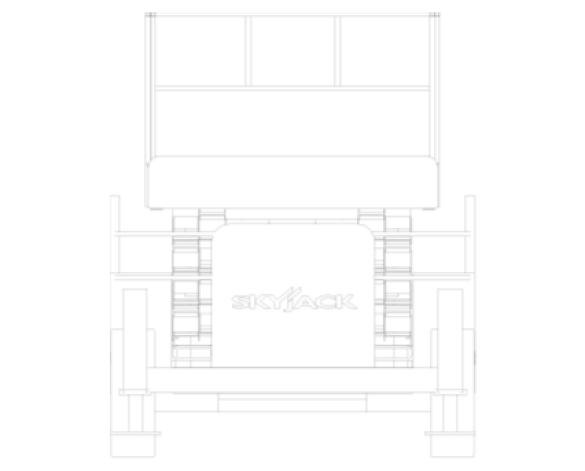

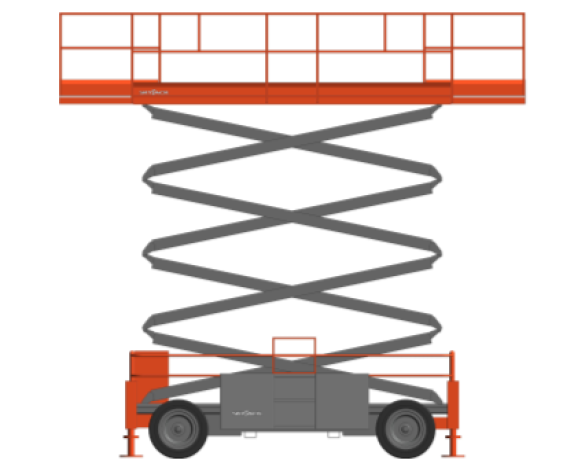

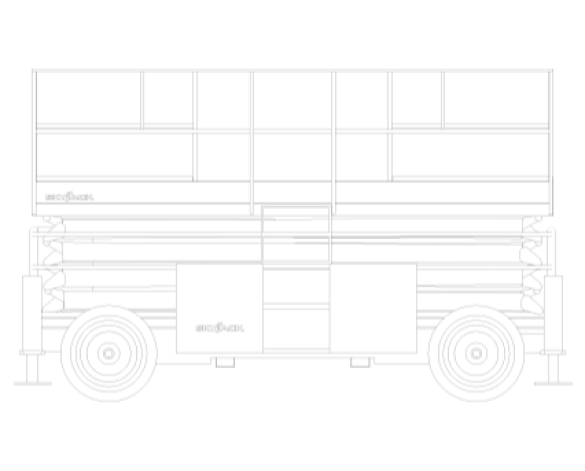

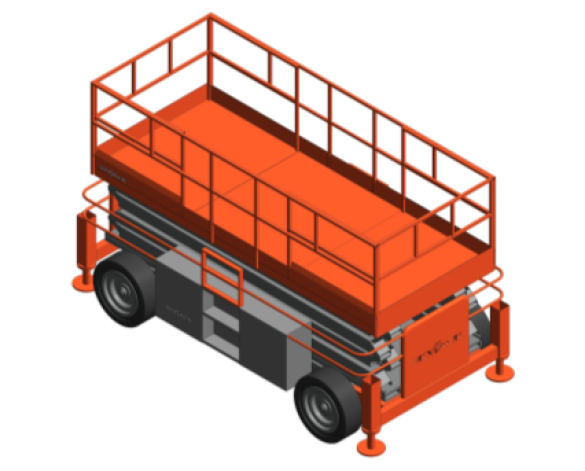

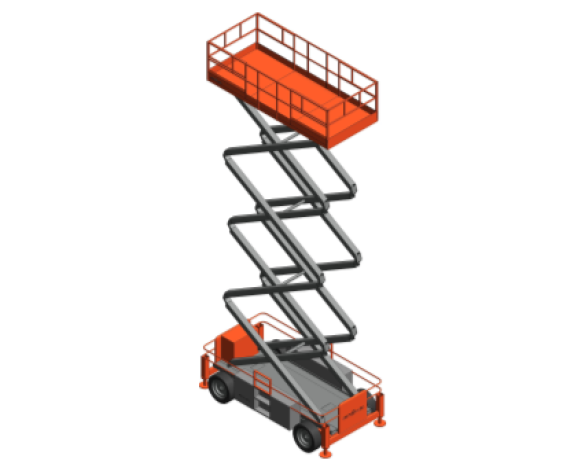

• BIM Object NameSKYJACK_Site_AccessPlatform_VerticalLiftingPlatform_SJ9241RT
• Capacity681 kg
• Classification NameUniclass2015
• Classification ValuePr_65_80_47_95
• Code Performancen/a
• ColorOrange and Grey
• Constituentsn/a
• Created Byinfo@skyjackeurope.co.uk
• Created On2018-03-01T09:00:00
• Description- Drivable at full height with powered decks fully extended (9241 only) - Axle based 4WD - “No Spin” rear differential and limited slip front differential - Disc brake system on rear axle - 29hp Kubota diesel engine on roll out tray - Self centering scissor design - Dual powered extension decks (1.53 m front and rear) - Large 7.21 m total working platform length - Independent/auto levelling outriggers - Relay based control system - Colour coded and numbered wiring system - 30% gradeability - Foam-filled grip lug tyres - Wiring for AC outlet on platform - Tilt alarm with drive & lift cut-out - Overload sensing system - Lowering warning system - Flashing light - Operator horn - Fold down hinged railing system - Half height spring hinged gates on both sides - Scissor guards - Lanyard attachment points - Tie down/lift lugs
• Documentation Certificatesn/a
• Documentation Installation Guiden/a

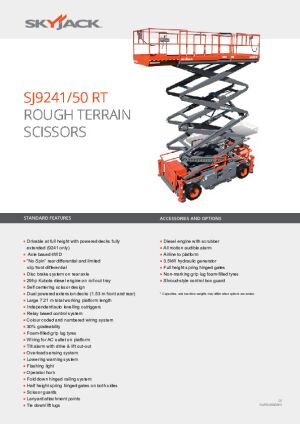

• Documentation Literaturespecifi.bimstore.co.uk/document/share/2293
• Documentation Maintenancen/a
• Documentation Technicalspecifi.bimstore.co.uk/document/share/2293
• Duration UnitYears
• Expected Life0
• Extension Deck Roll Out1.53 m x 2
• Features- Drivable at full height with powered decks fully extended (9241 only) - Axle based 4WD - “No Spin” rear differential and limited slip front differential - Disc brake system on rear axle - 29hp Kubota diesel engine on roll out tray - Self centering scissor design - Dual powered extension decks (1.53 m front and rear) - Large 7.21 m total working platform length - Independent/auto levelling outriggers - Relay based control system - Colour coded and numbered wiring system - 30% gradeability - Foam-filled grip lug tyres - Wiring for AC outlet on platform - Tilt alarm with drive & lift cut-out - Overload sensing system - Lowering warning system - Flashing light - Operator horn - Fold down hinged railing system - Half height spring hinged gates on both sides - Scissor guards - Lanyard attachment points - Tie down/lift lugs
• FinishOrange and Grey Paint
• Graden/a
• Gradeability30%
• Ground Clearance200 mm
• Ifc Export AsIfcTransportElementType
• Ifc Export TypeIfcTransportElement
• Inside Turning Radius5.33m
• KeynoteX
• Lift Time With Rated Load62 sec
• Local Floor Load With Rated Load1495 kPa
• Lowered Platform Height1680 mm
• Lower Time With Rated Load72 sec
• ManufacturerSkyjack
• Manufacturer NameSkyjack
• MaterialMetal
• Maximum Number Of Persons5 indoor/ 5 outdoor
• ModelSkyjack - Rough Terrain Scissor
• Model NumberSJ9241
• Model ReferenceSkyjack - Scissor Lift
• NBS DescriptionVertical lifting platforms
• NBS Object NameSkyjack - Vertical lifting platforms
• NBS Office Master Tagn/a
• NBS Reference90-80-65/350
• Nominal Depth0 mm
• Nominal Height0 mm
• Nominal Length0 mm
• Outside Turning Radius7.65m
• Overall Floor Load With Rated Load9 kPa
• Overall Height2840 mm
• Overall Length4470 mm
• Overall Width2340 mm
• Product CodeSJ9241
• Production Year2018
• Product Page Linkskyjack.com/product/sj9250-rt
• Raised Drive Speed0.72 km/h
• Raised Platform Height12500 mm
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• SizeW: 2.34m, L: 4.47m
• Spare Partsn/a
• Standard Features- Drivable at full height with powered decks fully extended (9241 only) - Axle based 4WD - “No Spin” rear differential and limited slip front differential - Disc brake system on rear axle - 29hp Kubota diesel engine on roll out tray - Self centering scissor design - Dual powered extension decks (1.53 m front and rear) - Large 7.21 m total working platform length - Independent/auto levelling outriggers - Relay based control system - Colour coded and numbered wiring system - 30% gradeability - Foam-filled grip lug tyres - Wiring for AC outlet on platform - Tilt alarm with drive & lift cut-out - Overload sensing system - Lowering warning system - Flashing light - Operator horn - Fold down hinged railing system - Half height spring hinged gates on both sides - Scissor guards - Lanyard attachment points - Tie down/lift lugs
• Stowed Drive Speed3.8 km/h
• Tire Size10 x 16.5
• Tire TypeFoam Filled
• Type CommentsSJ9241
• Type NameSkyjack - Rough Terrain Scissor
• URLskyjack.com/
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYears
• Warranty Guarantor Laborinfo@skyjackeurope.co.uk
• Warranty Guarantor Partsinfo@skyjackeurope.co.uk
• Weight6,715 kg
• Wheelbase3020 mm
• Working Height14500 mm
