SKYJACK - Articulating Boom - SJ30 ARJE

by Skyjack

Download Add to collection

Description

The SJ30 Features Include;

Rotating jib (SJ30 ARJE only) - Direct AC electric drive - Dual spring applied, electromagnetically released brakes - Regenerative braking - Speed and angle sensing traction control - 48V 305 Ah battery pack - 28 mph (12.5 m/s) wind rating - DC powered emergency lowering - Secondary guarding electrical (SGE) - Drivable at full height - 355° Non-continuous turret rotation - 35% Gradeability - Swing out battery trays - Swing out cowlings - Modular platform railing system - Rear-entry sliding mid rail - 110V AC outlet on platform with GFI - Direction sensing drive and steer controls - Proportional drive and boom controls - Function speed selector - Relay based control system - Color coded and numbered wiring - Hourmeter - Operator horn - All motion alarm - Tie down/lifting lugs - 22 x 7 x 12 solid rubber, non-marking tires - Telematics ready - 2 Year Gold Leaf Warranty (5 year structural warranty)

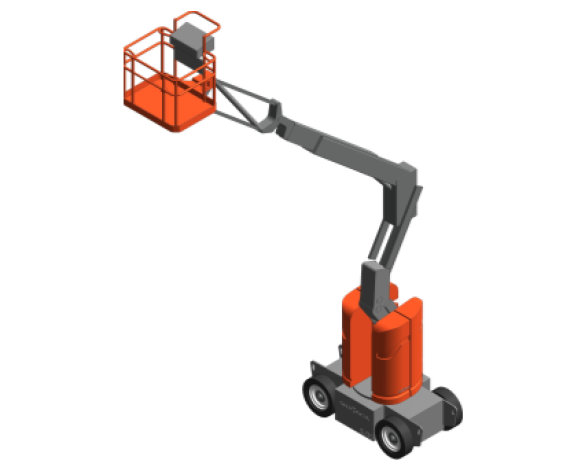

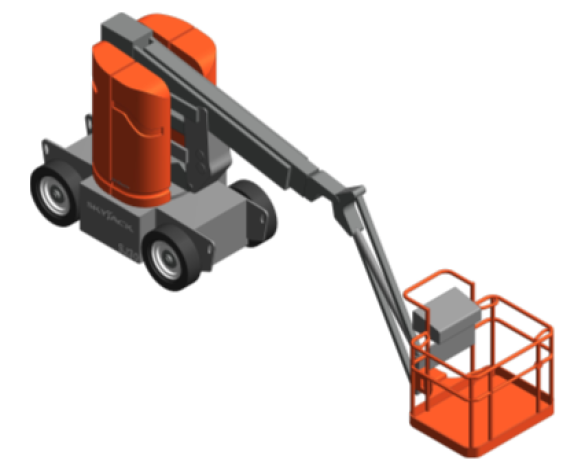

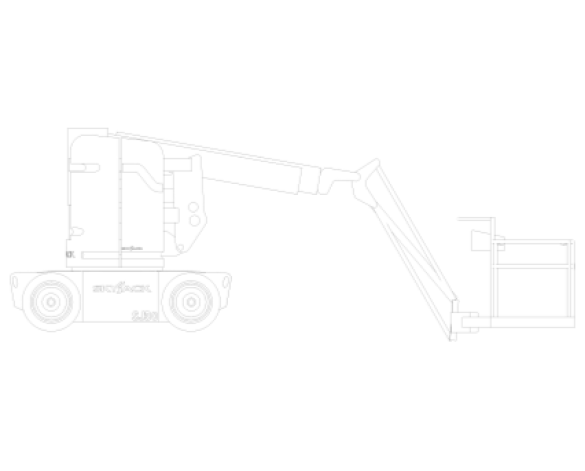

This download includes the SKYJACK Articulating Boom - SJ30 BIM components from SKYJACK.

Keywords: MEWP, Mobile Elevating Work Platform, Cherry Picker, Boom Lift, Work Platform, Aerial Work Platform

Object Data

1 Revision

Last Updated

22/06/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorConnor Laing
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Accessories And OptionsPipe rack - Tool caddy - Platform work lights - Flashing light - 1/2” Airline to platform - Control box cover - 1000W AC Inverter - 360 Ah batteries - 330 Ah AGM batteries - Rear gate - Bio oil - Non destructive testing
Assembly CodeE1030900
Asset TypeFixed
BIM Object NameSKYJACK_Site_AccessPlatform_ArticulatingBoom_SJ30
Capacity227 KG
Classification NameUniclass2015
Classification ValuePr_65_80_47_95
Code Performancen/a
ColorOrange and Grey
Constituentsn/a
Created Byinfo@skyjackeurope.co.uk
Created On2018-03-01T09:00:00
DescriptionSkyjack - Vertical lifting platforms Articulating Boom
Documentation Certificatesn/a
Documentation Installation Guiden/a

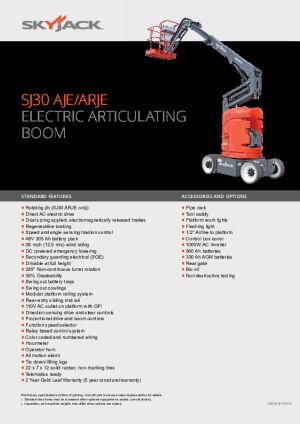

Documentation Literaturespecifi.bimstore.co.uk/document/share/2411
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
Expected Life0
FeaturesRotating jib (SJ30 ARJE only) - Direct AC electric drive - Dual spring applied, electromagnetically released brakes - Regenerative braking - Speed and angle sensing traction control - 48V 305 Ah battery pack - 28 mph (12.5 m/s) wind rating - DC powered emergency lowering - Secondary guarding electrical (SGE) - Drivable at full height - 355° Non-continuous turret rotation - 35% Gradeability - Swing out battery trays - Swing out cowlings - Modular platform railing system - Rear-entry sliding mid rail - 110V AC outlet on platform with GFI - Direction sensing drive and steer controls - Proportional drive and boom controls - Function speed selector - Relay based control system - Color coded and numbered wiring - Hourmeter - Operator horn - All motion alarm - Tie down/lifting lugs - 22 x 7 x 12 solid rubber, non-marking tires - Telematics ready - 2 Year Gold Leaf Warranty (5 year structural warranty)
FinishOrange and Grey Paint
Graden/a
Gradeability25% - 35%
Horizontal Reach6250 mm
Ifc Export AsIfcTransportElementType
Ifc Export TypeIfcTransportElement
Inside Turning Radius1520 mm
Jib Length1250 mm
Jib Range+77 / -65 Degrees
KeynoteX
Local Floor Load With Rated Load1,627 kPa
ManufacturerSkyjack
Manufacturer NameSkyjack
MaterialMetal
Maximum Number Of Persons2
ModelSkyjack - Articulating Boom
Model NumberSJ30 AJ
Model ReferenceSkyjack - Vertical lifting platforms
NBS DescriptionVertical lifting platforms
NBS Object NameSkyjack - Vertical lifting platforms
NBS Office Master Tagn/a
NBS Reference90-80-65/350
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Outside Turning Radius3230 mm
Overall Floor Load With Rated Load25 kPa
Overall Height2010 mm
Overall Length5460 mm
Overall Width1190 mm
Platform Height9070 mm
Platform Rotation180 Degrees
Platform Size760 x 1170 mm
Product CodeSJ30 AJ
Production Year2018
Product Page Linkskyjack.com/product/sj30aje-arje
Raised Drive Speed0.64 km/h
Referenced Standardn/a
Replacement Costn/a
Rotation355 Degrees
Shapen/a
Size5440mm (L) x 1190mm (W) x 2010mm (H)
Spare Partsn/a
Standard FeaturesRotating jib (SJ30 ARJE only) - Direct AC electric drive - Dual spring applied, electromagnetically released brakes - Regenerative braking - Speed and angle sensing traction control - 48V 305 Ah battery pack - 28 mph (12.5 m/s) wind rating - DC powered emergency lowering - Secondary guarding electrical (SGE) - Drivable at full height - 355° Non-continuous turret rotation - 35% Gradeability - Swing out battery trays - Swing out cowlings - Modular platform railing system - Rear-entry sliding mid rail - 110V AC outlet on platform with GFI - Direction sensing drive and steer controls - Proportional drive and boom controls - Function speed selector - Relay based control system - Color coded and numbered wiring - Hourmeter - Operator horn - All motion alarm - Tie down/lifting lugs - 22 x 7 x 12 solid rubber, non-marking tires - Telematics ready - 2 Year Gold Leaf Warranty (5 year structural warranty)
Stowed Drive Speed4.8 km/h
Tailswing0 mm
Tire Size22 x 7 x 12
Tire TypeSolid, N/M
Type CommentsSJ30 AJ
Type NameSkyjack - Articulating Boom
Up And Over Height3990 mm
URLskyjack.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@skyjackeurope.co.uk
Warranty Guarantor Partsinfo@skyjackeurope.co.uk
Weight6,605 KG
Wheelbase1650 mm
Working Height10900 mm
