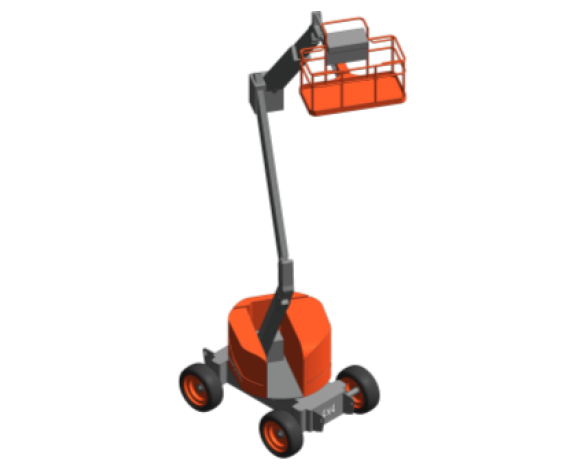

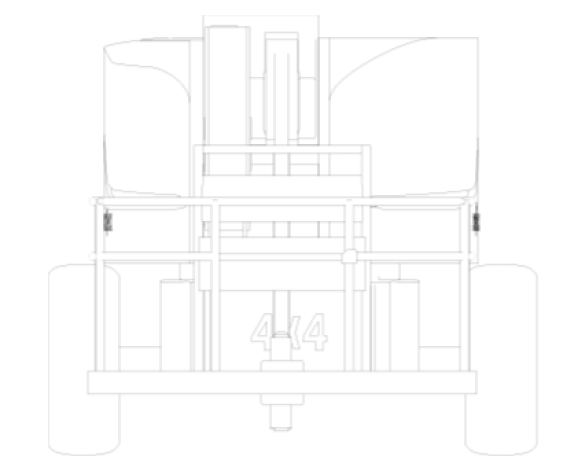

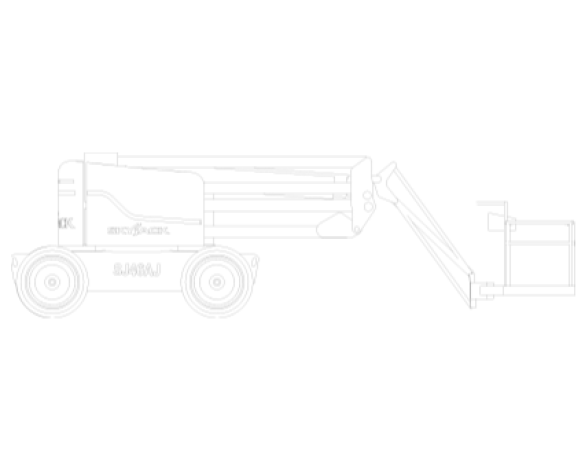

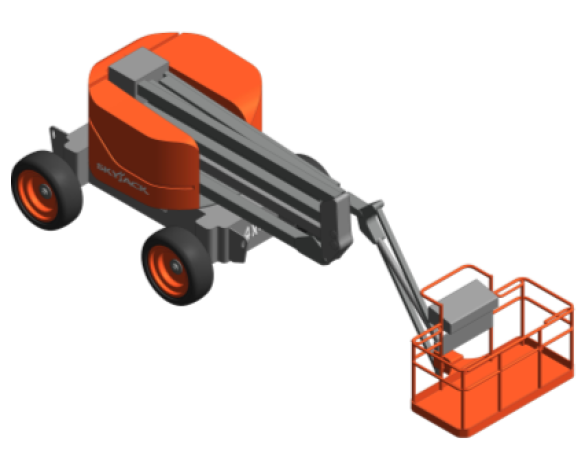

SKYJACK - Articulating Boom - SJ51AJ

Object metadata

• _AuthorConnor Laing
• _Authorized ByKris Atkinson
• _Bim Spec Guid0
• _BS Bible Version15
• _Created Bywww.bimstore.co.uk
• _Current Revision1
• _Distributed Bywww.bimstore.co.uk
• Accessibility Performancen/a
• Accessories And Options30 x 60” Platform - 3.5 kW generator (Includes hydraulic oil cooler) - Welder ready package (Includes 12 kW generator, hydraulic oil cooler, 3-phase power connection in platform, and welder mount) - Welder package (Includes 12 kW generator, hydraulic oil cooler, 3-phase power connection in platform, welder mount, and Lincoln V275-S welder) - Cold weather start kit (Includes cold start engine oil, battery blanket, and hydraulic tank heater) - Arctic weather package (Includes arctic engine oil, battery blanket, hydraulic tank heater, block heater, arctic hydraulic oil, arctic platform rotator and arctic gear oil in the axles and swing drive. Glow plugs, arctic hydraulic hoses (all), and oversized foot switch cover are also included (standard equipment). - Hydraulic oil cooler - Side gate - Flashing light - 1/2” airline to platform - Positive air shut-off valve - Non destructive testing - Glazier kit - Control box cover - Auxiliary top rail (30 x 72” platform only) - Warranty Options (3 year or 5 year plans available)
• Assembly CodeE1030900
• Asset TypeFixed
• Axle Oscillation12.70 cm
• BIM Object NameSKYJACK_Site_AccessPlatform_ArticulatingBoom_SJ51
• Capacity227 kg
• Classification NameUniclass2015
• Classification ValuePr_65_80_47_95
• Code Performancen/a
• ColorOrange and Grey
• Constituentsn/a
• Created Byinfo@skyjackeurope.co.uk
• Created On2018-03-01T09:00:00
• DescriptionSkyjack - Vertical lifting platforms Articulating Boom
• Documentation Certificatesn/a
• Documentation Installation Guiden/a
• Documentation Literaturen/a
• Documentation Maintenancen/a
• Documentation Technicaln/a
• Duration UnitYears
• Engine48 HP
• Expected Life0
• FeaturesAxle based 4WD system - Operator controlled locking rear differential and limited slip front differential - Oscillating axle - Drivable at full height - 355° Non-continuous turret rotation - 45% Gradeability - Diesel or dual fuel engine - Swing out engine tray - Swing up cowlings - Modular platform railing system - Dual-entry sliding mid rails - 110V AC outlet on platform with GFI - Direction sensing drive and steer controls - Proportional controls - Relay based control system - Color coded and numbered wiring - Hourmeter - Operator horn - All motion alarm - Tie down/lifting lugs - Wet disc SAHR brakes (rear axle) - 12 x 16.5 grip lug air-filled tires - Telematics ready
• FinishOrange and Grey Paint
• Fuel Tank Capacity64 L
• Graden/a
• Gradeability45 %
• Ground Clearance390 mm
• Horizontal Reach9030 mm
• Hydraulic Reservoir91 L
• Ifc Export AsIfcTransportElementType
• Ifc Export TypeIfcTransportElement
• Inside Turning Radius2490
• Jib Length1520 mm
• Jib Range+70 / -75 Degrees
• KeynoteX
• Local Floor Load With Rated Load793 kPa
• ManufacturerSkyjack
• Manufacturer NameSkyjack
• MaterialMetal
• Maximum Number Of Persons2
• ModelSkyjack - Articulating Boom
• Model NumberSJ51 AJ
• Model ReferenceSkyjack - Vertical lifting platforms
• NBS DescriptionVertical lifting platforms
• NBS Object NameSkyjack - Vertical lifting platforms
• NBS Office Master Tagn/a
• NBS Reference90-80-65/350
• Nominal Depth0 mm
• Nominal Height0 mm
• Nominal Length0 mm
• Outside Turning Radius4520 mm
• Overall Floor Load With Rated Load9.58 kPa
• Overall Height2060 mm
• Overall Length6530 mm
• Overall Width2290 mm
• Platform Height15550 mm
• Platform Rotation170 Degrees
• Platform Size760 x 1830 mm
• Product CodeSJ51 AJ
• Production Year2018
• Product Page Linkskyjack.com
• Referenced Standardn/a
• Replacement Costn/a
• Rotation355 Degrees
• Shapen/a
• Size6530mm (L) x 2290mm (W) x 2060mm (H)
• Spare Partsn/a
• Standard FeaturesAxle based 4WD system - Operator controlled locking rear differential and limited slip front differential - Oscillating axle - Drivable at full height - 355° Non-continuous turret rotation - 45% Gradeability - Diesel or dual fuel engine - Swing out engine tray - Swing up cowlings - Modular platform railing system - Dual-entry sliding mid rails - 110V AC outlet on platform with GFI - Direction sensing drive and steer controls - Proportional controls - Relay based control system - Color coded and numbered wiring - Hourmeter - Operator horn - All motion alarm - Tie down/lifting lugs - Wet disc SAHR brakes (rear axle) - 12 x 16.5 grip lug air-filled tires - Telematics ready
• Tailswing0 mm
• Tire Size12 x 16.5
• Tire TypeAir Filled
• Type CommentsSJ51
• Type NameSkyjack - Articulating Boom
• Up And Over Height7450 mm
• URLskyjack.com/
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYears
• Warranty Guarantor Laborinfo@skyjackeurope.co.uk
• Warranty Guarantor Partsinfo@skyjackeurope.co.uk
• Weight7,300 KG
• Wheelbase2030 mm
• Working Height15930 mm
