SKYJACK - Articulating Boom - SJ85AJ

by Skyjack

Download Add to collection

Description

The SJ85 AJ features Include;

Axle based 4WD system - Operator controlled locking rear differential and limited slip front differential - Oscillating axle - Drivable at full height - EasyDrive™ direction sensing drive and steer controls - SpeedyReach™ functionality - SkyRiser™ functionality - 360° continuous turret rotation - 45% Gradeability - Secondary Guarding (SGE) - Deutz TD2.9L4 diesel engine - Swing out engine tray - Swing up cowlings - Modular platform railing system - Tri-entry sliding mid-rails - 110V AC outlet on platform with GFI - Proportional controls - Relay based control system - Color coded and numbered wiring - Hourmeter - Operator horn - Overload sensing system - All motion alarm - Tie down/lifting lugs - Wet disc SAHR brakes (front and rear axle) - 18 x 625 grip lug foam-filled tires - Telematics ready - 2 Year Gold Leaf Warranty (5 year structural warranty)

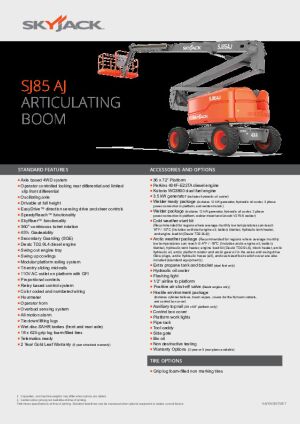

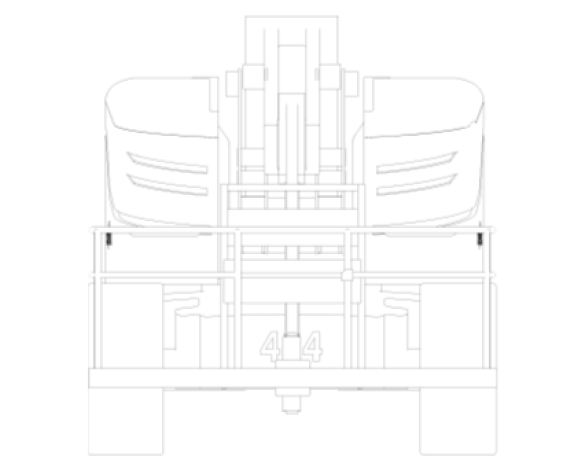

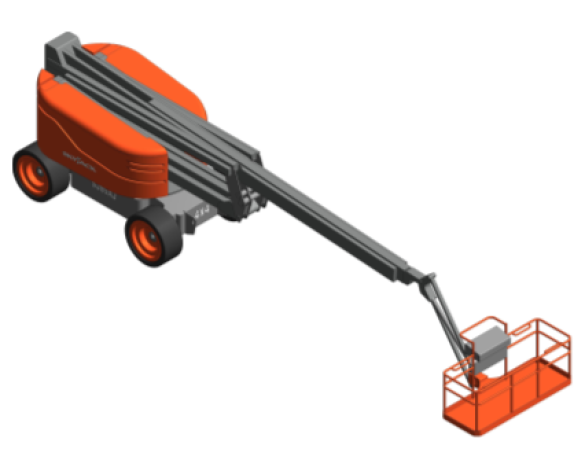

This download includes the SKYJACK Articulating Boom - SJ85 AJ BIM components from SKYJACK.

Keywords: MEWP, Mobile Elevating Work Platform, Cherry Picker, Boom Lift, Work Platform, Aerial Work Platform

Object Data

1 Revision

Last Updated

22/06/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorConnor Laing
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Accessories And Options36 x 72” Platform - Perkins 404F-E22TA diesel engine - Kubota WG3800 dual fuel engine - 3.5 kW generator (includes hydraulic oil cooler) - Welder ready package (includes 12 kW generator, hydraulic oil cooler, 3 phase power connection in platform, and welder mount.) - Welder package (includes 12 kW generator, hydraulic oil cooler, 3 phase power connection in platform, welder mount and Lincoln V275-S welder) - Cold weather start kit (Recommended for regions where average monthly low temperatures can reach 14°F / -10°C (Includes cold start engine oil, battery blanket, hydraulic tank heater, and engine load kit (Deutz TD2.9L4)) - Arctic weather package (Recommended for regions where average monthly low temperatures can reach -0.4°F / -18°C (Includes arctic engine oil, battery blanket, hydraulic tank heater, engine load kit (Deutz TD2.9L4), block heater, arctic hydraulic oil, arctic platform rotator and arctic gear oil in the axles and swing drive Glow plugs, arctic hydraulic hoses (all), and oversized foot switch cover are also included (standard equipment).) - Extra propane tank and bracket (dual fuel only) - Hydraulic oil cooler - Flashing light - 1/2” airline to platform - Positive air shut-off valve (Deutz engine only) - Hostile environment package (Includes cylinder bellows, boom wipers, covers for the fly boom cutouts, and control box cover) - Auxiliary top rail (36 x 96” platform only) - Control box cover - Platform work lights - Pipe rack - Tool caddy - Side gate - Bio oil - Non destructive testing - Warranty Options (3 year or 5 year plans available)
Assembly CodeE1030900
Asset TypeFixed
Axle Oscillation10.16 cm
BIM Object NameSKYJACK_Site_AccessPlatform_ArticulatingBoom_SJ85
Capacity227 / 340 kg
Classification NameUniclass2015
Classification ValuePr_65_80_47_95
Code Performancen/a
ColorOrange and Grey
Constituentsn/a
Created Byinfo@skyjackeurope.co.uk
Created On2018-03-01T09:00:00
DescriptionSkyjack - Access Platform Articulating Boom
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2409
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
Engine74 HP
Expected Life0
FeaturesAxle based 4WD system - Operator controlled locking rear differential and limited slip front differential - Oscillating axle - Drivable at full height - EasyDrive™ direction sensing drive and steer controls - SpeedyReach™ functionality - SkyRiser™ functionality - 360° continuous turret rotation - 45% Gradeability - Secondary Guarding (SGE) - Deutz TD2.9L4 diesel engine - Swing out engine tray - Swing up cowlings - Modular platform railing system - Tri-entry sliding mid-rails - 110V AC outlet on platform with GFI - Proportional controls - Relay based control system - Color coded and numbered wiring - Hourmeter - Operator horn - Overload sensing system - All motion alarm - Tie down/lifting lugs - Wet disc SAHR brakes (front and rear axle) - 18 x 625 grip lug foam-filled tires - Telematics ready - 2 Year Gold Leaf Warranty (5 year structural warranty)
FinishOrange and Grey Paint
Fuel Tank Capacity115 L
Graden/a
Gradeability45%
Ground Clearance340 mm
Horizontal Reach17070 mm
Hydraulic Reservoir170 L
Ifc Export AsIfcTransportElementType
Ifc Export TypeIfcTransportElement
Inside Turning Radius3050 mm
Jib Length1680 mm
Jib Range+65 / -60 Degrees
KeynoteX
ManufacturerSkyjack
Manufacturer NameSkyjack
MaterialMetal
Maximum Number Of Persons2 / 3
ModelSkyjack - Articulating Boom
Model NumberSJ85
Model ReferenceSkyjack - Access Platform
NBS DescriptionVertical lifting platforms
NBS Object NameSkyjack - Vertical lifting platforms
NBS Office Master Tagn/a
NBS Reference90-80-65/350
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Outside Turning Radius6220 mm
Overall Height2670 mm
Overall Length11630 mm
Overall Width2490 mm
Platform Height25910 mm
Platform Rotation170 Degrees
Platform Size910 mm x 2400 mm
Product CodeSJ85
Production Year2018
Product Page Linkskyjack.com/product/sj85-aj
Referenced Standardn/a
Replacement Costn/a
Rotation360 Degrees
Shapen/a
Size11630mm (L) x 2490mm (W) x 2670mm (H)
Spare Partsn/a
Standard FeaturesAxle based 4WD system - Operator controlled locking rear differential and limited slip front differential - Oscillating axle - Drivable at full height - EasyDrive™ direction sensing drive and steer controls - SpeedyReach™ functionality - SkyRiser™ functionality - 360° continuous turret rotation - 45% Gradeability - Secondary Guarding (SGE) - Deutz TD2.9L4 diesel engine - Swing out engine tray - Swing up cowlings - Modular platform railing system - Tri-entry sliding mid-rails - 110V AC outlet on platform with GFI - Proportional controls - Relay based control system - Color coded and numbered wiring - Hourmeter - Operator horn - Overload sensing system - All motion alarm - Tie down/lifting lugs - Wet disc SAHR brakes (front and rear axle) - 18 x 625 grip lug foam-filled tires - Telematics ready - 2 Year Gold Leaf Warranty (5 year structural warranty)
Tailswing910 mm
Tire Size18-625
Tire TypeGrip lug foam-filled
Type CommentsSJ85 AJ
Type NameSkyjack - Articulating Boom
Up And Over Height10360 mm
URLskyjack.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@skyjackeurope.co.uk
Warranty Guarantor Partsinfo@skyjackeurope.co.uk
Weight16,965 kg
Wheelbase2840 mm
Working Height27740 mm
