SKYJACK - Telescopic Boom - SJ45T

by Skyjack

Download Add to collection

Description

STANDARD FEATURES

Drivable at full height - Axle based 4WD - “No Spin” differential and limited slip front differential - Oscillating axle - Wet disc SAHR brakes (rear axle) - 35.8 kw (48 HP) diesel engine - Swing out engine tray - Swing up fiberglass cowlings - 360o continuous turret rotation - Direction sensing drive and steer controls - Proportional controls - Relay based control system - Colour coded and numbered wiring system - 50% gradeability - Grip lug foam -filled tyres - Wiring for AC outlet on platform - Tilt alarm with drive cut -out - Overload sensing system - Operator horn - Modular platform railing system - Tri -entry sliding mid -rail - Lanyard attachment points - Tie down/lifting lugs

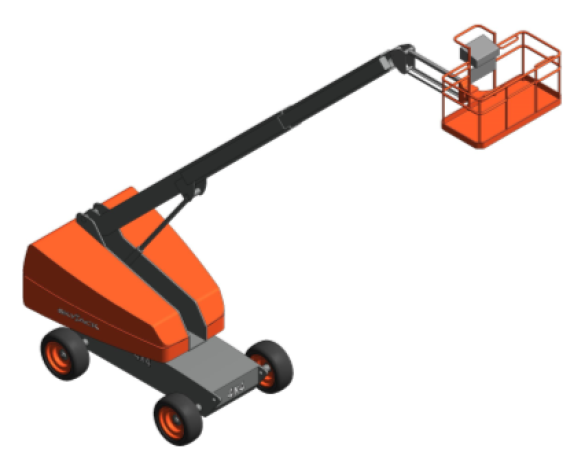

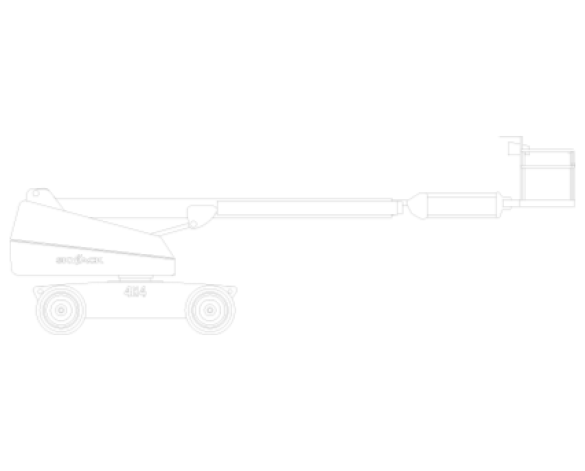

This download includes the SKYJACK Telescopic Boom - SJ45T BIM component.

Keywords: MEWP, Mobile Elevating Work Platform, Cherry Picker, Boom Lift, Work Platform, Aerial Work Platform

Object Data

1 Revision

Last Updated

22/06/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorRyan Lashley
_Authorized ByRyan Lashley
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Accessories And Options0.91 x 2.44 m Platform. 3.5kW generator (Includes hydraulic oil cooler). Diesel scrubber. Hydraulic oil cooler. Flashing light. Airline to platform. All motion alarm. Rear Gate. Control box cover. Auxiliary top rail (0.91 x 2.44 m platform only). Secondary Guarding (electrical or mechanical).
Assembly CodeE1030900
Asset TypeFixed
Axle Oscillation7.62 cm
BIM Object NameSKYJACK_Site_AccessPlatform_TelescopicBoom_SJ45T
Boom Angle(Max)77.50 °
Boom Angle(Min)12.50 °
Capacity227 kg
Classification NameUniclass2015
Classification ValuePr_65_80_47_95
Code Performancen/a
ColorOrange and Grey
Constituentsn/a
Created Byinfo@skyjackeurope.co.uk
Created On2018-03-01T09:00:00
DescriptionAxle based 4WD system. “Detroit Locker” type rear differential and limited slip. front differential. Oscillating axle. Drivable at full height. 50% Gradeability. Diesel or dual fuel engine. Swing out engine tray. Swing up cowlings. Modular platform railing system. Tri-entry sliding mid rails. 110V AC outlet on platform with GFI. Direction sensing drive and steer controls. Proportional controls. Relay based control system. Color coded and numbered wiring. 360° continuous turret rotation. Hourmeter. Operator horn. All motion alarm. Tie down/lifting lugs. Wet disc SAHR brakes (rear axle). 12 x 16.5 grip lug air-filled tires. Telematics ready.
Documentation Certificatesn/a
Documentation Installation Guiden/a

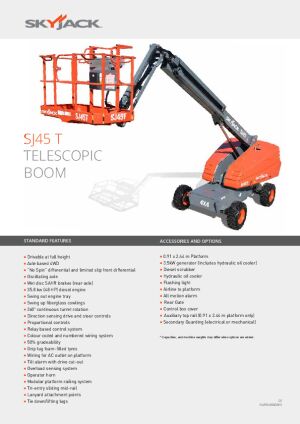

Documentation Literaturespecifi.bimstore.co.uk/document/share/2375
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2375
Duration UnitYears
Engine55.2 kw (74 HP)
Expected Life0
FeaturesAxle based 4WD system. “Detroit Locker” type rear differential and limited slip. front differential. Oscillating axle. Drivable at full height. 50% Gradeability. Diesel or dual fuel engine. Swing out engine tray. Swing up cowlings. Modular platform railing system. Tri-entry sliding mid rails. 110V AC outlet on platform with GFI. Direction sensing drive and steer controls. Proportional controls. Relay based control system. Color coded and numbered wiring. 360° continuous turret rotation. Hourmeter. Operator horn. All motion alarm. Tie down/lifting lugs. Wet disc SAHR brakes (rear axle). 12 x 16.5 grip lug air-filled tires. Telematics ready.
FinishOrange and Grey Paint
Fuel Tank Capacity170 L
Graden/a
Gradeability50%
Ground Clearance280 mm
Horizontal Reach12 mm
Hydraulic Reservoir227 L
Ifc Export AsIfcTransportElementType
Ifc Export TypeIfcTransportElement
Inside Turning Radius2.82 m
Jib Angle(Max)65.00 °
Jib Angle(Min)60.00 °
Jib Length1.52 m
Jib Range+65° / -60°
KeynoteX
Local Floor Load With Rated Load1,140 kPa
ManufacturerSkyjack
Manufacturer NameSkyjack
Materialn/a
Maximum Number Of Persons2
ModelSkyjack - Telescopic Boom
Model NumberSJ45T
Model ReferenceSkyjack - Telescopic Boom
NBS DescriptionVertical lifting platforms
NBS Object NameSkyjack - Vertical lifting platforms
NBS Office Master Tagn/a
NBS Reference90-80-65/350
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Outside Turning Radius5.05 m
Overall Floor Load With Rated Load17.8 kPa
Overall Height2390 mm
Overall Length8790 mm
Overall Width2290 mm
Platform Height13770 mm
Platform Rotation170°
Platform Rotation Angle(Max)85.00 °
Platform Rotation Angle(Min)85.00 °
Platform Size0.91 x 1.83 m
Product CodeSJ45T
Production Year2018
Product Page Linkskyjack.com/product/sj45-t
Referenced Standardn/a
Replacement Costn/a
Rotation360° Continuous
Shapen/a
Sizen/a
Spare Partsn/a
Standard FeaturesDrivable at full height. Axle based 4WD. “No Spin” differential and limited slip front differential. Oscillating axle. Wet disc SAHR brakes (rear axle). 35.8 kw (48 HP) diesel engine. Swing out engine tray. Swing up fiberglass cowlings. 360o continuous turret rotation. Direction sensing drive and steer controls. Proportional controls. Relay based control system. Colour coded and numbered wiring system. 50% gradeability. Grip lug foam-filled tyres. Wiring for AC outlet on platform. Tilt alarm with drive cut-out. Overload sensing system. Operator horn. Modular platform railing system. Tri-entry sliding mid-rail. Lanyard attachment points. Tie down/lifting lugs.
Tailswing940 mm
Telescopic Extension(Max)4400 mm
Telescopic Extension(Min)0 mm
Tire Size15 x 19.5
Tire TypeGrip lug foam-filled
Type CommentsSJ45T
Type NameSkyjack - Telescopic Boom
URLskyjack.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@skyjackeurope.co.uk
Warranty Guarantor Partsinfo@skyjackeurope.co.uk
Weight12,800 kg
Wheelbase2440 mm
Working Height15770 mm
