Slimline Décor - TV Outlets

8.2k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

10/07/2023

Download BIM

Add to collection

Available for:

Slimline Décor offers a comprehensive range of accessories available in a choice of Chrome or Satin Chrome finishes with either black or white moulded inserts. With matching metal rockers on all switched accessories, Slimline Décor provides elegance and sophistication to any modern domestic or commercial building.

Clear Terminal Markings, Fixings screws attached to rear of plate

Products in the Slimline Décor range are guaranteed for 25 years (2 years for electronic products).

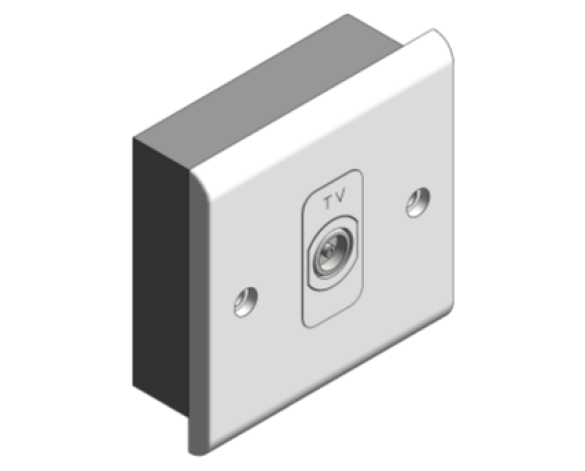

This download is for the Slimline Decor - TV Outlets Range and includes the following types;

S1264CH/SC - TV Outlets Isolated

_AuthorIan Holmes
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD5020120
Asset TypeFixed
Back Box Depth25 mm
BIM Object NameElectricalFixtures_DetaElectrical_SlimlineDecor_TVOutlets
Classification NameUniclass2015
Classification ValuePr_75_51_17_50
Code Performancen/a
ColorChrome
Constituentsn/a
Created Bysales@detaelectrical.co.uk
Created On2017-04-27T00:00:00
Default Elevation1219 mm
DescriptionSingle co-axial isolated
Documentation Certificatesn/a
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/2157
Documentation Literaturespecifi.bimstore.co.uk/document/share/2157
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2157
Duration UnitYears
Expected Life0
FeaturesClear Terminal Markings, Fixings screws attached to rear of plate
Finishn/a
Graden/a
Height86 mm
Ifc Export AsIfcJunctionBoxTypeEnum.POWER
Ifc Export TypeIfcJunctionBox
KeynoteV
ManufacturerDeta Electrical
Manufacturer NameDeta Electrical
MaterialChrome
ModelSlimline Décor - TV Outlets
Model Numbers1264CH
Model ReferenceSlimline Décor - TV Outlets
NBS DescriptionManual control switches
NBS Object NameDeta Electrical - Manual control switches
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth7 mm
Nominal Height86 mm
Nominal Length86 mm
Production Year2017
Referenced StandardBS3041
Replacement Costn/a
s 1264Yes
s 1264 Offset0 mm
s 1265No
s 1265 Offset20 mm
s 1342No
s 1342 Offset50 mm
ShapeSquare
Size86mm x 86mm
Spare Partsn/a
Symbol_TypeTVOutlet_Symbol : 1 Gang Isolated
Thickness7 mm
Type CommentsTV Outlets - s1264CH
Type NameTV Outlets - s1264CH
Unit MaterialDetaElectrical_Chrome
URLwww.detaelectrical.co.uk/
Warranty DescriptionProducts in the Slimline range are guaranteed for 25 years (2 years for electronic products).
Warranty Duration Laborn/a
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Laborsales@detaelectrical.co.uk
Warranty Guarantor Partssales@detaelectrical.co.uk
Width86 mm
