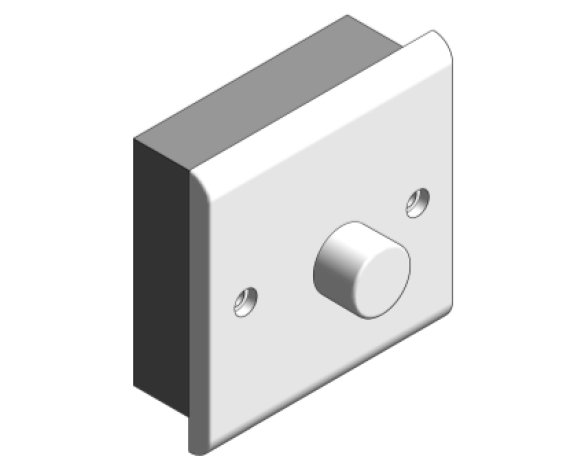

Slimline - Dimmer Switches

11.1k
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

10/07/2023

Download BIM

Add to collection

Available for:

Slimline offers a comprehensive range of accessories including sockets with outboard rocker switches, wide rocker switches, LED dimmers, USB charging sockets and data modules to meet the demands of all modern day domestic and commercial applications.

Suitable for LED lamps, Push on / Push off, Grey font engraving, only one size 4mm screwdriver, Clear terminal markings, Colour coded terminals, Captive and backed out terminals, and Terminals have large lead-ins.

Products in the Slimline range are guaranteed for 25 years (2 years for electronic products).

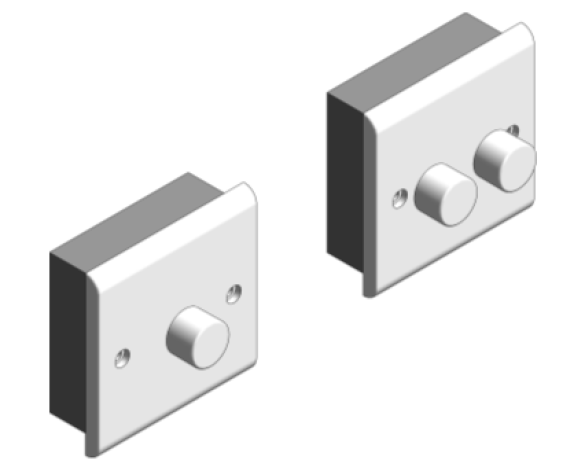

This download is for the Slimline - Dimmer Switches Range and includes the following types;

S1261 - 1 gang 2-way - 100W
S1262 - 2 gang 2-way - 100W

_AuthorSM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeD5020120
Asset TypeFixed
Back Box Depth25 mm
BIM Object NameDetaElectrical_Slimline_DimmerSwitches
Classification NameUniclass2015
Classification ValuePr_75_51_17_50
Code Performancen/a
Colorn/a
Constituentsn/a
Created Bysales@detaelectrical.co.uk
Created On2023-05-23T09:00:00
Default Elevation1219 mm
DescriptionS1410 - 1G 250W / LED 100W Universal Dimmer (2 Way Switching)
Dimmer Switch Offset16 mm
Documentation Certificatesn/a
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/2157
Documentation Literaturespecifi.bimstore.co.uk/document/share/2157
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2157
Double DimmerYes
Duration UnitYears
Expected Life0
FeaturesSuitable for LED lamps, Push on / Push off, Grey font engraving, only one size 4mm screwdriver, Clear terminal markings, Colour coded terminals, Captive and backed out terminals, and Terminals have large lead-ins.
Finishn/a
Graden/a
Height86 mm
Ifc Export AsIfcJunctionBoxTypeEnum.POWER
Ifc Export TypeIfcJunctionBox
KeynoteV
ManufacturerDeta Electrical
Manufacturer NameDeta Electrical
MaterialUrea Formaldehyde
ModelS1410
Model NumberS1410
Model ReferenceS1410 - 1G 250W / LED 100W Universal Dimmer (2 Way Switching)
NBS DescriptionManual control switches
NBS Noten/a
NBS Object NameDeta Electrical - Manual control switches
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth7 mm
Nominal Height86 mm
Nominal Length86 mm
Production Year2023
Referenced StandardBS EN 60669-1
Replacement Costn/a
ShapeSquare
Single DimmerNo
Size86mm x 86mm
Spare Partsn/a
Thickness7 mm
Type CommentsS1410 - 1G 250W / LED 100W Universal Dimmer (2 Way Switching)
Type NameS1410 - 1G 250W / LED 100W Universal Dimmer (2 Way Switching)
Unit MaterialDetaElectrical_White
URLwww.detaelectrical.co.uk/
Warranty Description2-year guarantee
Warranty Duration Laborn/a
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Laborsales@detaelectrical.co.uk
Warranty Guarantor Partssales@detaelectrical.co.uk
Width86 mm
