SMD Roof Deck

Description

Whether you are looking for a roof deck profile to span the short distance between purilns or a longer span option on to hot-rolled steel beams, we have a range of products to provide the design flexibly to suit all project requirements.

SR products are typically used in a variety of built-up systems including; single ply membrane, double skin, standing seam, green roofs and asphalt.

The standard product comes with a 275g/m² hot-dip galvanised coating suitable for most internal environments.

Should your project require a more durable or aesthetic appearance, an interior liner option and other colour polyester coatings are available on request.

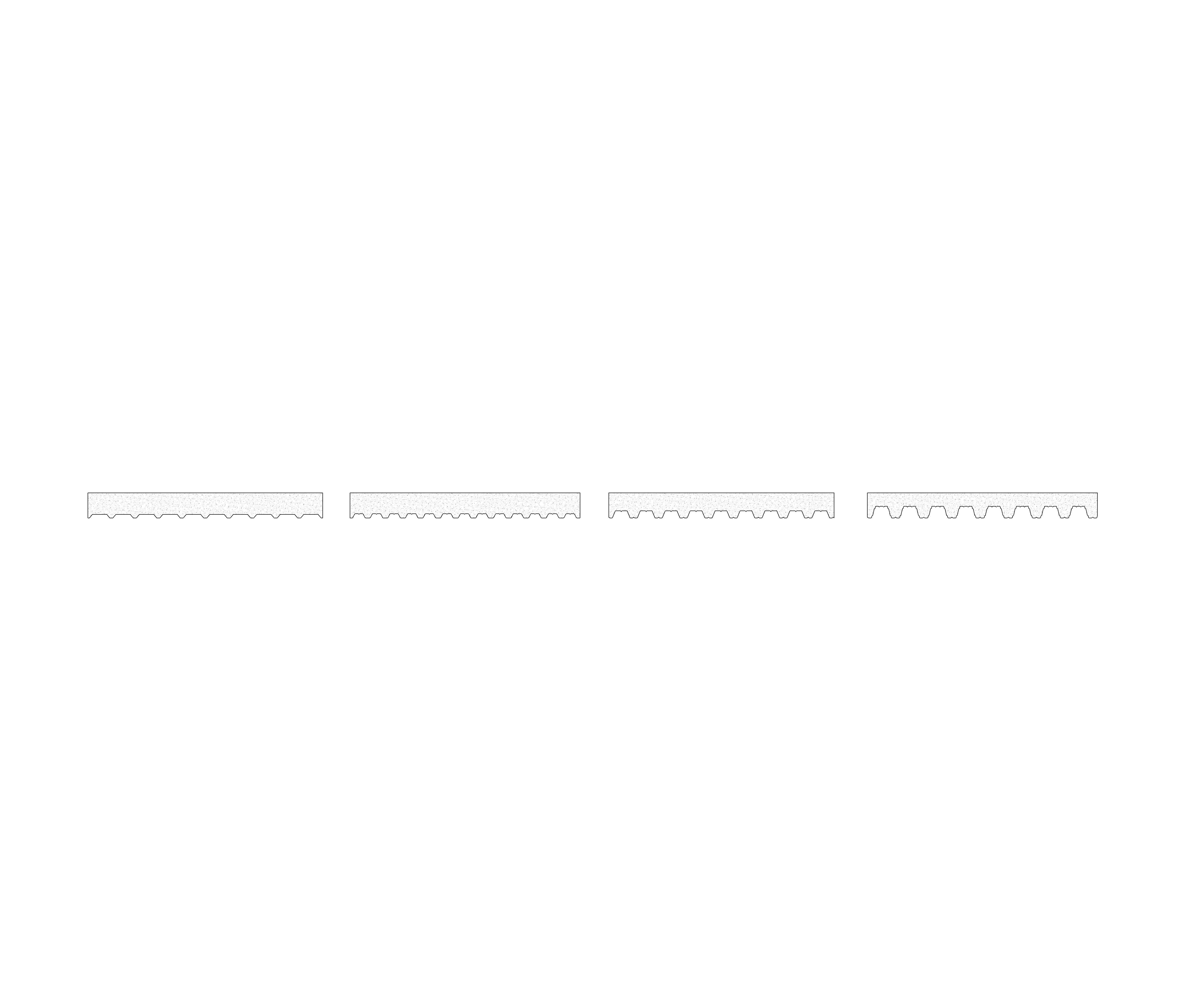

Roof Deck products containe din this file (other deeper roof deck profiles are also available - see our website for more information)

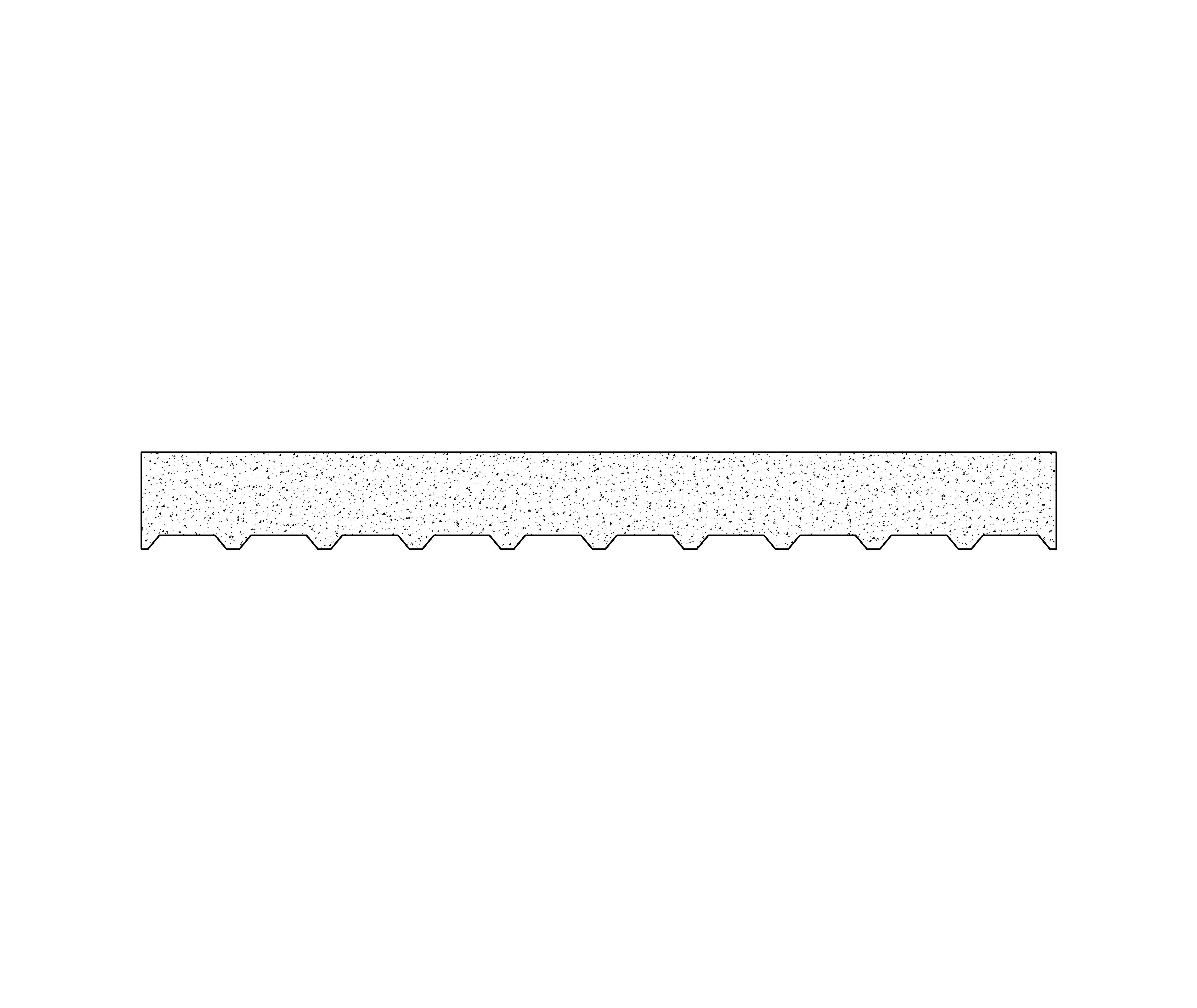

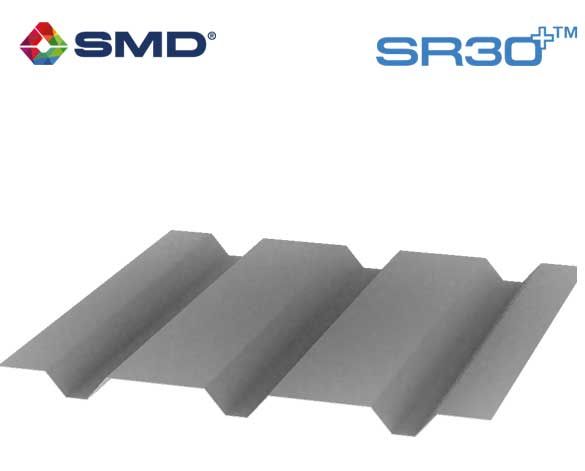

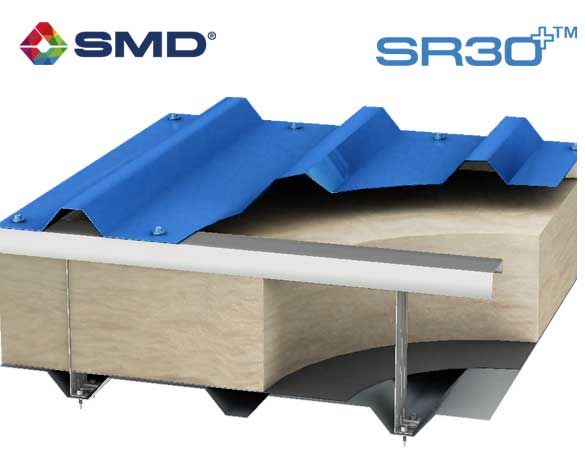

• SR30+

  • 1000mm cover width

  • 30mm high

  • 200mm trough centres

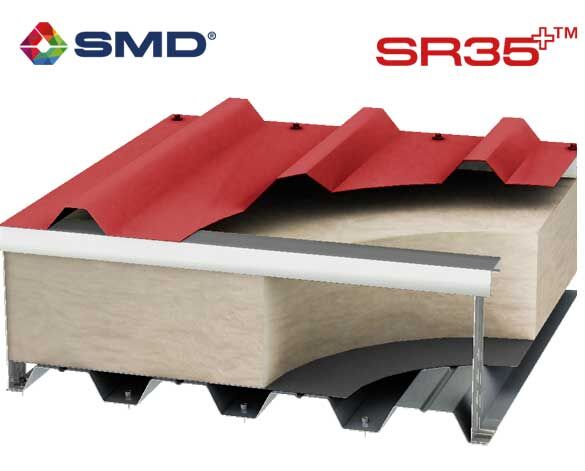

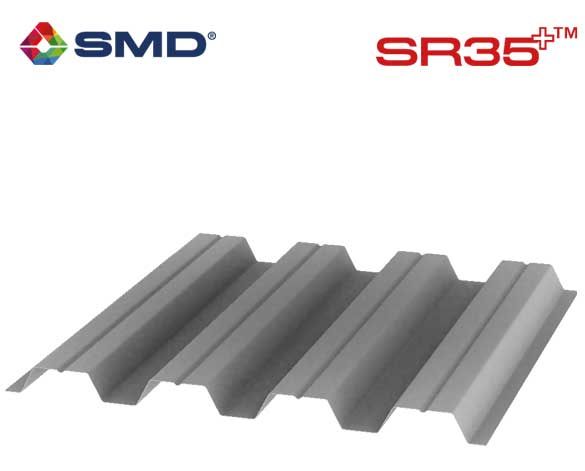

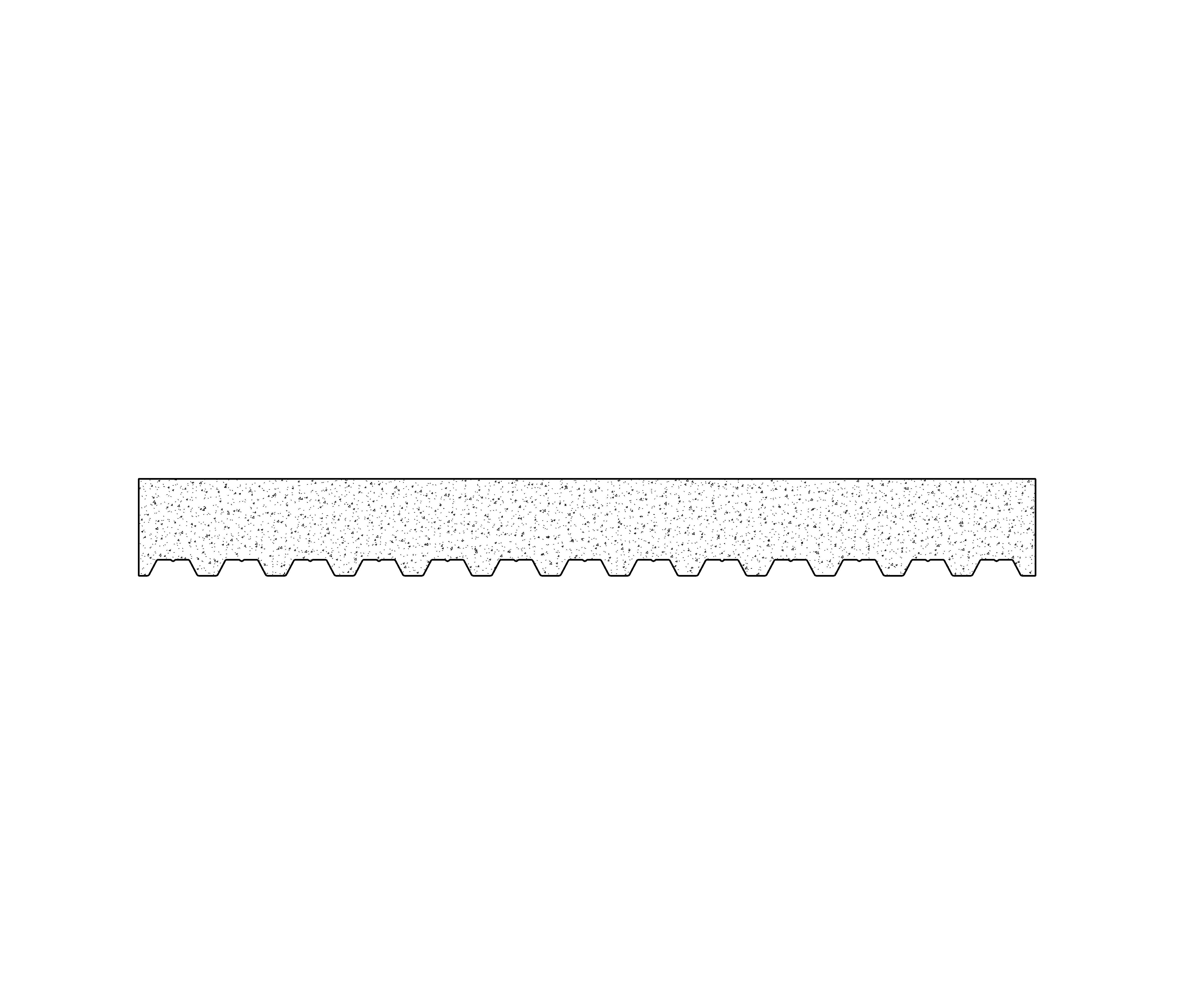

• SR35+

  • 900mm cover width

  • 35mm high

  • 150mm trough centres

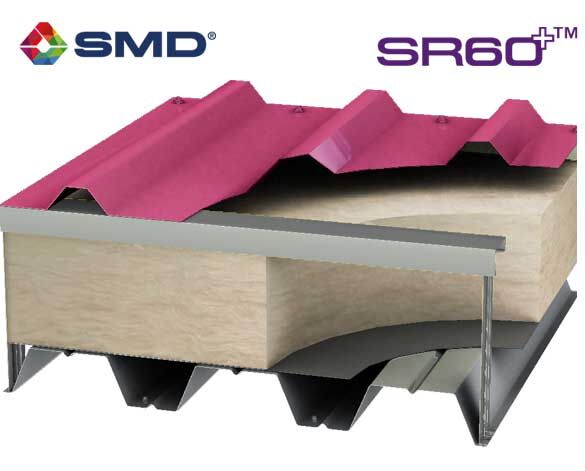

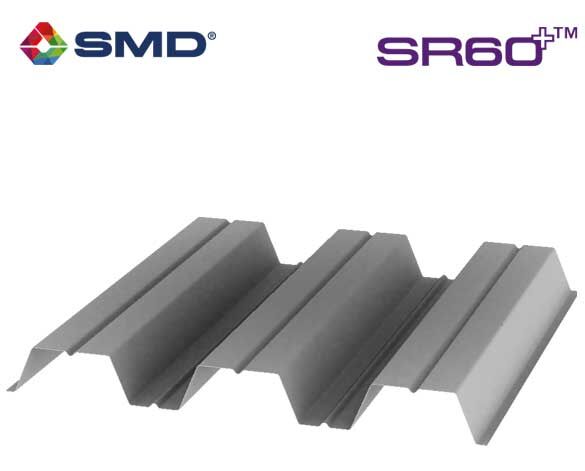

• SR60+

  • 850mm cover width

  • 60mm high

  • 213mm trough centres

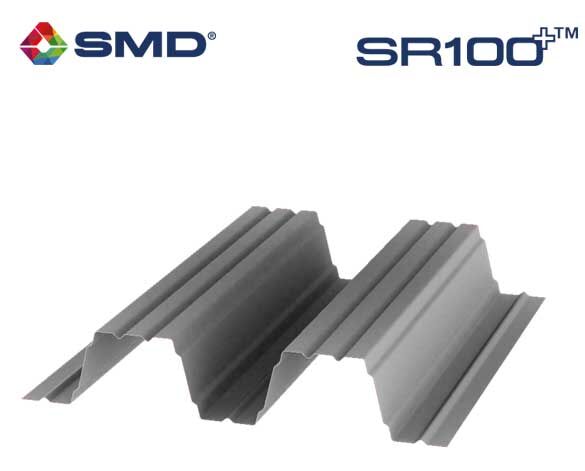

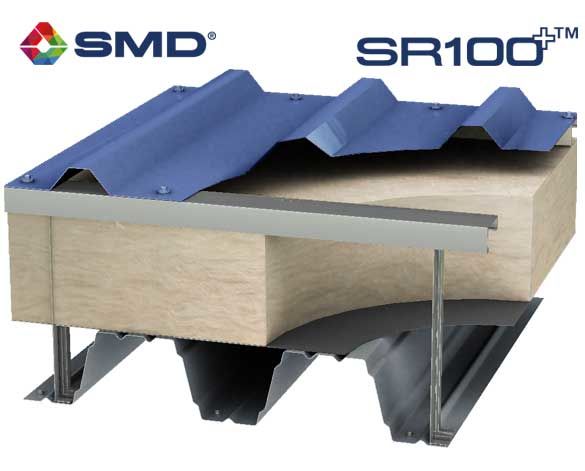

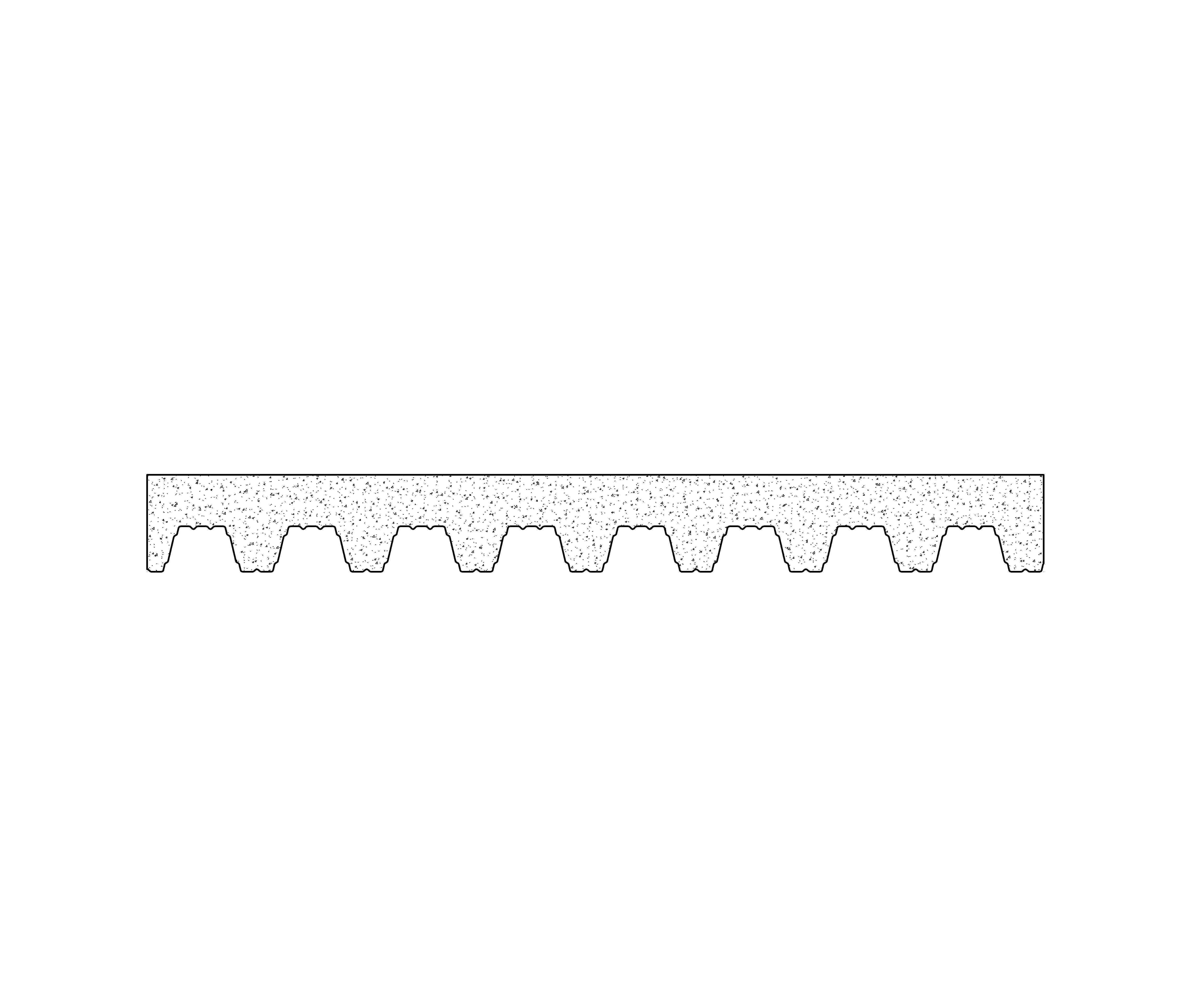

• SR100+

  • 720mm cover width

  • 100mm high

  • 240mm trough centres
