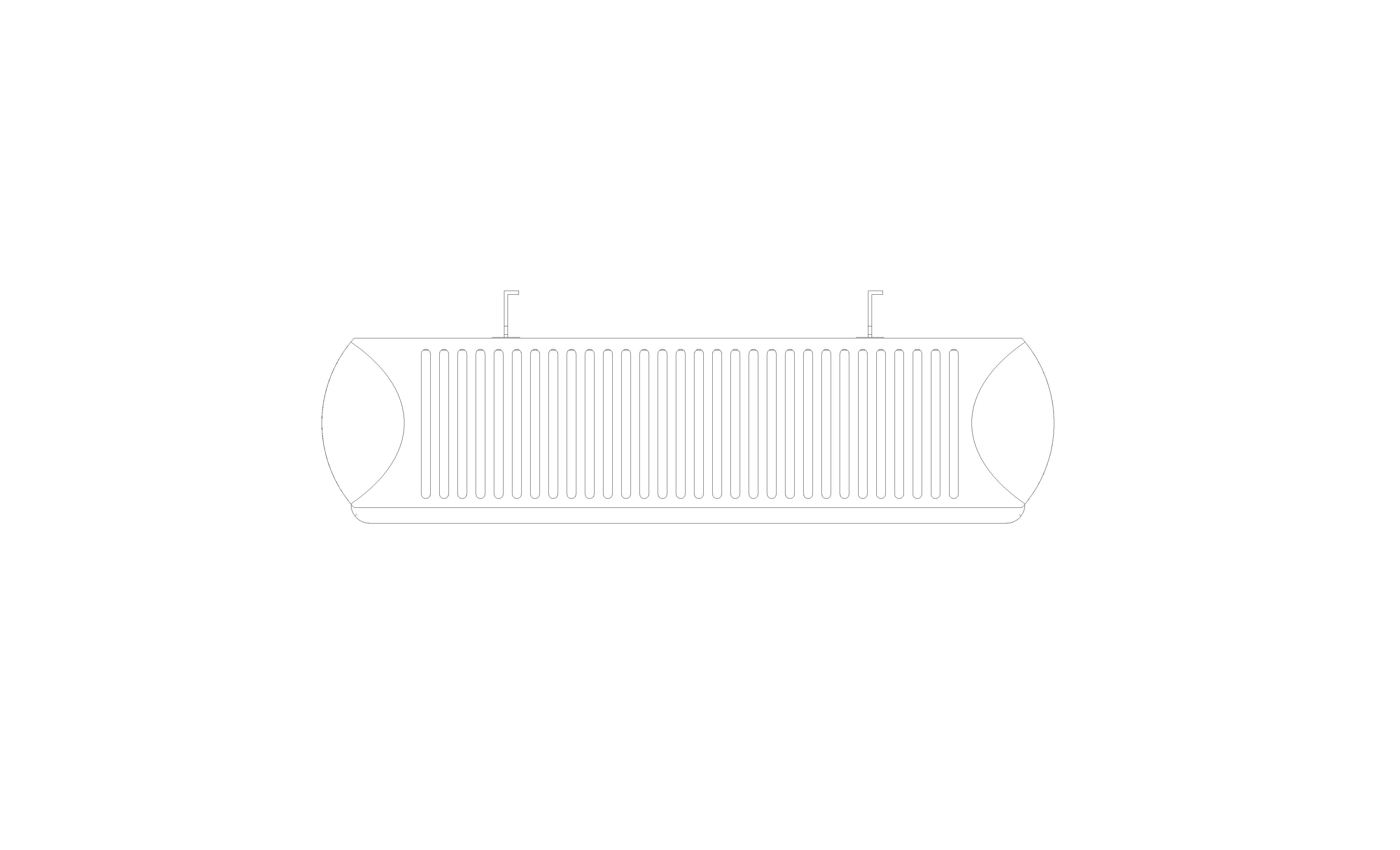

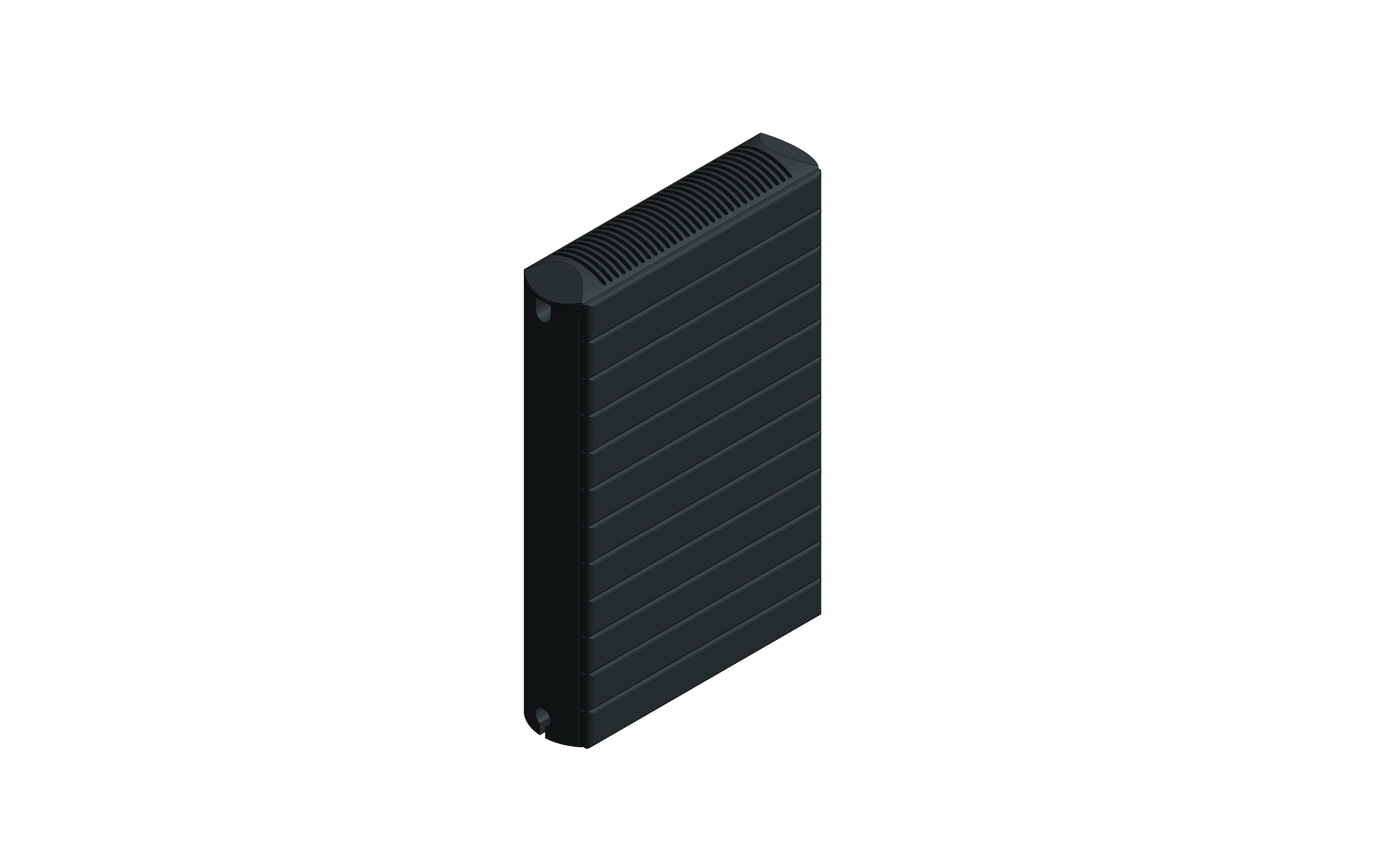

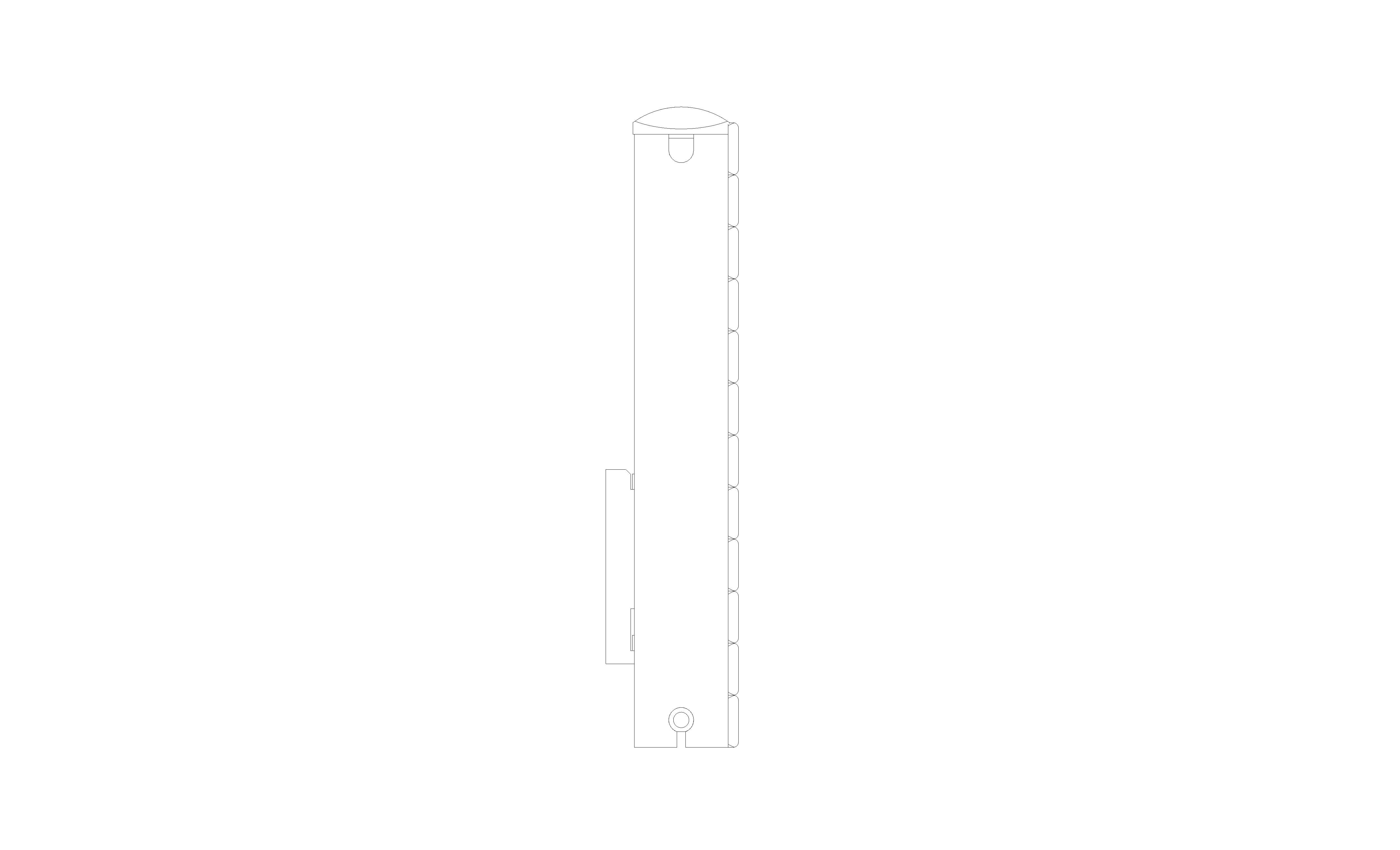

Softline Deco Concept Radiator

Object metadata

• _AuthorJY
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version15
• _Created Bywww.bimstore.co/
• _Current Revision2
• _Distributed Bywww.bimstore.co/
• Access Clearance Zone Back0 mm
• Access Clearance Zone Bottom0 mm
• Access Clearance Zone Front0 mm
• Access Clearance Zone Left0 mm
• Access Clearance Zone Right0 mm
• Access Clearance Zone Top0 mm
• Accessibility Performancen/a
• Air VentNo
• Assembly CodeD3020
• Asset TypeFixed
• BIM Object NameStelrad_MechanicalEquipment_Radiators_SoftlineDecoConcept_K2
• Bracket A133 mm
• Bracket B60 mm
• Bracket C500 mm
• Btu/hr5463
• Case Height600 mm
• Case Width1000 mm
• Casing Thickness1 mm
• Classification NameUniclass2015
• Classification ValuePr_70_60_36_73
• Code Performancen/a
• ColorWhite RAL 9010
• ColourWhite RAL 9010
• Connection Diameter15 mm
• Connection Radius8 mm
• Conn LHS26 mm
• Conn RHS26 mm
• Constituentsn/a
• Created Byinfo@stelrad.com
• Created On2017-02-01T00:00:00
• DescriptionLow Surface Temperature Softline Deco Concept - K2 Element
• Documentation Certificatesn/a
• Documentation Installation Guiden/a
• Documentation Literaturen/a
• Documentation Maintenancen/a
• Documentation Technicaln/a
• Drain TapNo
• Duration Unityear
• Element Offset25 mm
• Element Offset Btm15 mm
• Expected Life0
• FeaturesPanelled Radiator
• FinnedNo
• Floor StandsNo
• Graden/a
• Gross Weight38.40 kg
• Heat ReflectorNo
• Ifc Export AsIfcSpaceHeater
• Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
• Inlet GrilleNo
• Integral Locksheild ValveNo
• Integral Regulating ValveNo
• Integral TRVNo
• KeynoteT32
• Maintenance Required 0-300hrsPlease record on commissioning
• Maintenance Required 1001-2000hrsPlease record on commissioning
• Maintenance Required 2001-4000hrsPlease record on commissioning
• Maintenance Required 301-600hrsPlease record on commissioning
• Maintenance Required 4001-8000hrsPlease record on commissioning
• Maintenance Required 601-1000hrsPlease record on commissioning
• Maintenance Required 8001-12000hrsPlease record on commissioning
• ManufacturerStelrad
• Manufacturer NameStelrad
• MaterialSteel
• Maximum Operating Pressure800.0 kPa
• Maximum Operating Temperature95 °C
• Maximum Test Pressure1050.0 kPa
• Middle BracketNo
• ModelSoftline Deco Concept K2 - 24601110
• Model Number24601110
• Model ReferenceSoftline Deco Concept K2 - 24601110
• NBS DescriptionRadiators
• NBS Object NameStelrad - Radiators
• NBS Office Master Tagn/a
• NBS Reference90-40-35/405
• Nominal Depth100 mm
• Nominal Height600 mm
• Nominal Length1000 mm
• Number Of Panels0
• Number Of Sections0
• Offset From Floor0 mm
• Offset From Wall28 mm
• Outlet GrilleNo
• Output_DT50_EN44293 W
• Overall Height600 mm
• Overall Length1000 mm
• Overall Width100 mm
• Panel Height50 mm
• Panel No12
• Panel Width970 mm
• Pipe Connection Size15 mm
• Production Year2019
• Product Literaturen/a
• Product RangeSoftline Deco Concept K2
• Referenced Standardn/a
• Replacement Costn/a
• ShapeRectangle
• Shipping Weight38.40 kg
• Size600mm (h) x 1000mm (l) x 100mm (d)
• Spare Partsn/a
• Temperature ClassificationEN 442
• Thermal Output1601 W
• Thk10 mm
• Top Width962 mm
• TypeK2
• Type CommentsLow Surface Temperature Softline Deco Concept - K2 Element
• Type NameLow Surface Temperature Softline Deco Concept - K2 Element
• UIN24601110
• URLwww.stelrad.com
• Wall BracketsNo
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts15
• Warranty Duration Unityear
• Warranty Guarantor Laborinfo@stelrad.com
• Warranty Guarantor Partsinfo@stelrad.com
• Warranty IDn/a
• Water Content6.6 L
• Watts1601
• Working Pressure10 bar
