Softline Plan Concept Radiator

by Stelrad Radiators Ltd

Download Add to collection

Description

This radiator takes the flat fronted, minimalist look a step further, available from stock– the Stelrad Softline Plan Concept is perfect to match or contrast with other décor.

Slim and softly curved, the simple, sophisticated looks of the Softline Plan Concept radiator adds a subtle dash of colour to a classic minimalist design, with an attractive Anthracite Grey finish. Style and quality in perfect harmony.

Click here to view our interactive brochure

Object Data

1 Revision

Last Updated

21/02/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

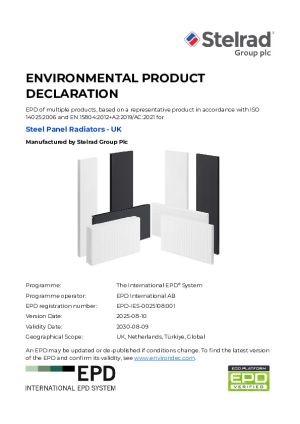

Accompanying literature

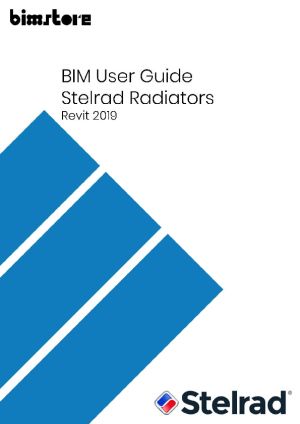

Object User Guide

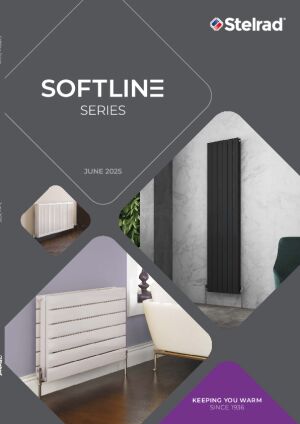

Product Literature

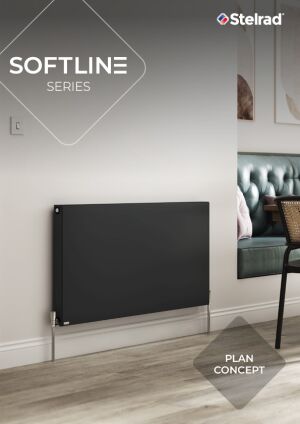

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorJY
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co/
_Current Revision2
_Distributed Bywww.bimstore.co/
6 Monthlyn/a
Access Clearance Zone Back0 mm
Access Clearance Zone Bottom0 mm
Access Clearance Zone Front0 mm
Access Clearance Zone Left0 mm
Access Clearance Zone Right0 mm
Access Clearance Zone Top0 mm
Accessibility Performancen/a
Air VentNo
Annuallyn/a
Assembly CodeD3020
Asset TypeFixed
Bespoke Timeframen/a
BIM Object NameStelrad_MechanicalEquipment_Radiators_SoftlinePlanConcept_K2
Bracket A133 mm
Bracket B60 mm
Bracket C500 mm
Btu/hr2968
Case Height600 mm
Case Width1000 mm
Casing Materialn/a
Casing Thickness1 mm
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
Code Performancen/a
ColorWhite RAL 9010
ColourWhite RAL 9010
Connection Diameter15 mm
Connection Radius8 mm
Conn LHS26 mm
Conn RHS26 mm
Constituentsn/a
Created Byinfo@stelrad.com
Created On2017-02-01T00:00:00
Dailyn/a
DescriptionLow Surface Temperature Softline Plan Concept - K2 Element
Documentation Certificateswww.stelrad.com
Documentation Installation Guidewww.stelrad.com
Documentation Literaturewww.stelrad.com
Documentation Maintenancewww.stelrad.com
Documentation Technicalwww.stelrad.com
Drain TapNo
Duration Unityear
Element Offset25 mm
Element Offset Btm15 mm
Element Width950 mm
Expected Life0
FeaturesPanelled Radiator
Finishn/a
FinnedNo
Floor StandsNo
Graden/a
Gross Weight23.66 kg
Heat Emitter Materialn/a
Heat ReflectorNo
Heat Transfer Mediumn/a
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
Inlet GrilleNo
Integral Locksheild ValveNo
Integral Regulating ValveNo
Integral TRVNo
KeynoteT32
Maintenance Required 0-300hrsPlease record on commissioning
Maintenance Required 1001-2000hrsPlease record on commissioning
Maintenance Required 2001-4000hrsPlease record on commissioning
Maintenance Required 301-600hrsPlease record on commissioning
Maintenance Required 4001-8000hrsPlease record on commissioning
Maintenance Required 601-1000hrsPlease record on commissioning
Maintenance Required 8001-12000hrsPlease record on commissioning
ManufacturerStelrad
Manufacturer NameStelrad
MaterialSteel
Maximum Operating Pressure800.0 kPa
Maximum Operating Temperature95 °C
Maximum Test Pressure1050.0 kPa
ModelSoftline Plan Concept K2 - 25602210
Model Number25602210
Model ReferenceSoftline Plan Concept K2 - 25602210
Monthlyn/a
Mounting BracketNo
Mounting TypeWall Mounted
NBS DescriptionRadiators
NBS Object NameStelrad - Radiators
NBS Office Master Tagn/a
NBS Reference90-40-35/405
Nominal Depth100 mm
Nominal Height600 mm
Nominal Length1000 mm
Number Of Panels0
Number Of Sections0
O&M Manualn/a
Offset From Floor0 mm
Offset From Wall0 mm
Outlet GrilleNo
Output_DT50_EN44293 W
Overall Height600 mm
Overall Length1000 mm
Overall Width100 mm
Panel Height50 mm
Panel No12
Panel Width970 mm
Pipe Connection Size15 mm
Possible Connections Positionsn/a
Production Year2019
Product Literaturen/a
Product RangeSoftline Plan Concept K2
Quaterlyn/a
Referenced Standardn/a
Reference Standardn/a
Replacement Costn/a
Seam Typen/a
ShapeRectangle
Shipping Weight23.66 kg
Size600mm (h) x 1000mm (l) x 100mm (d)
Spare Partsn/a
Temperature ClassificationEN 442
Thermal Output93 W
Thk10 mm
Top Width962 mm
TypeK2
Type CommentsLow Surface Temperature Softline Plan Concept - K2 Element
Type NameLow Surface Temperature Softline Plan Concept - K2 Element
UIN25602210
URLwww.stelrad.com
Wall BracketsNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts5
Warranty Duration Unityear
Warranty Guarantor Laborinfo@stelrad.com
Warranty Guarantor Partsinfo@stelrad.com
Warranty IDn/a
Water Content3.3 L
Water Flow Raten/a
Watts870
Weeklyn/a
Working Pressure10 bar
