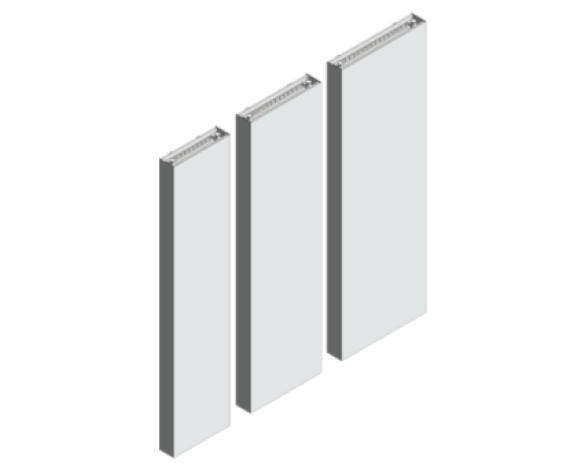

Softline Plan Vertical Radiator

Object metadata

• _authorized byKris Atkinson
• _BIMspec_GUID0
• _created byKris Atkinson
• _current revision1
• _distributed bywww.bimstore.co.uk
• A133 mm
• Access Clearance Bottom0 mm
• Access Clearance Front0 mm
• Access Clearance Left0 mm
• Access Clearance Rear0 mm
• Access Clearance Right0 mm
• Access Clearance Top0 mm
• Air VentYes
• Assembly CodeD3020
• Asset TypeFixed
• B60 mm
• Box Depth124 mm
• Bracket Height Calc1775 mm
• Bracket Offset100 mm
• C17 mm
• Casing MaterialMild Steel
• Classification NameUniclass2015
• Classification ValuePr_70_60_36_73
• ColorWhite (RAL 9016)
• ColourWhite (RAL 9016)
• Connector Dia15 mm
• Connector Dia Calc8 mm
• Created Byinfo@stelrad.com
• Created OnFeb16
• D555 mm
• Depth125 mm
• DescriptionThe minimalistic, stylish design of a Softline Plan has an understated, flat finish which is simplicity at its best. It’s the ultimate in minimalism for radiators as the slim profile of the Softline Plan is an attractive addition to any space.
• Documentation Certificateswww.stelrad.com/support-information/dop/
• Documentation Installation Guidewww.stelrad.com/support-information/dop/
• Documentation Literaturespecifi.bimstore.co.uk/document/share/1559
• Documentation Technicalspecifi.bimstore.co.uk/document/share/1559
• Drain TapNo
• Duration UnitYears
• Embodied CarbonN/A
• Expected Life0
• FinishPainted
• FinnedYes
• GradeK2
• Gross Weight42.12
• Heat Emitter MaterialMild Steel
• Heat Output Btu/hr5036
• Heat Output Watts1476
• Heat reflectorNo
• Heat Transfer MediumConvection
• Height1800 mm
• Height From Floor150 mm
• Inlet GrilleNo
• Integral Lockshield ValveNo
• Integral Regulating ValveNo
• Integral TRVNo
• KeynoteT30/350
• Length400 mm
• Location of ManufacturerRotherham, S64 8BN, United Kingdom
• ManufacturerStelrad Ltd
• Maximum Operating Pressure8
• Maximum Operating TemperatureN/A
• Maximum Test Pressure13.5
• ModelStelrad Softline Plan V
• Model NumberStelrad Softline Plan V
• Mounting TypeWall Mounted
• NBS Object NameRadiators
• NBS Reference90-40-35/405
• Number of PanelsN/A
• Number of SectionsN/A
• Offset from wall to CL76 mm
• Outlet GrilleNo
• Overall Height1800 mm
• Overall Length400 mm
• Pipe Connections Size15mm
• Possible Connections PositionsTop or Bottom
• Product Literature2jomhg1cupfs2jxnrb3gelkt.wpengine.netdna-cdn.com/wp-content/uploads/2015/10/Softline-Plan-Tech-Bro.pdf
• Product Model Number87322418
• Product RangeStelrad Softline Plan V
• Production Year2016
• Reference StandardEN 442 Certification Data - CETIAT tested in accordance with BS EN 442
• Replacement CostN/A
• Seam TypeSeam Weld
• ShapeRectangular (Vertical)
• Shipping WeightN/A
• Size1800 x 400mm
• Spare PartsN/A
• Thermal OutputN/A
• TypeK2 Vertical
• Type CommentsK2 - 1800x400mm
• Type NameK2 - 1800x400mm
• UIN87322418
• URLwww.stelrad.com/
• Wall BracketsYes
• Wall to tap centre mm76 mm
• Warranty Description15 Years
• Warranty Duration UnitYears
• Warranty Guarantor Laborinfo@stelrad.com
• Warranty Guarantor Partsinfo@stelrad.com
• Water Content6.36
