Soter II - Horizontal Lifeline

by SFS

Download Add to collection

Description

The industry-leading Horizontal Lifeline System from SFS allows users to safely work at height without restrictions to their movement. Fitted to the outer roof skin, the system uses innovative shock-absorbing technology to spread and dissipate the shock load of a multi- or single-user fall, protecting both users and the roof structure.

Unapproved

This content has not yet been through the Bimstore QA process and as such may not meet our minimum standards for content hosting.

Object Data

1 Revision

Last Updated

13/02/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Literature

Product Data Sheet

Object metadata

_AuthorRyan Wigham
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
_Object User Guidewww.bimstore.co/product/908620f1-7100-4abe-a18b-6538312cfd65/document/30ea4428-ef59-4c32-95b6-339c62cc90bf/download
Accessibility Performancen/a
Assembly CodeF1030900
Asset TypeFixed
Base MaterialStainless Steel, Brushed
Base Offset0 mm
BIM Object NameSFS_FallProtection_SoterII
Body MaterialStainless Steel, Brushed
Classification NameUniclass2015
Classification ValuePr_40_70_75_75
Code Performancen/a
ColorSilver
Constituentsn/a
CornerYes
Created Byfallprotection@sfs.biz
Created On07-02.2019 T09:00:00
Default Elevation1219 mm
DescriptionIn the event of a fall, Soter™ will deploy a uniquely patented energy-absorbing coil that limits the forces developed during freefall to no greater than 6kN on the roof structure and no greater than 5.5kN on the user attachment point.
Documentation Certificateswww.sfsintec.biz/mo/uk/en/web/homepage.html
Documentation Installation Guidewww.sfsintec.biz/mo/uk/en/web/homepage.html
Documentation Literaturewww.bimstore.co/product/908620f1-7100-4abe-a18b-6538312cfd65/document/5263d62f-f977-47f7-b0e5-3896e131ea2e/download
Documentation Maintenancewww.sfsintec.biz/mo/uk/en/web/homepage.html
Documentation Technicalwww.sfsintec.biz/mo/uk/en/web/homepage.html
Duration UnitYears
Expected Life0
FeaturesOptimum shock absorbing element and baseplate, reduces deployment loads to the roof structure to below 6kN. The post is modular, allowing for post removal after deployment without disturbing the roof make-up.
FinishStainless Steel
Grade304 & 316
Ifc Export AsObject
Ifc Export TypeIfcBuildingElementProxy
IntermediateNo
KeynoteN25

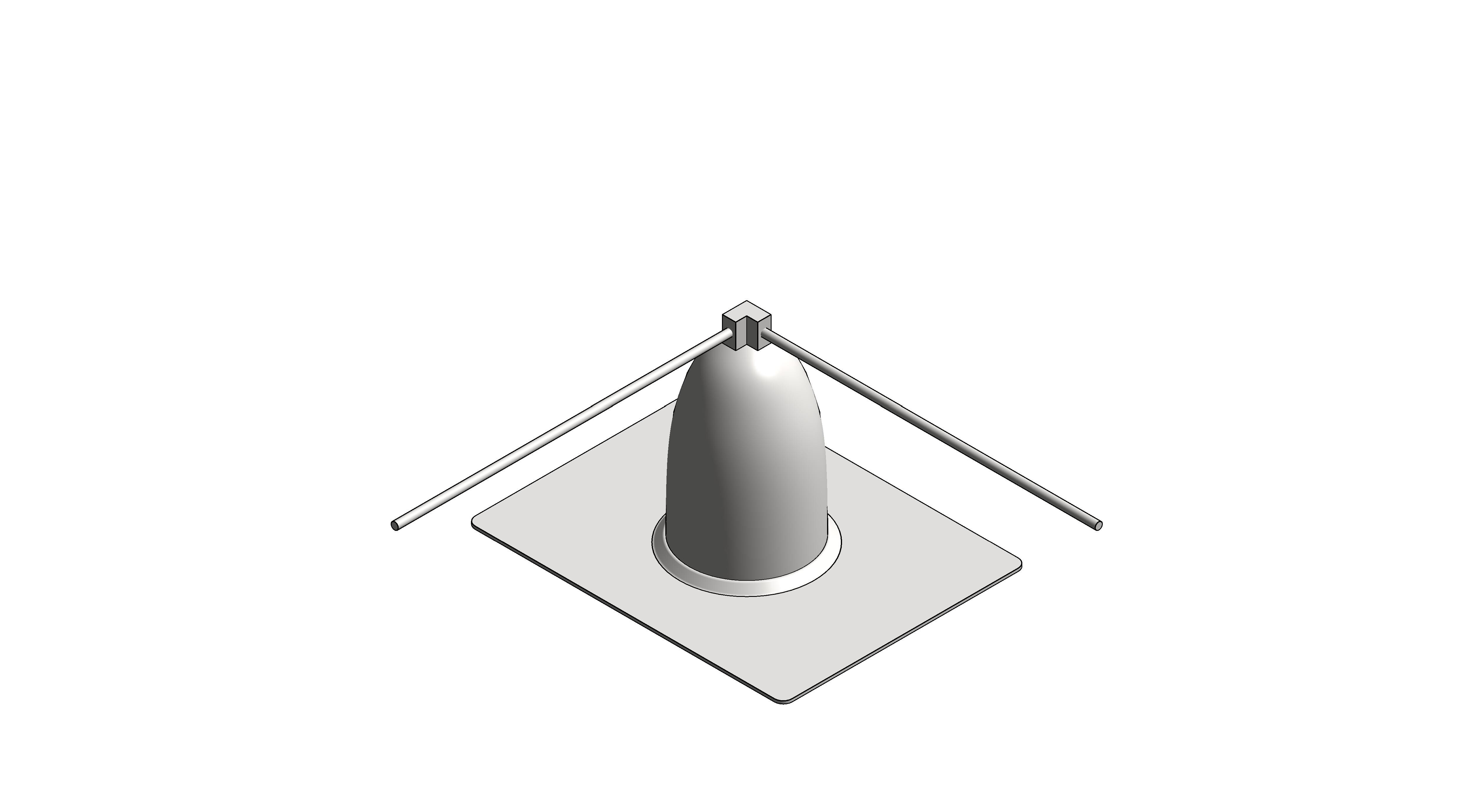

Line Wire CornerYes
Line Wire IntermediateNo

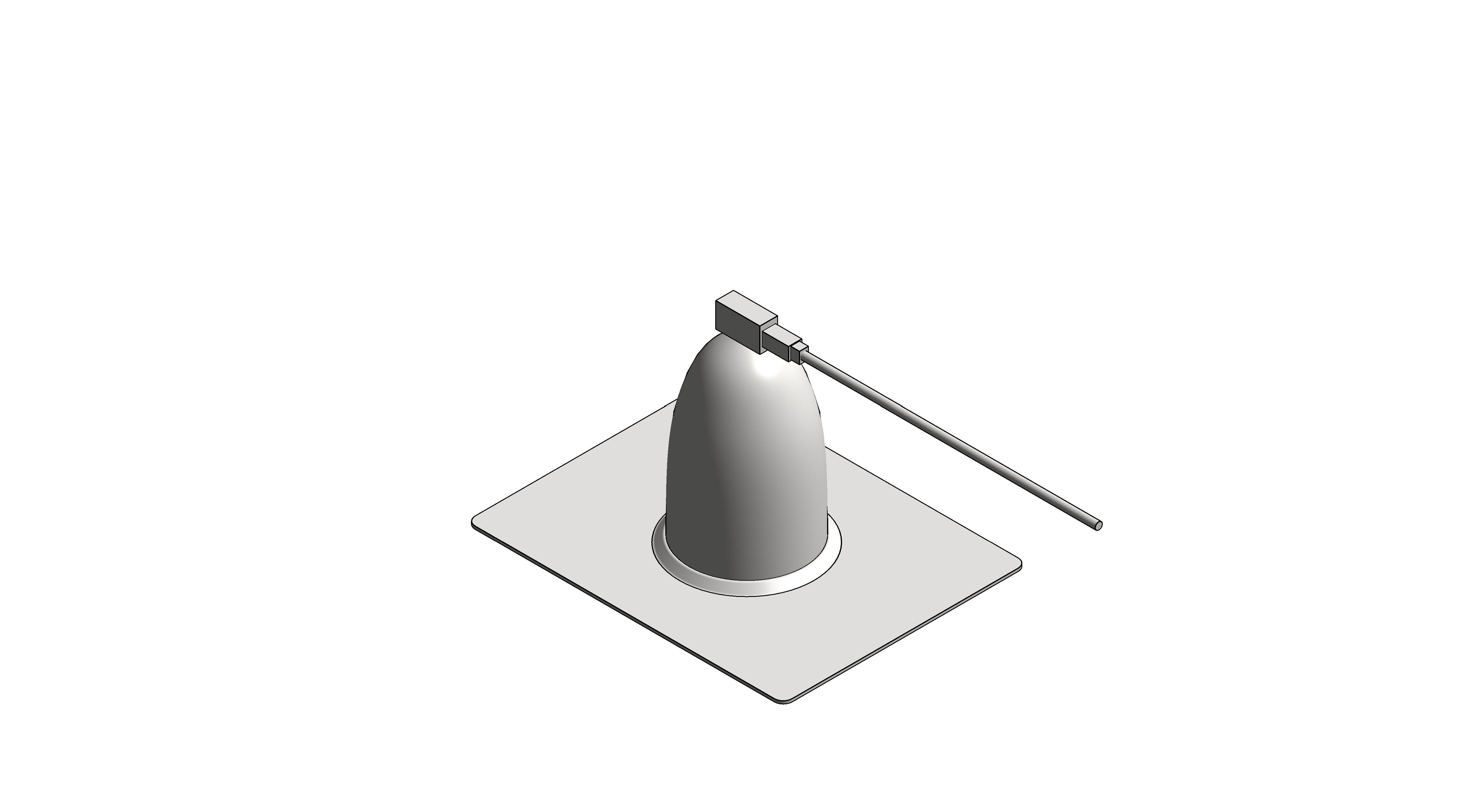

Line Wire Start EndNo

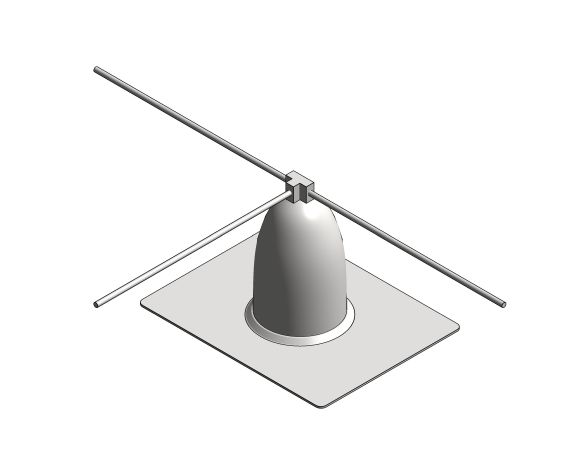

Line Wire TeeNo
ManufacturerSFS
Manufacturer NameSFS
MaterialStainless Steel
ModelSoter II
Model NumberCorner Post
Model ReferenceSoter II
NBS DescriptionAnchor devices for removable personal fall protection equipment
NBS Object NameSFS - Safety access anchor devices
NBS Office Master Tagn/a
NBS Reference45-35-74/405
Nominal Depth388 mm
Nominal Height233 mm
Nominal Length420 mm
Production Year2019
Referenced StandardEN795:2012 & CEN/TS:16415:2013 (UNI11578)
Replacement Costn/a
ShapeDome
Size420x388x233mm
Spare Partsn/a
Start EndNo
TeeNo
Type CommentsCorner Post
Type NameCorner Post
URLwww.sfsintec.biz/mo/uk/en/web/homepage.html
Warranty DescriptionAll products sold within the SFS group carry a standard 12 month “fit for purpose” product warranty.In cases where customers seek additional comfort, they can apply for an extended warranty. Warranty terms may be 1+24 years… or even longer than this, subject to conditions and project specification. A pre-contract questionnaire, covering building use and proximity to chemicals or coastal environment, will be required.All warranties are subject to the frequency of inspections and system re-certification. The Soter™ SFS warranty covers all systems installed on Trapezoidal Roof Profiles, Standing Seam and Flat Roofs. The Soter™ range is made from non-ferrous & stainless steel components, it carries a design life which goes beyond that of the actual building. Standard terms & conditions and covered by our insurance and available on request.
Warranty Duration Laborn/a
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborfallprotection@sfs.biz
Warranty Guarantor Partsfallprotection@sfs.biz
WireStainless Steel, Brushed
